Dishwasher Door Balance Wheel 8524474

★★★★★★★★★★
5
53
4
10
3
3
2
0
1
2
BEST SELLER

Part #8524474

Replaced by #8194001
?
Manufacturer substitution
This part replaces 8524474. Substitute parts can look different from the original.
Online Only Price
$26.46 |
16% OFF
Phone Price: $31.46
In Stock
For ZIP codes near Edit
60-day return policy

Only ground shipment is available for this item.

Part Information

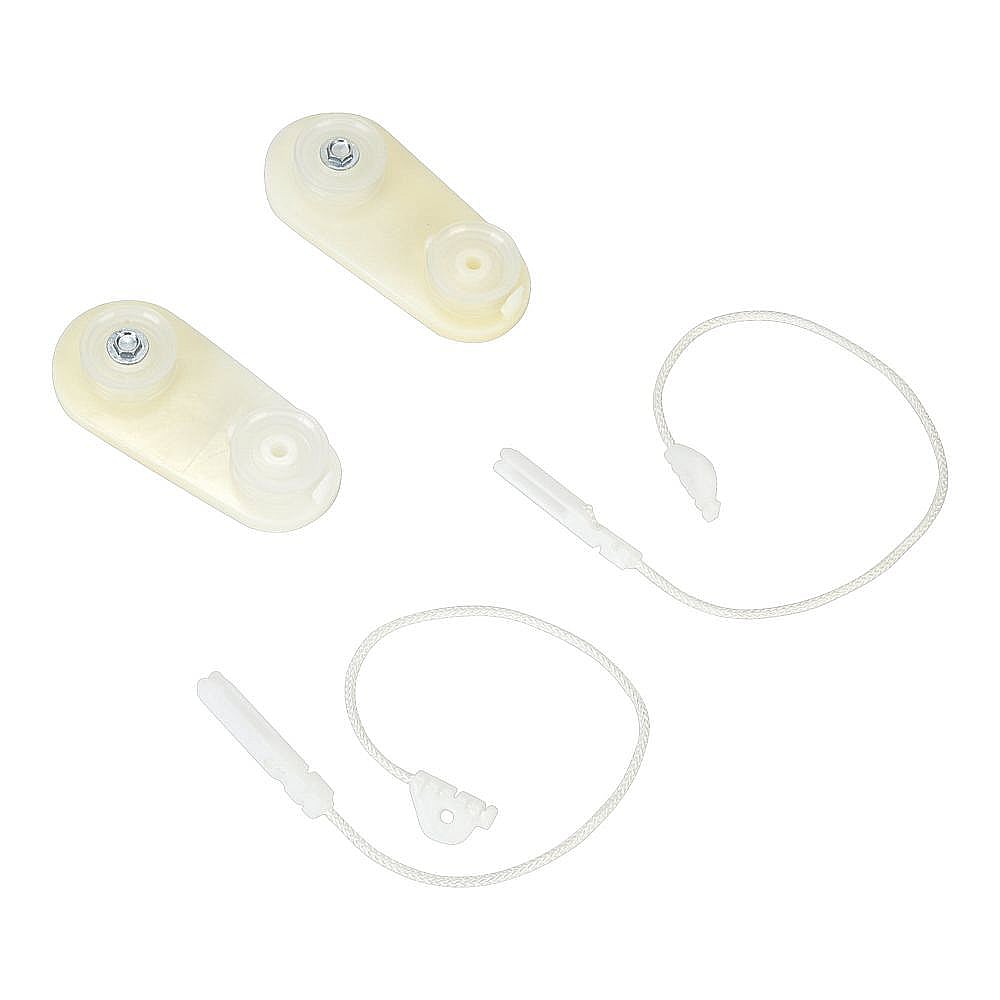

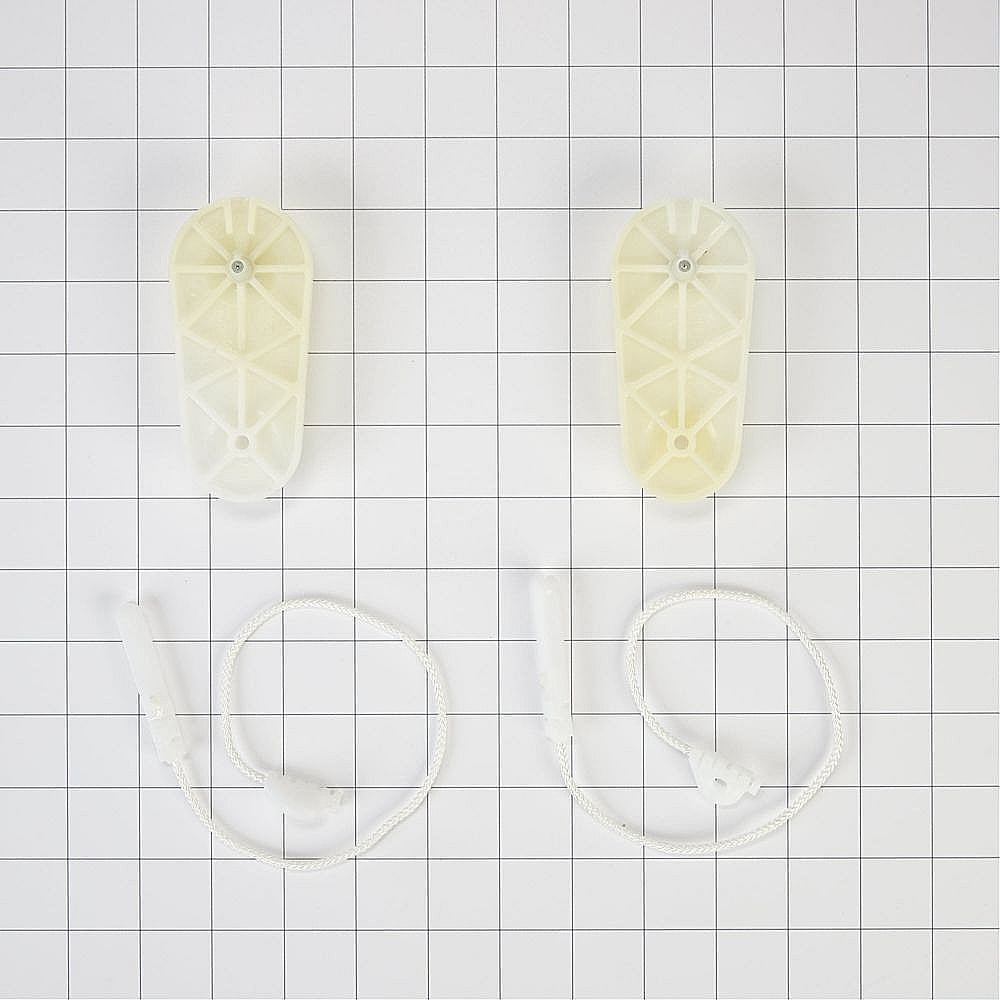

This door cable kit (part number 8194001) is for dishwashers.

Door cable kit 8194001 helps balance and support the weight of the door as it opens and closes. The kit may include multiple parts; refer to your parts diagram for a complete list of parts included.

Unplug the dishwasher or shut off the house circuit breaker before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #KUDI01TJBT1 KitchenAid dishwasherKUDI01TJBT1
Tub and frame parts
Model #MDB7709AWB2 Maytag dishwasherMDB7709AWB2
Tub and frame parts
Model #KUDJ02CRBS2 KitchenAid dishwasherKUDJ02CRBS2
Tub and frame parts
Model #KUDP02IRBT4 KitchenAid dishwasherKUDP02IRBT4
Tub and frame parts
Model #WDT920SADE1 Whirlpool dishwasherWDT920SADE1
Tub and frame parts
Model #66517463300 Kenmore dishwasher66517463300
Tub and frame
Model #66513173K704 Kenmore Pro dishwasher66513173K704
Tub and frame parts
Model #KUDW02FRWH3 KitchenAid dishwasherKUDW02FRWH3
Tub and frame parts
Model #KUDS01FLSS6 KitchenAid dishwasherKUDS01FLSS6
Tub and frame parts
Model #66513964K011 Kenmore Elite dishwasher66513964K011
Tub and frame parts

Reviews

J. Block
Milford, PAReviews 1Votes 0
★★★★★★★★★★
• 1 year ago
J. Block• 1 year ago
Perfect fit!

Perfect fit and improved design. Using rollers instead of grease is much smarter.

Response from Sears PartsDirect:
Sears Home Service • 1 year ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears Parts Direct for your part needs!

Bob69
Horseheads, NYReviews 2Votes 0
★★★★★★★★★★
• 1 year ago
Bob69• 1 year ago
Easy replacement

I had the left side string break. This kit has newer designs for the string and pulleys. I only slid the washer 1/3 of the way out to replace both sides so I didn’t have to disconnect the water or power. Easy job and now the door works like new.

Response from Sears PartsDirect:
Sears Home Services • 1 year ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears!

RJFA
MichiganReviews 2Votes 0
★★★★★★★★★★
• 1 year ago
RJFA• 1 year ago
Easy installation

Easy to install after watching video. Only turned of water and didn't have to disconnect power or drain

Response from Sears PartsDirect:
Sears Home Services • 1 year ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears!

Terry
Troy, MissouriReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Terry• 2 years ago
Great replacement for Original equipment.

Very easy to install. Five minutes each side and done. Hardest part was pulling my dishwasher out of the cabinet far enough to install.

Response from Sears PartsDirect:
MSO Offline • 2 years ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears Parts Direct for your part needs!

1301
WCH, OhioReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
1301• 2 years ago
Installed easily.

Good replacement.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!@!!!!!!!!!!!!!

Response from Sears PartsDirect:
MSO Offline • 2 years ago

We are so thrilled you had a 5-star experience. Thank you for taking the time to leave us a rating. We thank you for choosing Sears Parts Direct for your part needs!

Rocco
Los AngelesReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Rocco• 2 years ago
Slightly different than pictured, but improved?

This kit includes two link cables and two roller pairs to replace both sides of the lift-assist on the dishwasher- Basically everything you would need, unless somehow a spring broke. I'm writing that because the picture on the page that I ordered from didn't show that. The version of the cables shown is slightly different than what was received- the larger plastic piece was straight in line with the cord, not angled as in the photo and as on my original part. I think this is probably an improvement, as both of the cords on my dishwasher failed by tearing out the side of the plastic piece, not by breaking the cord. The straight pieces seem to work fine, and hopefully they'll be more resistant to tearing out. I did have to entirely extract the dishwasher from the cabinets to change these parts, because the springs are at the back, which meant disconnecting the water line and drain line and dealing with the mess from doing that- and that is where most of the installation time comes from. Otherwise, putting the parts in is a breeze.

Response from Sears PartsDirect:
Offline • 2 years ago

Thank you for sharing your great rating! We thank you for choosing Sears Parts Direct and hope you recommend us to your friends and family.

sglg
new mexicoReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
sglg• 2 years ago
repaired door from dropping

Easy to install. Might take a second person to help with the spring.

Jacob
Watertown, NYReviews 1Votes 0
★★★★★★★★★★
• 2 years ago
Jacob• 2 years ago
Right part, Does the Job!

I bought this part because my dishwasher door was dropping like a rock when opened. By looking in with a flashlight from the side I could see that the string had been severed. “Manufacturing defect?” I wondered. While curious to me, I ordered the part anyway. When it arrived I pulled the dishwasher out to find mouse-droppings all over the insulation. A mouse had been camping out for a while, and had chewed the dishwasher dampener-cord thingie in half! Mystery Solved! Not the manufacturer, but Mickey Mouse!

Installation itself was relatively simple. Attach the cord to the spring, then pull and maintain tension on the spring while snaking it through the tension wheels before hooking it onto the bar/hook thing attached to the door (look at the other side, and make them look the same). I did loop another line around the spring to help hold the tension, so I could get enough slack to work at the other end of the line.
