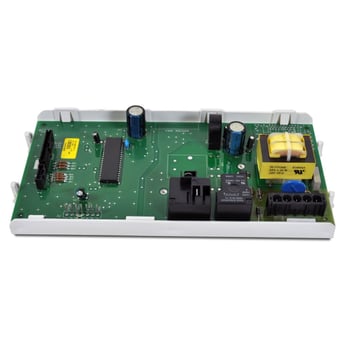

Dryer Electronic Control Board 8566150

★★★★★★★★★★
5
1
4
2
3
0
2
0
1
0

Part #8566150

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. You might be able to find the part through another replacement parts retailer or through a reseller on Ebay or similar website. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

Part Information

Special details: You may need to replace electronic control board 8566150 if the console won't light up and the dryer is plugged into a working outlet.

This electronic control board (part number 8566150) is for dryers.

Electronic control board 8566150 manages the functions of the dryer such as drying time and temperature.

Unplug the dryer before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #GGW9868KQ4 Whirlpool dryerGGW9868KQ4
Top and console parts
Model #11065066500 Kenmore Elite dryer11065066500
Console panel parts
Model #11065062500 Kenmore dryer11065062500
Console panel parts
Model #GGW9868KL4 Whirlpool dryerGGW9868KL4
Top and console parts
Model #11075066501 Kenmore Elite dryer11075066501
Console panel parts
Model #11075062501 Kenmore Elite dryer11075062501
Console panel parts
Model #GGW9868KL5 Whirlpool dryerGGW9868KL5
Top and console parts
Model #11075064500 Kenmore Elite dryer11075064500
Console panel parts
Model #GGW9868KQ5 Whirlpool dryerGGW9868KQ5
Top and console parts
Model #GGW9868KT5 Whirlpool dryerGGW9868KT5
Top and console parts

Reviews

Eddy
Currituck, NCReviews 1Votes 0
★★★★★★★★★★
• 5 years ago
Eddy• 5 years ago
Dryer control board

5 mins to install. Paid for Sears repair call. Tech recommended I save the money and just replace this main board myself. Very easy job and now the dryer runs again.

RobertB
Allentown, PAReviews 1Votes 0
★★★★★★★★★★
• 5 years ago
RobertB• 5 years ago
The right part delivered in 2 days

Installation is simple. Unfortunately for me, the board was not the problem. It ended up being the connector that goes to the touchpad. The touchpad is no longer being manufactured and is unavailable.

hvac tech
coloradoReviews 1Votes 0
★★★★★★★★★★
• 5 years ago
hvac tech• 5 years ago
dryer repair

The control board was east to install; but was the wrong item. With the new board I had access to the diagnostics which had the start button shorted. Of course the control panel is no longer manufactured so the dryer is toast.
