Electronic Control 7316443919

★★★★★★★★★★
5
0
4
1
3
0
2
0
1
0

Part #7316443919

Replaced by #316443919
?
Manufacturer substitution
This part replaces 7316443919. Substitute parts can look different from the original.
Online Only Price
$300.67 |
$10.00 OFF
Phone Price: $310.67
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

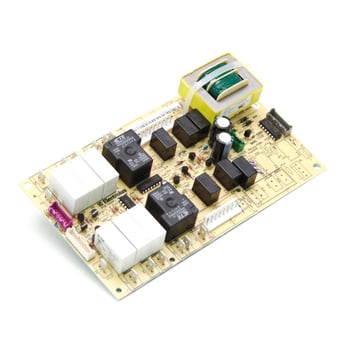

This relay control board (part number 316443919) is for wall ovens.

Relay control board 316443919 receives signals from the main oven control board. The relay control board operates relays to regulate the oven elements.

Disconnect electrical power to the oven before installing this part. Wear work gloves to protect your hands.

Reviews

Self installer
JolietReviews 1Votes 1
★★★★★★★★★★
• 4 years ago
Self installer• 4 years ago
Moderatly easy

First disconnect the power from the unit. The most difficult part if you have a built in oven is removing the oven from the cabinet. You will need to unscrew the unit from the cabinet and slide it forward about 10 inches in order to remove the panel covering the board. Once you remove the top cover the board will be fully accessible. Either mark or photograph the wiring connections locations for proper reinstallation. The plugs are designed so that they will only fit in their correct locations but there are two black wires that could easily be crossed. Reverse the procedure for installation.
