Craftsman
Wet/Dry Vacuum

Model #113177865 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113177865 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 19 parts

Filter#1

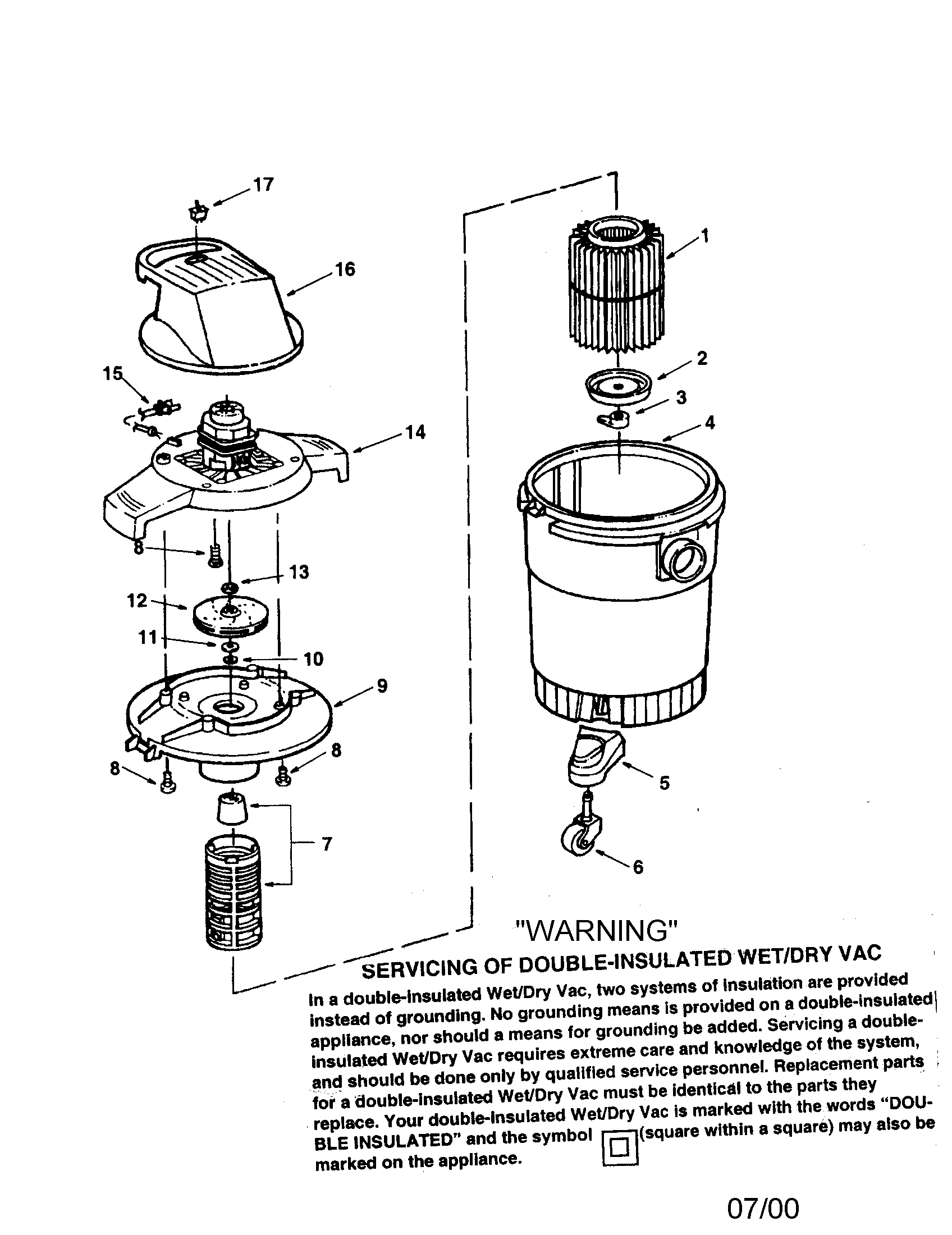

8 gallon wet/dry vac Diagram

Filter

Part #9-17816

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster#6

8 gallon wet/dry vac Diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Washer#11

8 gallon wet/dry vac Diagram

Shop vacuum washer

Part #15534-1

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster Foot#5

8 gallon wet/dry vac Diagram

Shop vacuum caster foot

Part #825727

The manufacturer no longer makes this part, and there's no substitute part

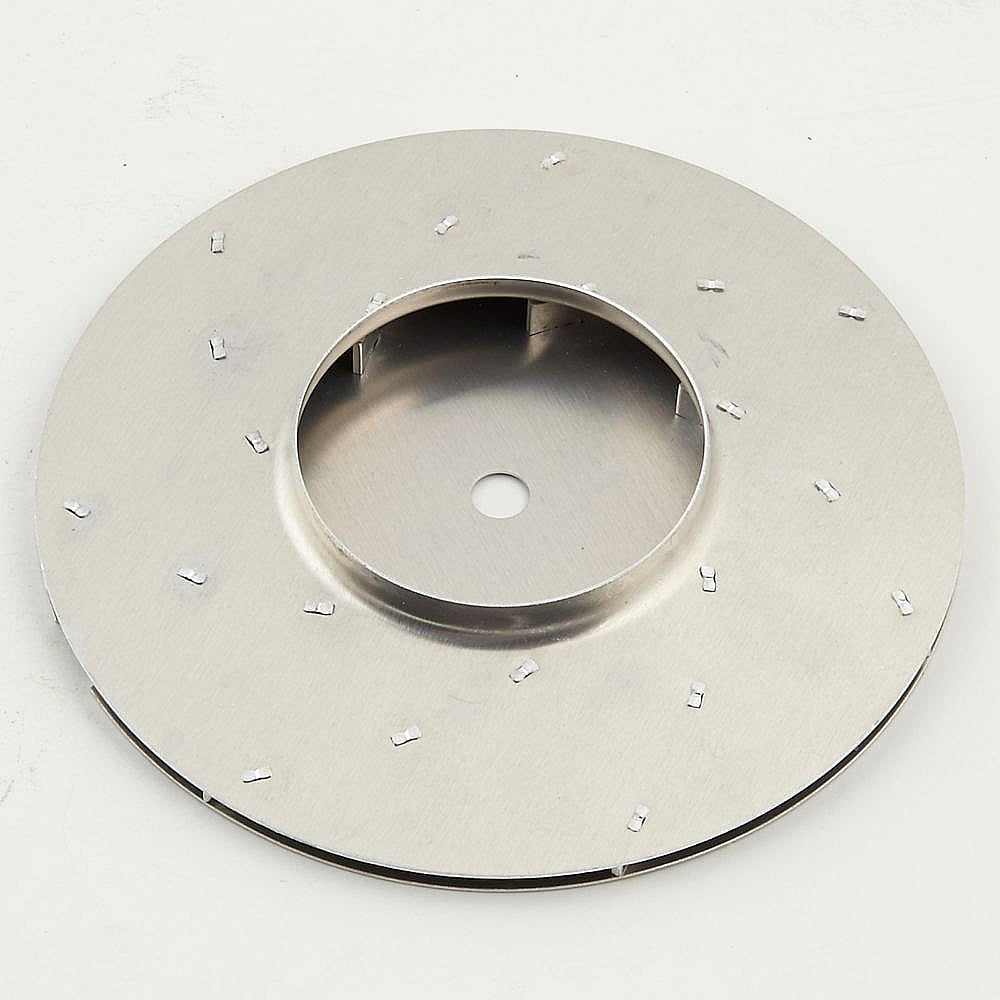

Vacuum Blower Wheel#12

8 gallon wet/dry vac Diagram

Vacuum blower wheel

Part #818413-5

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Blower Wheel Spacer#13

8 gallon wet/dry vac Diagram

Shop vacuum blower wheel spacer

Part #818961

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Squeegee

#NI

All parts Diagram

Shop vacuum squeegee

Part #822256

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/Off Switch#17

8 gallon wet/dry vac Diagram

Shop vacuum on/off switch

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Flot Cge Asm#7

8 gallon wet/dry vac Diagram

Flot cge asm

Part #509238

The manufacturer no longer makes this part, and there's no substitute part

Screw#8

8 gallon wet/dry vac Diagram

Screw

Part #STD611007

The manufacturer no longer makes this part, and there's no substitute part
