Model #38EZG048 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Carrier 38EZG048-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

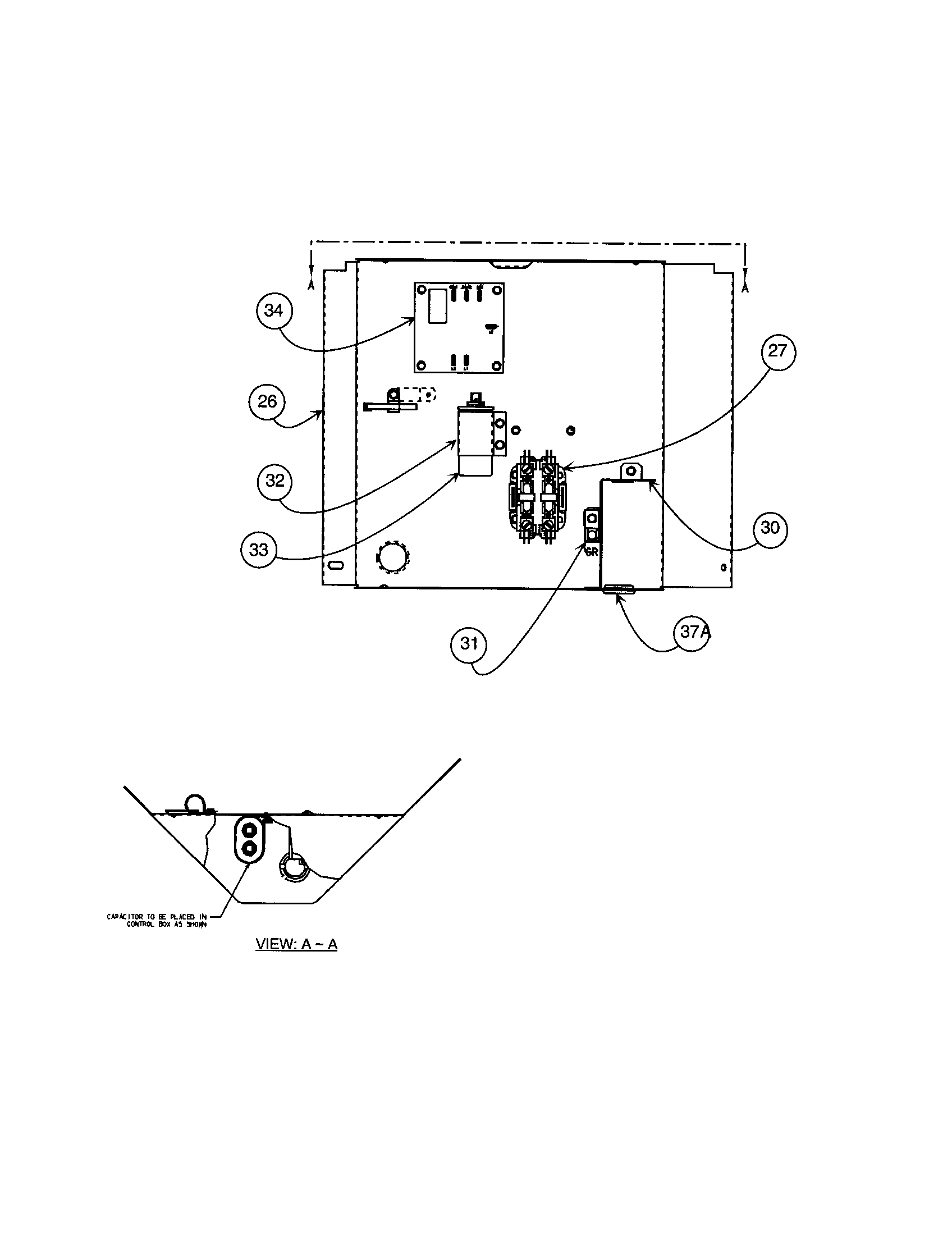

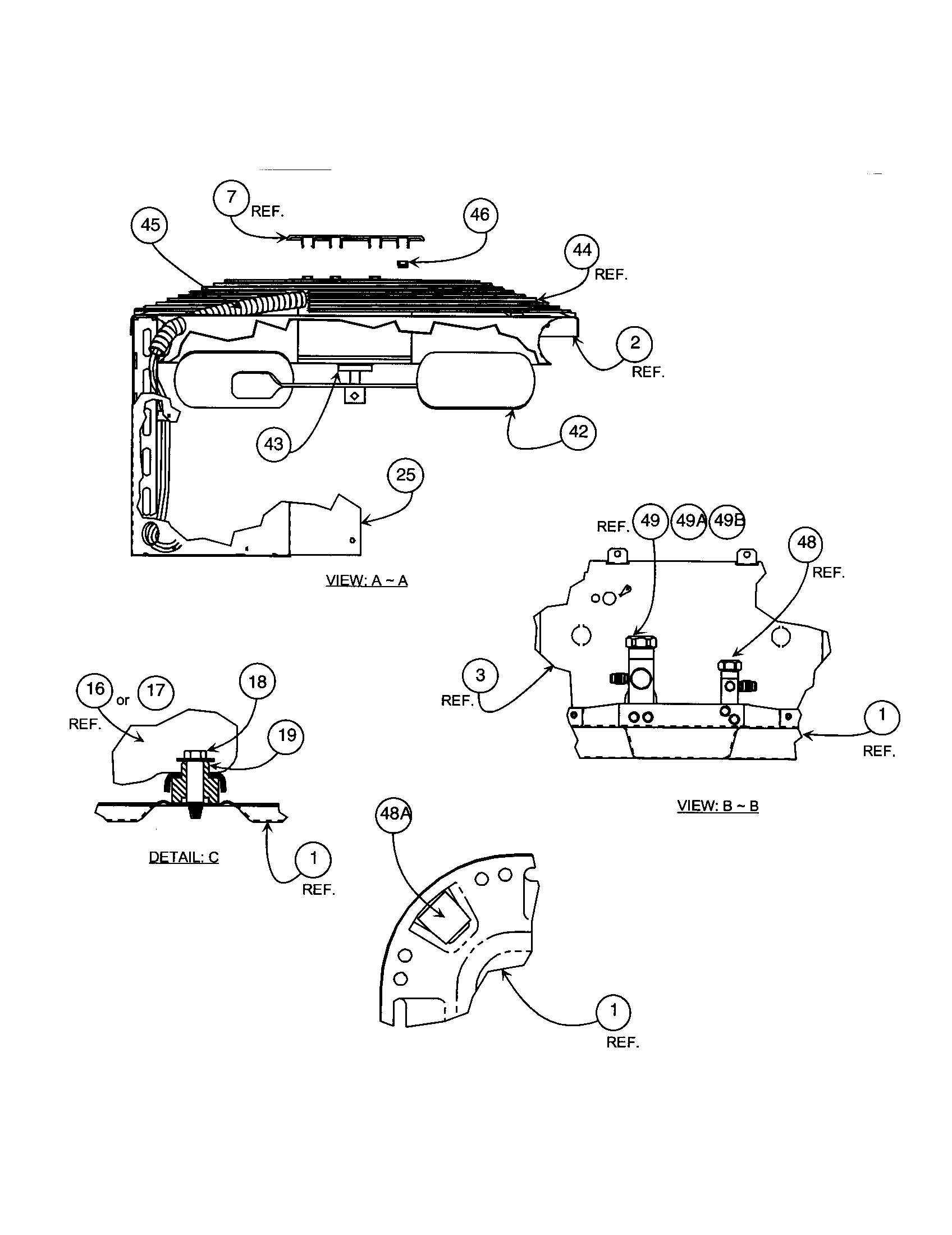

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 80 parts

Thermostat

#79A

All parts Diagram

Thermostat

Part #50BB660001
In Stock
$110.72
Paint

#14

All parts Diagram

Paint

Part #313974-751
In Stock
$24.36
Mtr Mountng

#46

All parts Diagram

Mtr mountng

Part #316709-201
This item is not returnable
In Stock
$2.16
Piston

#56

All parts Diagram

Piston

Part #EA52PH076
This item is not returnable
In Stock
$4.56
Relay

#68A

All parts Diagram

Relay

Part #P283-9930
In Stock
$57.34
Paint

#14A

All parts Diagram

Paint

Part #313974-752
In Stock
$30.49
Cover Kit

#41

All parts Diagram

Cover kit

Part #317406-777
In Stock
$41.56
Raceway

#45

All parts Diagram

Raceway

Part #319421-302
This item is not returnable
In Stock
$3.49
Selinoid

#81A

All parts Diagram

Selinoid

Part #EF11BZ121
In Stock
$150.42
Paint

#14B

All parts Diagram

Paint

Part #313974-755
In Stock
$30.49
