Amana
Dishwasher

Model #ADW750EAC-PADW750EAC1 Official Amana dishwasher

Here are the diagrams and repair parts for Amana ADW750EAC-PADW750EAC1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 100 parts

Refrigerator Insulation#5

Frame Diagram

Insulation

Part #R9800149
Replaced by #R9800149
?
Manufacturer substitution
This part replaces R9800149. Substitute parts can look different from the original.
In Stock
$8.64
Dispenser#9

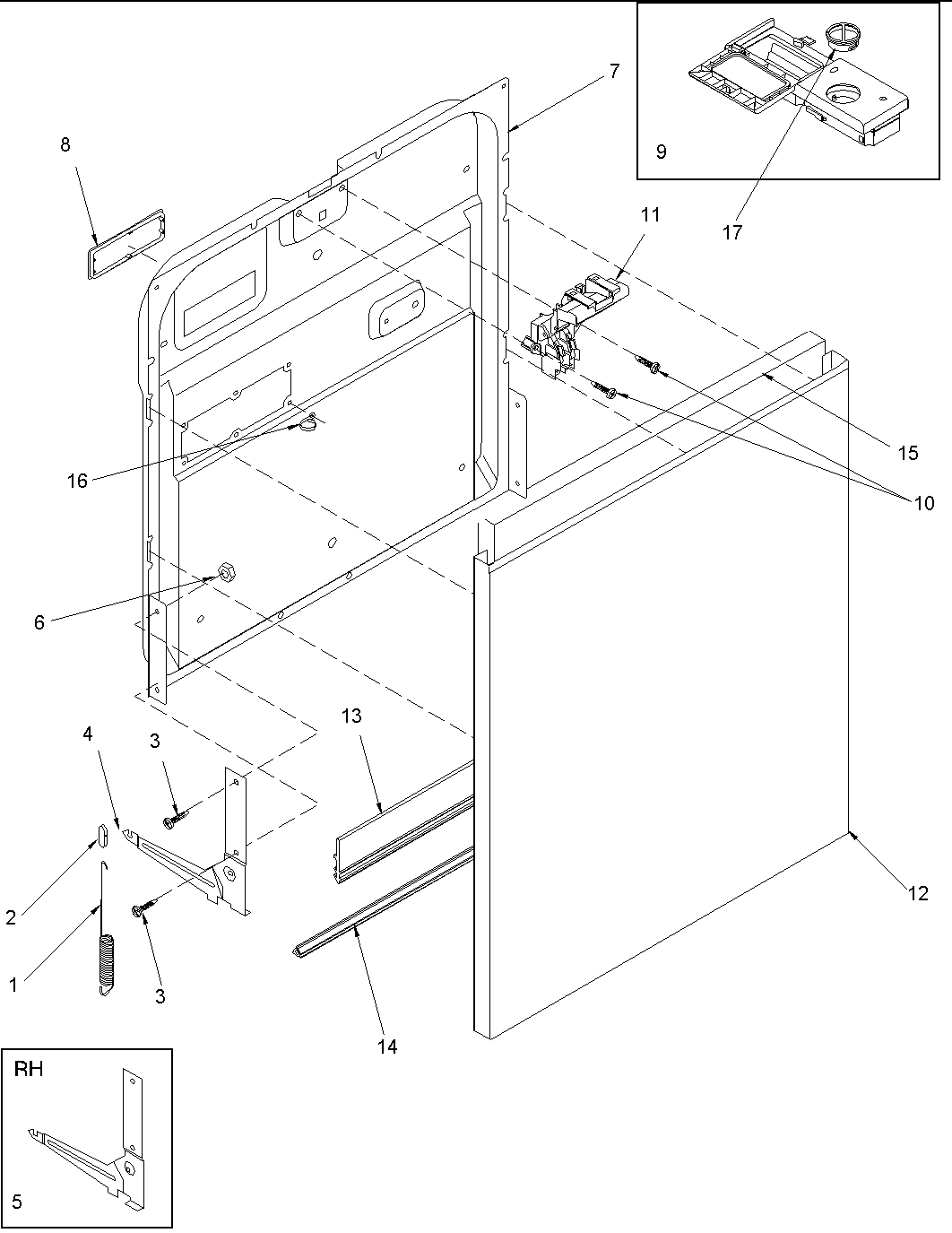

Door Diagram

Dispenser

Part #R9800117
Replaced by #WPW10247183
?
Manufacturer substitution
This part replaces R9800117. Substitute parts can look different from the original.
In Stock
$210.71
Gasket#3

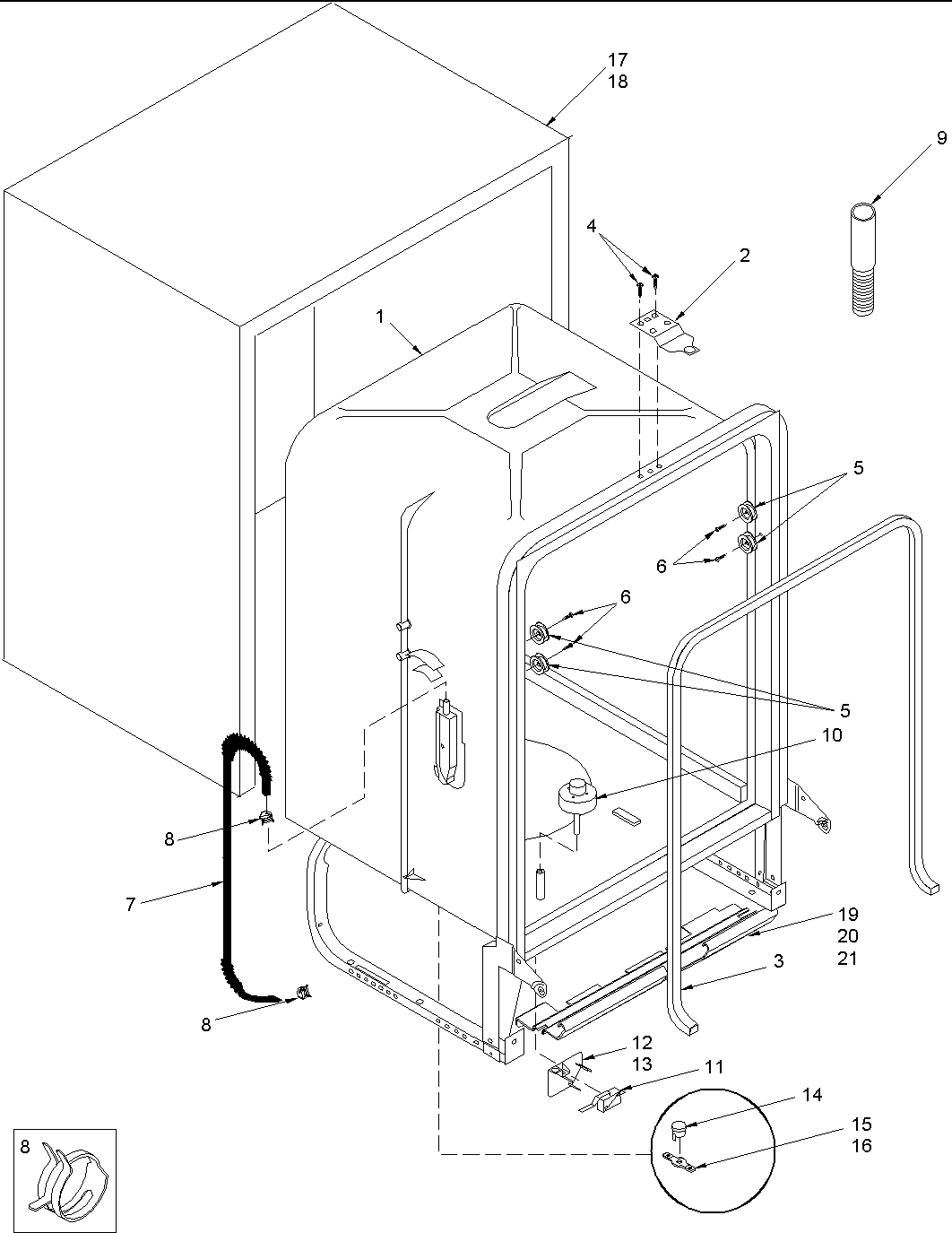

Tub Diagram

Lo tub gaskt

Part #R9800085
Replaced by #WPW10314643
?
Manufacturer substitution
This part replaces R9800085. Substitute parts can look different from the original.
In Stock
$71.02
BARREL REAR#999A

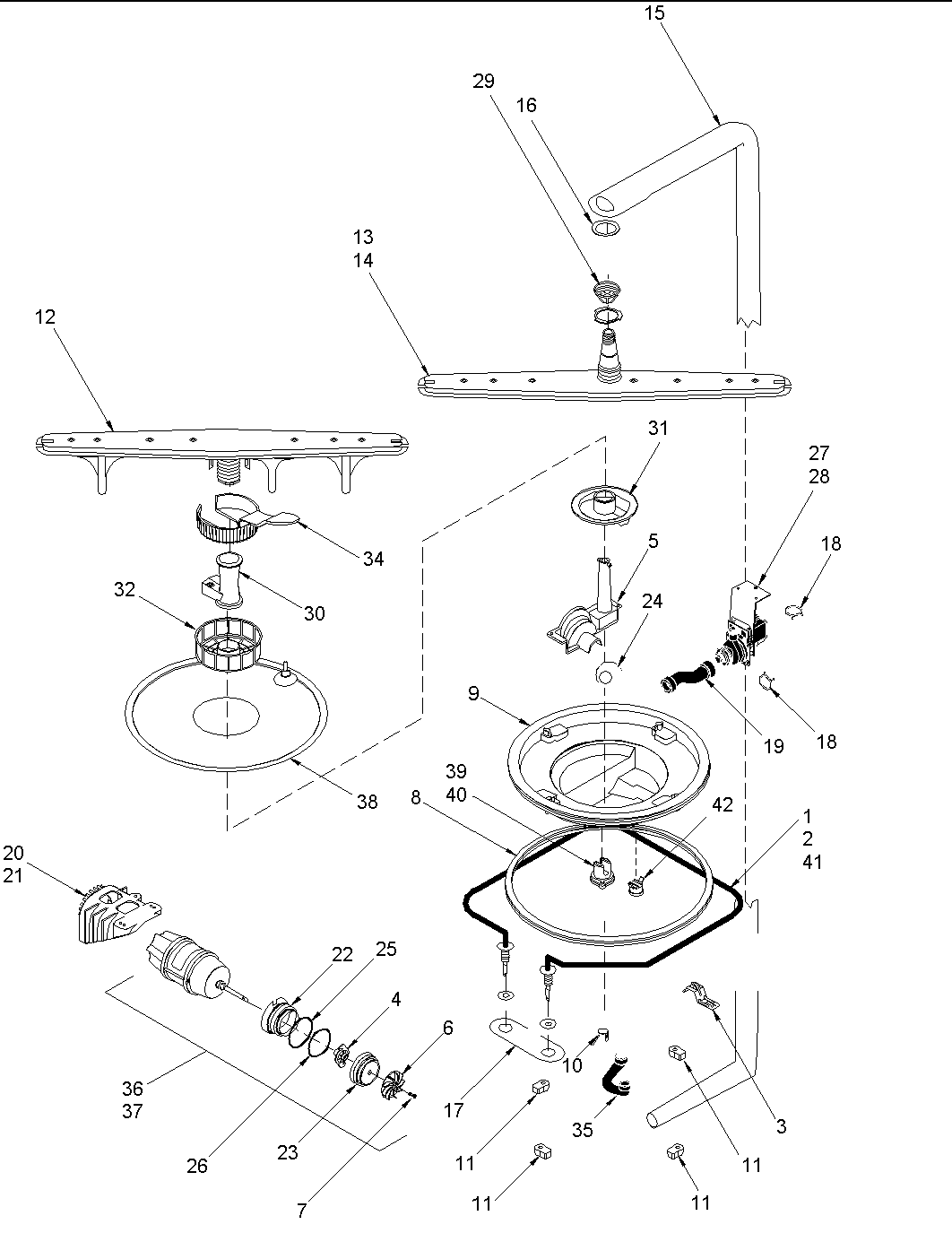

Motor Diagram

Barrel rear

Part #R9800138

The manufacturer no longer makes this part, and there's no substitute part

Macerator#4

Motor Diagram

Macerator

Part #R9800136

The manufacturer no longer makes this part, and there's no substitute part

Cup Holder#11

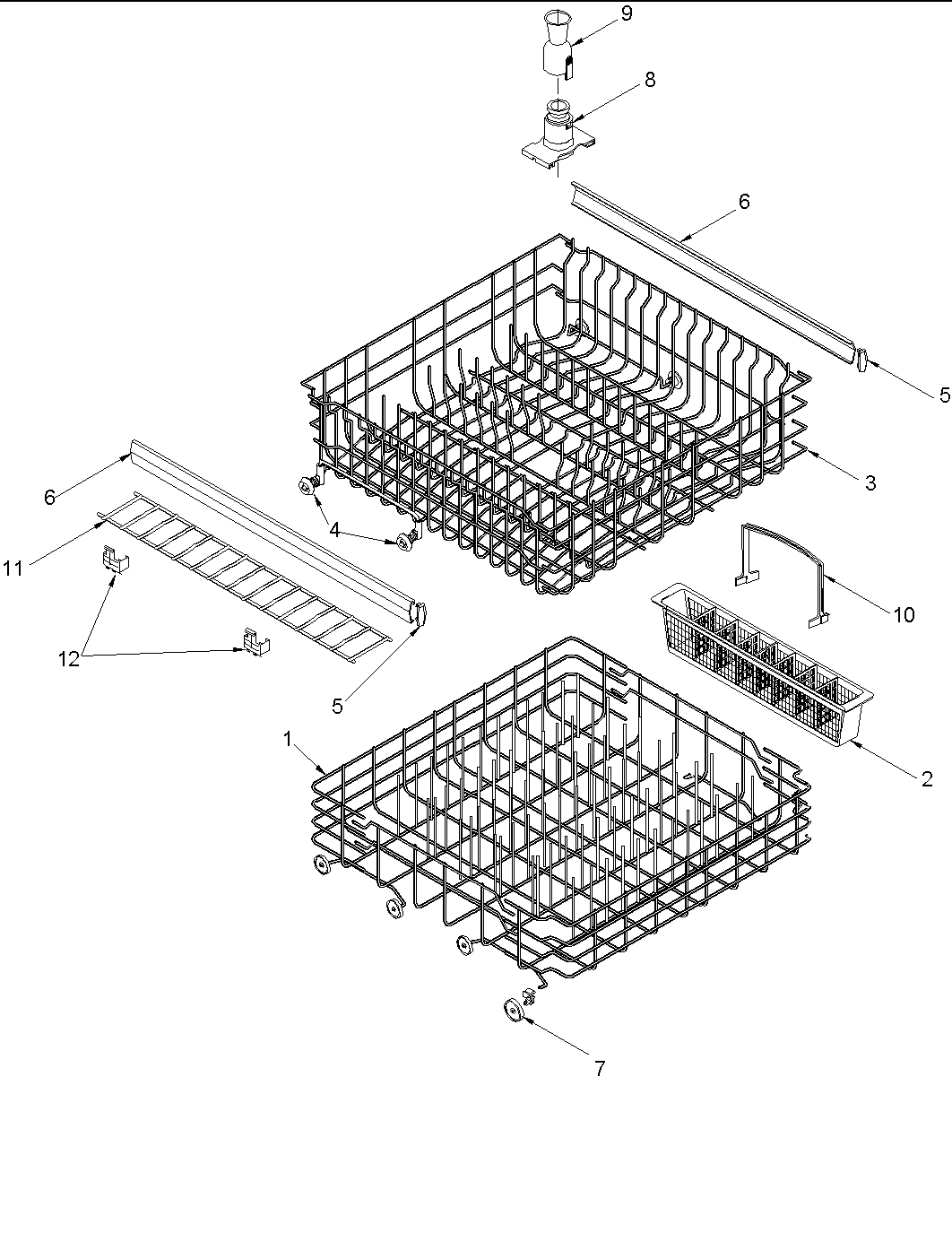

Rack Diagram

Cup holder

Part #R9800094

The manufacturer no longer makes this part, and there's no substitute part

Rear O Ring#25

Motor Diagram

Rear o ring

Part #R9800143

The manufacturer no longer makes this part, and there's no substitute part

KICKPLATE/BAFFLE ASSEMBLY BLACK#4

Frame Diagram

Kickplate/baffle assembly black

Part #R0000311

The manufacturer no longer makes this part, and there's no substitute part

FILTER-SOIL DIRECTOR#32

Motor Diagram

Filter-soil director

Part #R9800158

The manufacturer no longer makes this part, and there's no substitute part

BRACKET-FLOAT SWITCH#12

Tub Diagram

Bracket-float switch

Part #R0130012

The manufacturer no longer makes this part, and there's no substitute part
