Model #HBL5720UC/06 Official Bosch wall oven/microwave combo

Here are the diagrams and repair parts for Bosch HBL5720UC-06 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

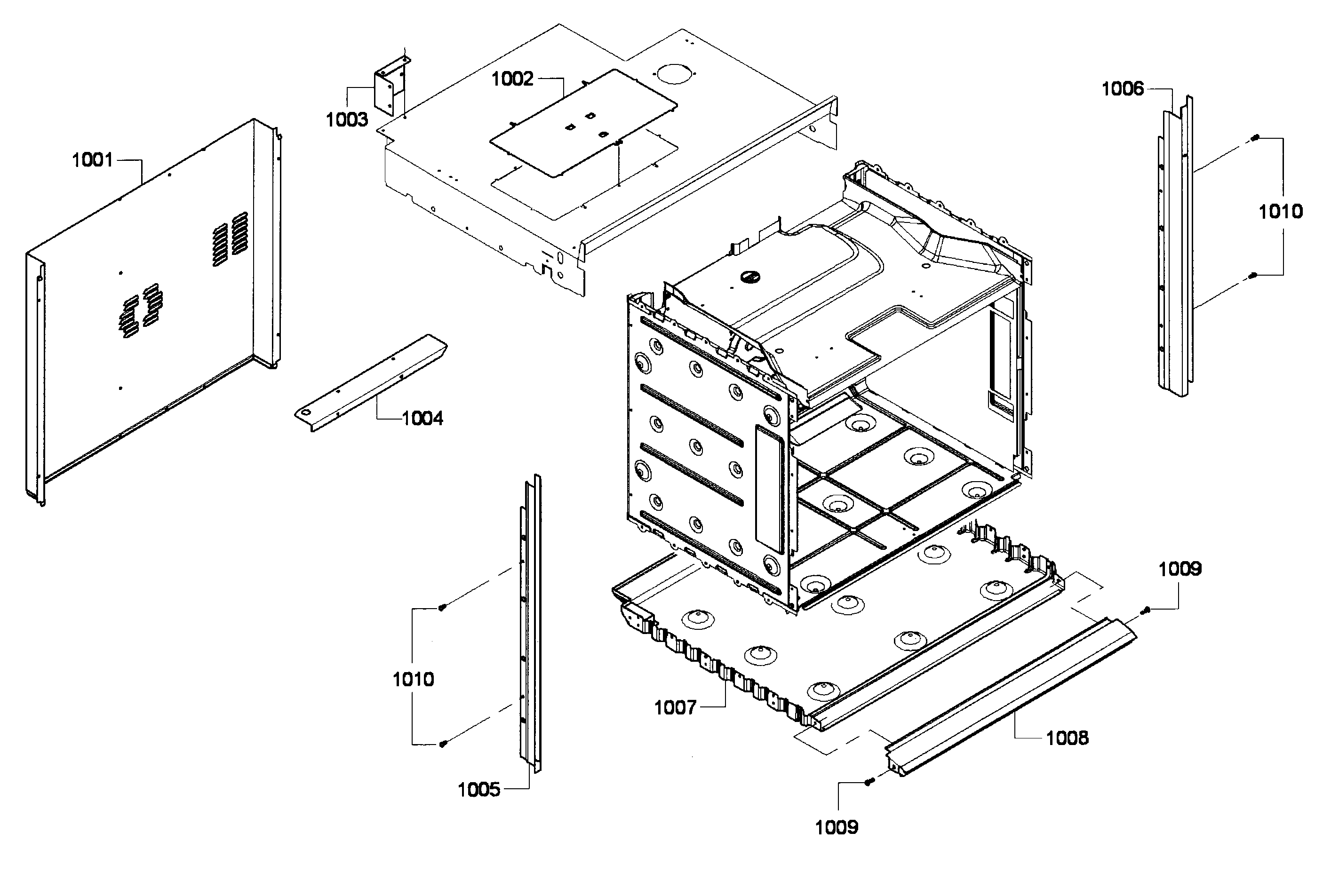

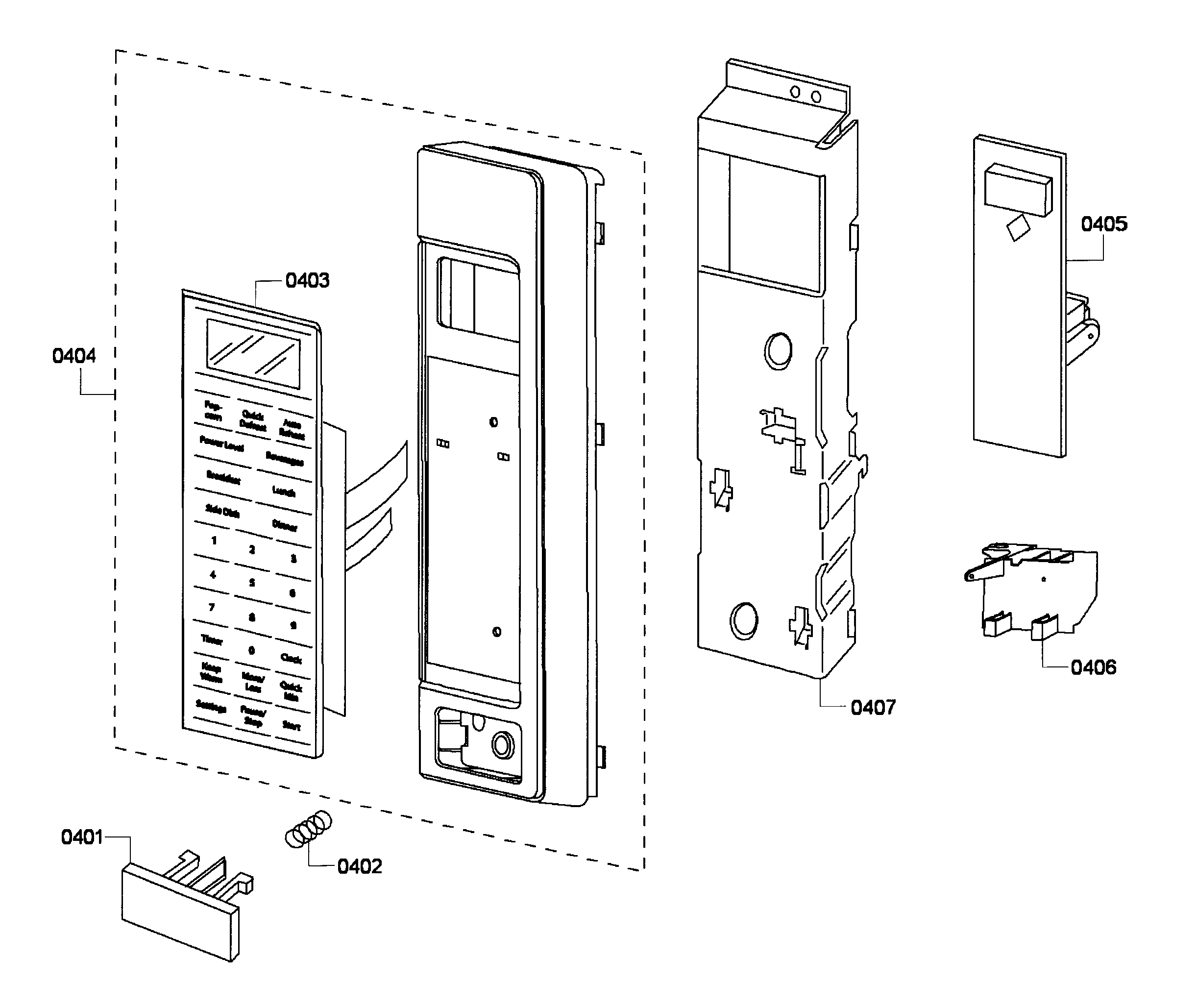

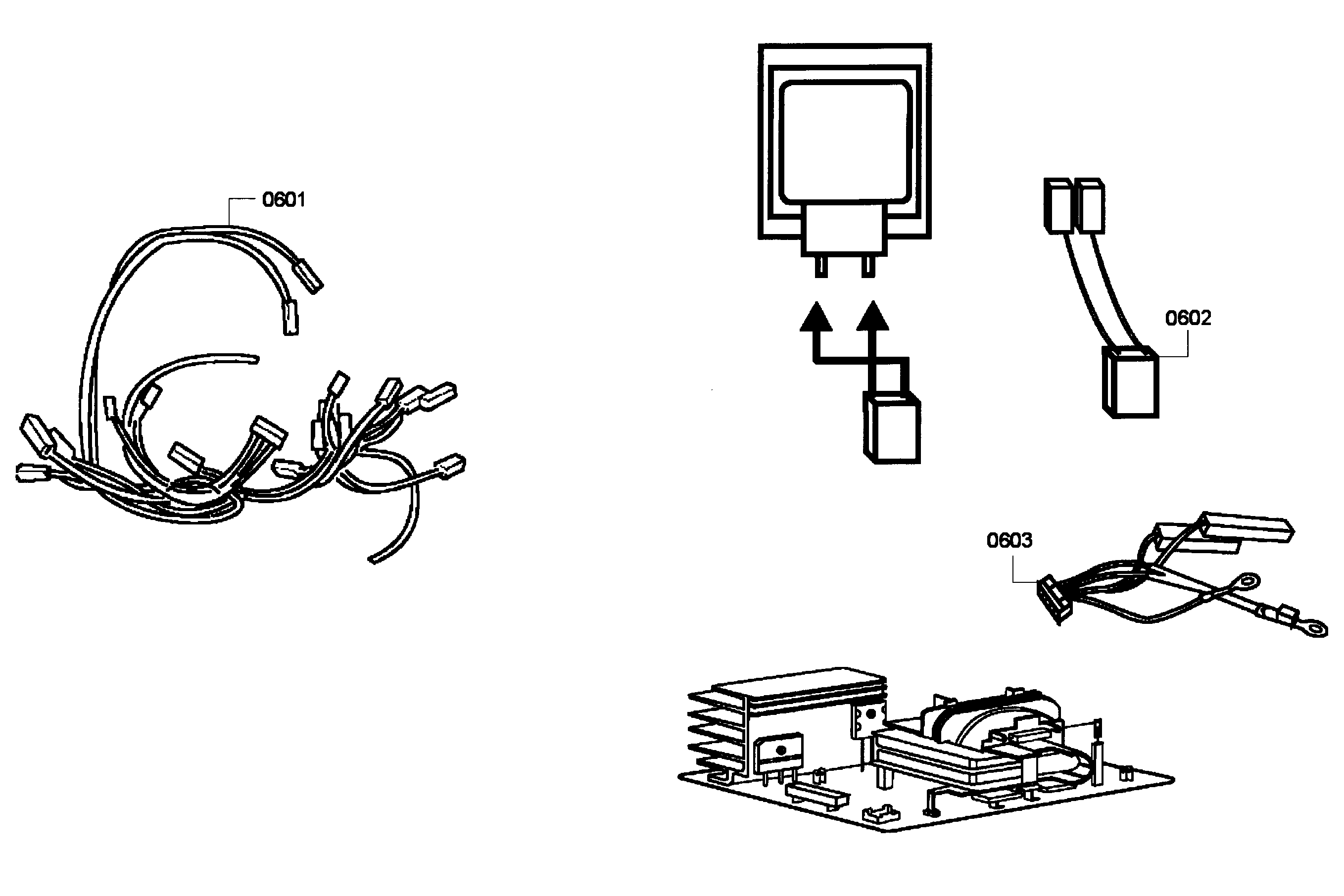

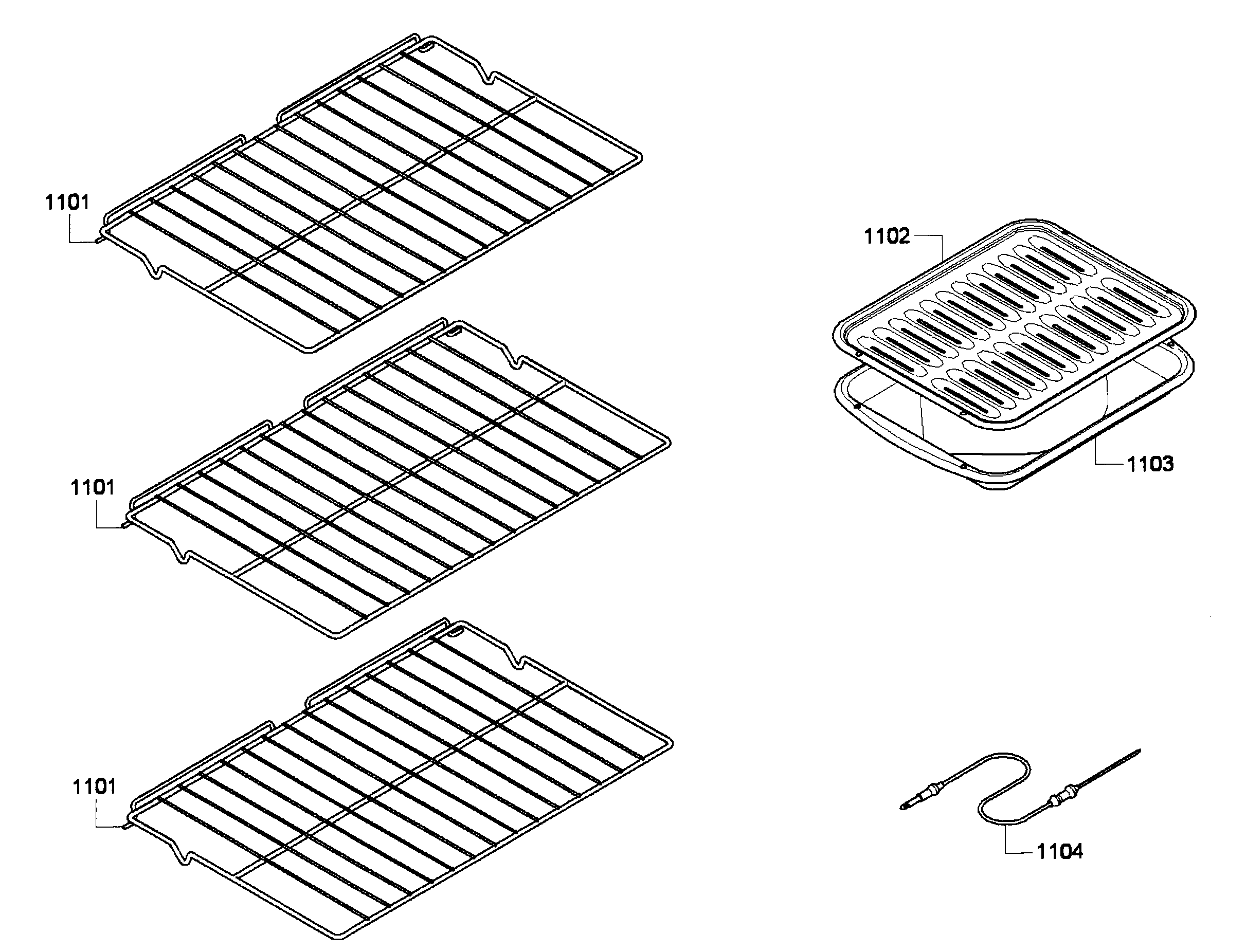

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 155 parts

Wall Oven Temperature Sensor#807

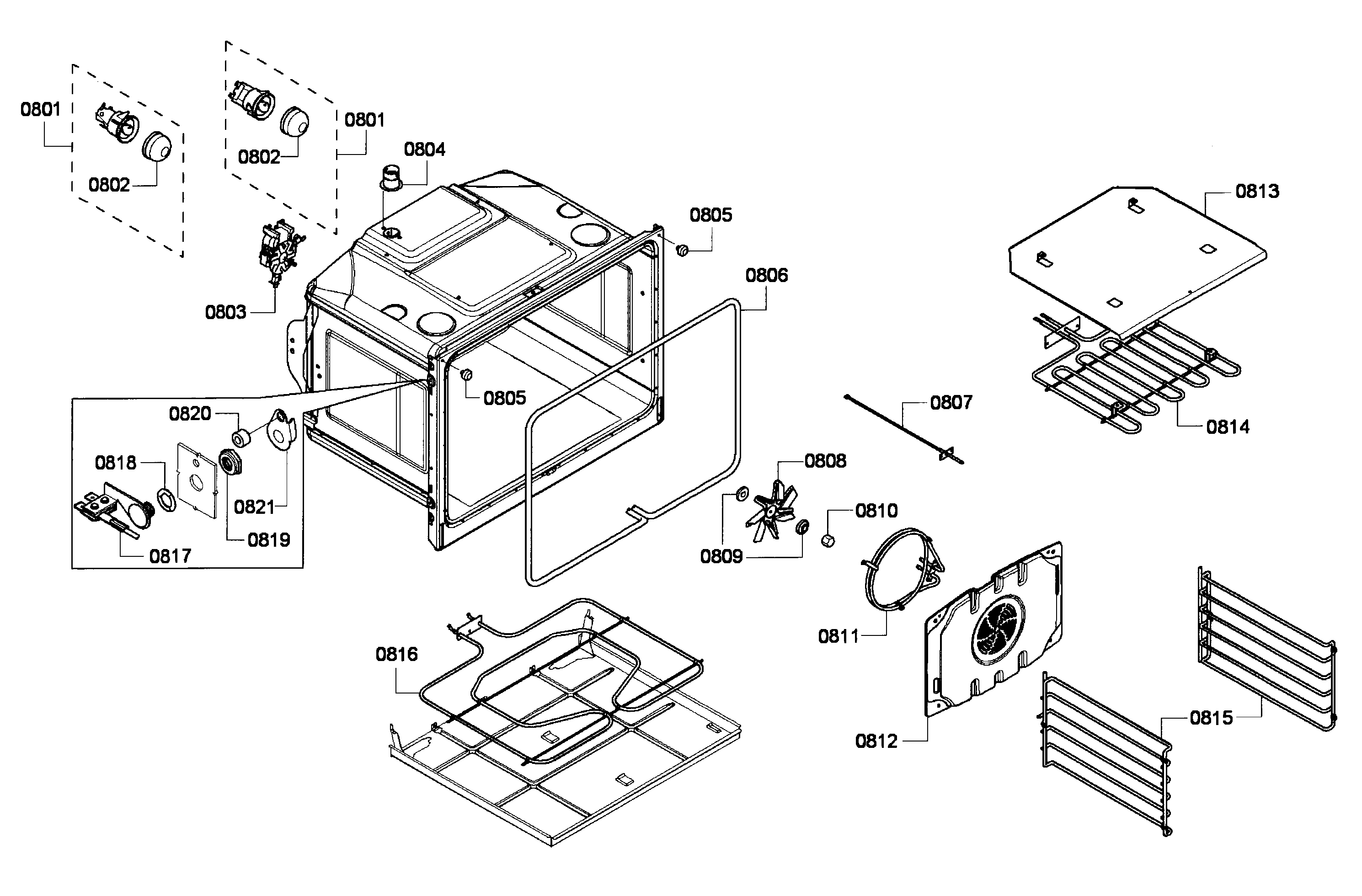

Cavity 2 Diagram

In Stock
$64.49 |
7% OFF
Phone Price: $69.49
Wall Oven Light Bulb, 40-watt#NI

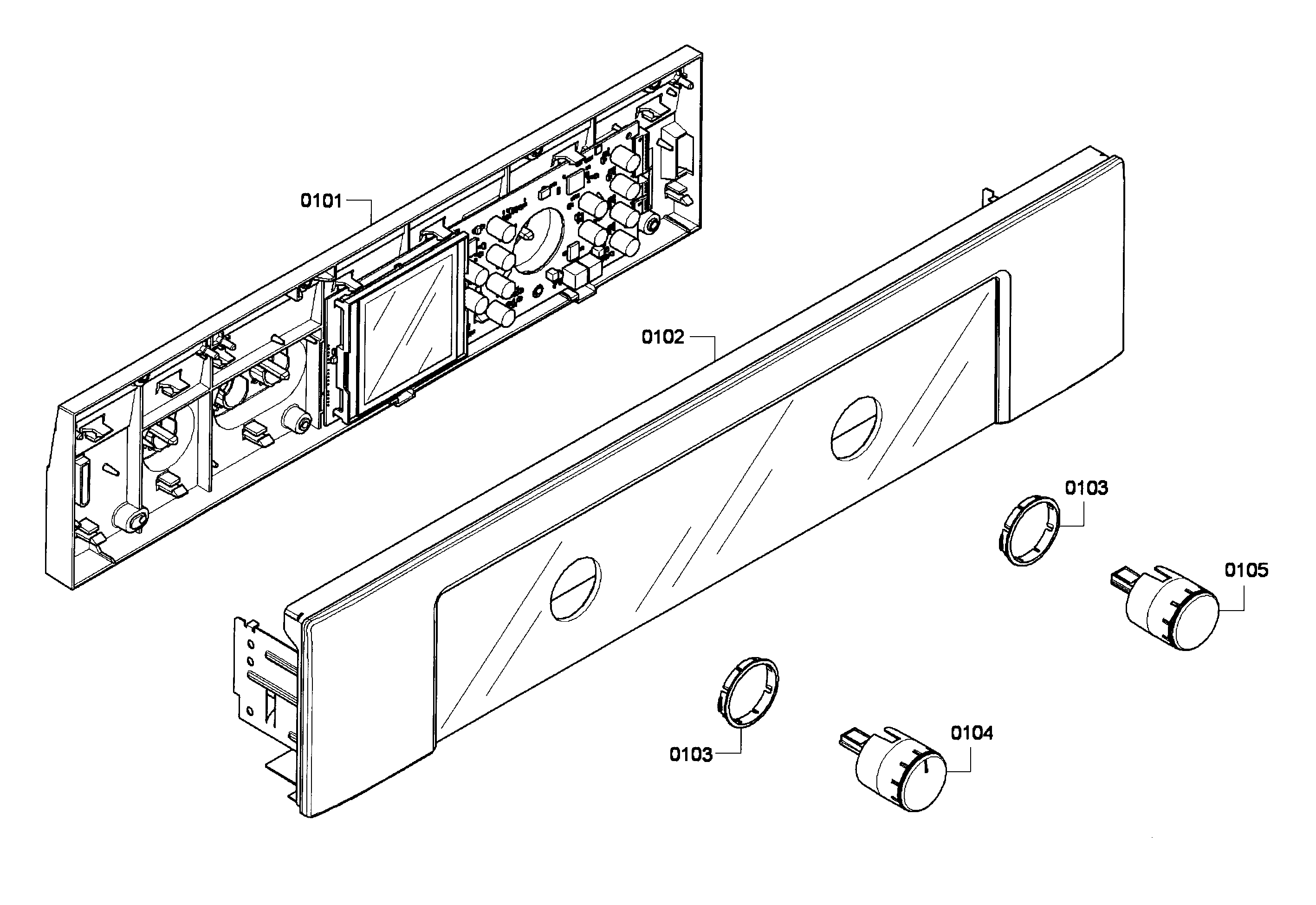

Panel Diagram

Wall oven light bulb, 40-watt

Part #00623710
This item is not returnable
In Stock
$7.09 |
12% OFF
Phone Price: $8.09

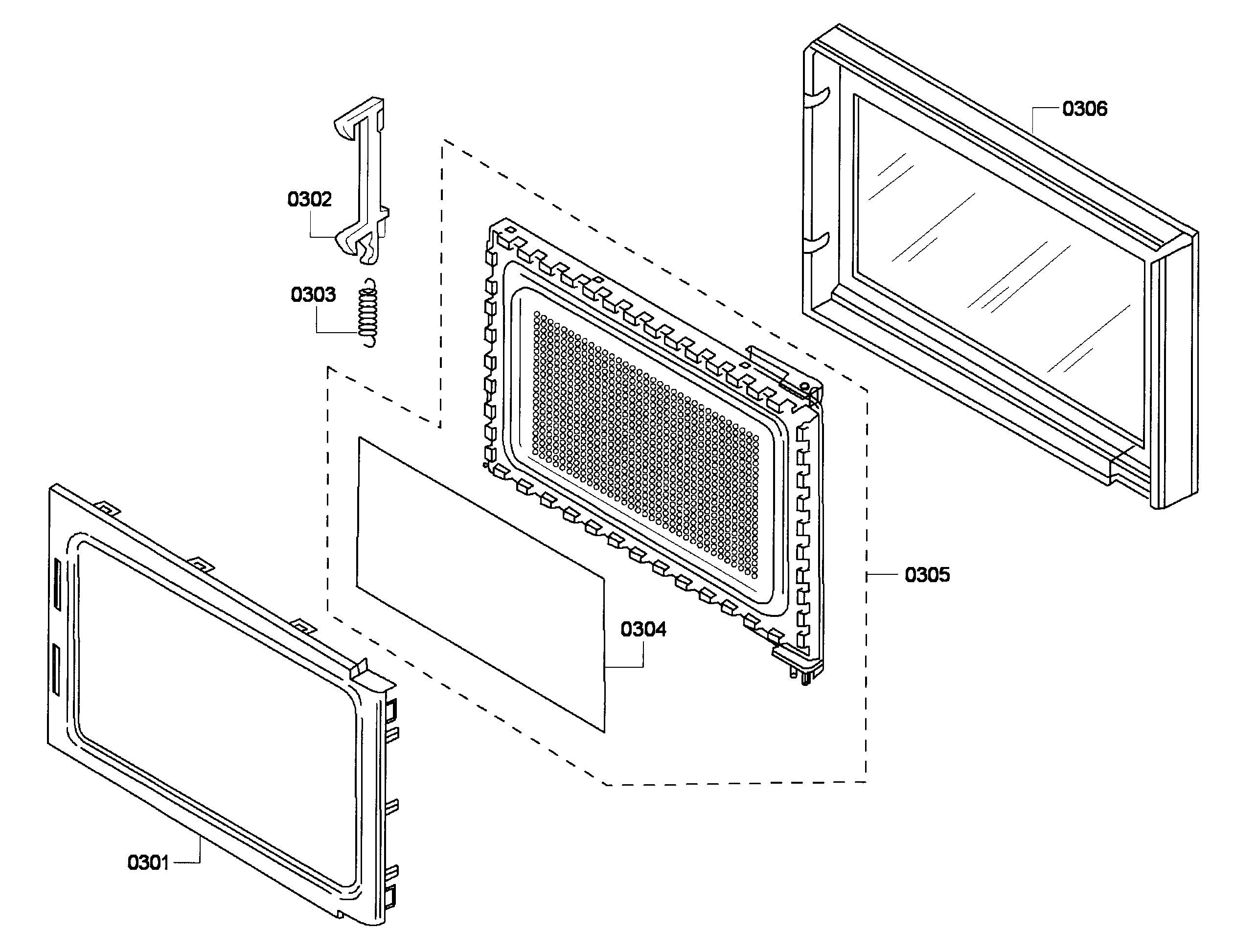

Wall Oven Door Middle Glass#906

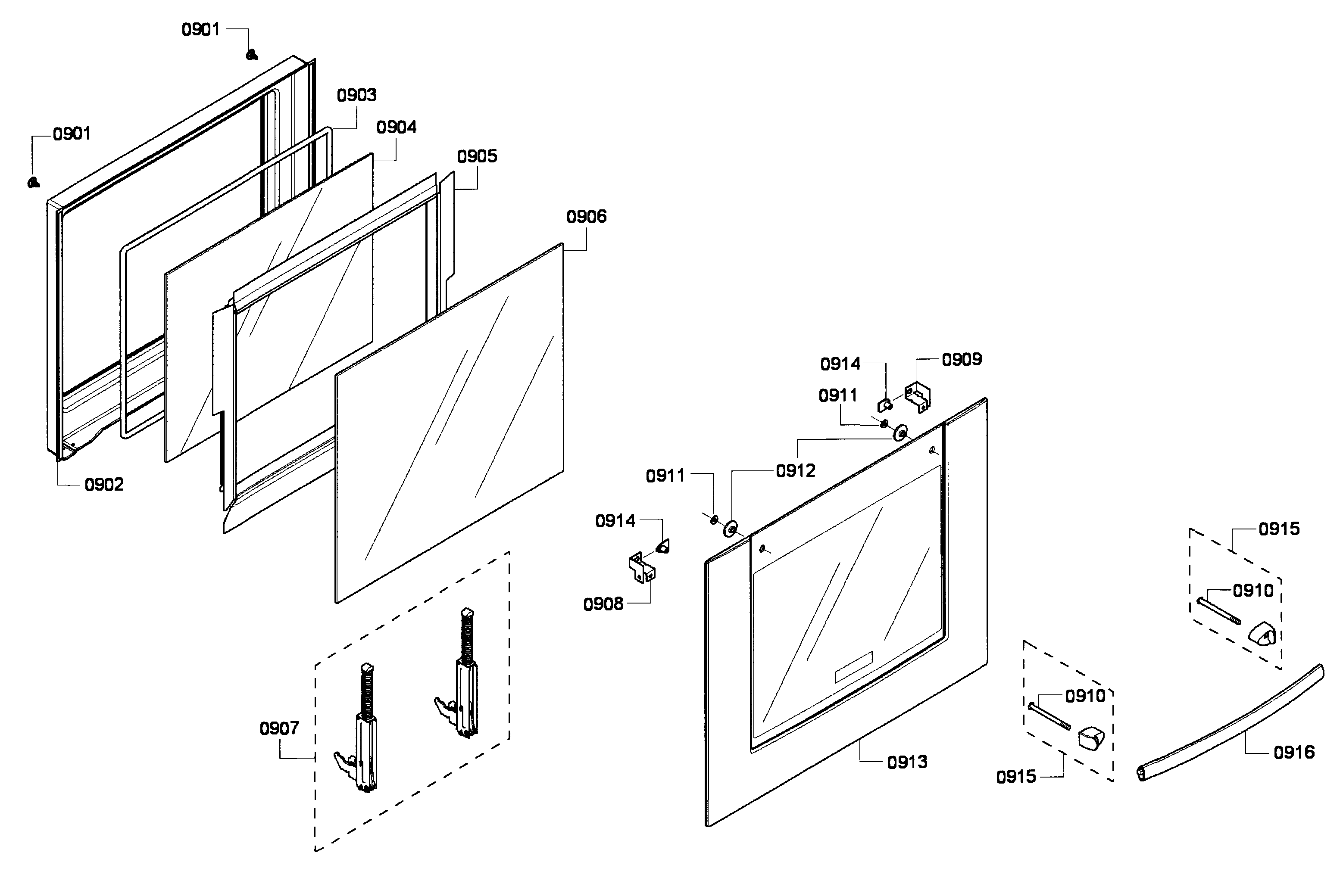

Door Diagram

In Stock
$162.31
Microwave Inverter Board#520

Cavity 1 Diagram

In Stock
$415.80 |
$10.00 OFF
Phone Price: $425.80
Wall Oven Door Hinge Kit#907

Door Diagram

In Stock
$235.29 |
$10.00 OFF
Phone Price: $245.29
Wall Oven Cooling Fan Assembly#701

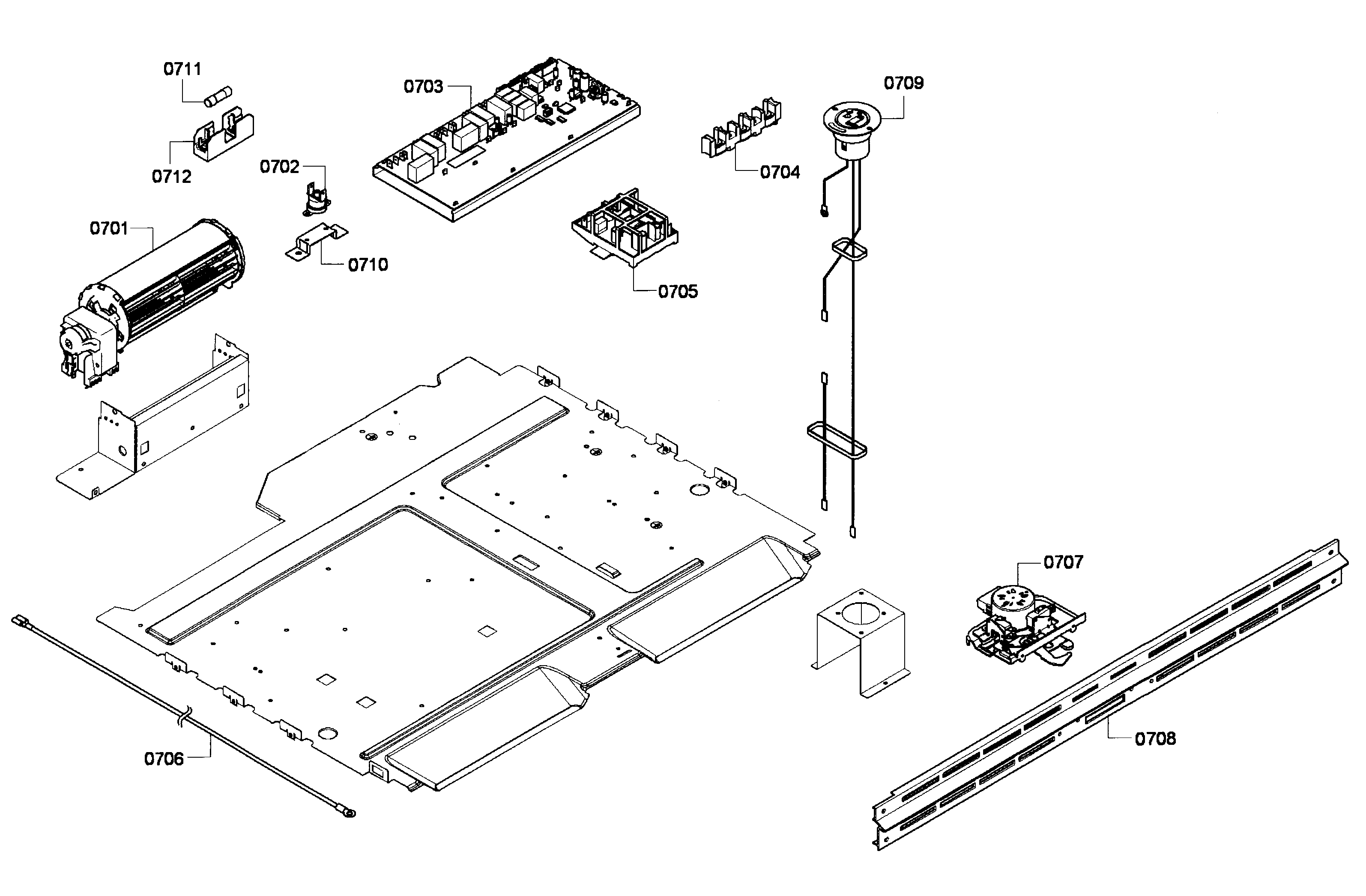

Electric parts Diagram

In Stock
$223.69 |
$10.00 OFF
Phone Price: $233.69
Microwave Magnetron#521

Cavity 1 Diagram

Microwave magnetron

Part #00641858
In Stock
$312.79 |
$10.00 OFF
Phone Price: $322.79
Microwave Door Inner Frame#301

Door Diagram

Back Order
$54.24
Range Oven Door Inner Glass#904

Door Diagram

Glass panel

Part #00683646
Replaced by #00770023
?
Manufacturer substitution
This part replaces 00683646. Substitute parts can look different from the original.
In Stock
$182.39 |
5% OFF
Phone Price: $192.39
Wall Oven High-Limit Thermostat#702

Electric parts Diagram

Limiter

Part #00612548
Replaced by #00617877
?
Manufacturer substitution
This part replaces 00612548. Substitute parts can look different from the original.
In Stock
$29.94
