Dacor
Warming Drawer

Model # MWDV30S Official Dacor warming drawer

Here are the diagrams and repair parts for Official Dacor MWDV30S warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Warming Drawer Electronic Control Board 101645
#16

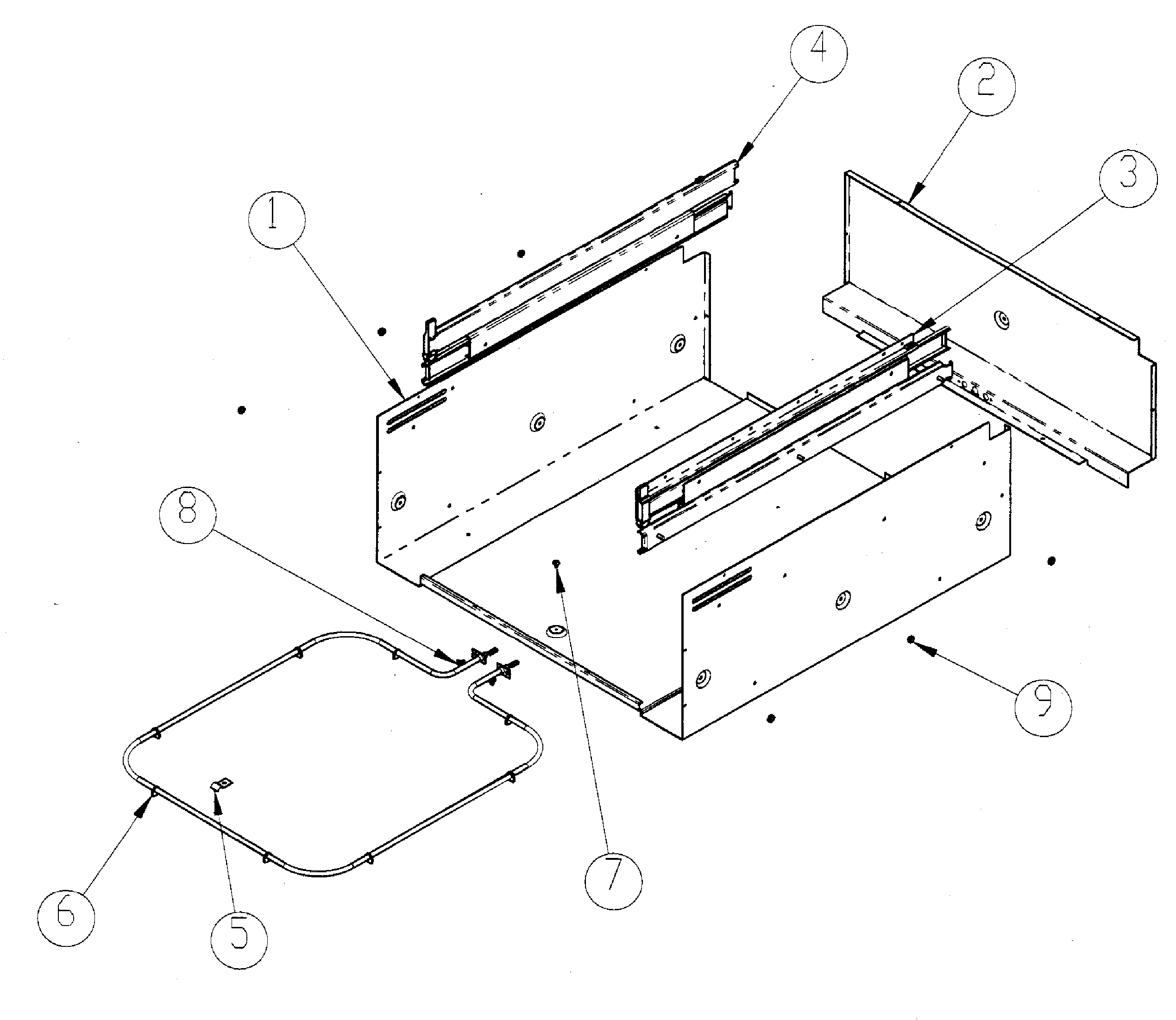

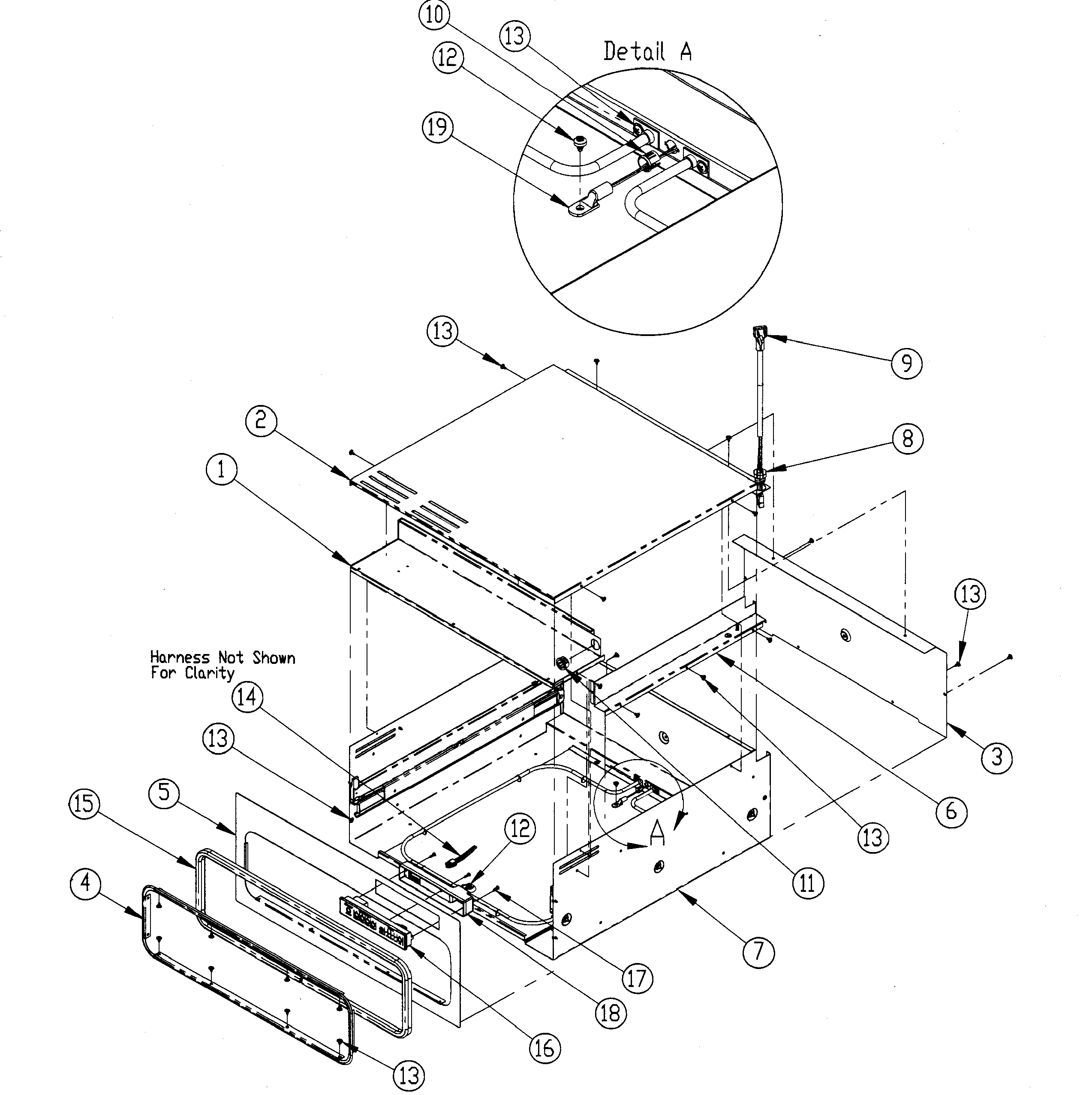

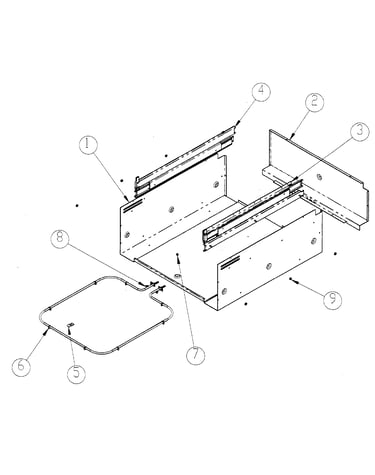

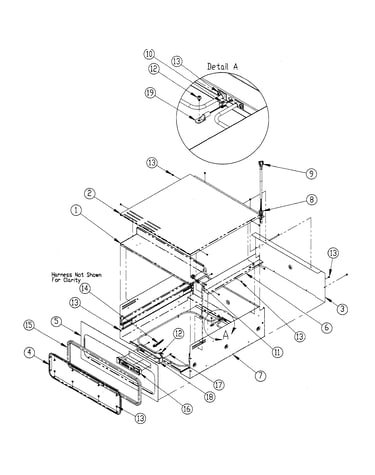

Chassis diagram

Warming drawer electronic control board

Part #101645

$165.49
In Stock
Harness 102347
#14

Chassis diagram

Harness

Part #102347

$89.99
In Stock
Slide 36454
#6

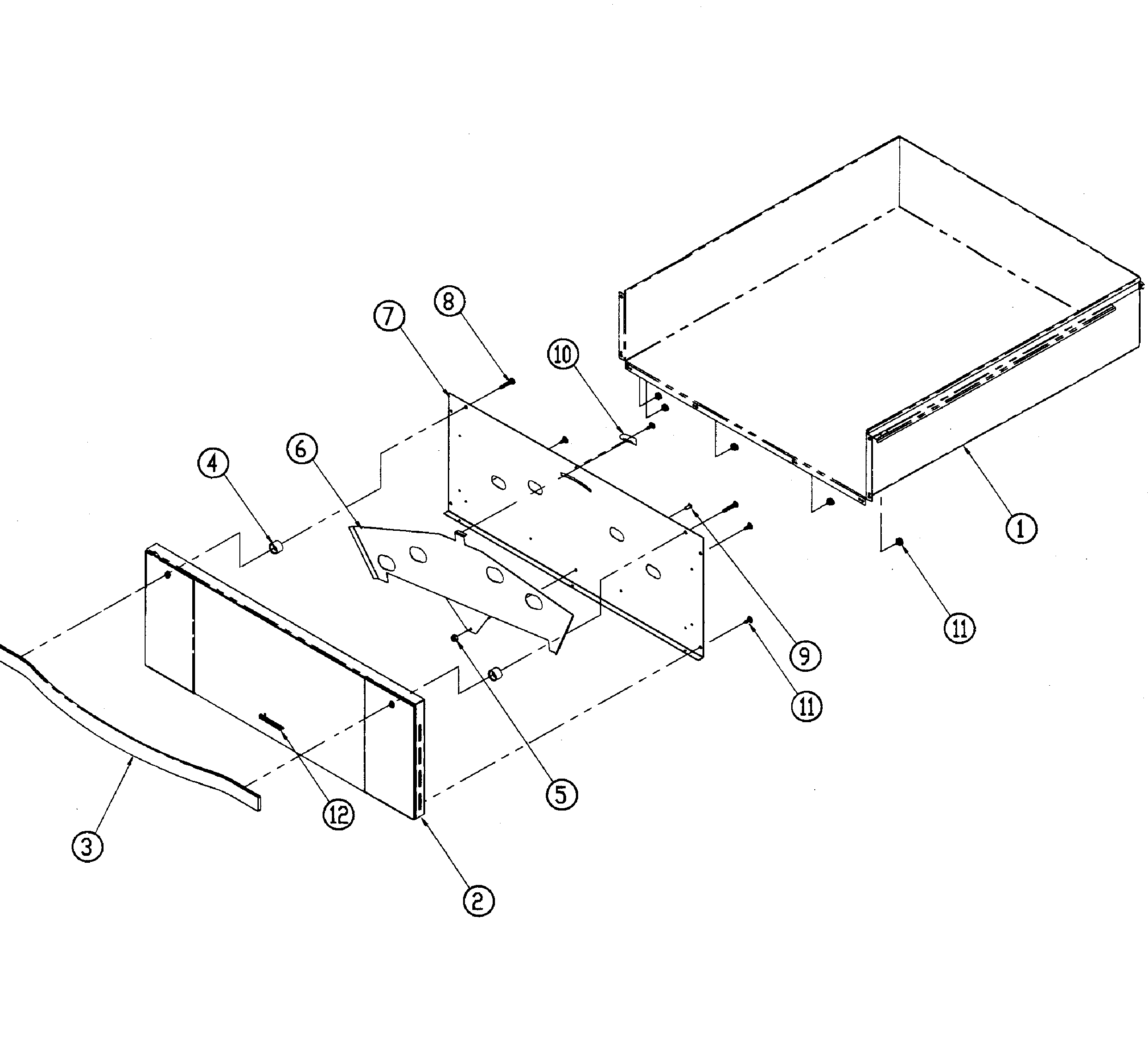

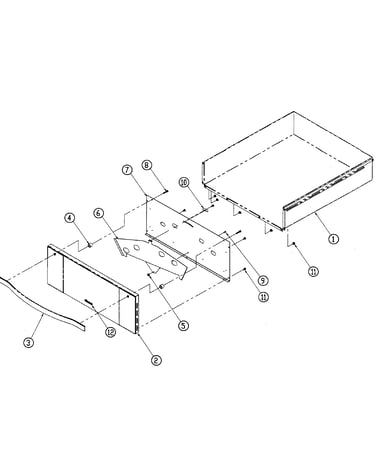

Drawer diagram

Slide

Part #36454

$55.49
In Stock
Drawer Kit 701121-03
#1

Drawer diagram

Drawer kit

Part #701121-03

$344.49
In Stock
Door Handle 72937
#3

Drawer diagram

Door handle

Part #72937

$235.49
In Stock
Chasis Wra 700591-03
#7

Chassis diagram

Chasis wra

Part #700591-03

$205.99
In Stock
Cover 101610
#18

Chassis diagram

Cover

Part #101610

This item is not returnable
$6.49
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Bushing 83056
#11

Chassis diagram

Bushing

Part #83056

This item is not returnable
$2.16
In Stock
Screw 83358
#9

Drawer diagram

Screw

Part #83358

This item is not returnable
$2.16
In Stock
