Model #P-6203G Official Ramsey winch

Here are the diagrams and repair parts for Ramsey P-6203G winch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 27 parts

Wch Gd Assy

See All Related Diagrams

Wch gd assy

Part #469003

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#12

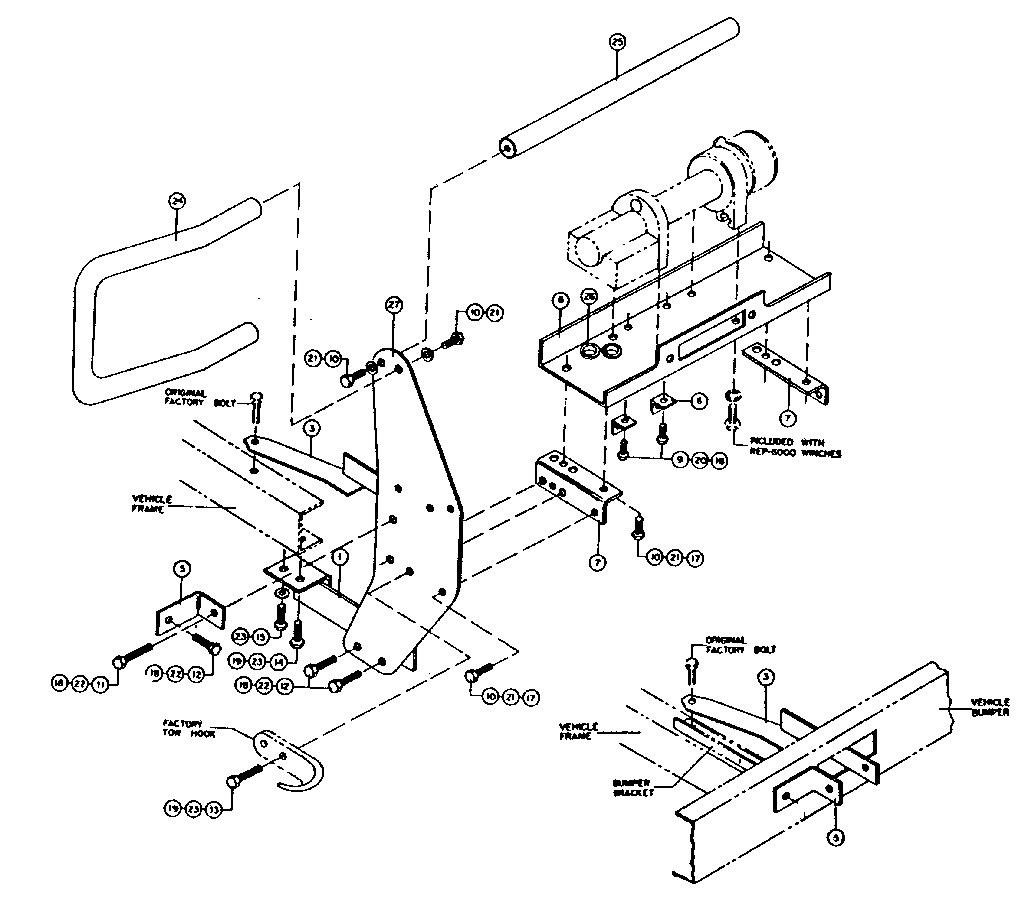

Unit Diagram

Cap screw

Part #414469

The manufacturer no longer makes this part, and there's no substitute part

Strap Assembly#3

Unit Diagram

Strap assembly

Part #280010

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer#22

Unit Diagram

Lock washer

Part #418198

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#9

Unit Diagram

Cap screw

Part #414049

The manufacturer no longer makes this part, and there's no substitute part

Wcn Mtg Ch#8

Unit Diagram

Wcn mtg ch

Part #408052

The manufacturer no longer makes this part, and there's no substitute part

Nut

See All Related Diagrams

Nut

Part #418069

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw#13

Unit Diagram

Cap screw

Part #414539

The manufacturer no longer makes this part, and there's no substitute part

Grommet#26

Unit Diagram

Grommet

Part #472017

The manufacturer no longer makes this part, and there's no substitute part

Strap Assembly#4

Winch guard assembly Diagram

Strap assembly

Part #280011

The manufacturer no longer makes this part, and there's no substitute part
