Model #AHG30LAG1 Official GE dehumidifier

Here are the diagrams and repair parts for GE AHG30LAG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 19 parts

Ahg30/40/50#9999

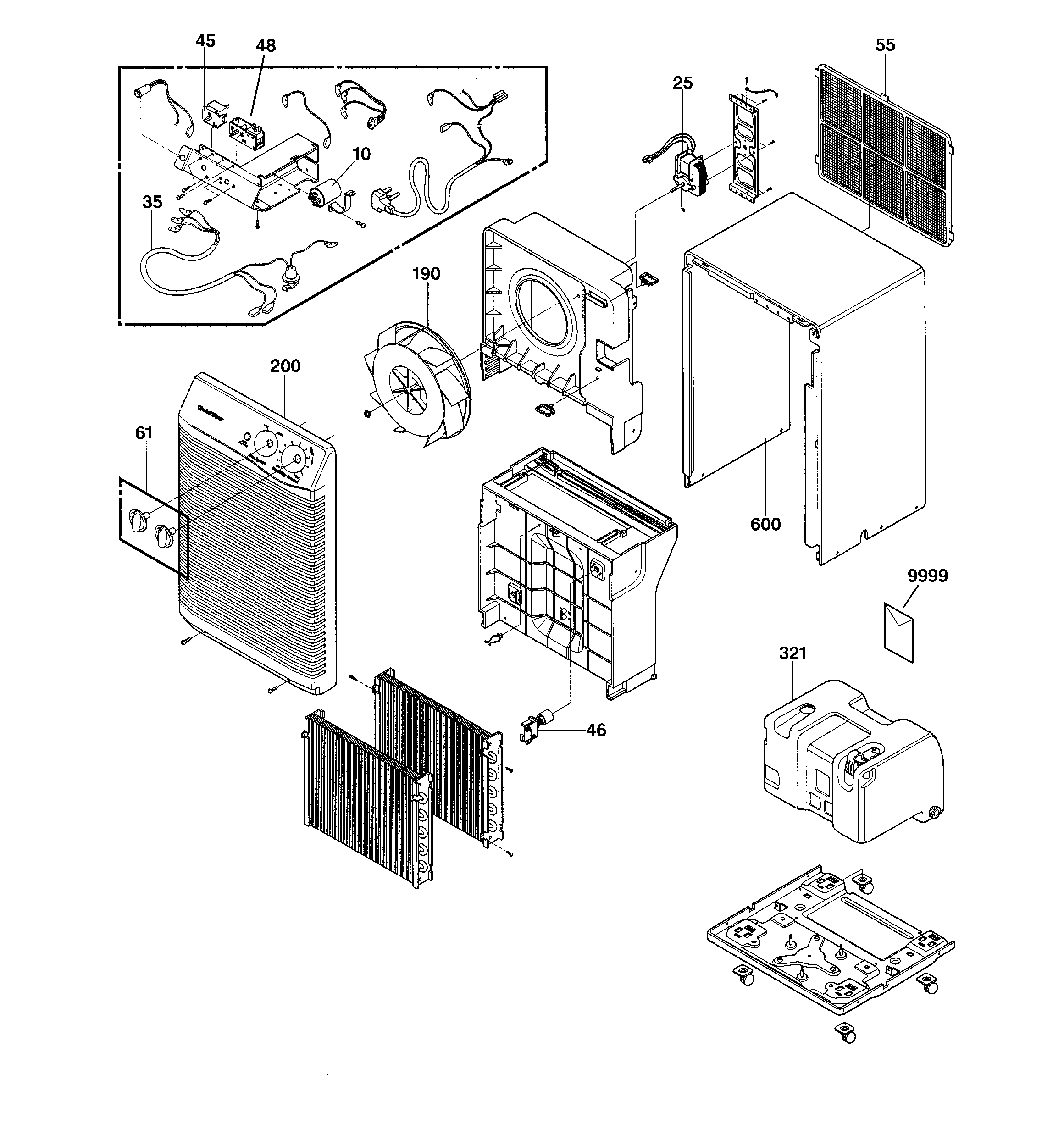

Dehumidifier Diagram

Ahg30/40/50

Part #49-7407
In Stock
$8.49
Grille Assembly#200

Dehumidifier Diagram

Grille assembly

Part #WK71X10004

The manufacturer no longer makes this part, and there's no substitute part

Defrost Control#35

Dehumidifier Diagram

Defrost control

Part #WK28X10007

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual#9999

Dehumidifier Diagram

Mini manual

Part #31-60706

The manufacturer no longer makes this part, and there's no substitute part

Grille#200

Dehumidifier Diagram

Grille

Part #WK71X10003

The manufacturer no longer makes this part, and there's no substitute part

Cabinet#600

Dehumidifier Diagram

Cabinet

Part #WK90X10006

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Knob Assembly#61

Dehumidifier Diagram

Dehumidifier knob assembly

Part #WK12X10002

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch#45

Dehumidifier Diagram

Rotary switch

Part #WK26X10010

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual#9999

Dehumidifier Diagram

Mini manual

Part #31-60707

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual#9999

Dehumidifier Diagram

Mini manual

Part #31-60708

The manufacturer no longer makes this part, and there's no substitute part
