Electrolux
Wall Oven/Microwave Combo

Model # EW27MC65PSB Official Electrolux wall oven/microwave combo

Here are the diagrams and repair parts for Official Electrolux EW27MC65PSB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

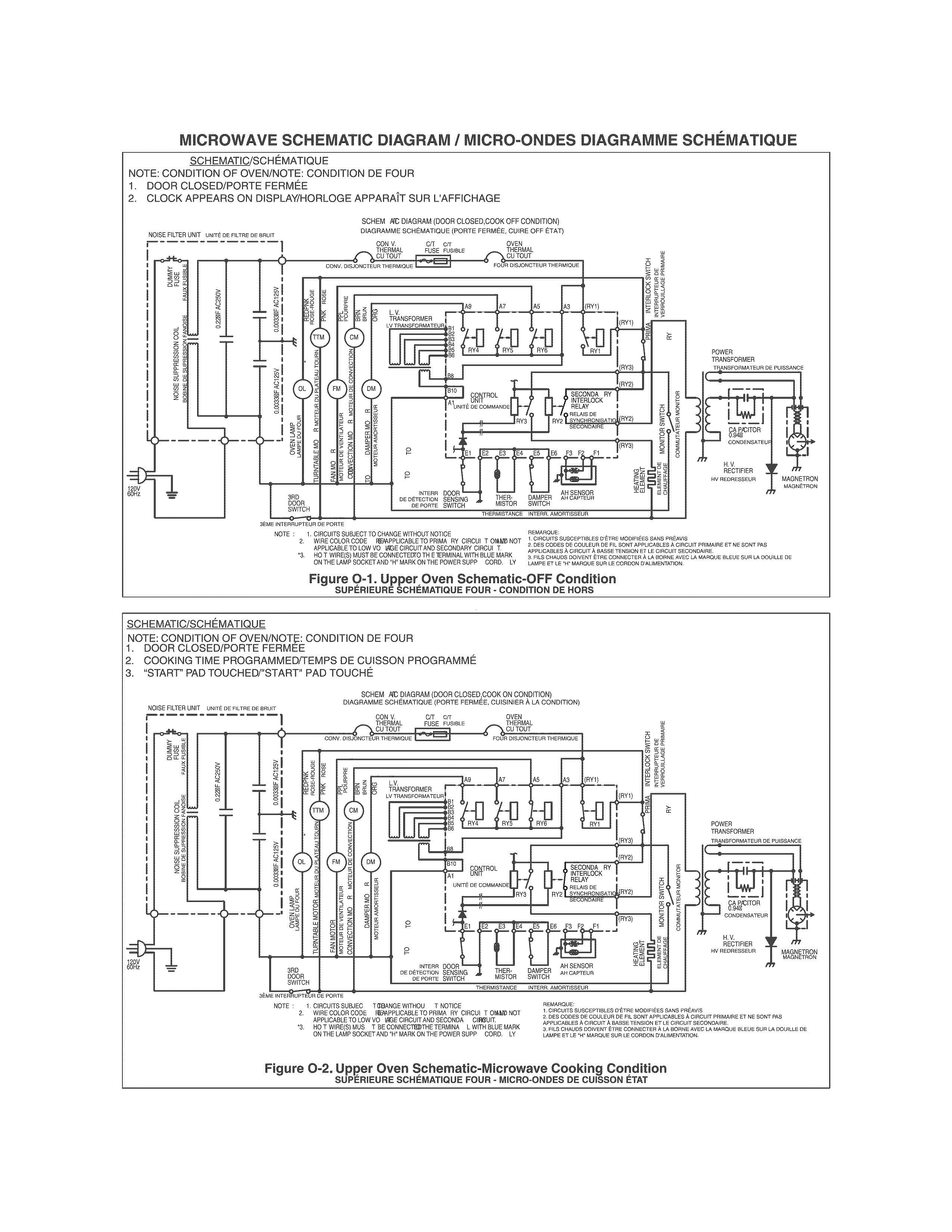

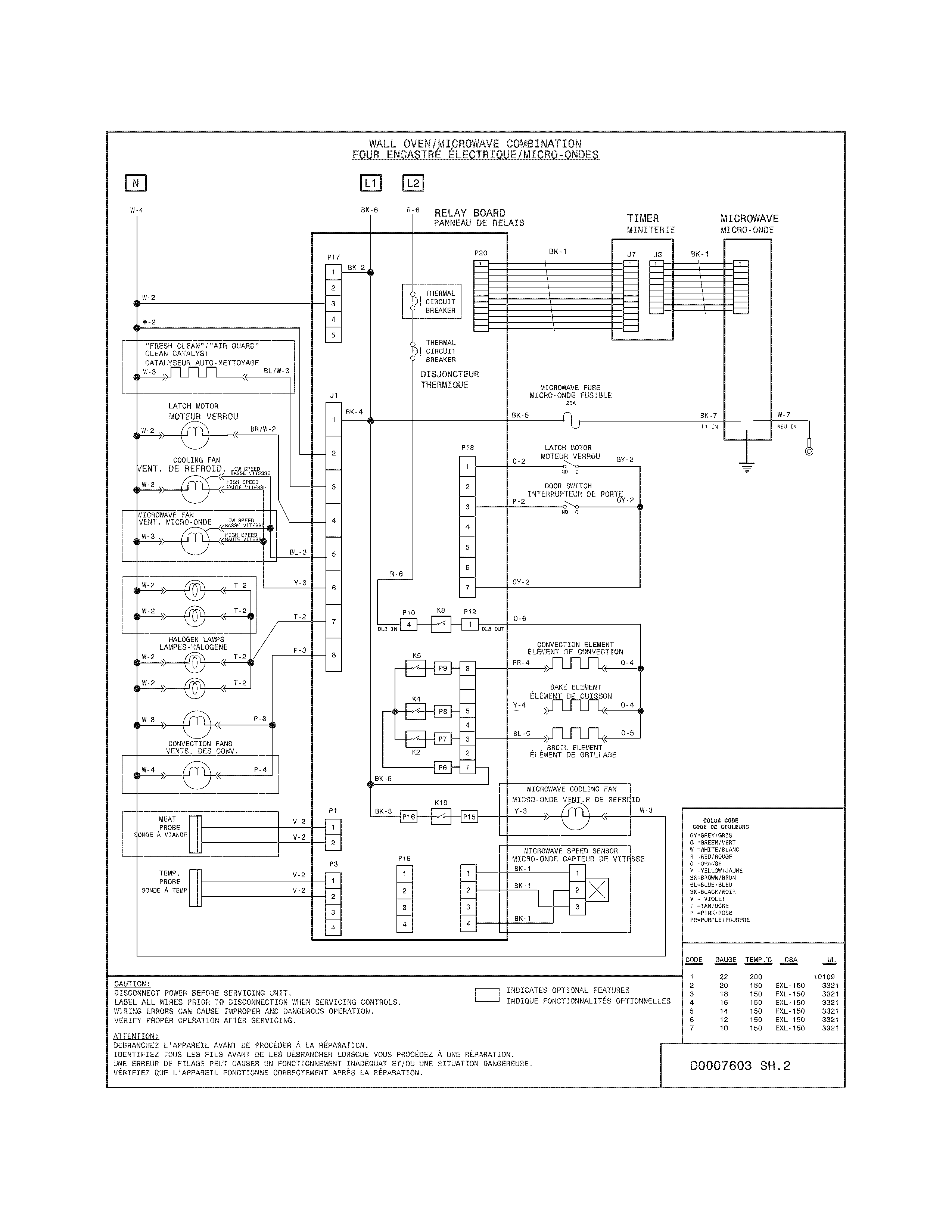

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Range Oven Temperature Sensor 318562500
#37

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57 |
13% OFF Phone Price : $38.57
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Rectifier 5304480635
#12

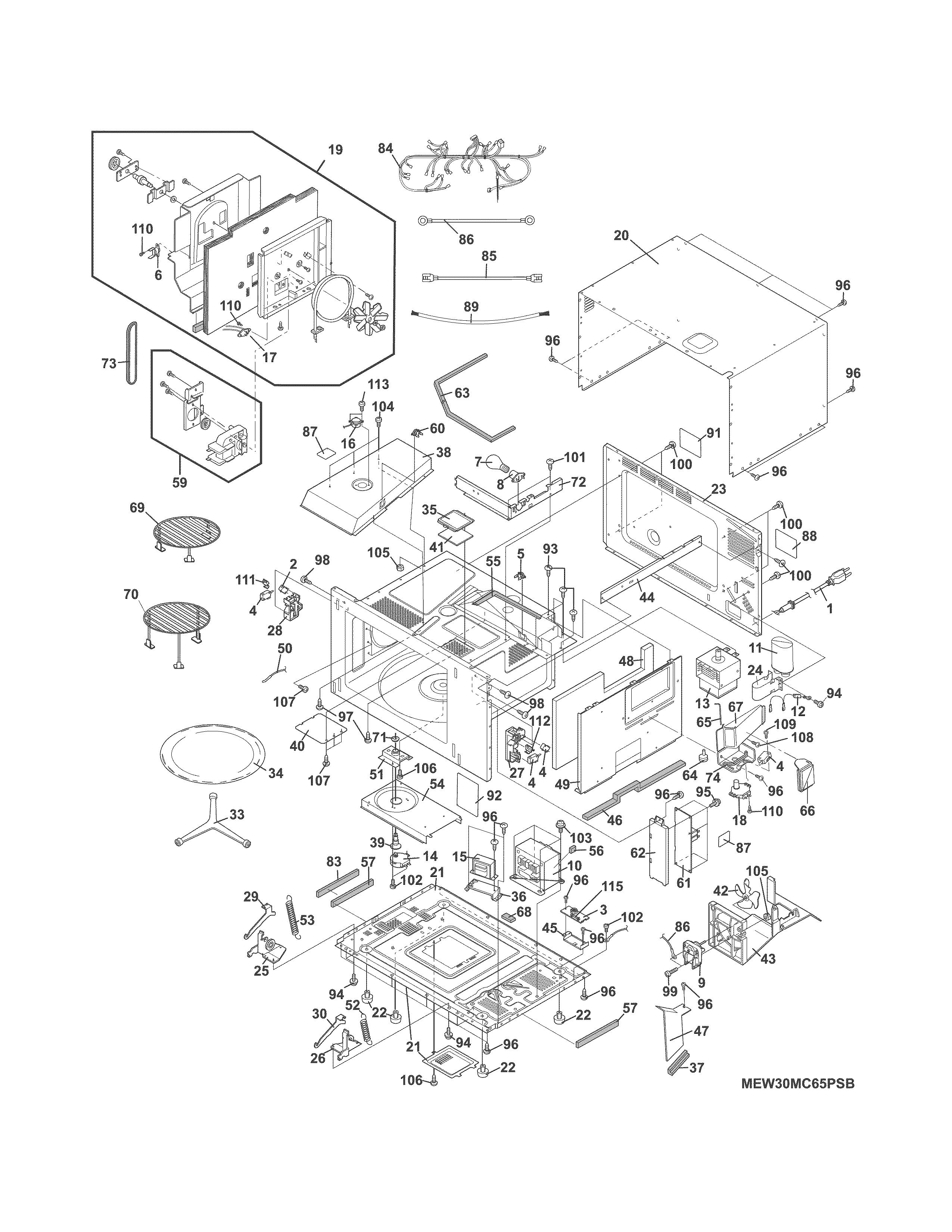

Microwave diagram

Microwave rectifier

Part #5304480635

$52.82
In Stock
Wall Oven Door Hinge, Right 5304480639
#26

Microwave diagram

Wall oven door hinge, right

Part #5304480639

$113.18
In Stock
Microwave Noise Filter 5304498734
Microwave noise filter

Part #5304498734

$39.76
In Stock
Tube 139021700
#272

Lower oven diagram

Tube

Part #139021700

$17.49
In Stock
Dummy Fuse 5304483939
#115

Microwave diagram

Dummy fuse

Part #5304483939

Replaced by #5304498734

?
Manufacturer substitution
This part replaces 5304483939. Substitute parts can look different from the original.
$39.76
In Stock
Wall Oven Convection Fan Motor 139008502
#125

Lower oven diagram

Wall oven convection fan motor

Part #139008502

$110.79 |
8% OFF Phone Price : $120.79
In Stock
Microwave Turntable Tray 5304498731
#34

Microwave diagram

Microwave turntable tray

Part #5304498731

$149.09 |
6% OFF Phone Price : $159.09
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
