Model # 55VS69 Official Hitachi lcd television

Here are the diagrams and repair parts for Official Hitachi 55VS69 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

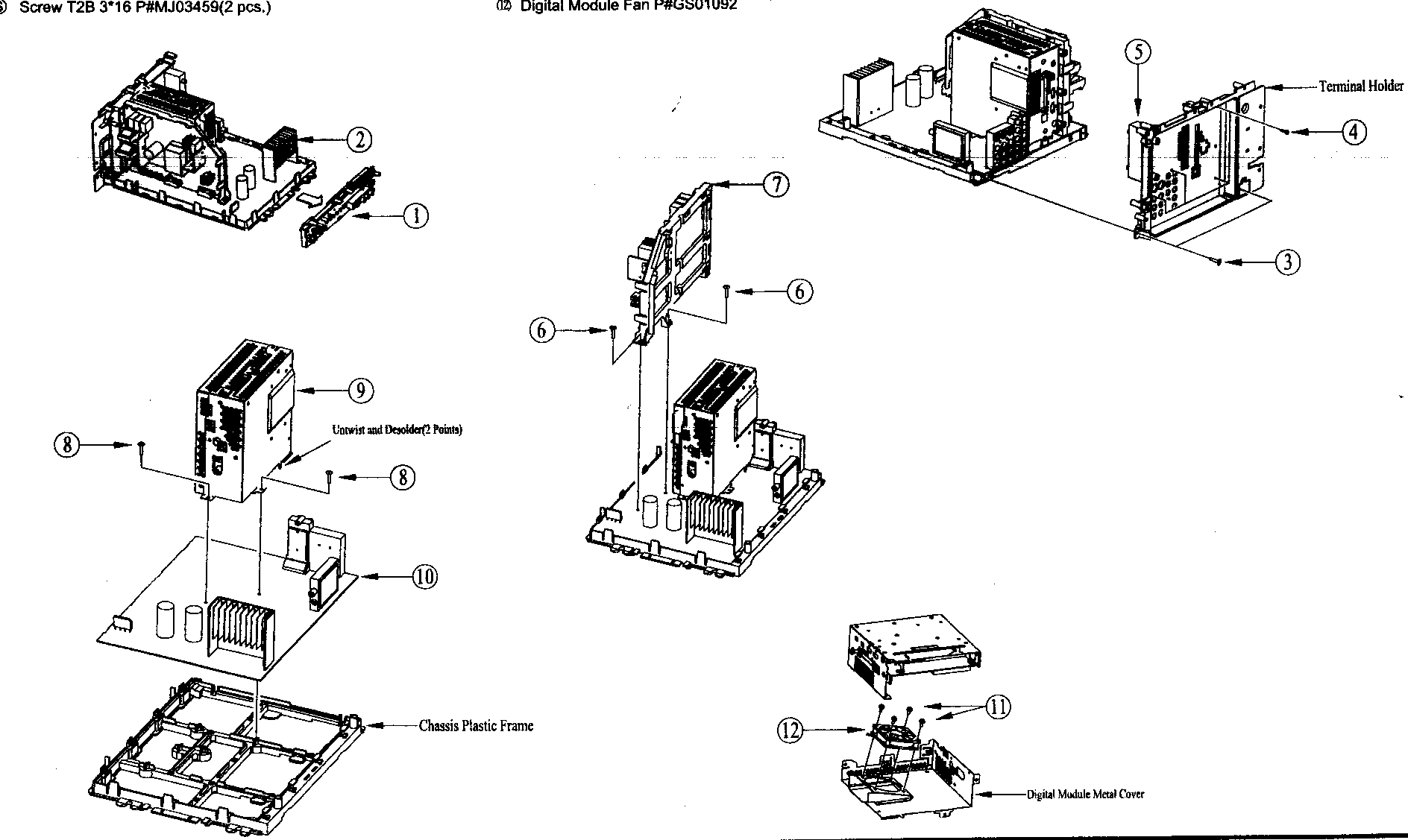

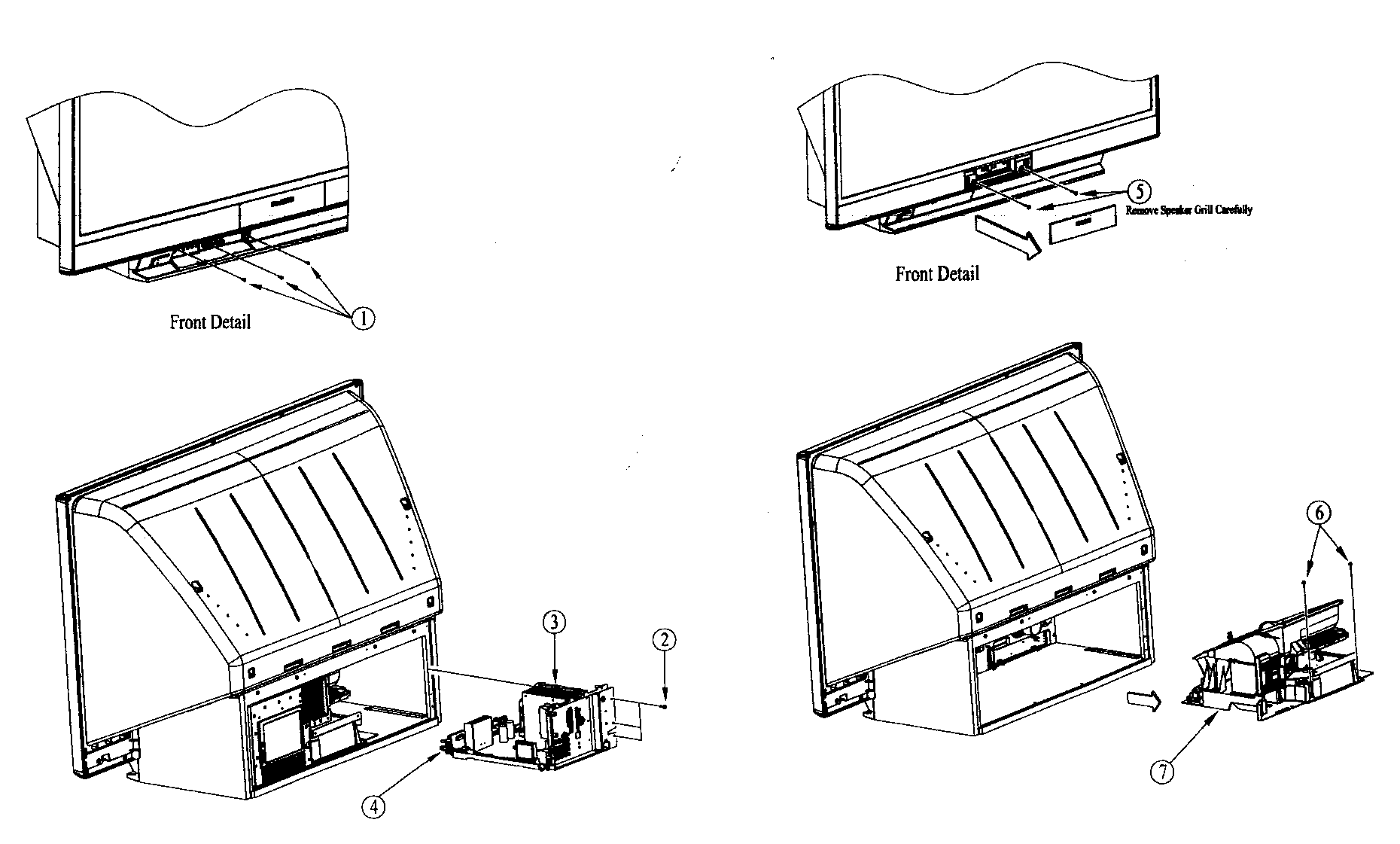

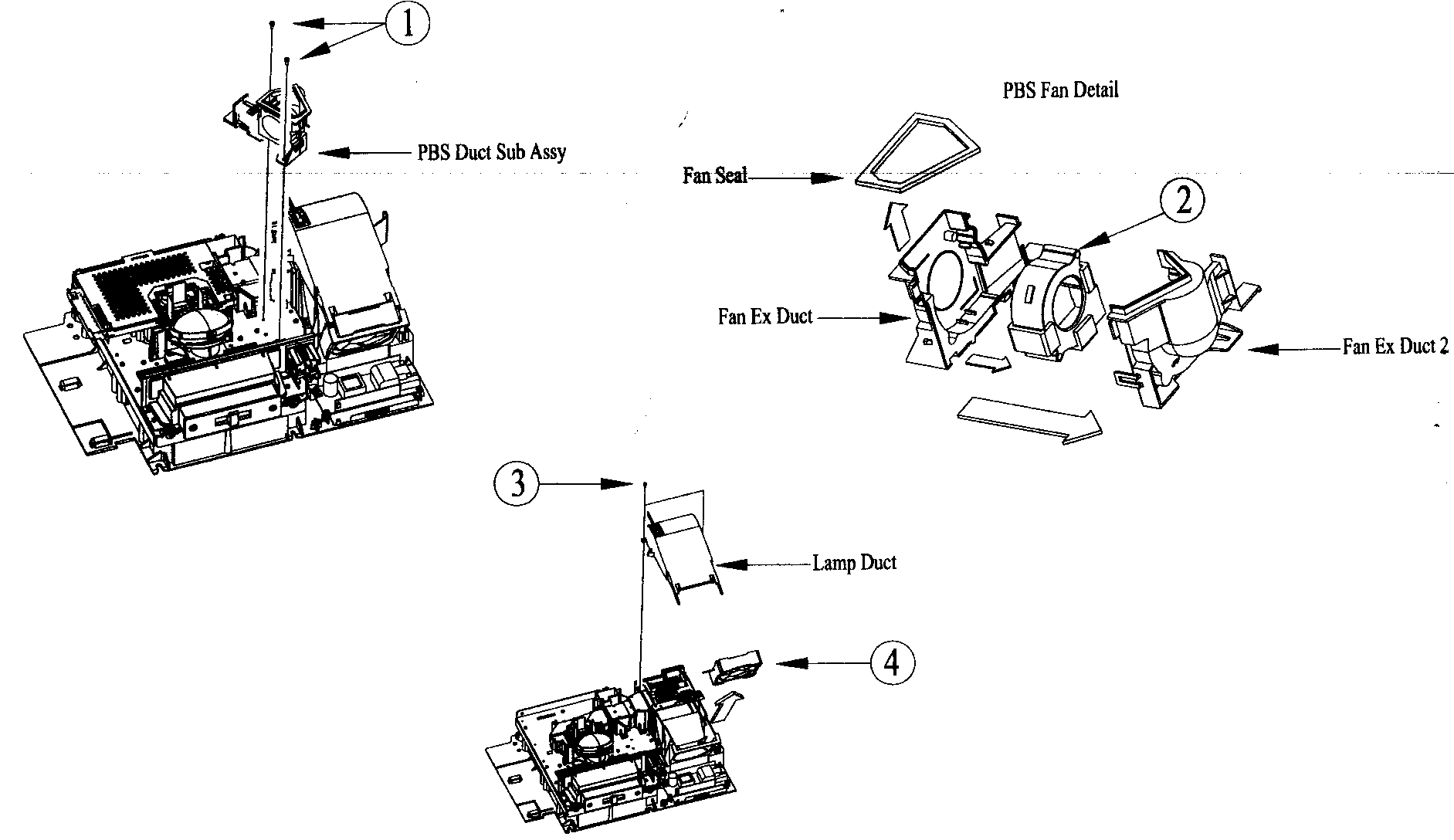

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Rear Board PH37742
#4

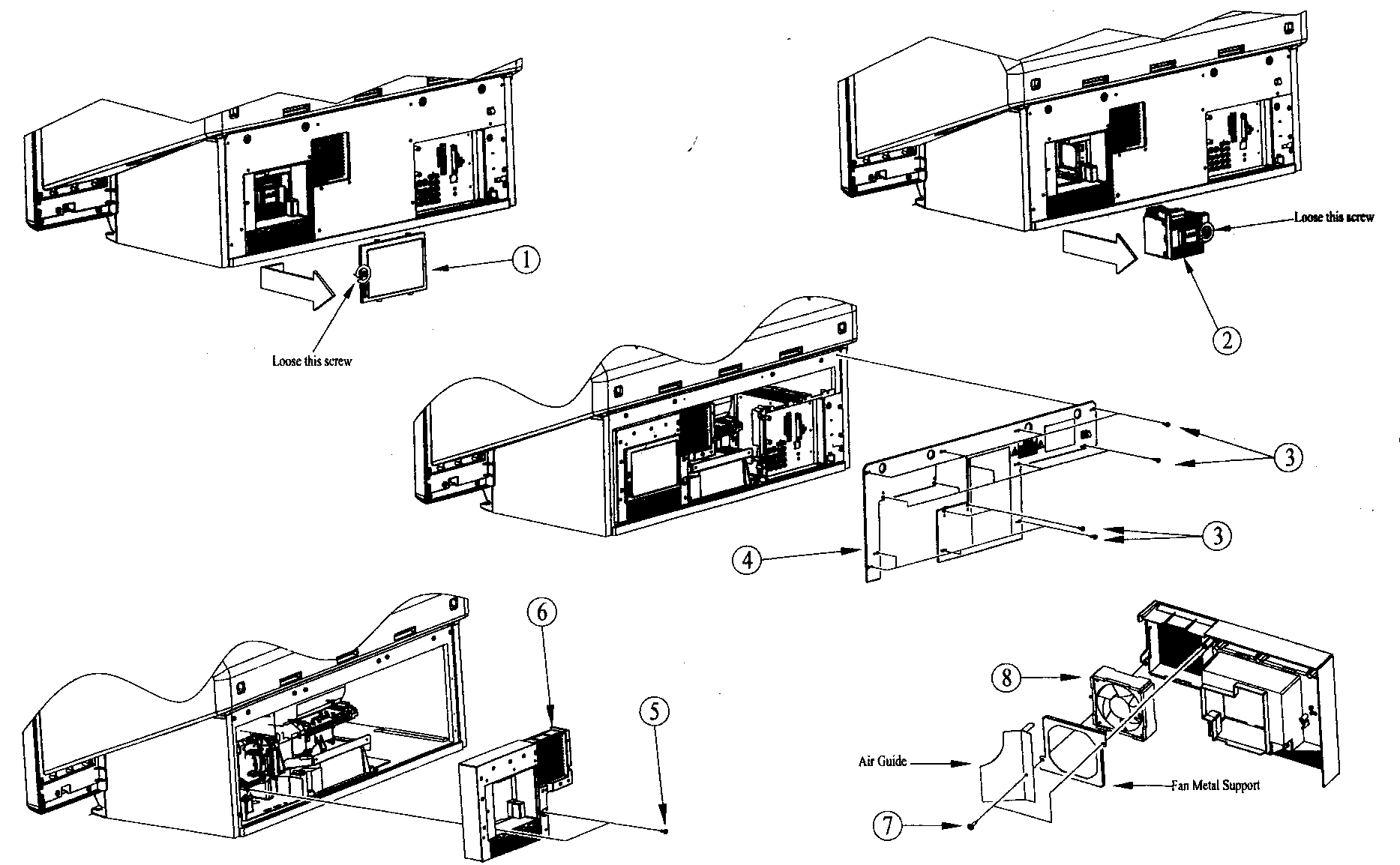

Lamp assy diagram

Rear board

Part #PH37742

The manufacturer no longer makes this part, and there's no substitute part

Lamp Ballast HA01641
#2

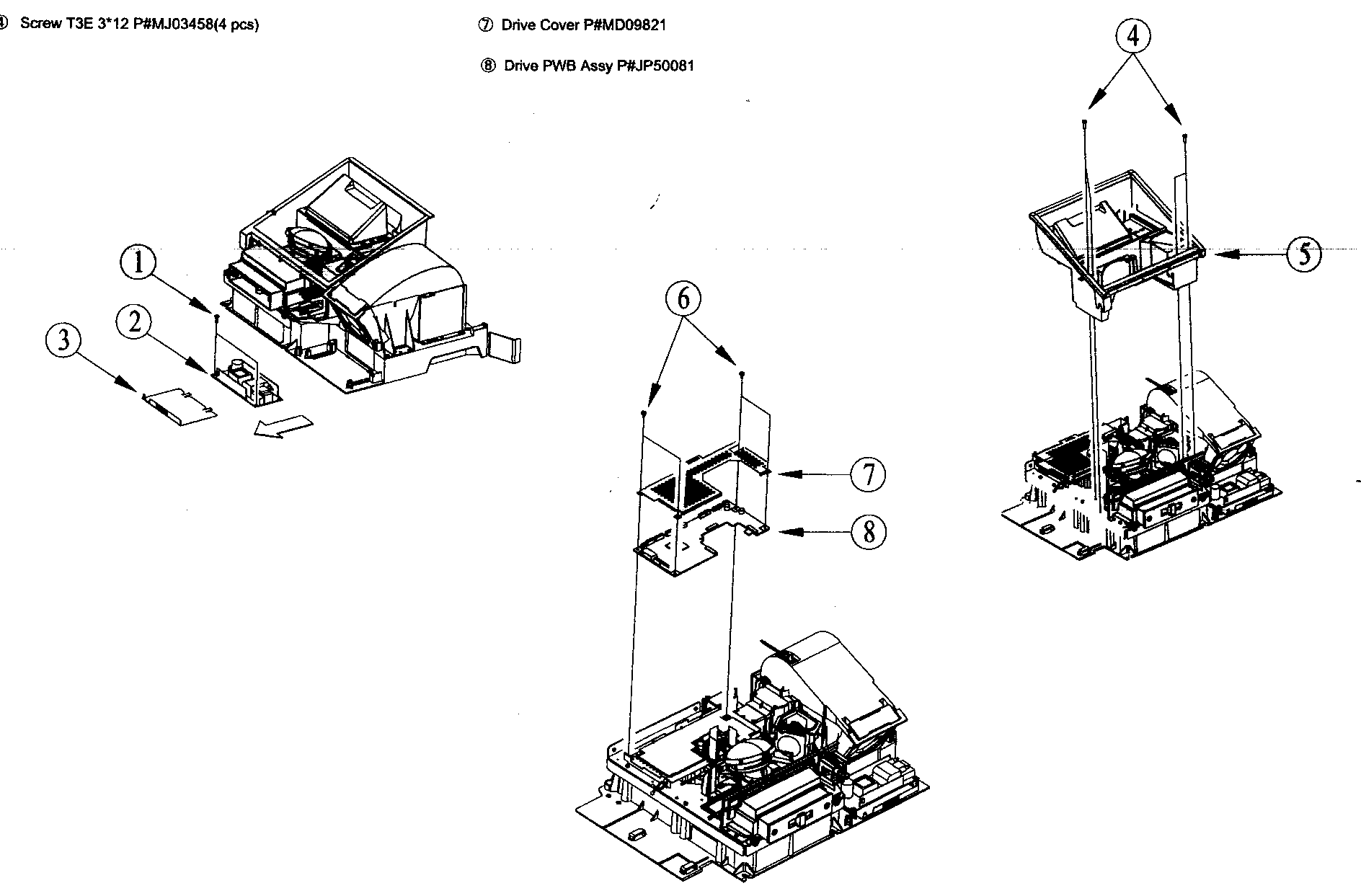

Light engine diagram

Lamp ballast

Part #HA01641

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit CK37193R
#NI

Lamp assy diagram

Integrated circuit

Part #CK37193R

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit CK37212R
#NI

Lamp assy diagram

Integrated circuit

Part #CK37212R

The manufacturer no longer makes this part, and there's no substitute part

Protector AZ00921M
#NI

Lamp assy diagram

Protector

Part #AZ00921M

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit CK33543R
#NI

Lamp assy diagram

Integrated circuit

Part #CK33543R

The manufacturer no longer makes this part, and there's no substitute part

Television Lamp UX25951
#2

Lamp assy diagram

Television lamp

Part #UX25951

$178.64
In Stock
Mirror KS20792
#4

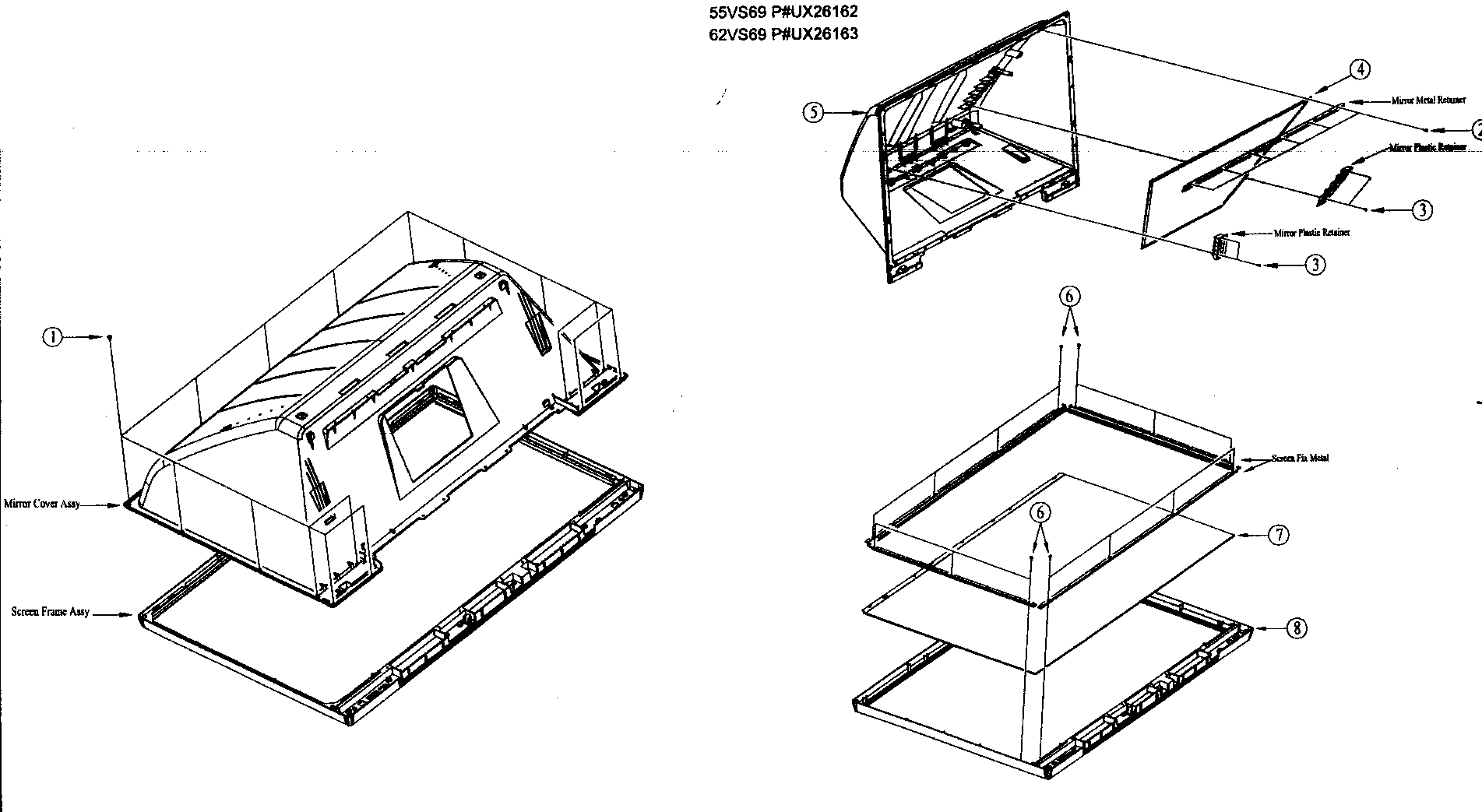

Front panel assy diagram

Mirror

Part #KS20792

The manufacturer no longer makes this part, and there's no substitute part

Capacitor AN10501S
#NI

Lamp assy diagram

Capacitor

Part #AN10501S

The manufacturer no longer makes this part, and there's no substitute part

Record Bridge CH00051
#NI

Lamp assy diagram

Record bridge

Part #CH00051

The manufacturer no longer makes this part, and there's no substitute part
