GE
Microwave/Hood Combo

Model # PSA9240DF1WW Official GE microwave

Here are the diagrams and repair parts for Official GE PSA9240DF1WW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

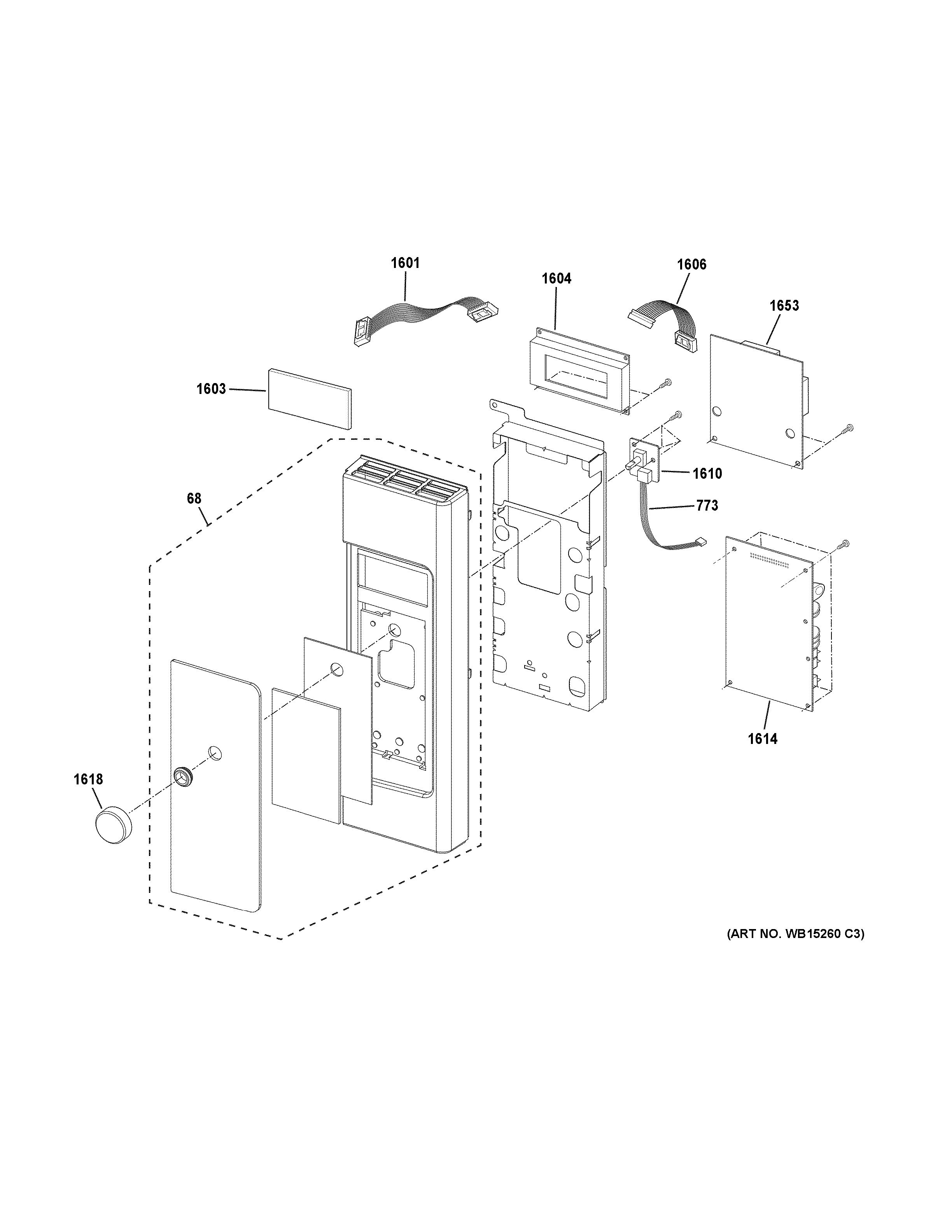

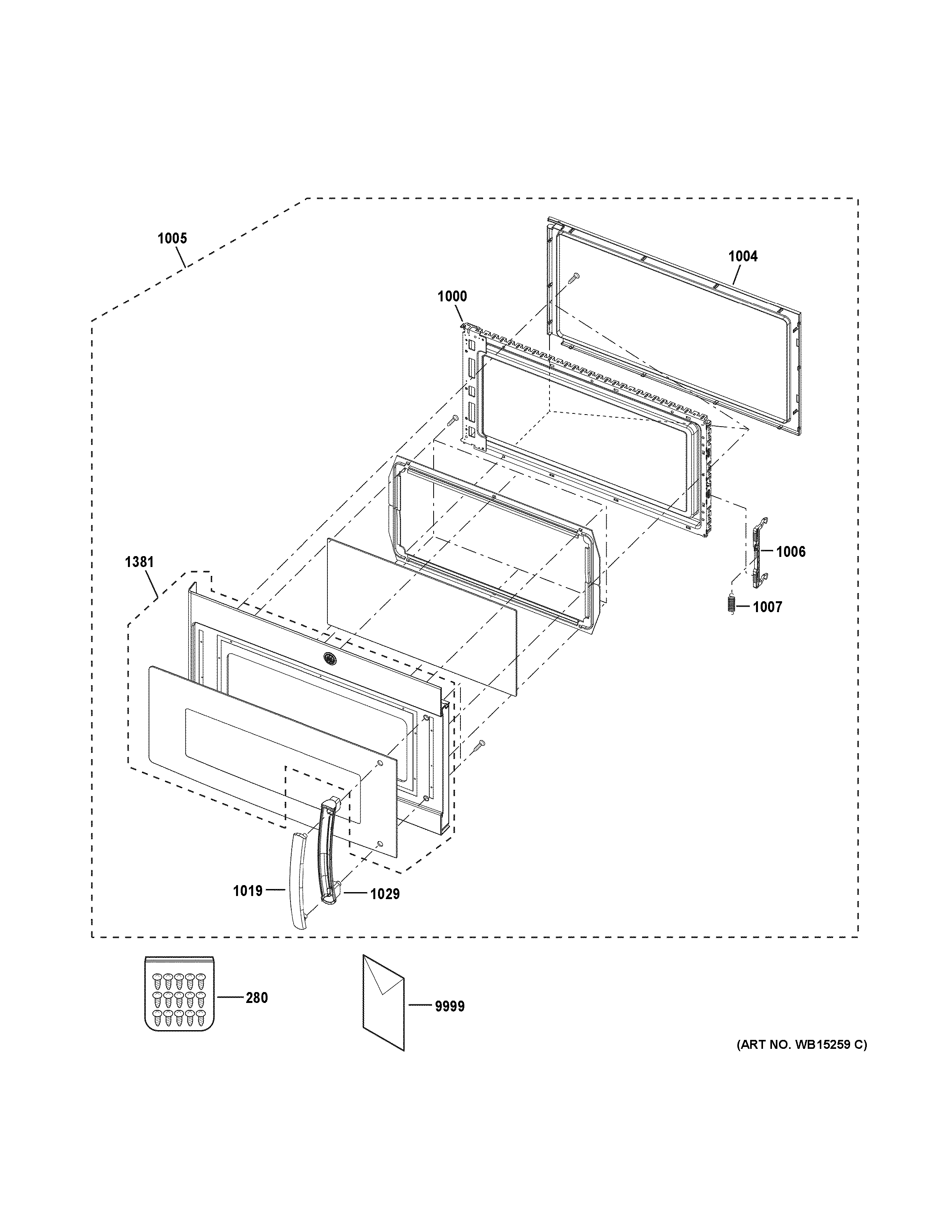

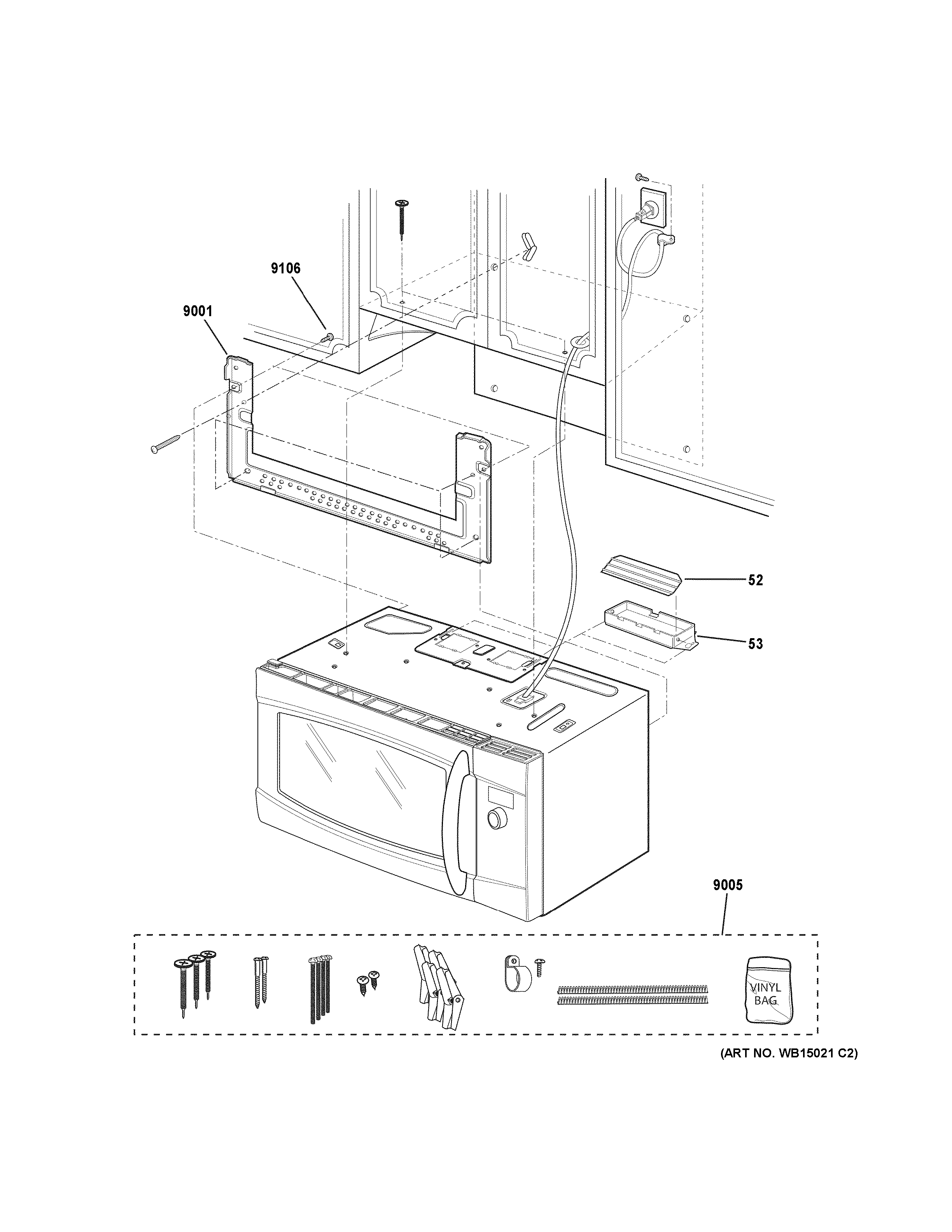

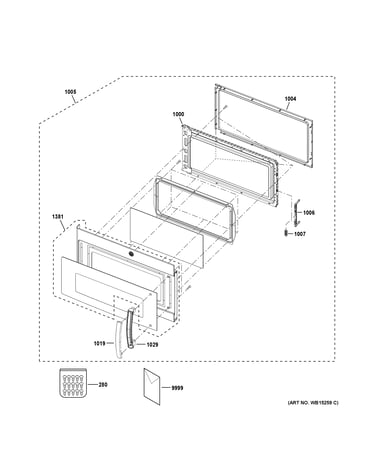

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Microwave Fuse WB27X10388
#47

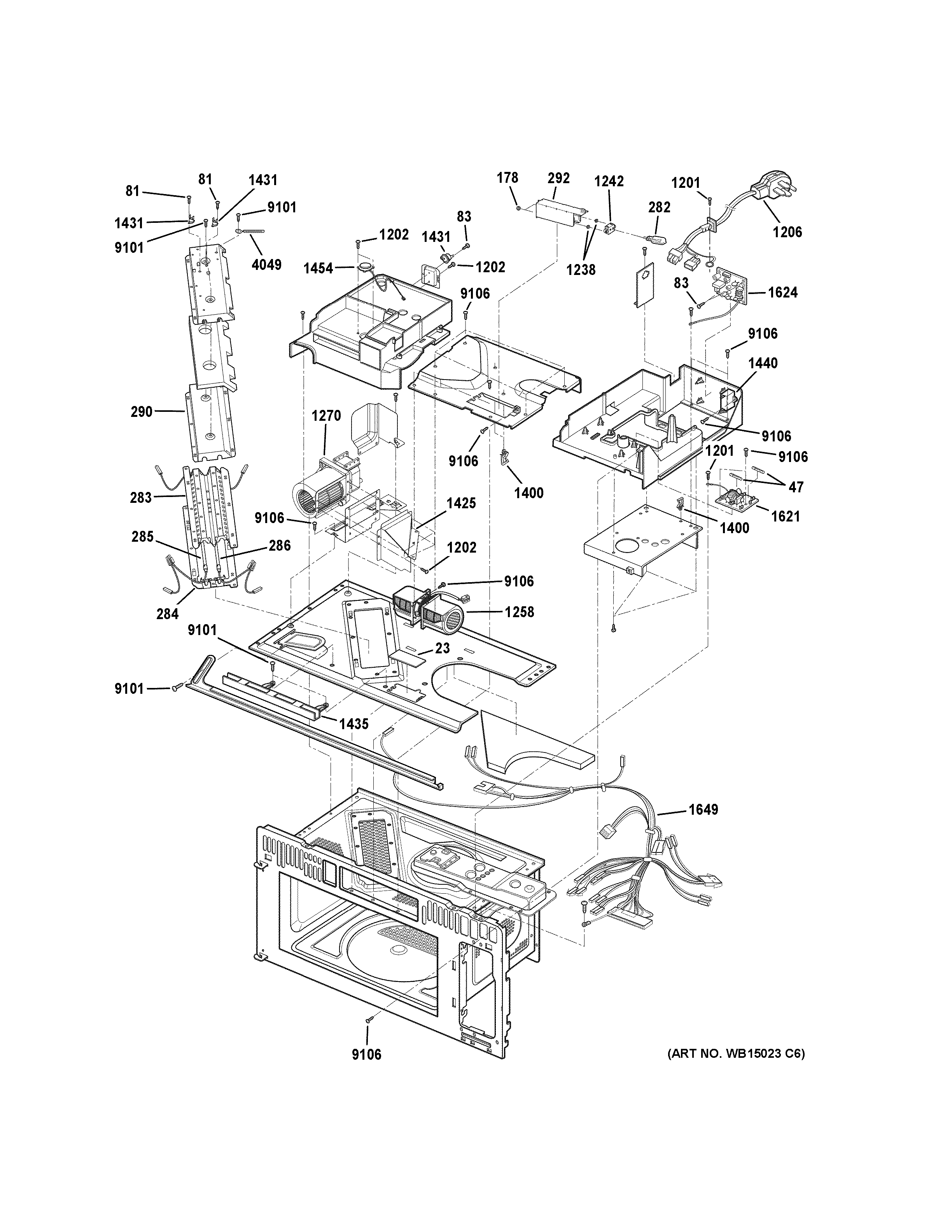

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Primary Switch WB24X0815
#604

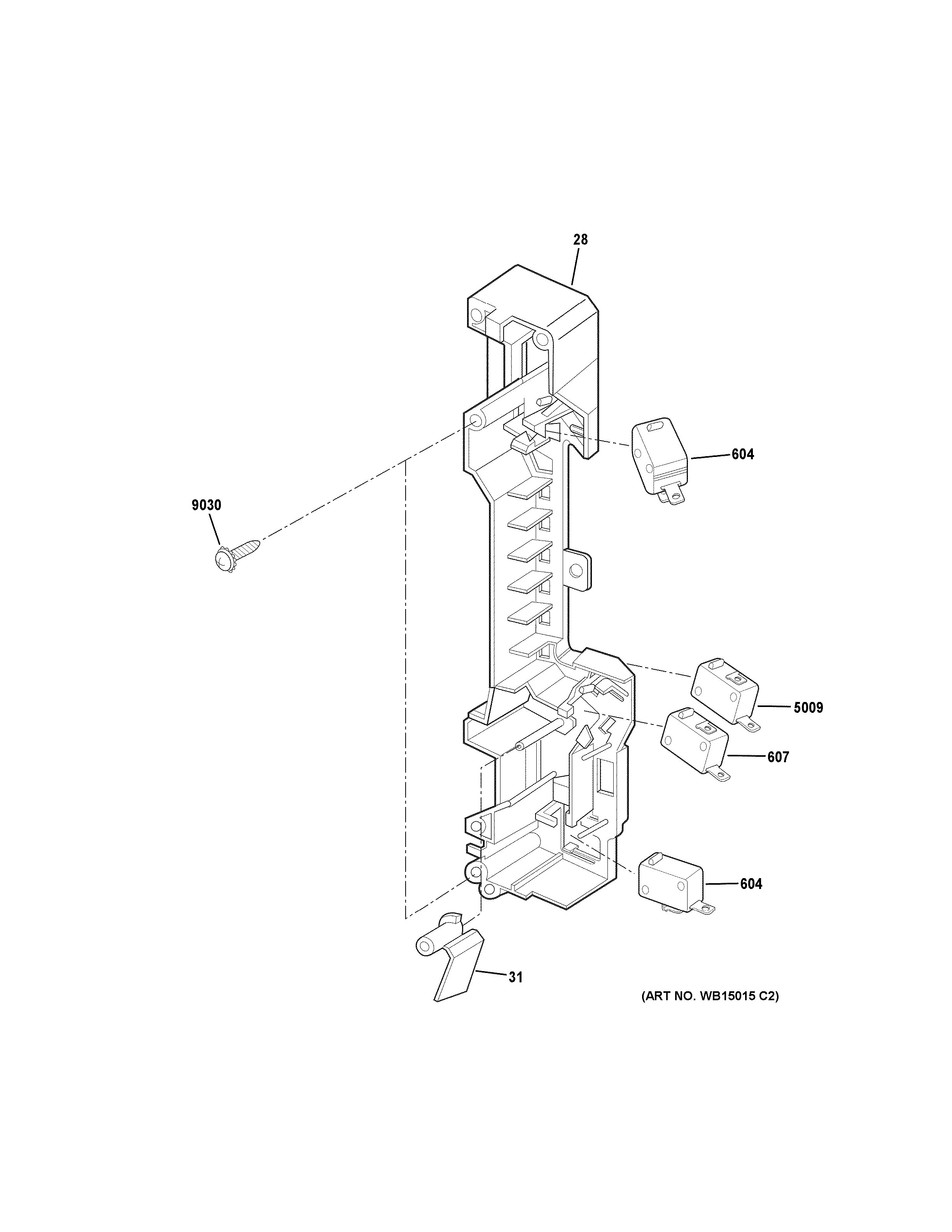

Latch board parts diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
17% OFF Phone Price : $29.27
In Stock
Microwave High-voltage Capacitor (replaces Wb27x10701, Wb27x10747, Wb27x10805) WB27X11033
#1438

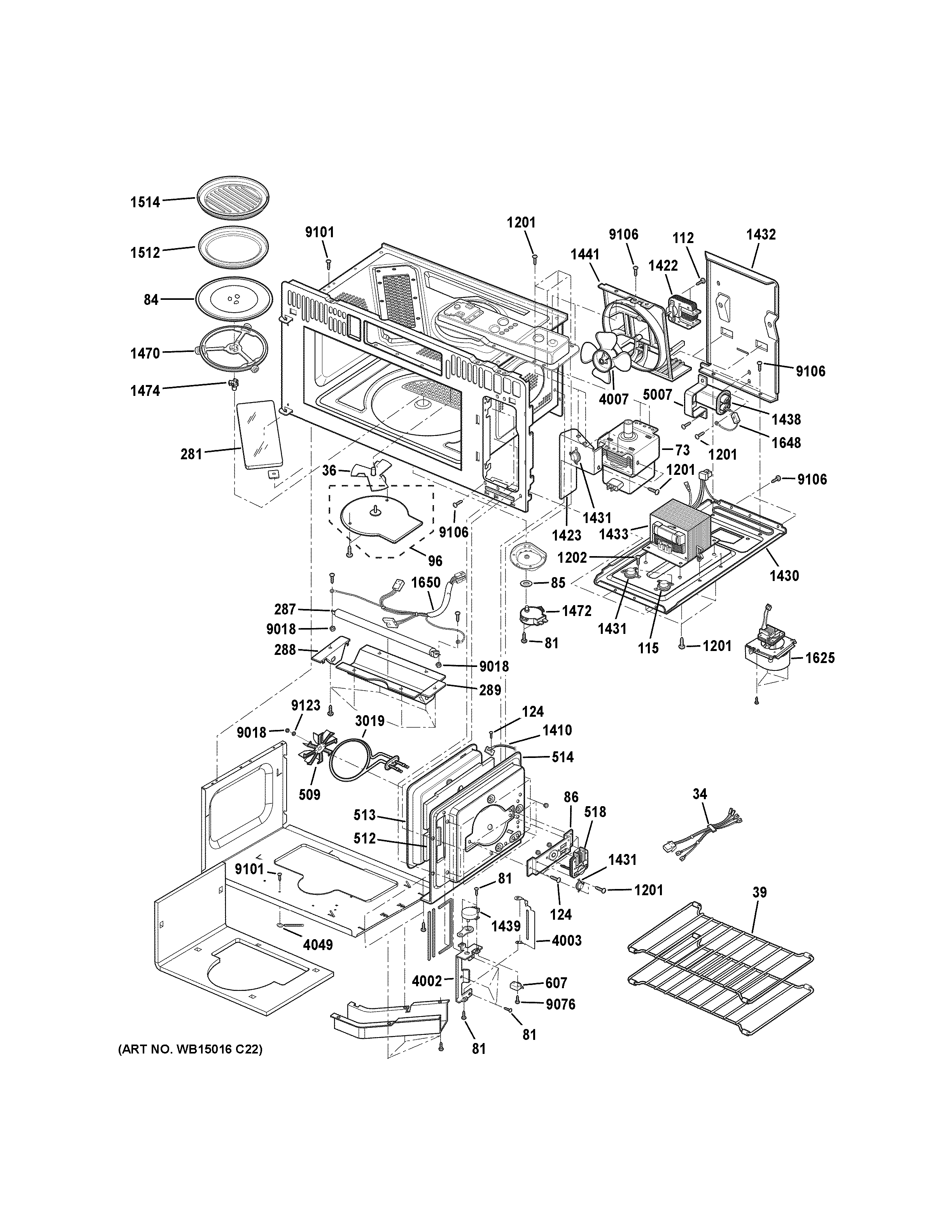

Interior parts (1) diagram

Microwave high-voltage capacitor (replaces wb27x10701, wb27x10747, wb27x10805)

Part #WB27X11033

BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Cable WB18X10286
#1648

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
17% OFF Phone Price : $29.73
In Stock
Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#291

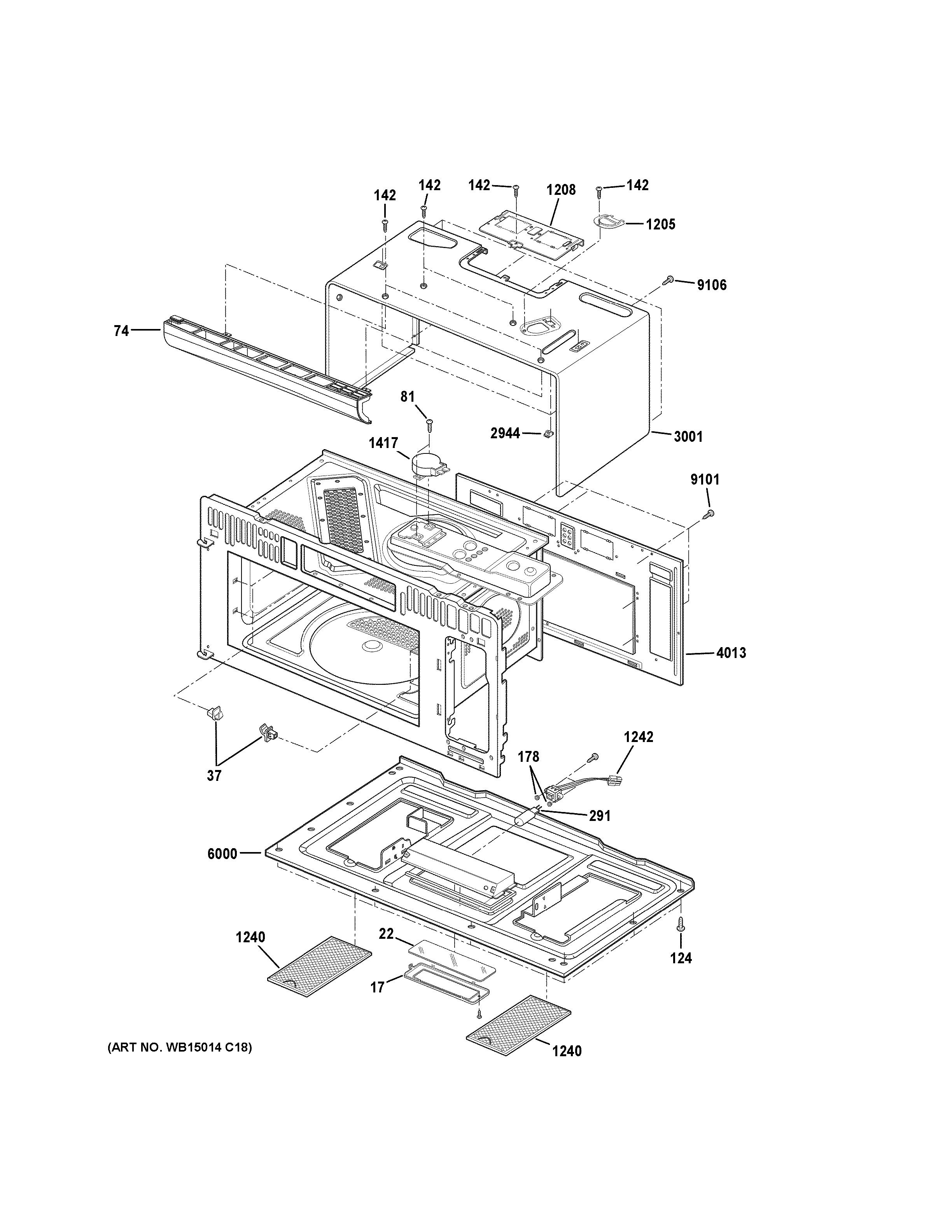

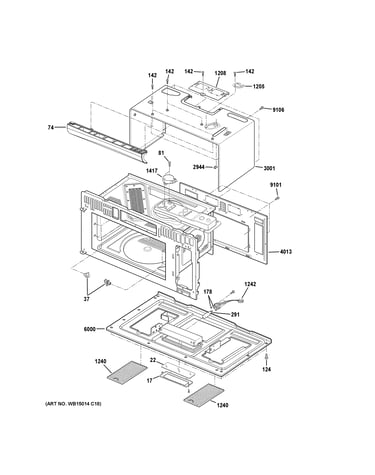

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave Turntable Motor (replaces Wb26x10075) WB26X10193
#1472

Interior parts (1) diagram

Microwave turntable motor (replaces wb26x10075)

Part #WB26X10193

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Magnetron WB27X10865
#73

Interior parts (1) diagram

Magnetron

Part #WB27X10865

The manufacturer no longer makes this part, and there's no substitute part

Microwave Vent Hood Thermostat (replaces Wb27x10713) WB27X11034
#115

Interior parts (1) diagram

Microwave vent hood thermostat (replaces wb27x10713)

Part #WB27X11034

$15.47 |
11% OFF Phone Price : $17.47
In Stock
Glass Tray WB49X10205
#84

Interior parts (1) diagram

Glass tray

Part #WB49X10205

Replaced by #WB49X10176

?
Manufacturer substitution
This part replaces WB49X10205. Substitute parts can look different from the original.
$69.09 |
7% OFF Phone Price : $74.09
In Stock
Monitor Switch WB24X0817
Monitor switch

Part #WB24X0817

Replaced by #WB24X817

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$34.19 |
13% OFF Phone Price : $39.19
In Stock
