Troybilt
Chipper/Shredder

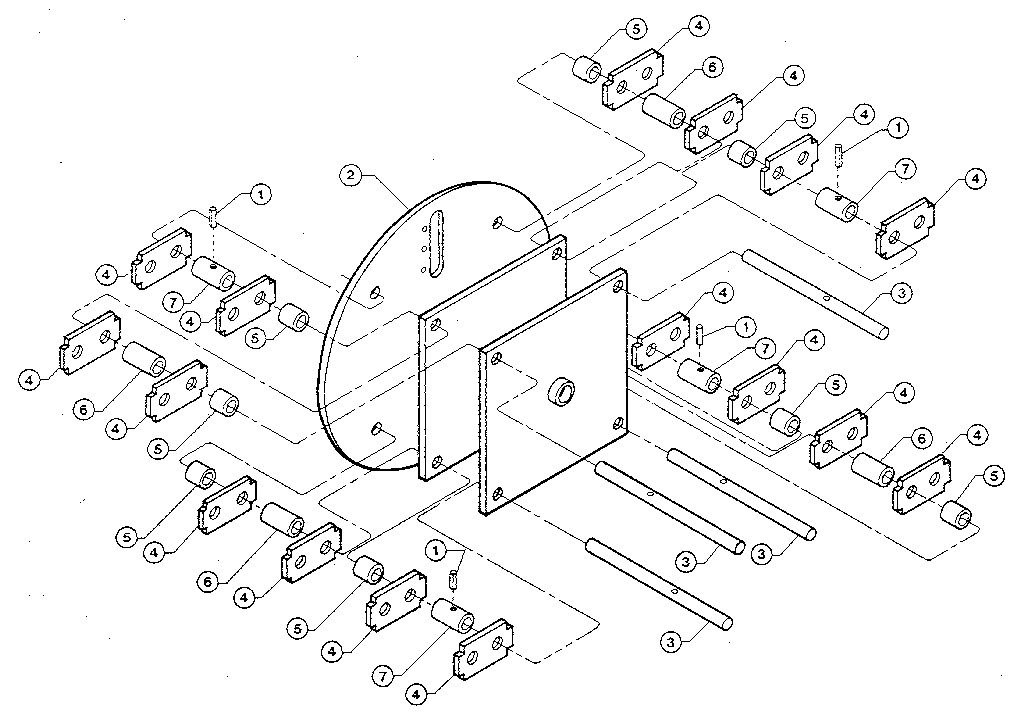

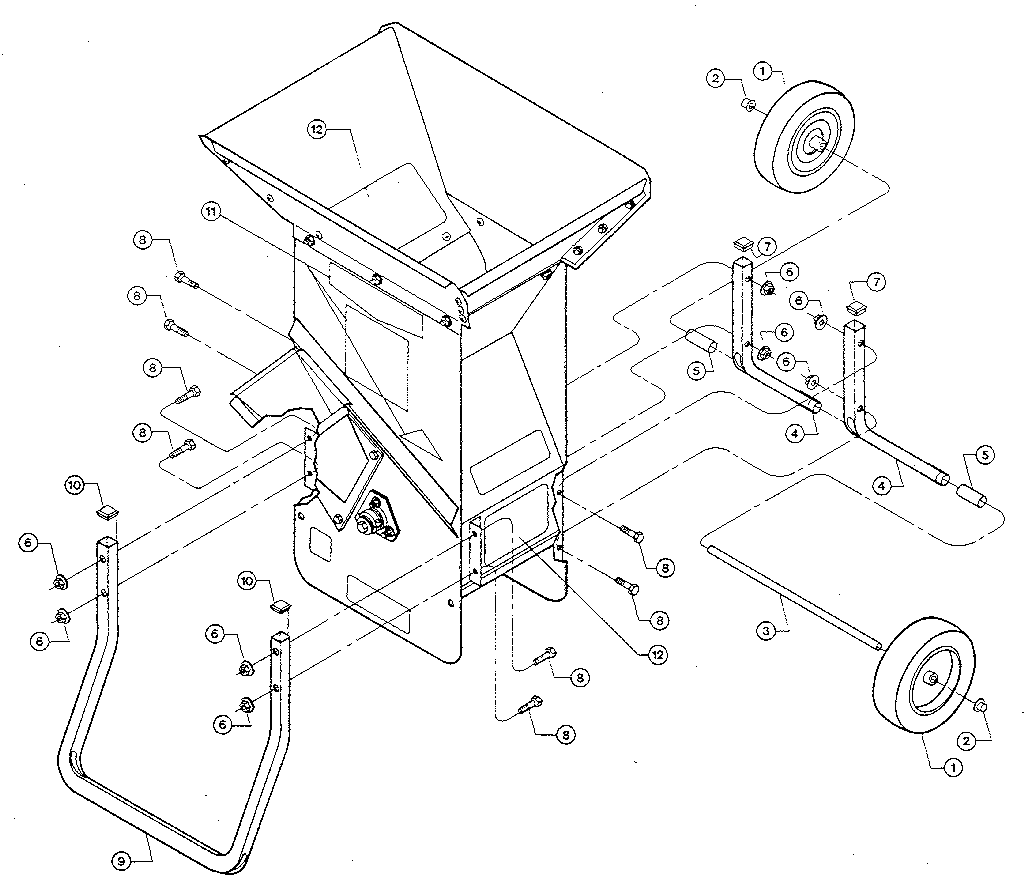

Model #SUPER TOMAHAWK 4HP Official Troybilt super tomahawk chipper/shredder

Here are the diagrams and repair parts for Troybilt SUPER-TOMAHAWK-4HP super tomahawk chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 98 parts

Lawn & Garden Equipment Bell Washer#12

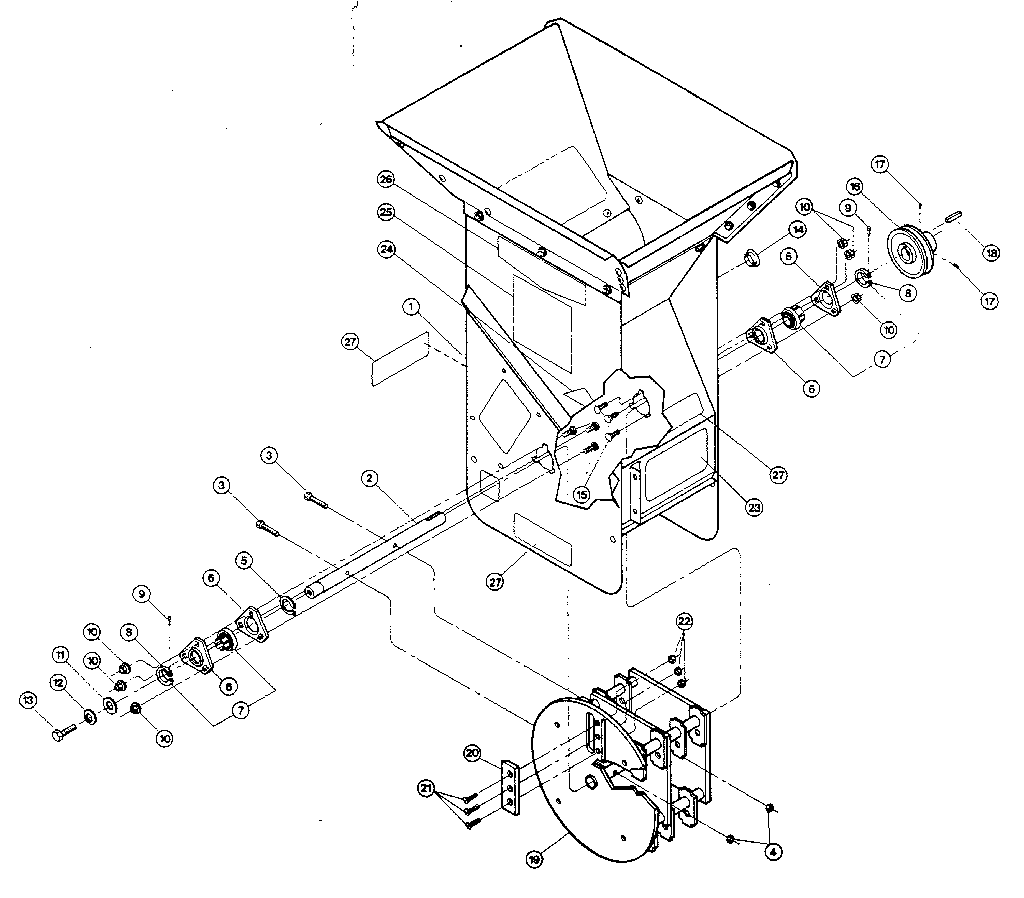

Drawing one Diagram

Washer

Part #WK1250C065
Replaced by #736-0331
?
Manufacturer substitution
This part replaces WK1250C065. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.79 |
17% OFF
Phone Price: $5.79
Lawn Tractor Hex Bolt#2

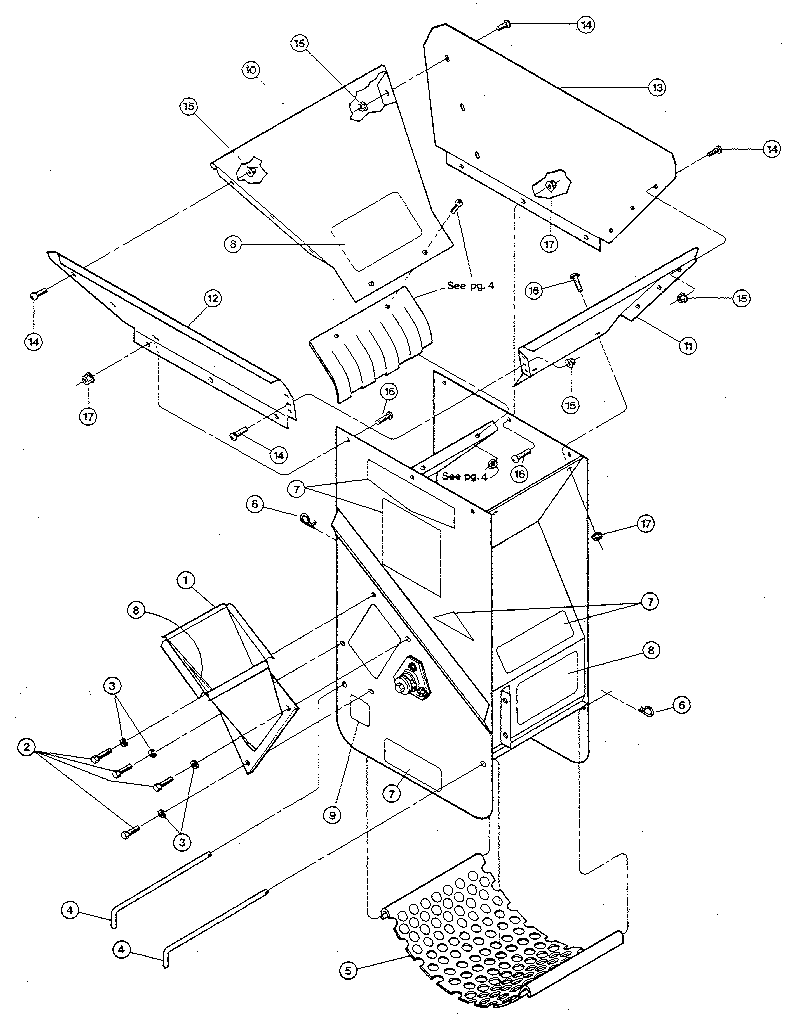

Drawing two Diagram

Screw

Part #W02050503P
Replaced by #710-3008
?
Manufacturer substitution
This part replaces W02050503P. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.94 |
20% OFF
Phone Price: $4.94
Bolt#15

Drawing one Diagram

Bolt

Part #W02550503P

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Screw#19

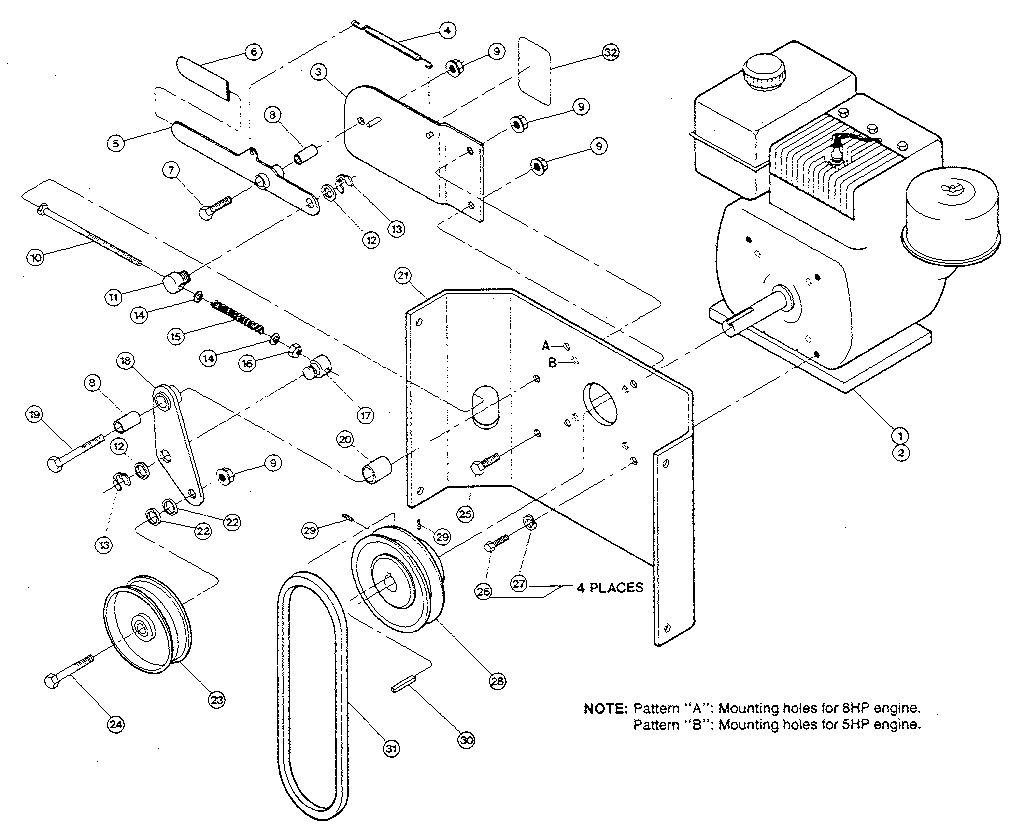

Drawing six Diagram

Screw

Part #W02050621P
Replaced by #710-3011
?
Manufacturer substitution
This part replaces W02050621P. Substitute parts can look different from the original.
In Stock
$8.89 |
10% OFF
Phone Price: $9.89
Lawn & Garden Equipment Hex Nut#4

Drawing one Diagram

Lock nut

Part #W0310006P
Replaced by #712-0375
?
Manufacturer substitution
This part replaces W0310006P. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.55
Lawn & Garden Equipment Bolt#26

Drawing six Diagram

Screw

Part #W02050503FP
Replaced by #710-0157
?
Manufacturer substitution
This part replaces W02050503FP. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.46
Screw#11

Drawing four Diagram

Screw

Part #W02210403P

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer

See All Related Diagrams

Lock washer

Part #W0405005P

The manufacturer no longer makes this part, and there's no substitute part

Tiller Retainer Ring#5

Drawing one Diagram

Retainer, snap ring

Part #9511
Replaced by #716-04104
?
Manufacturer substitution
This part replaces 9511. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.40
Bolt#25

Drawing six Diagram

Bolt

Part #9709

The manufacturer no longer makes this part, and there's no substitute part
