Model #AT2402S Official Apex television

Here are the diagrams and repair parts for Apex AT2402S television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 13 parts

Cathode Ray Tube Assembly#2A

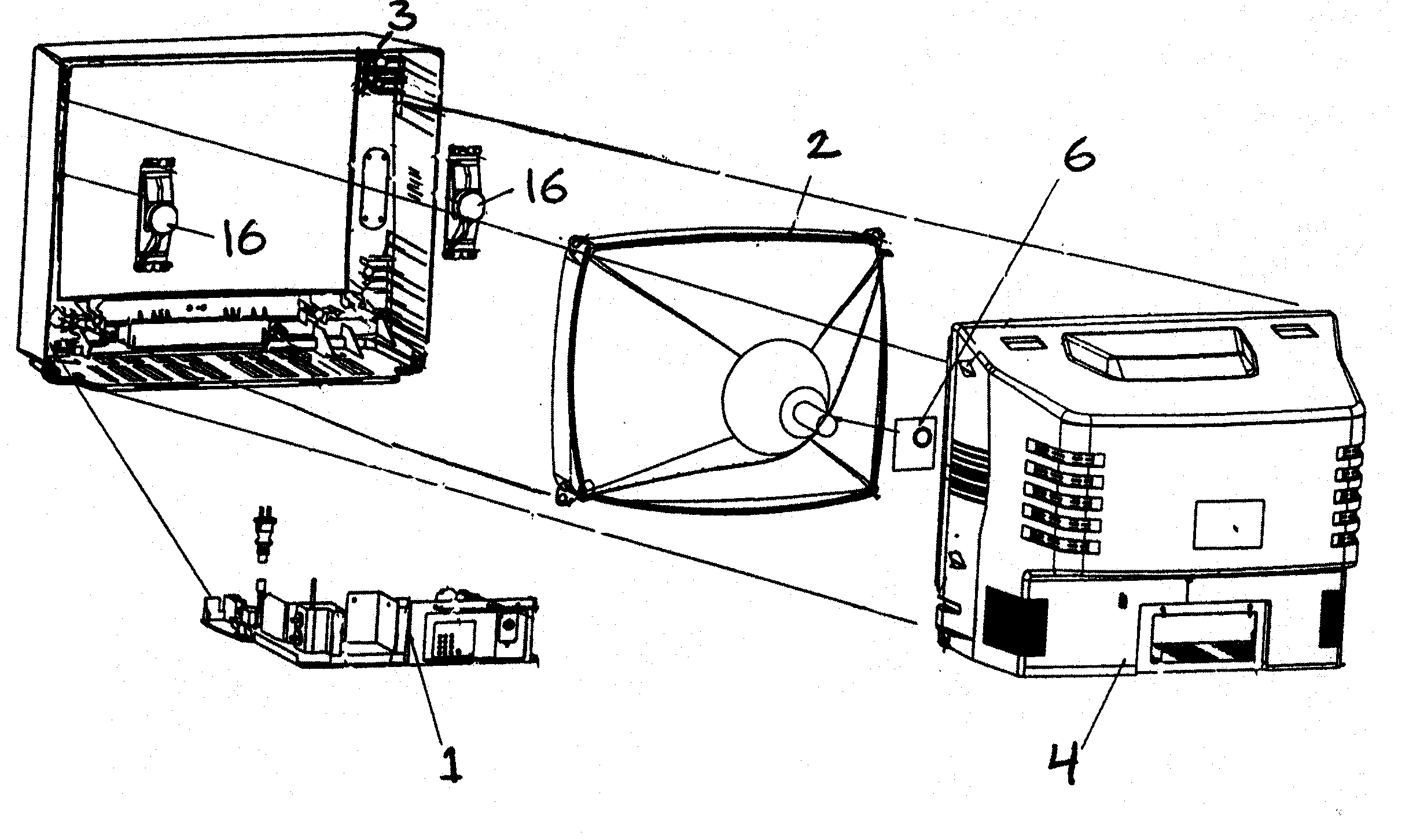

Cabinet parts Diagram

Cathode ray tube assembly

Part #8537000370C02

The manufacturer no longer makes this part, and there's no substitute part

Cathode Ray Tube Assembly#2

Cabinet parts Diagram

Cathode ray tube assembly

Part #8537000370C01

The manufacturer no longer makes this part, and there's no substitute part

Cover#3

Cabinet parts Diagram

Cover

Part #8611604570C

The manufacturer no longer makes this part, and there's no substitute part

Remote#NI

Cabinet parts Diagram

Remote

Part #8201800271L

The manufacturer no longer makes this part, and there's no substitute part

Service Manual#NI

Cabinet parts Diagram

Service manual

Part #SM-AT2402S

The manufacturer no longer makes this part, and there's no substitute part

PCB Assembly#NI

Cabinet parts Diagram

Pcb assembly

Part #8667206160C01

The manufacturer no longer makes this part, and there's no substitute part

PCB Assembly#NI

Cabinet parts Diagram

Pcb assembly

Part #8667206140C01

The manufacturer no longer makes this part, and there's no substitute part

PCB Assembly#1

Cabinet parts Diagram

Pcb assembly

Part #8667206130C01

The manufacturer no longer makes this part, and there's no substitute part

Cover#4

Cabinet parts Diagram

Cover

Part #8807400230C

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual#NI

Cabinet parts Diagram

Owner's manual

Part #IB-AT2402S

The manufacturer no longer makes this part, and there's no substitute part
