Whirlpool
Electric Cooktop

Model # G7CE3034XC00 Official Whirlpool 30" electric built-in cooktop

Here are the diagrams and repair parts for Official Whirlpool G7CE3034XC00 30" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Range Radiant Surface Element 8273994
#11

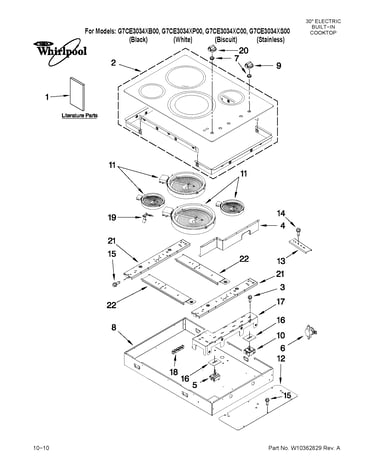

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$107.38
33% OFF MSRP : $160.00
In Stock
Terminal Block 7401P038-60
#18

Cooktop parts diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10
13% OFF Phone Price : $39.10
In Stock
Cooktop Knob Grommet W10293874
#7

Cooktop parts diagram

Cooktop knob grommet

Part #W10293874

Replaced by #WPW10293874

?
Manufacturer substitution
This part replaces W10293874. Substitute parts can look different from the original.
This item is not returnable
$6.19
14% OFF Phone Price : $7.19
In Stock
Cooktop Element Control Switch W10244639
#10B

Cooktop parts diagram

Cooktop element control switch

Part #W10244639

Replaced by #WPW10244639

?
Manufacturer substitution
This part replaces W10244639. Substitute parts can look different from the original.
$78.38
22% OFF MSRP : $100.00
In Stock
Main Top W10318981
#2A

Cooktop parts diagram

Main top

Part #W10318981

Replaced by #W10365134

?
Manufacturer substitution
This part replaces W10318981. Substitute parts can look different from the original.
$334.67
$10.00 OFF Phone Price : $344.67
In Stock
Cooktop Element Control Knob (black) W10316662
#9

Cooktop parts diagram

Cooktop element control knob (black)

Part #W10316662

Replaced by #WPW10316662

?
Manufacturer substitution
This part replaces W10316662. Substitute parts can look different from the original.
This item is not returnable
$17.54
10% OFF Phone Price : $19.54
In Stock
Mounting Bracket 4455917
#13

Cooktop parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89
13% OFF Phone Price : $37.89
In Stock
Switch 7403P755-60
#10

Cooktop parts diagram

Switch

Part #7403P755-60

Replaced by #WP74007840

?
Manufacturer substitution
This part replaces 7403P755-60. Substitute parts can look different from the original.
$111.56
8% OFF Phone Price : $121.56
In Stock
Wire Harness W10291387
#NI

Optional parts (not included) diagram

Wire harness

Part #W10291387

In Stock
Burner Box W10311952
#8

Cooktop parts diagram

Burner box

Part #W10311952

In Stock
