Amana
Central Air Conditioner

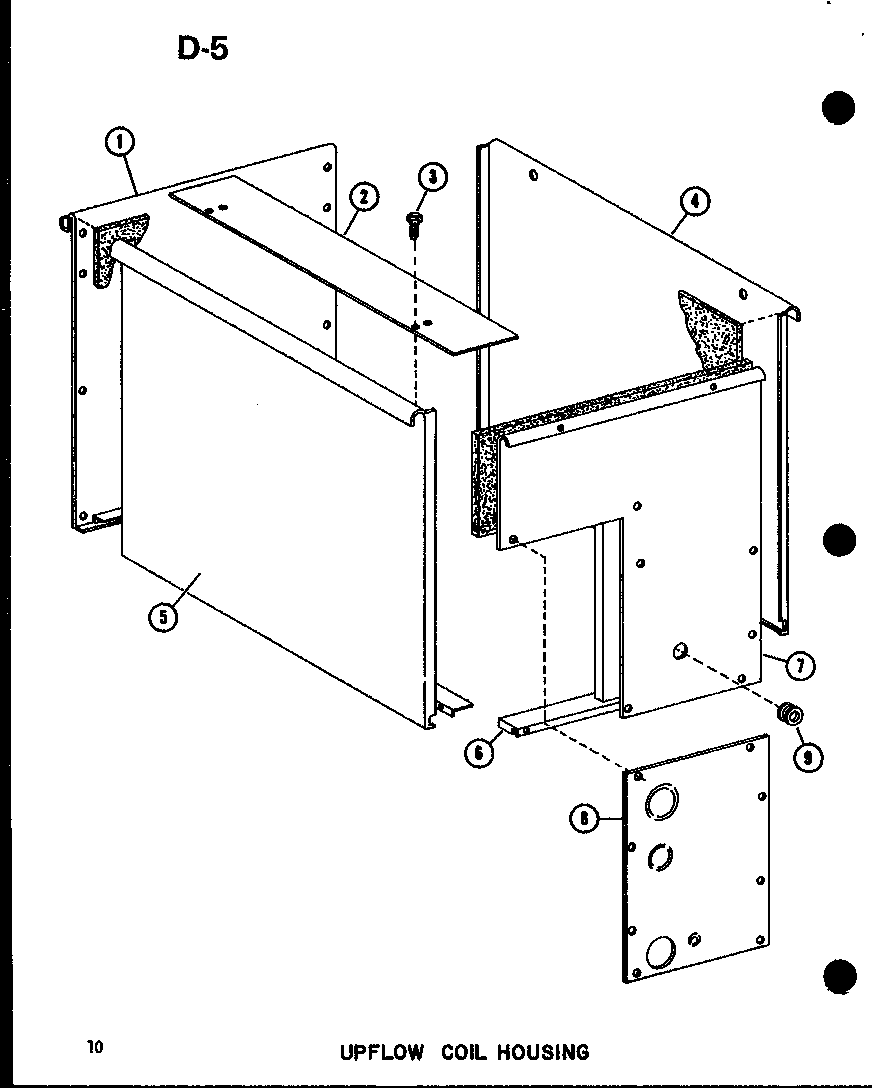

Model #CFC24AOM-A/P67487-7C Official Amana a-coil, upflow & counterflow housing assembly

Here are the diagrams and repair parts for Amana CFC24AOM-A-P67487-7C a-coil, upflow & counterflow housing assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 78 parts

Refrigerator Screw#10

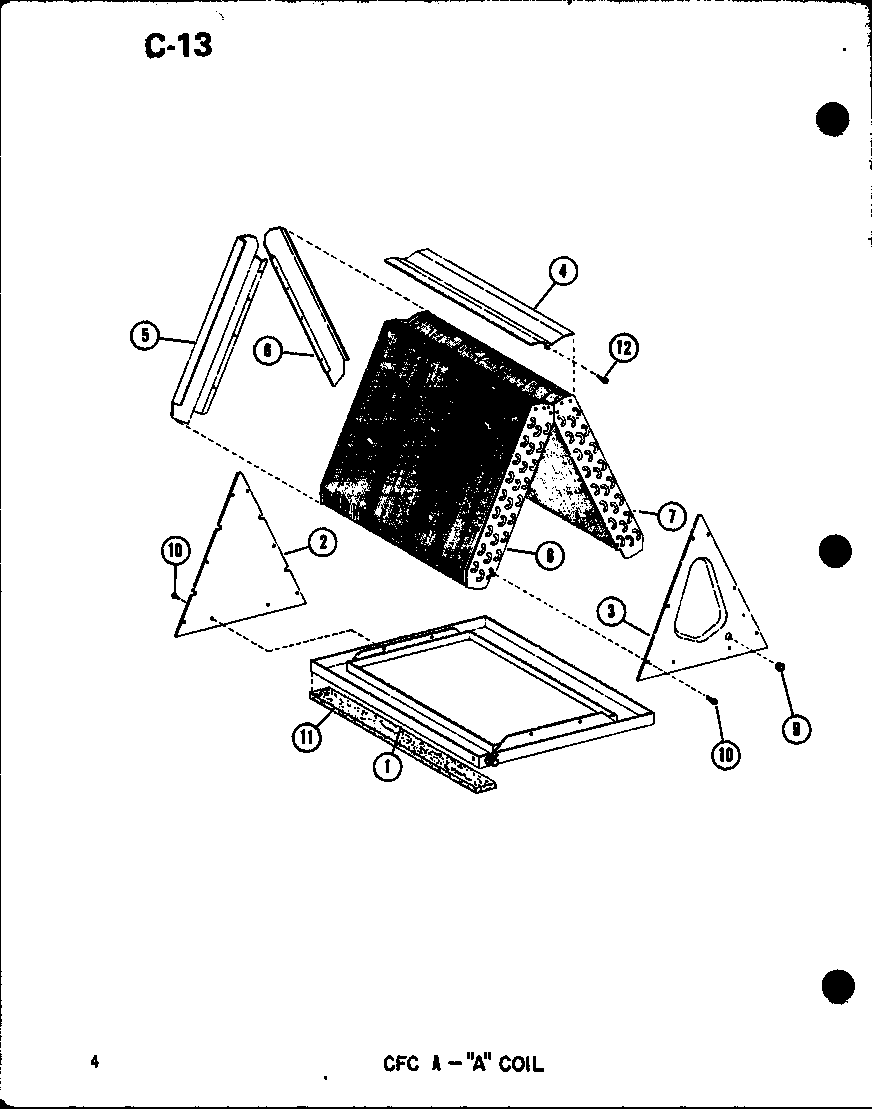

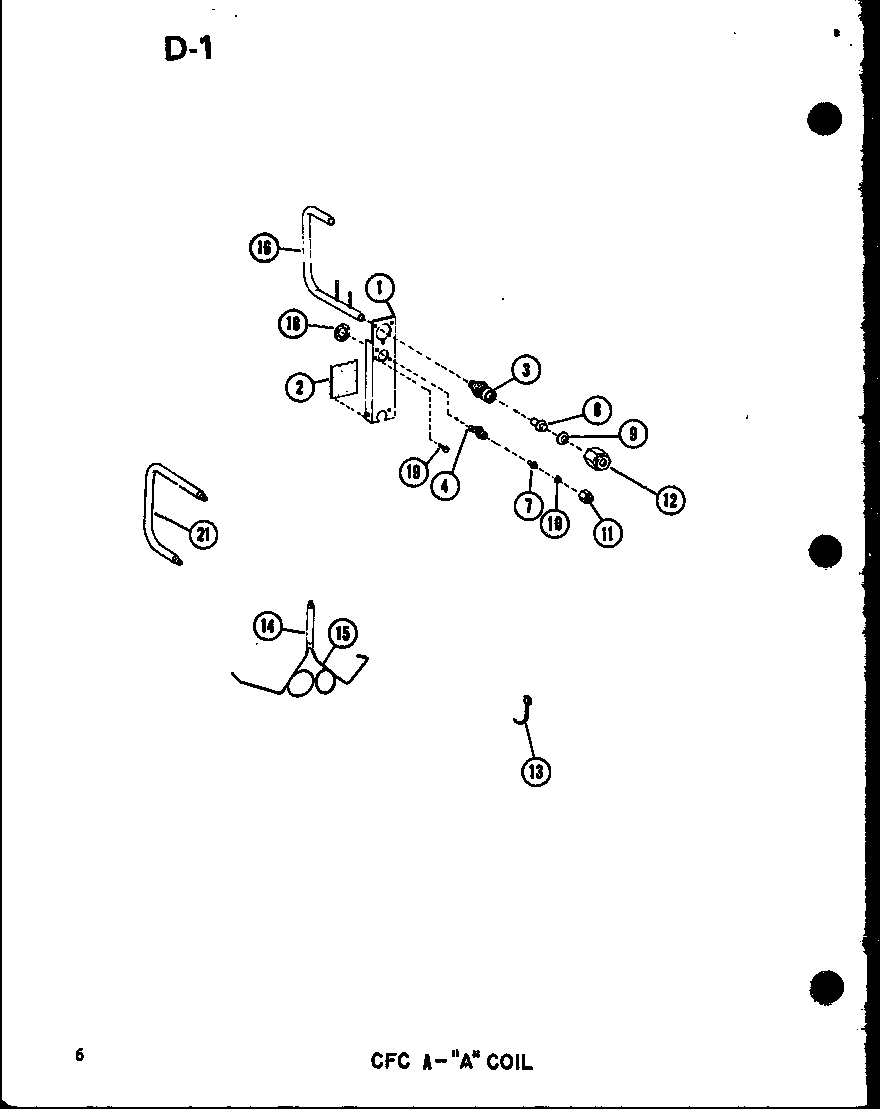

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Screw

Part #M0211217
Replaced by #WP489464
?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Room Air Conditioner Screw#19

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Screw

Part #M0211543
Replaced by #WP1163839
?
Manufacturer substitution
This part replaces M0211543. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Plug Cap#10A

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Plug cap

Part #A3399001

The manufacturer no longer makes this part, and there's no substitute part

NUT COUPLING, LIQUID LINE#11B

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Nut coupling, liquid line

Part #B1298503

The manufacturer no longer makes this part, and there's no substitute part

WELDMENT, CAPILLARY#15C

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Weldment, capillary

Part #C6199002

The manufacturer no longer makes this part, and there's no substitute part

ASSEMBLY, TOP PANEL AND INSULATION#5B

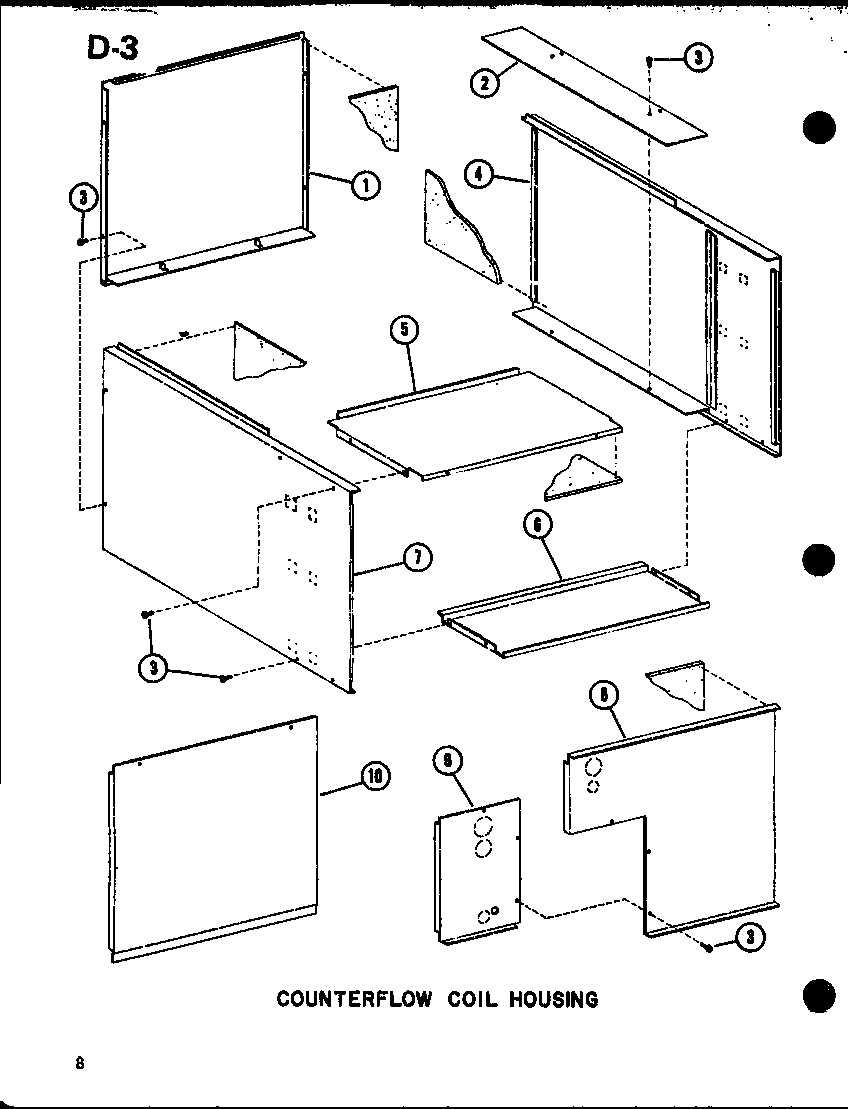

Counterflow coil housing (d67636-24/p67636-24c) (d67636-20/p67636-20c) (d67636-16/p67636-16c) Diagram

Assembly, top panel and insulation

Part #C6211702

The manufacturer no longer makes this part, and there's no substitute part

COVER, EVAPORATOR TOP#4C

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Cover, evaporator top

Part #C5921701

The manufacturer no longer makes this part, and there's no substitute part

Front End Plate#3A

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Front end plate

Part #C5920801

The manufacturer no longer makes this part, and there's no substitute part

NUT COUPLING, SUCTION LINE#12B

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Nut coupling, suction line

Part #B1298506

The manufacturer no longer makes this part, and there's no substitute part

ASSEMBLY, EVAPORATOR COIL, LEFT HAND#8B

Cfc a-"a" coil (cfc18aom-a/p67487-8c) (cfc24aom-a/p67487-7c) (cfc30aom-a/p67487-6c) (cfc36aom-a/p67487-5c) Diagram

Assembly, evaporator coil, left hand

Part #D6755201

The manufacturer no longer makes this part, and there's no substitute part
