Chest Freezer

Model #FH10DSAWH Official GE refrigerator

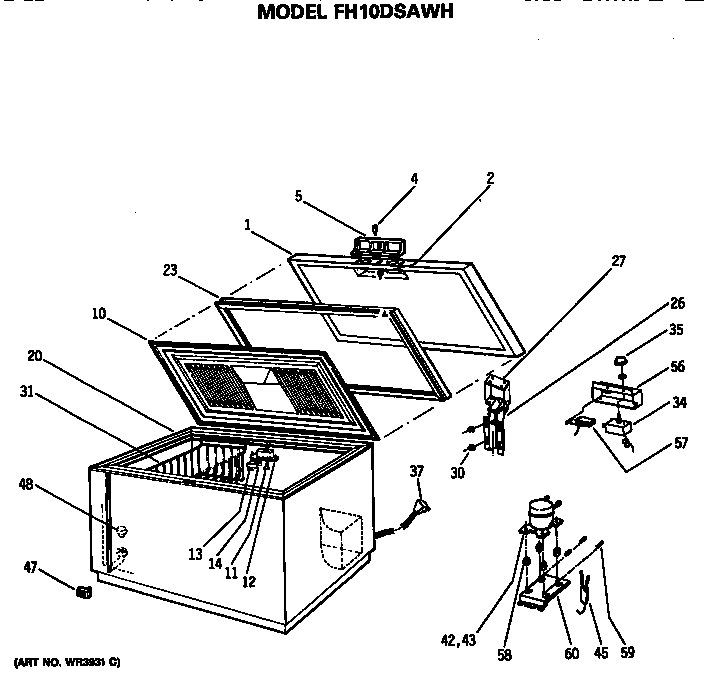

Here are the diagrams and repair parts for GE FH10DSAWH refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 32 parts

Refrigerator Power Cord (replaces WR23X10049, WR23X10077, WR23X10242, WR23X10311, WR23X10316, WR23X10369, WR23X10370, WR23X10371, WR23X10540, WR23X420)

#626

All parts Diagram

Power cord

Part #WR23X108
Replaced by #WR23X10300
?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
In Stock
$22.13 |
18% OFF
Phone Price: $27.13
Refrigerator Filter Dryer (replaces WR86X10080, WR86X93, WR86X96, WR87X25940)

#740

All parts Diagram

Dryer assembly

Part #WR86X86
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
In Stock
$76.19 |
6% OFF
Phone Price: $81.19
Refrigerator Technical Data Sheet

#9999

All parts Diagram

Technical data sheet

Part #31-5849
Replaced by #31-5800-99
?
Manufacturer substitution
This part replaces 31-5849. Substitute parts can look different from the original.
In Stock
$51.99
O D Panel Wh

#1

All parts Diagram

O d panel wh

Part #WR78X8198

The manufacturer no longer makes this part, and there's no substitute part

Plug-drai

#48

All parts Diagram

Plug-drai

Part #WR2X7456

The manufacturer no longer makes this part, and there's no substitute part

Inner Lid Kt

#10

All parts Diagram

Inner lid kt

Part #WR77X5688

The manufacturer no longer makes this part, and there's no substitute part

Handle

#5

All parts Diagram

Handle

Part #WR12X5212

The manufacturer no longer makes this part, and there's no substitute part

Breaker Strap

#20

All parts Diagram

Breaker strap

Part #WR40X5581

The manufacturer no longer makes this part, and there's no substitute part

Clip Gasket

#23

All parts Diagram

Clip gasket

Part #WR2X7458

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#44

All parts Diagram

Capacitor

Part #WR62X74

The manufacturer no longer makes this part, and there's no substitute part
