Model # WF218ANW/XAA-01 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF218ANW-XAA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

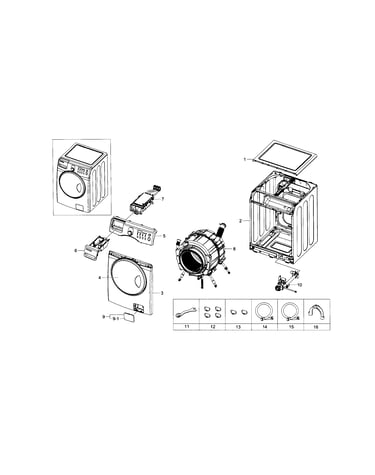

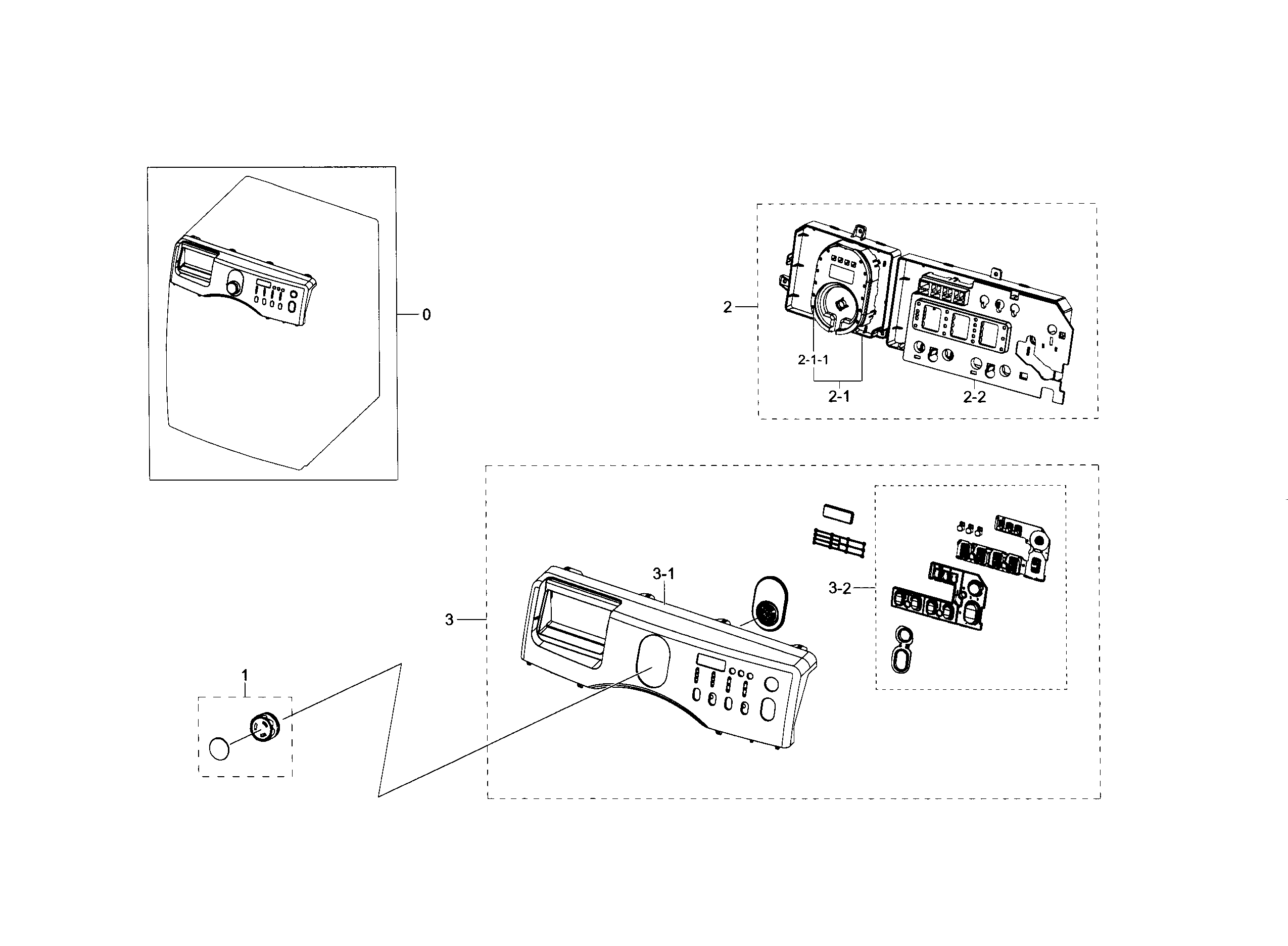

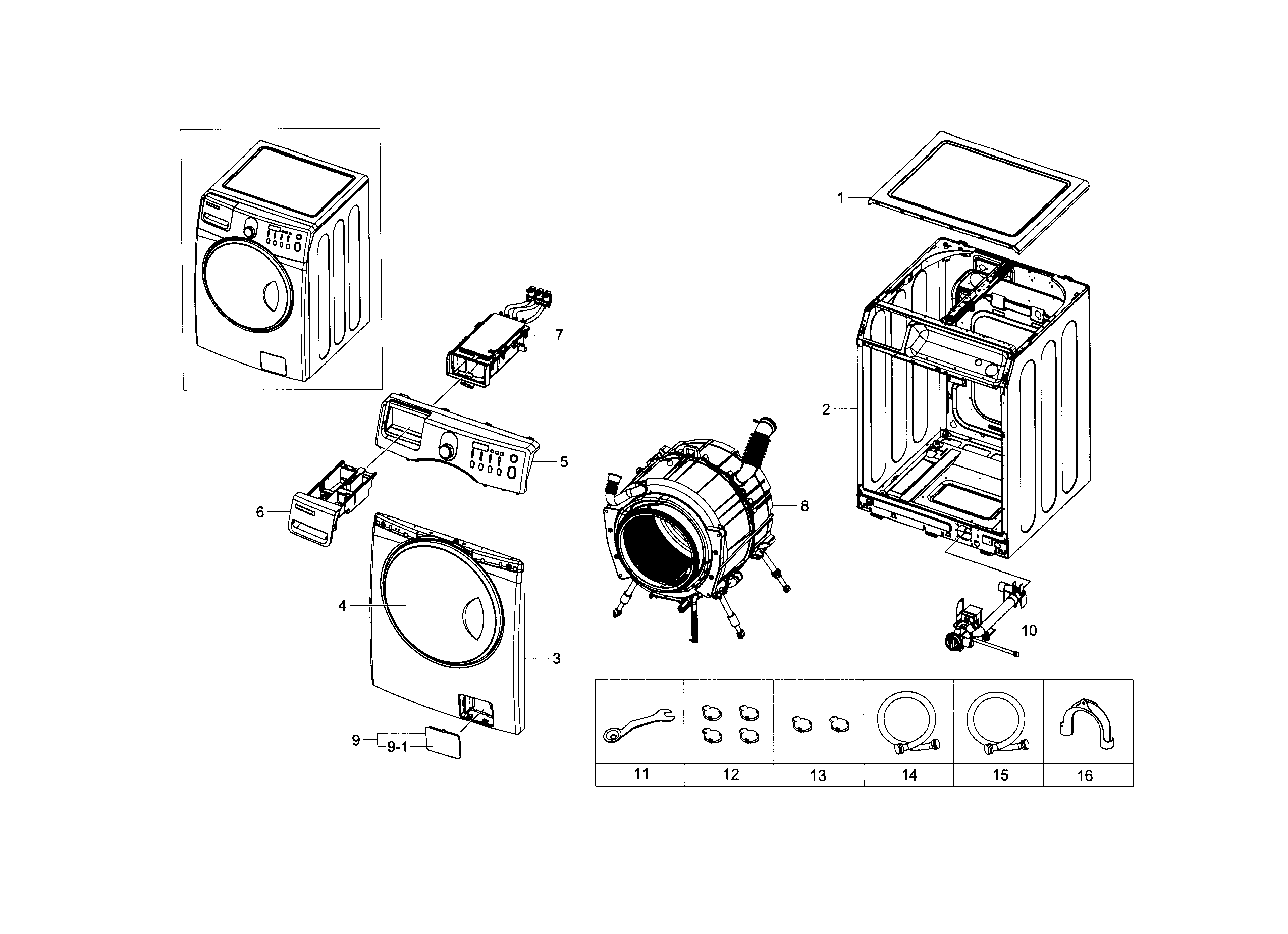

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |

Washer Door Boot Spring Clamp DC97-04973B
#6

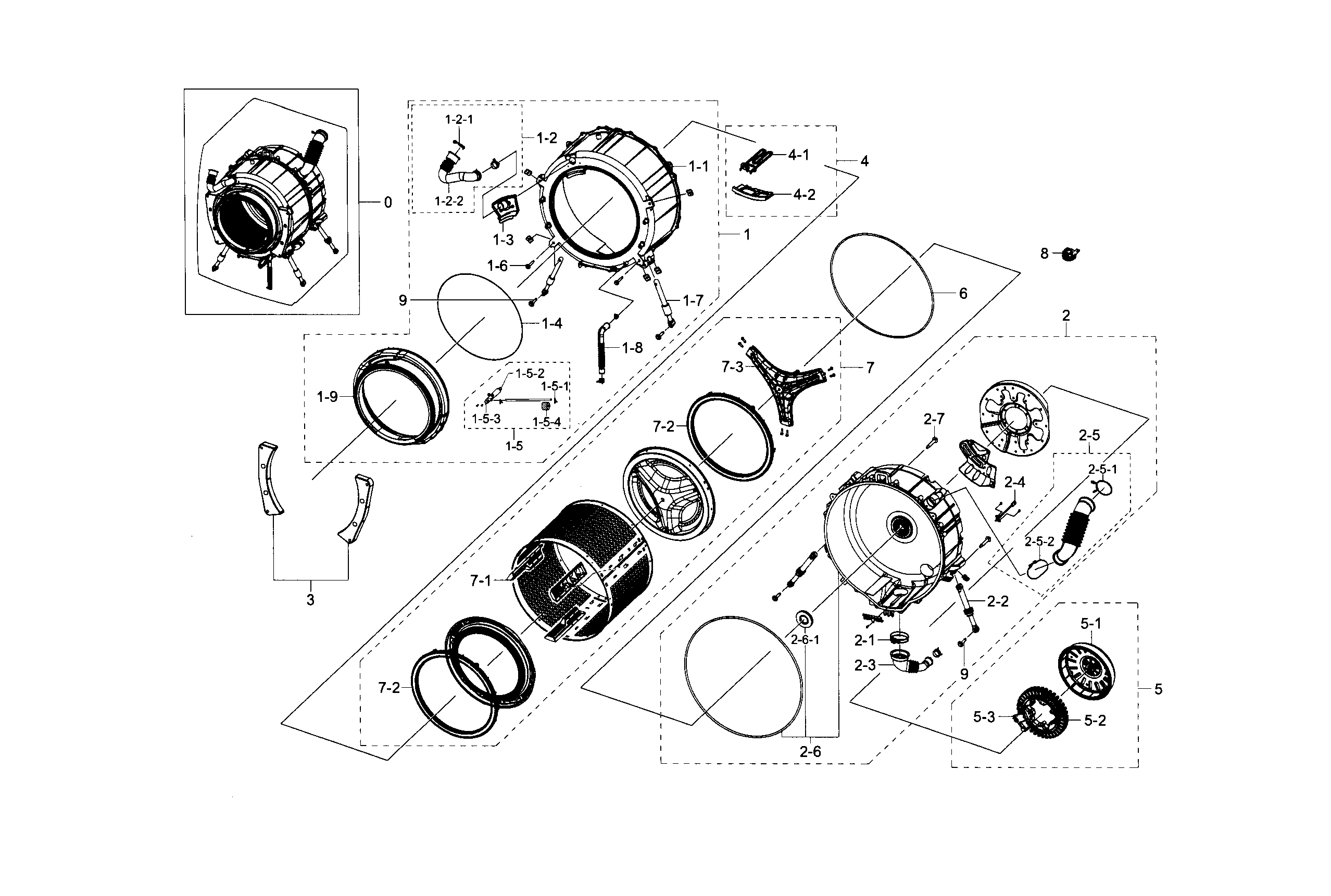

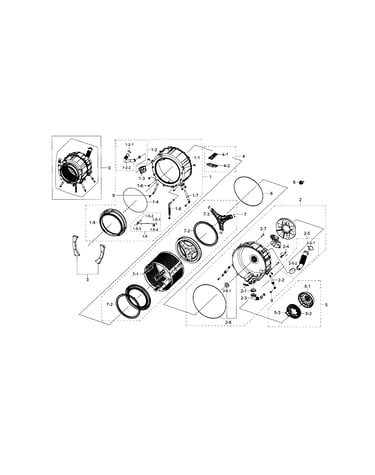

Tub & drum diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$12.02
14% OFF Phone Price : $14.02
In Stock
Washer Drain Pump (replaces Dc31-00016a) DC31-00054A
#11-1

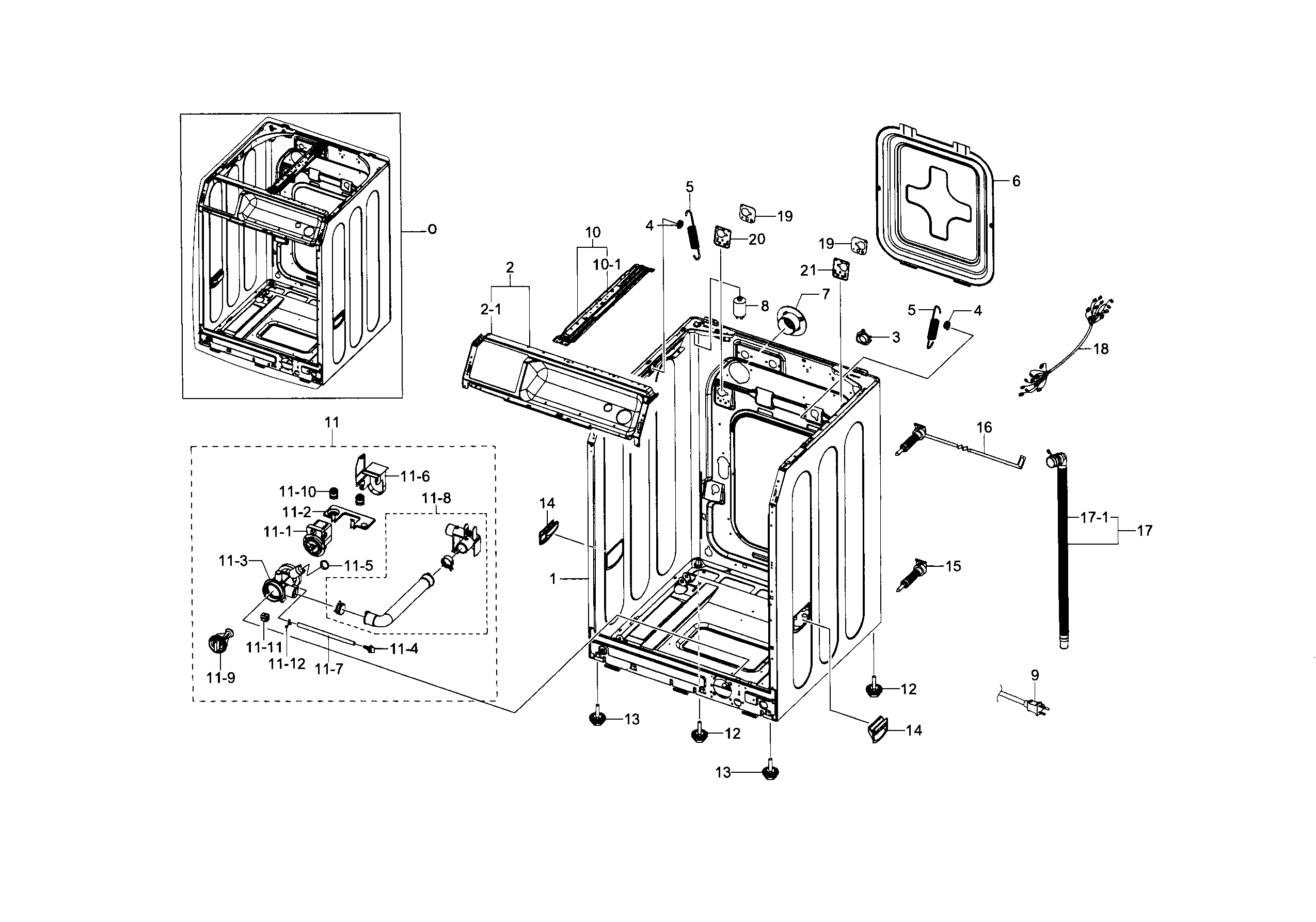

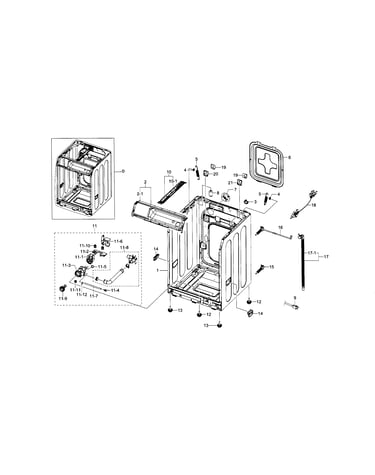

Frame & cover parts diagram

Washer drain pump (replaces dc31-00016a)

Part #DC31-00054A

BEST SELLER
$130.51
7% OFF Phone Price : $140.51
In Stock
Washer Door Lock DC64-00519B
#5

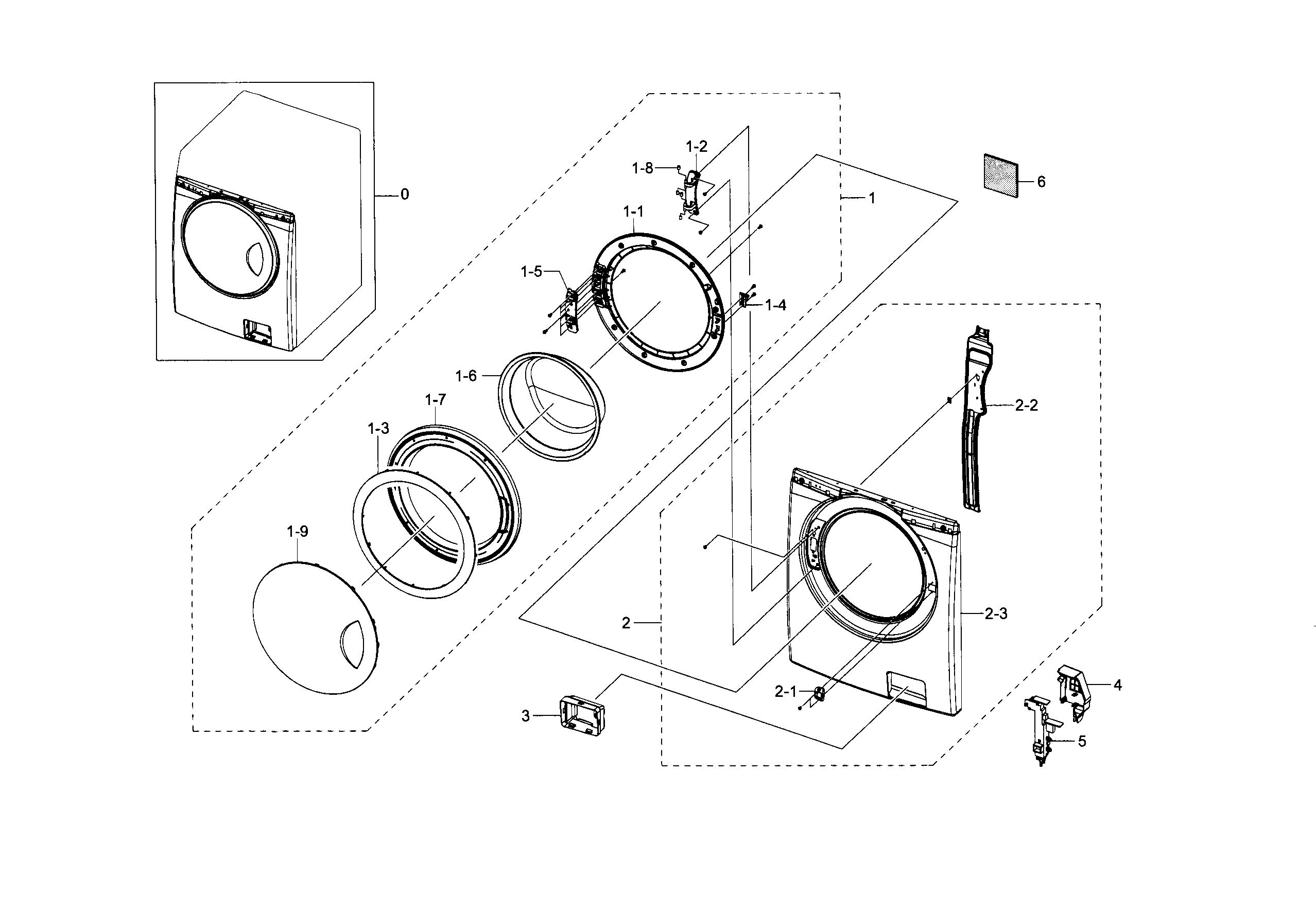

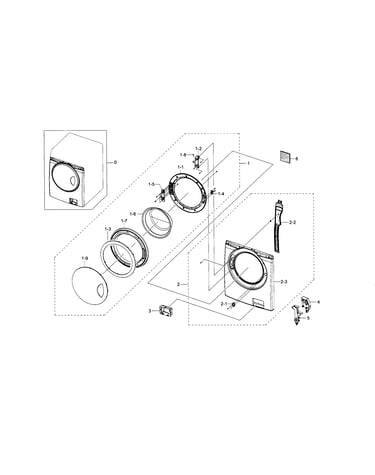

Frame front & door diagram

Washer door lock

Part #DC64-00519B

BEST SELLER
$28.89
15% OFF Phone Price : $33.89
In Stock
Washer Door Boot Spring Clamp DC97-04981D
#1-4

Tub & drum diagram

Washer door boot spring clamp

Part #DC97-04981D

BEST SELLER
$14.18
12% OFF Phone Price : $16.18
In Stock
Washer Drum Shaft Assembly DC97-14875B
#7-3

Tub & drum diagram

Washer drum shaft assembly

Part #DC97-14875B

BEST SELLER
This item is not returnable
$209.32
5% OFF Phone Price : $219.32
In Stock
Washer Water Inlet Valve (replaces Dc62-30312h) DC62-30312J
#5

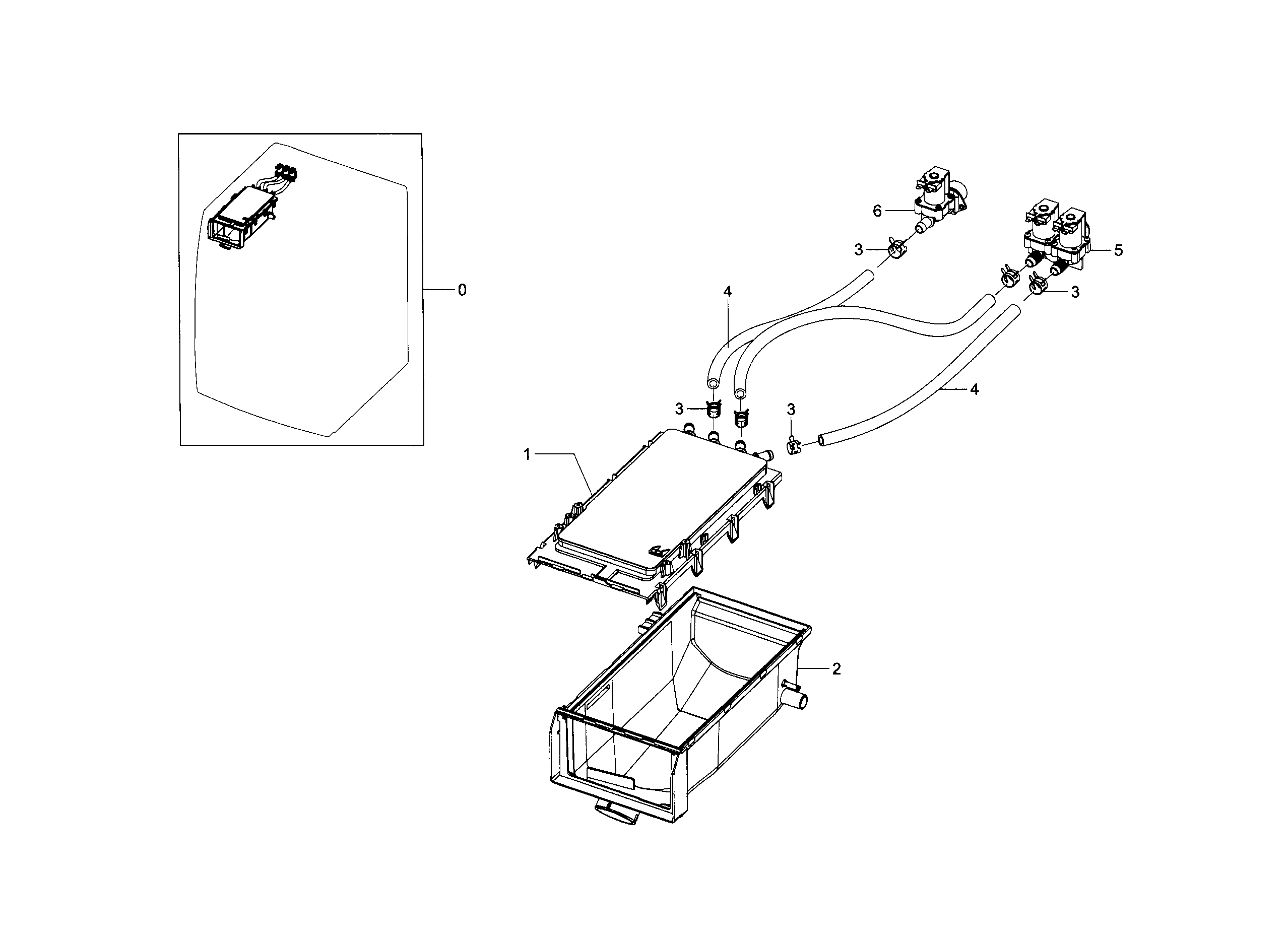

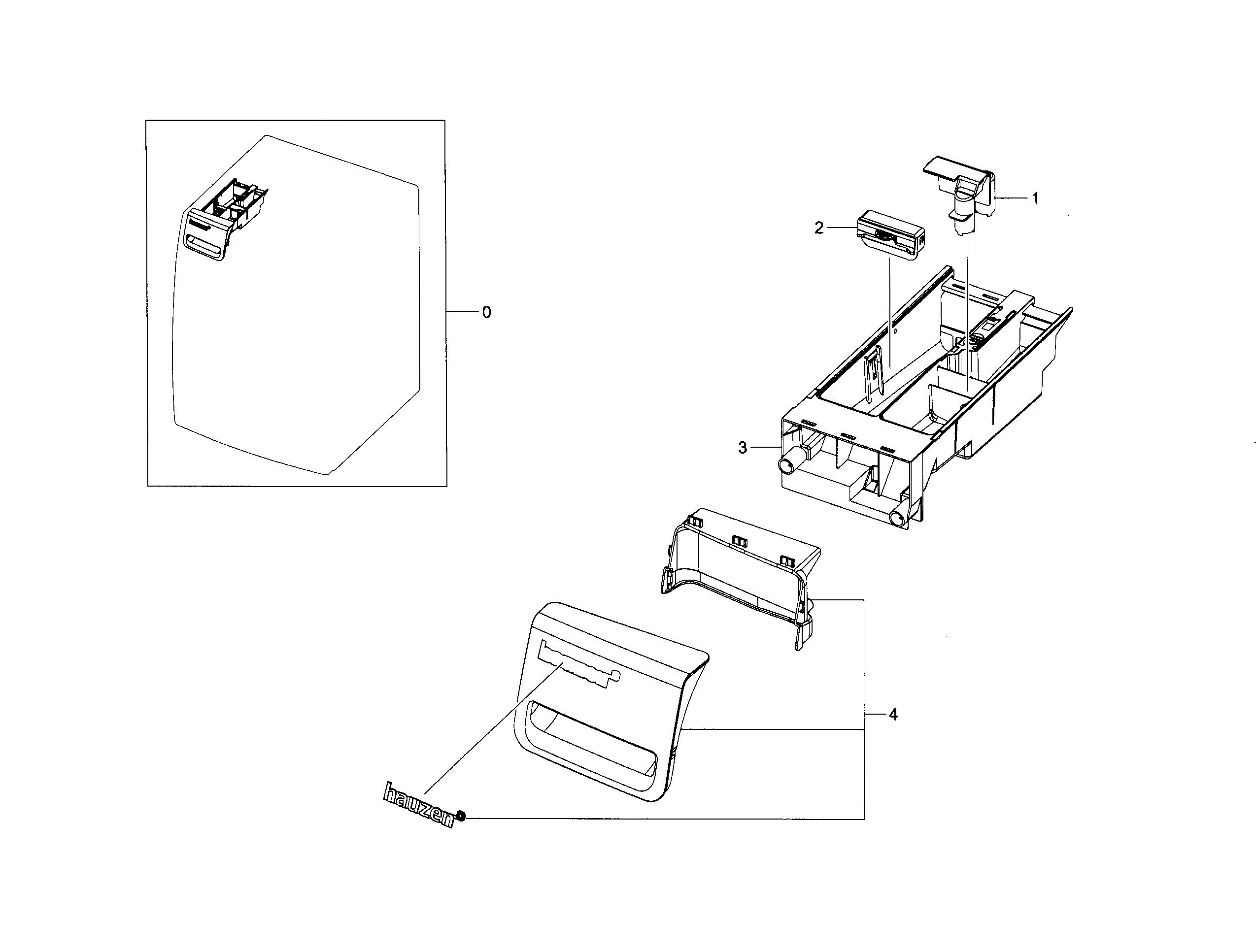

Housing-drawer diagram

Washer water inlet valve (replaces dc62-30312h)

Part #DC62-30312J

BEST SELLER
$93.97
5% OFF Phone Price : $98.97
In Stock
Washer Suspension Spring Bracket DC61-02432A
#4

Frame & cover parts diagram

Washer suspension spring bracket

Part #DC61-02432A

This item is not returnable
In Stock
Washer Dispenser Housing Cover (replaces Dc61-01169a) DC97-08800A
#1

Housing-drawer diagram

Washer dispenser housing cover (replaces dc61-01169a)

Part #DC97-08800A

$35.56
12% OFF Phone Price : $40.56
In Stock
Washer Drain Pump Check Valve DC62-00264A
#11-5

Frame & cover parts diagram

Washer drain pump check valve

Part #DC62-00264A

This item is not returnable
$3.05
25% OFF Phone Price : $4.05
In Stock
Washer Tub Fill Nozzle (replaces Dc61-01732a) DC97-12747A
#1-3

Tub & drum diagram

Washer tub fill nozzle (replaces dc61-01732a)

Part #DC97-12747A

This item is not returnable
$15.55
11% OFF Phone Price : $17.55
In Stock
