Model #DW246 TYPE3 Official DeWalt drill

Here are the diagrams and repair parts for DeWalt DW246-TYPE3 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 49 parts

Lead Wire#62

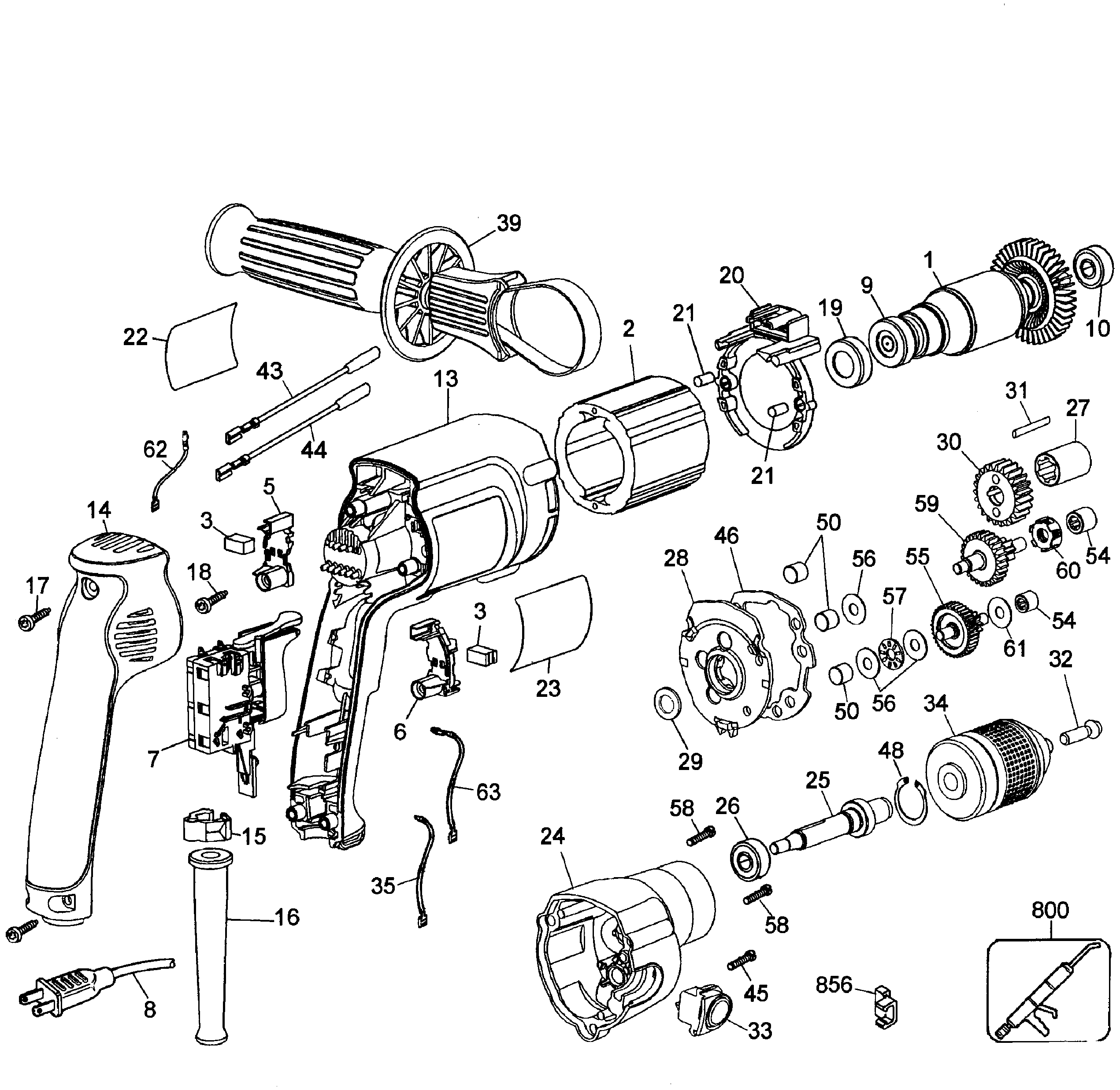

Drill Diagram

Lead wire

Part #176860-00

The manufacturer no longer makes this part, and there's no substitute part

Leadwire#35

Drill Diagram

Leadwire

Part #N081028

The manufacturer no longer makes this part, and there's no substitute part

M4x50 Plst#58

Drill Diagram

M4x50 plst

Part #330019-18

The manufacturer no longer makes this part, and there's no substitute part

Spindle#25

Drill Diagram

Spindle

Part #176705-00

The manufacturer no longer makes this part, and there's no substitute part

Grease#800

Drill Diagram

Grease

Part #286436-00

The manufacturer no longer makes this part, and there's no substitute part

Washer,thr#61

Drill Diagram

Washer,thr

Part #385075-00

The manufacturer no longer makes this part, and there's no substitute part

Pinion & G#59

Drill Diagram

Pinion & g

Part #176703-00SV

The manufacturer no longer makes this part, and there's no substitute part

Thrust Bea#57

Drill Diagram

Thrust bea

Part #091644-00

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover#14

Drill Diagram

Handle cover

Part #610141-01

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief#16

Drill Diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part
