Model #C1633012 Official Hoover upright vacuum

Here are the diagrams and repair parts for Hoover C1633012 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 95 parts

Support Washer#18

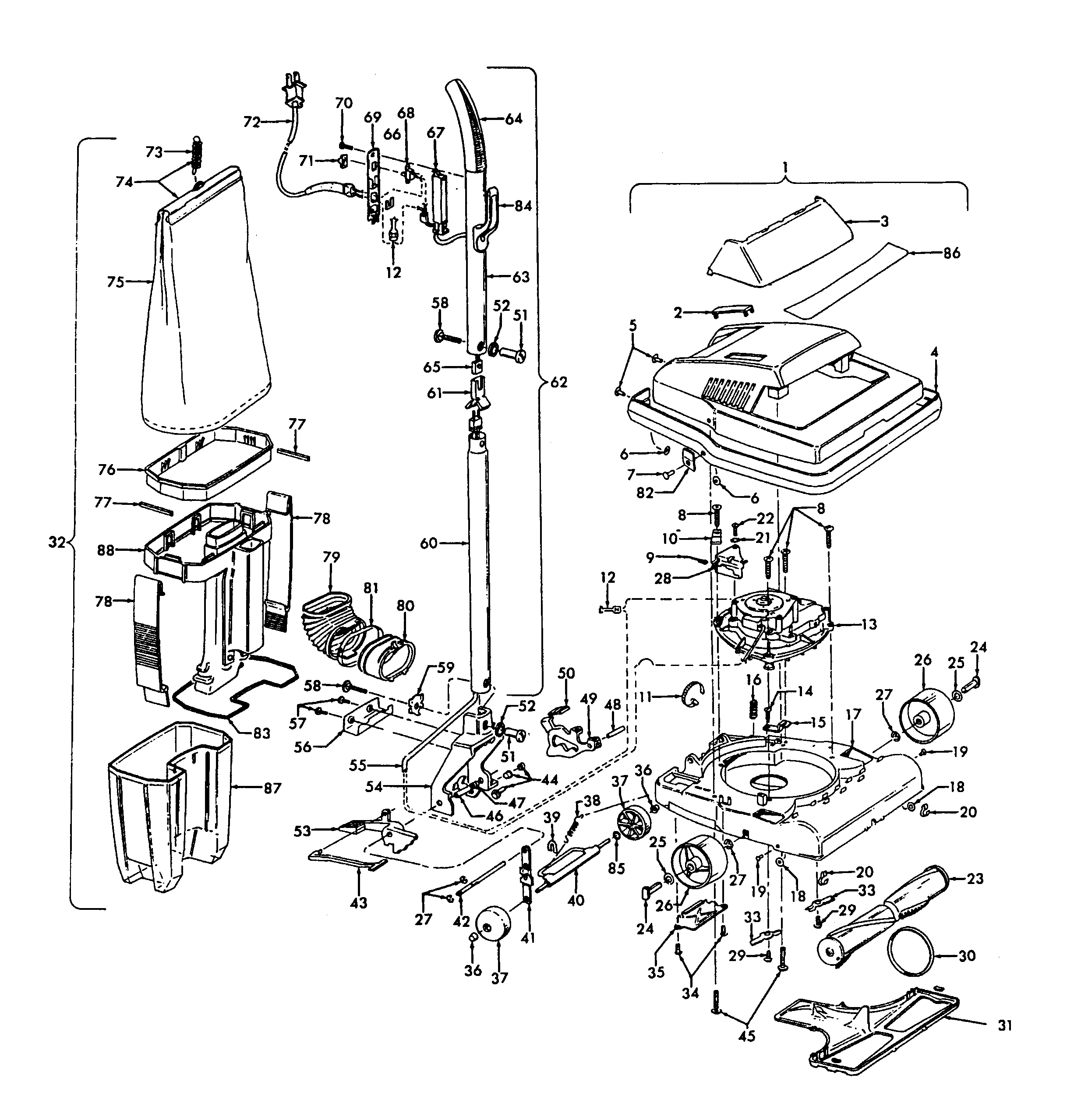

Agitator, handle, mainbody, dirtcup Diagram

Support washer

Part #21312781

The manufacturer no longer makes this part, and there's no substitute part

Wheel#26

Agitator, handle, mainbody, dirtcup Diagram

Wheel

Part #034791AG

The manufacturer no longer makes this part, and there's no substitute part

Retaining Flange#35

Agitator, handle, mainbody, dirtcup Diagram

Retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Agitator Hood#1

Agitator, handle, mainbody, dirtcup Diagram

Agitator hood

Part #42251336

The manufacturer no longer makes this part, and there's no substitute part

Pvt Pn Rtnr#15

Agitator, handle, mainbody, dirtcup Diagram

Pvt pn rtnr

Part #34665007

The manufacturer no longer makes this part, and there's no substitute part

Button#71

Agitator, handle, mainbody, dirtcup Diagram

Button

Part #38421012

The manufacturer no longer makes this part, and there's no substitute part

Hdl Cont Lvr#49

Agitator, handle, mainbody, dirtcup Diagram

Hdl cont lvr

Part #43137047

The manufacturer no longer makes this part, and there's no substitute part

Case Switch#67

Agitator, handle, mainbody, dirtcup Diagram

Case switch

Part #37214070

The manufacturer no longer makes this part, and there's no substitute part

Clamp Bolt#58

Agitator, handle, mainbody, dirtcup Diagram

Clamp bolt

Part #21631301

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Fan#22

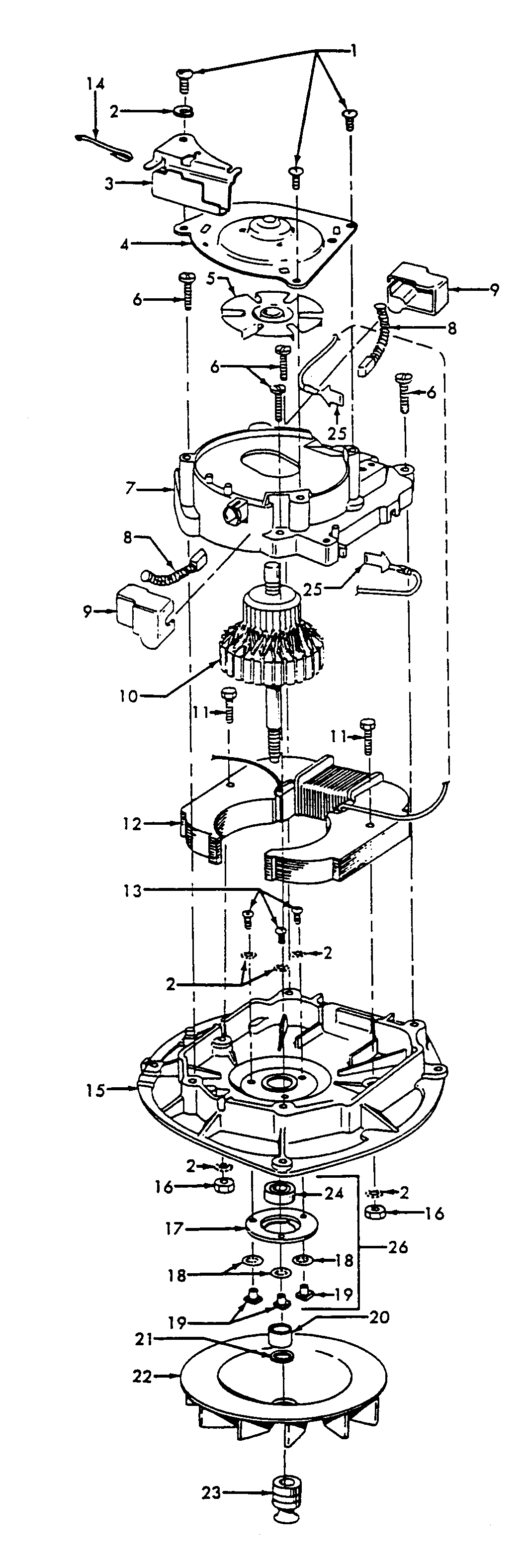

Motor assembly Diagram

Vacuum fan

Part #38755011

The manufacturer no longer makes this part, and there's no substitute part
