Model #14397921800 Official LXI semi-automatic belt drive turntable

Here are the diagrams and repair parts for LXI 14397921800 semi-automatic belt drive turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 83 parts

0.01mf 50vz#58

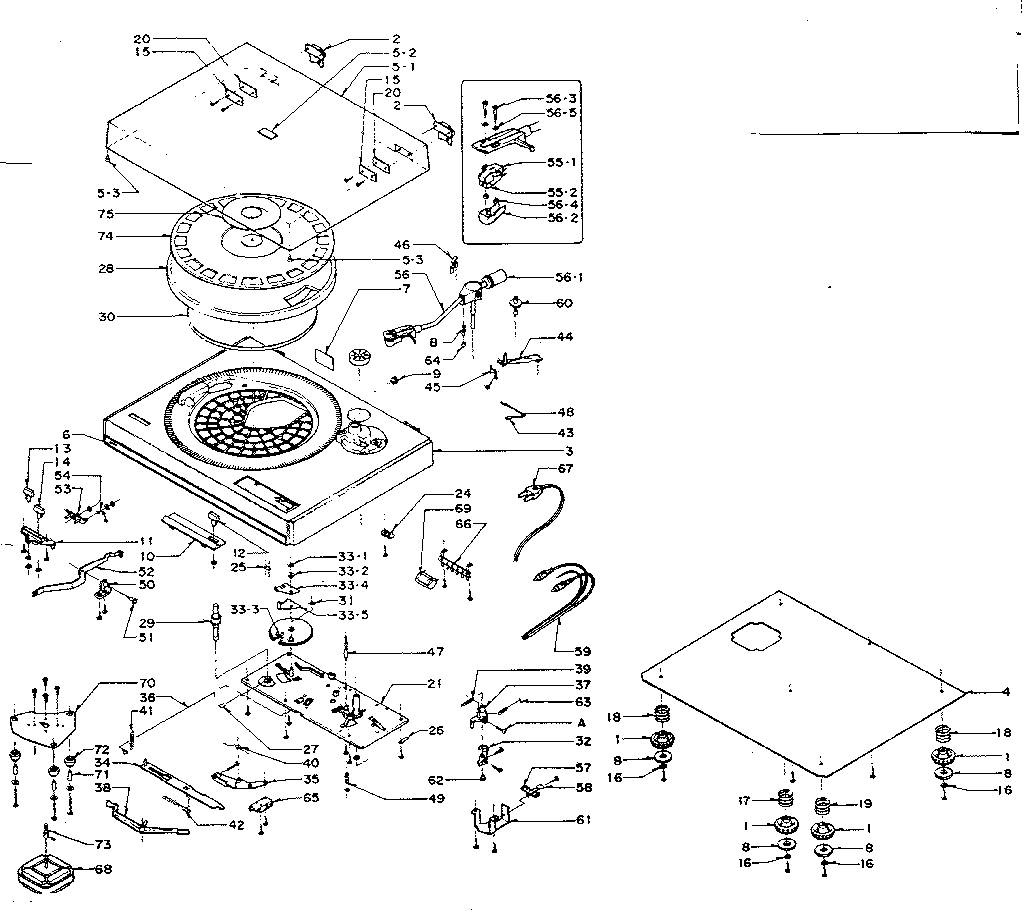

Cabinet & turntable Diagram

0.01mf 50vz

Part #C1HYDZ103A

The manufacturer no longer makes this part, and there's no substitute part

LUG EGG LIKE (EARTH LUG)#26

Cabinet & turntable Diagram

Lug egg like (earth lug)

Part #131-2-3610-10401

The manufacturer no longer makes this part, and there's no substitute part

ARM REST (CABINET)#44

Cabinet & turntable Diagram

Arm rest (cabinet)

Part #134-2-3301-12900

The manufacturer no longer makes this part, and there's no substitute part

PLATE (LID)#15

Cabinet & turntable Diagram

Plate (lid)

Part #134-2-4108-20900

The manufacturer no longer makes this part, and there's no substitute part

SWITCH MICRO (POWER SWITCH)#65

Cabinet & turntable Diagram

Switch micro (power switch)

Part #4-2319-21995

The manufacturer no longer makes this part, and there's no substitute part

SPRING MOUNTING (LEG ASSY)#17

Cabinet & turntable Diagram

Spring mounting (leg assy)

Part #134-2-5102-13900

The manufacturer no longer makes this part, and there's no substitute part

(56-2) RETAINER NEEDLE#56B

Cabinet & turntable Diagram

(56-2) retainer needle

Part #134-2-1402-11700

The manufacturer no longer makes this part, and there's no substitute part

(56-3) SCREW, 2.6X10#56C

Cabinet & turntable Diagram

(56-3) screw, 2.6x10

Part #134-2-4201-11304

The manufacturer no longer makes this part, and there's no substitute part

SPRING (SPINDLE LIFTING)#49

Cabinet & turntable Diagram

Spring (spindle lifting)

Part #134-2-5101-24700

The manufacturer no longer makes this part, and there's no substitute part

COVER SELECTOR#11

Cabinet & turntable Diagram

Cover selector

Part #134-2-1405-02400

The manufacturer no longer makes this part, and there's no substitute part
