Model #1037035000 Official Kenmore range base cabinet

Here are the diagrams and repair parts for Kenmore 1037035000 range base cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 28 parts

Plate#1

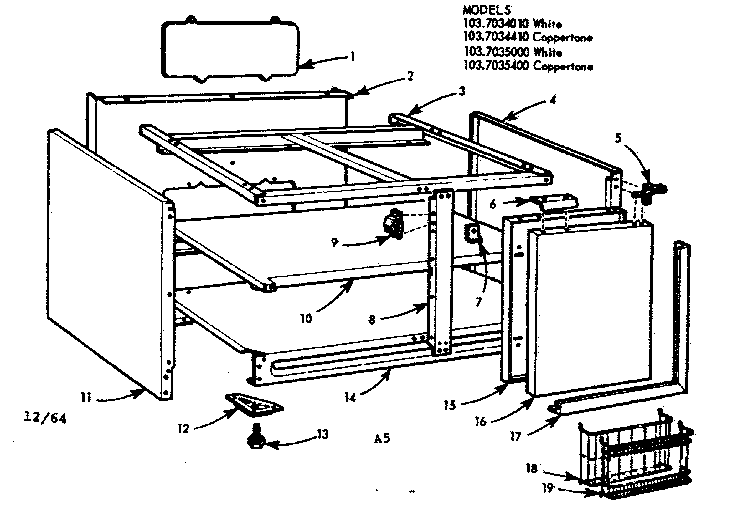

30" base cabinet Diagram

Plate

Part #105693

The manufacturer no longer makes this part, and there's no substitute part

Side-rt.#4

30" base cabinet Diagram

Side-rt.

Part #101888

The manufacturer no longer makes this part, and there's no substitute part

Door Handle#6

30" base cabinet Diagram

Door handle

Part #99558

The manufacturer no longer makes this part, and there's no substitute part

Leveler#13

30" base cabinet Diagram

Leveler

Part #69065

The manufacturer no longer makes this part, and there's no substitute part

Door Trim#17A

30" base cabinet Diagram

Door trim

Part #109350

The manufacturer no longer makes this part, and there's no substitute part

Gusset#12

30" base cabinet Diagram

Gusset

Part #101909

The manufacturer no longer makes this part, and there's no substitute part

Door Trim#17

30" base cabinet Diagram

Door trim

Part #109349

The manufacturer no longer makes this part, and there's no substitute part

Door Liner#15A

30" base cabinet Diagram

Door liner

Part #108165

The manufacturer no longer makes this part, and there's no substitute part

Door Catch#9

30" base cabinet Diagram

Door catch

Part #99557

The manufacturer no longer makes this part, and there's no substitute part

Shelf (White)#10

30" base cabinet Diagram

Shelf (white)

Part #101890

The manufacturer no longer makes this part, and there's no substitute part
