Model # N2A342GKA100 Official ICP split-system air conditioner

Here are the diagrams and repair parts for Official ICP N2A342GKA100 split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Central Air Conditioner Contactor 1172472
#4

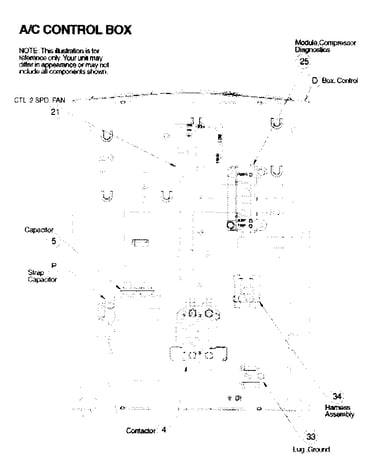

Control box diagram

Central air conditioner contactor

Part #1172472

$61.35 |
8% OFF Phone Price : $66.35
In Stock
Service Valve 1172727
#7

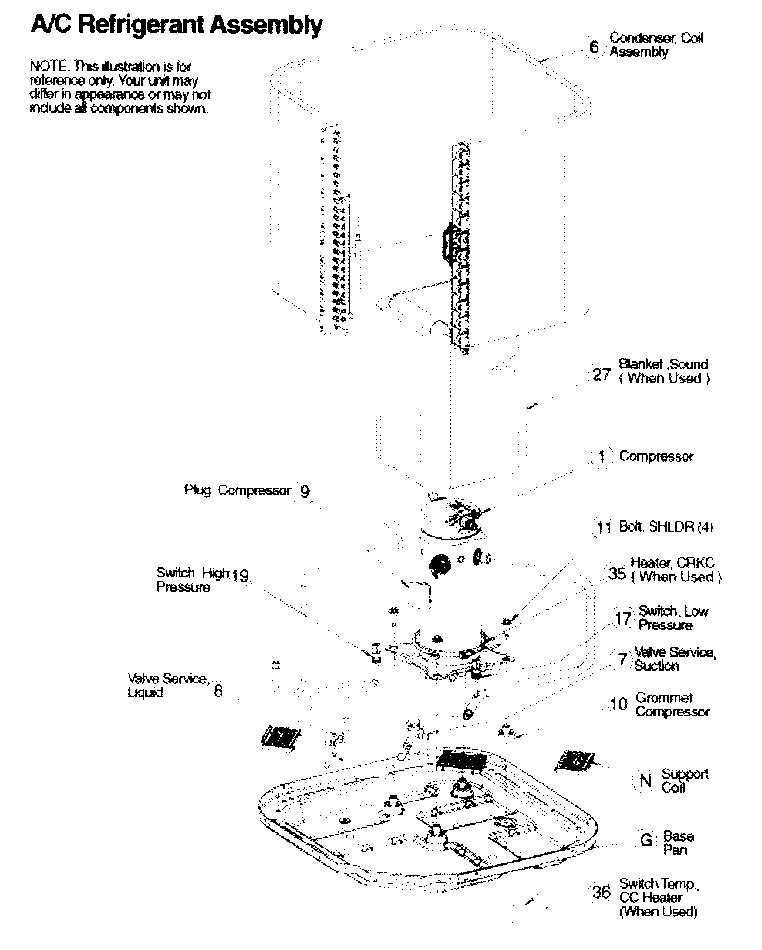

Refrigeration components diagram

Service valve

Part #1172727

Replaced by #1185863

?
Manufacturer substitution
This part replaces 1172727. Substitute parts can look different from the original.
$93.09
In Stock
Cap Nut 1172740
#B

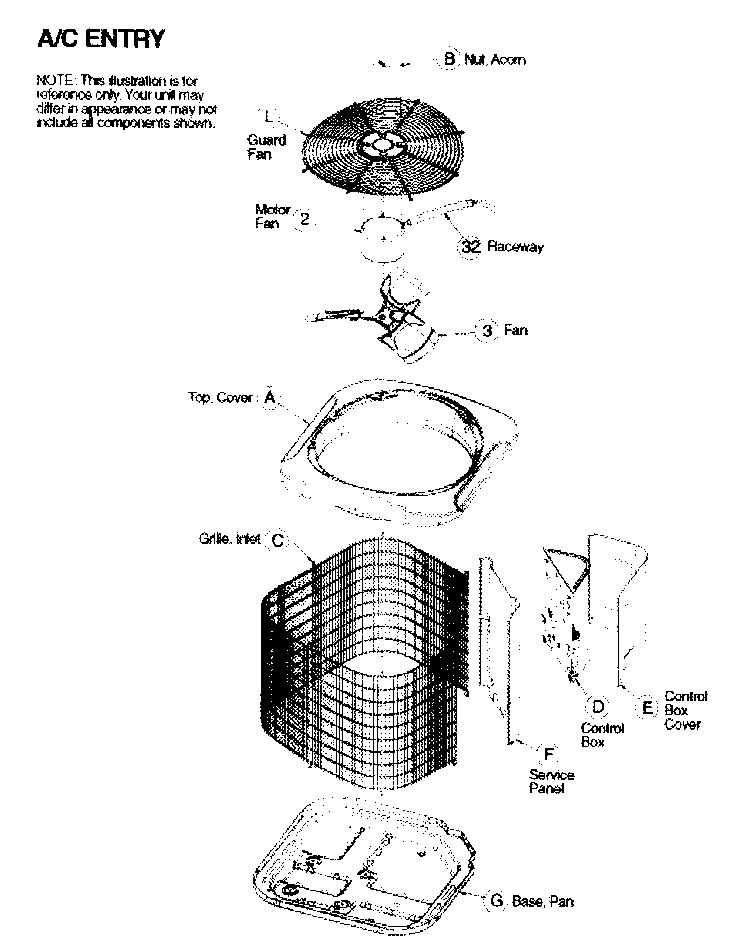

Cabinet parts diagram

Cap nut

Part #1172740

This item is not returnable
$2.77
In Stock
Fan Blade 1173854
#3

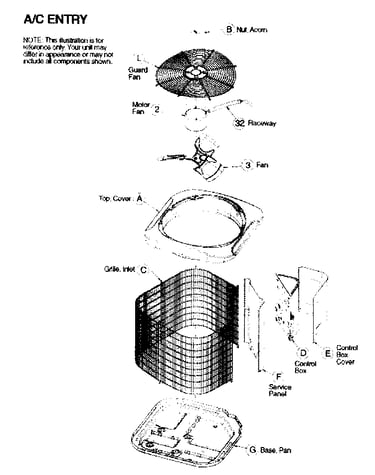

Cabinet parts diagram

Fan blade

Part #1173854

$127.10
In Stock
Central Air Conditioner Condenser Fan Grille 1172764
#L

Cabinet parts diagram

Central air conditioner condenser fan grille

Part #1172764

$372.55
In Stock
Coil Kit 1172789
#6

Refrigeration components diagram

Coil kit

Part #1172789

$2291.83
In Stock
Motor,cond 1172709
#2

Cabinet parts diagram

Motor,cond

Part #1172709

Replaced by #1185924

?
Manufacturer substitution
This part replaces 1172709. Substitute parts can look different from the original.
$244.96 |
$10.00 OFF Phone Price : $254.96
In Stock
Service Valve 1172792
#8

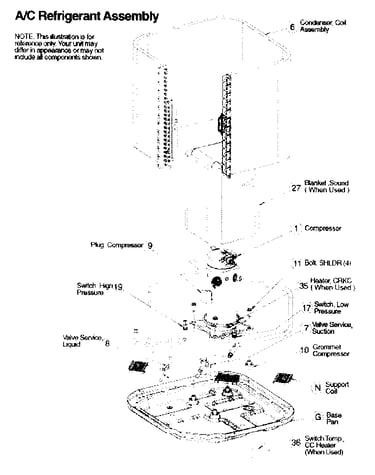

Refrigeration components diagram

Service valve

Part #1172792

Replaced by #1185864

?
Manufacturer substitution
This part replaces 1172792. Substitute parts can look different from the original.
$50.73
In Stock
Comp Zr38ka-pfv-130 ZR38KAPFV130
#1

Refrigeration components diagram

Comp zr38ka-pfv-130

Part #ZR38KAPFV130

The manufacturer no longer makes this part, and there's no substitute part

Compressor ZR38KAPFV830
#1A

Refrigeration components diagram

Compressor

Part #ZR38KAPFV830

The manufacturer no longer makes this part, and there's no substitute part
