Thermador
Upright Freezer

Model #T30IF70FSS-01 Official Thermador built-in freezer column

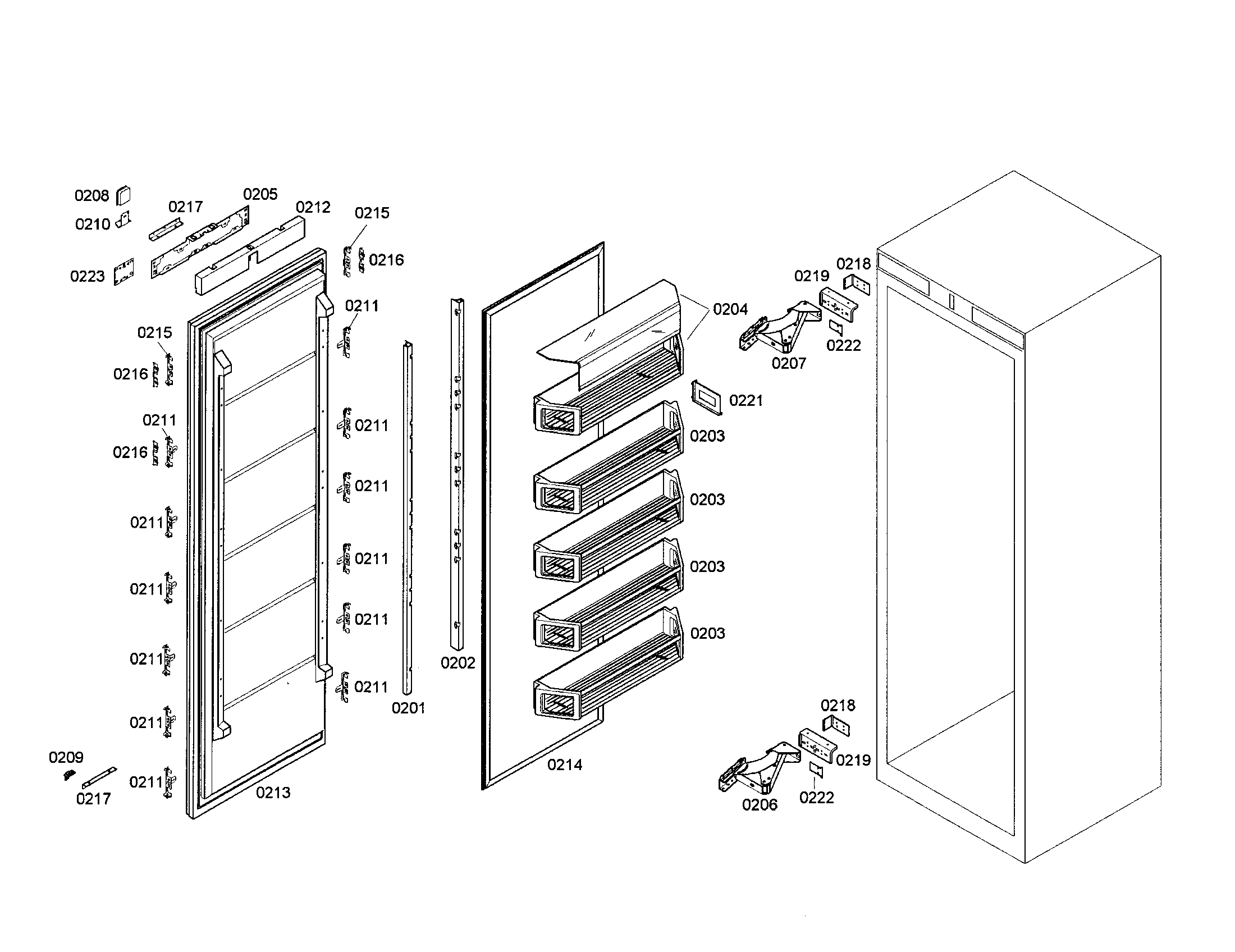

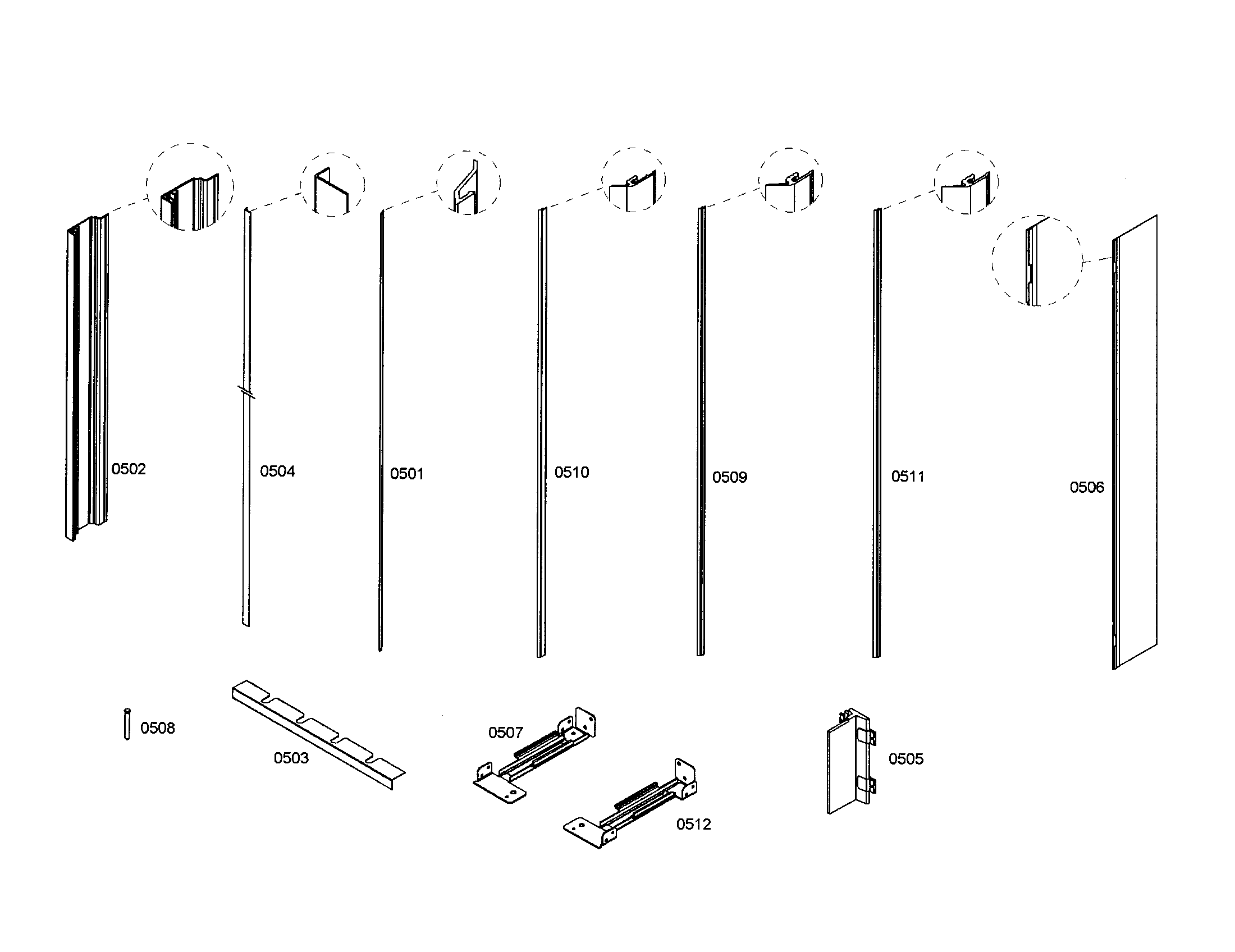

Here are the diagrams and repair parts for Thermador T30IF70FSS-01 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 156 parts

Bosch Refrigerator Water Filter#411

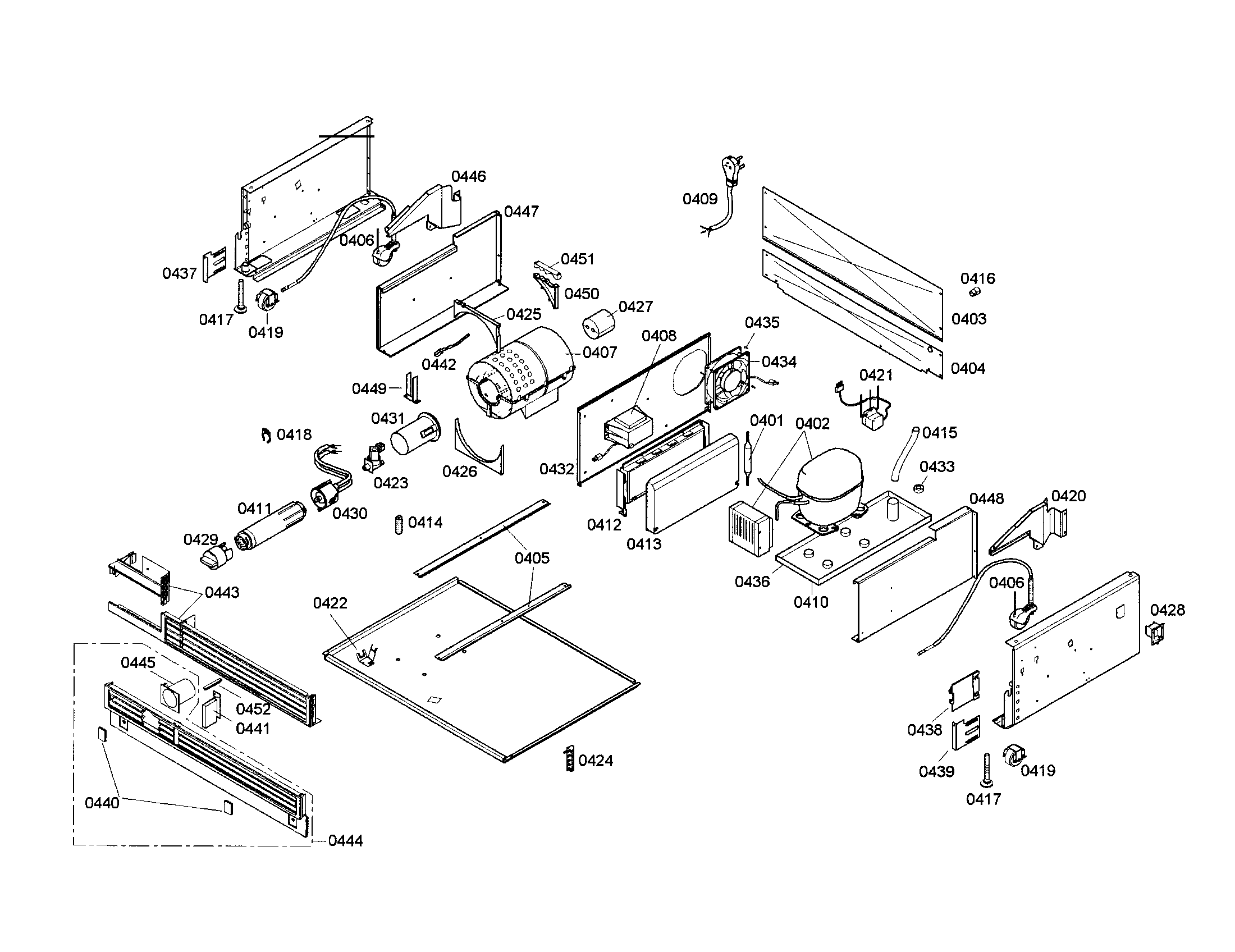

Condenser/compressor Diagram

Filter

Part #499850
Replaced by #00644845
?
Manufacturer substitution
This part replaces 499850. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$61.39
Freezer Basket Retainer Clip#313

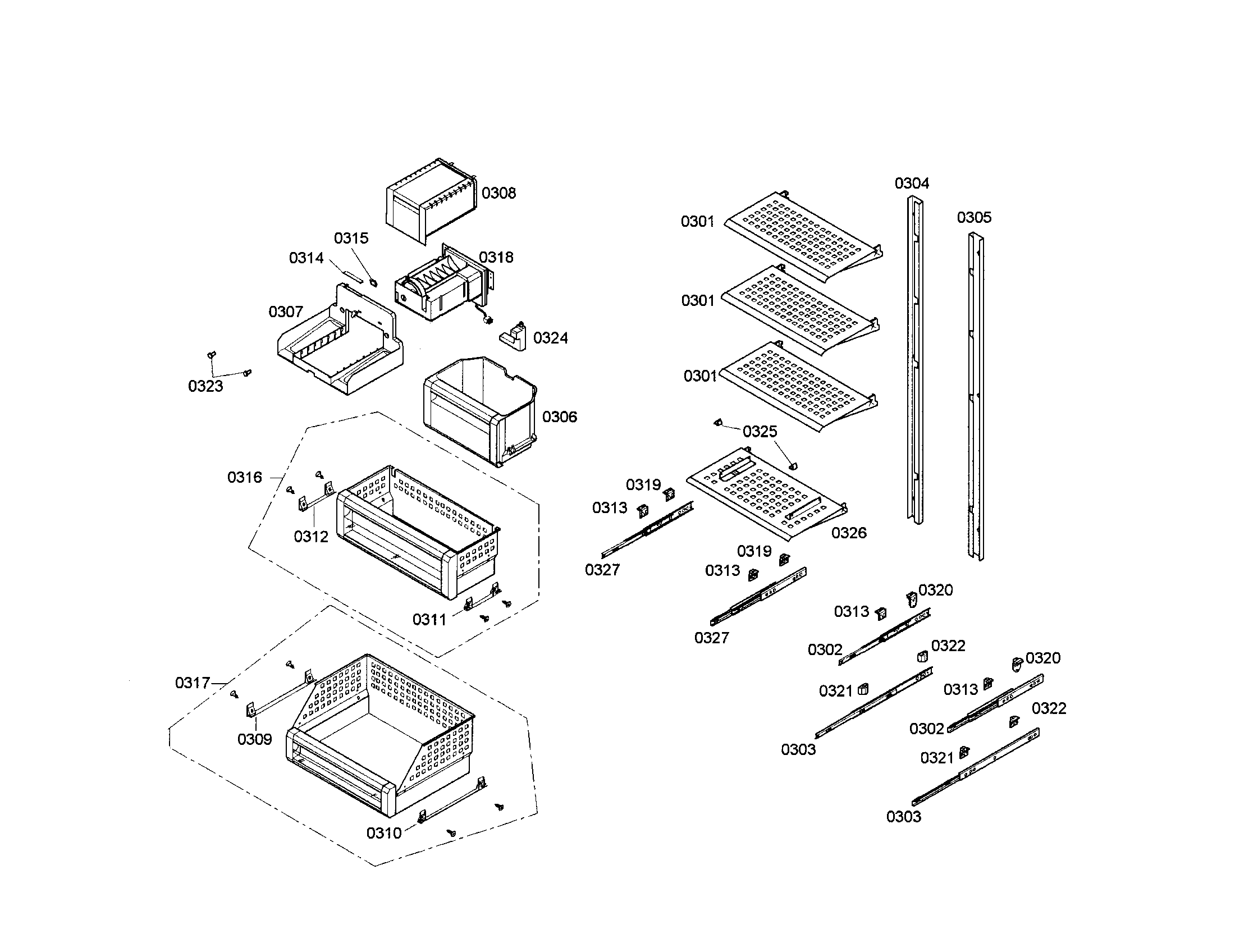

Ice maker Diagram

Clip

Part #603971
Replaced by #00623319
?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.89 |
17% OFF
Phone Price: $5.89
Refrigerator Fuse#139

Cabinet Diagram

Limiter

Part #164234
Replaced by #00617855
?
Manufacturer substitution
This part replaces 164234. Substitute parts can look different from the original.
In Stock
$31.92
Refrigerator Base Panel#444

Condenser/compressor Diagram

Base panel

Part #244546
Replaced by #00248834
?
Manufacturer substitution
This part replaces 244546. Substitute parts can look different from the original.
In Stock
$105.80
Freezer Electronic Control Board#104

Cabinet Diagram

Module

Part #448891
Replaced by #11041652
?
Manufacturer substitution
This part replaces 448891. Substitute parts can look different from the original.
In Stock
$182.89 |
5% OFF
Phone Price: $192.89
Refrigerator Condenser Temperature Sensor#442

Condenser/compressor Diagram

Sensor,ntc

Part #420667
Replaced by #00420667
?
Manufacturer substitution
This part replaces 420667. Substitute parts can look different from the original.
In Stock
$43.29 |
10% OFF
Phone Price: $48.29
Freezer Water Filter Cap#429

Condenser/compressor Diagram

Cover

Part #604684
Replaced by #00604684
?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
In Stock
$11.49 |
15% OFF
Phone Price: $13.49
Mounting Set

#NI01

All parts Diagram

Mount assembly

Part #661389
Replaced by #00661389
?
Manufacturer substitution
This part replaces 661389. Substitute parts can look different from the original.
In Stock
$127.56
Rail#327

Ice maker Diagram

Rail

Part #660867
Replaced by #00660867
?
Manufacturer substitution
This part replaces 660867. Substitute parts can look different from the original.
In Stock
$85.16
Air Grid#131

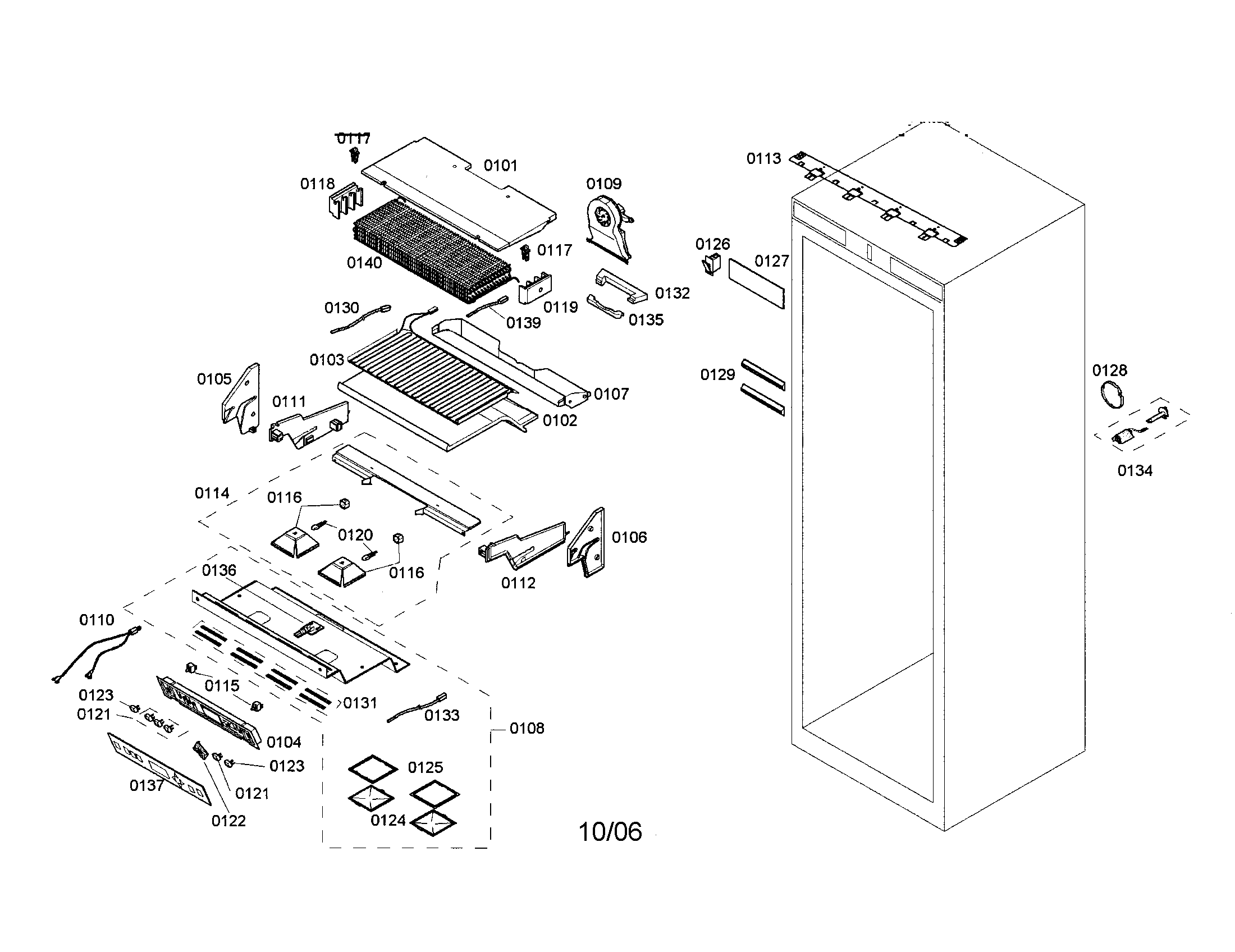

Cabinet Diagram

Air grid

Part #604026
Replaced by #00604026
?
Manufacturer substitution
This part replaces 604026. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.90
