Model #308786183 Official Sears canopy tent

Here are the diagrams and repair parts for Sears 308786183 canopy tent, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 9 of 9 parts

Bolt Nut#6

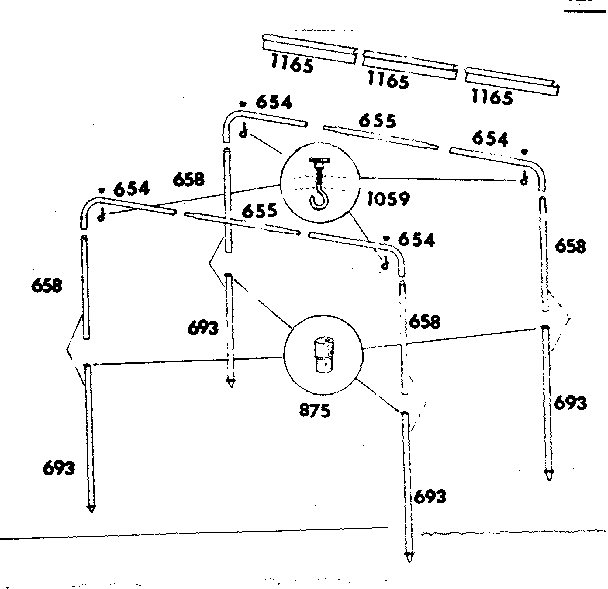

Frame assembly Diagram

Bolt nut

Part #1059

The manufacturer no longer makes this part, and there's no substitute part

Fly Ext 40in#7

Frame assembly Diagram

Fly ext 40in

Part #1165

The manufacturer no longer makes this part, and there's no substitute part

Pole#3

Frame assembly Diagram

Pole

Part #654

The manufacturer no longer makes this part, and there's no substitute part

Pole#2

Frame assembly Diagram

Pole

Part #658

The manufacturer no longer makes this part, and there's no substitute part

Pole#4

Frame assembly Diagram

Pole

Part #655

The manufacturer no longer makes this part, and there's no substitute part

Pole#1

Frame assembly Diagram

Pole

Part #693

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual

#NI

All parts Diagram

Owner's manual

Part #776460NW

The manufacturer no longer makes this part, and there's no substitute part

Lck Fstner#5

Frame assembly Diagram

Lck fstner

Part #875

The manufacturer no longer makes this part, and there's no substitute part

Frame Comp

#NI

All parts Diagram

Frame comp

Part #58018094

The manufacturer no longer makes this part, and there's no substitute part
