Model #DAV-DZ175 Official Sony home theater system

Here are the diagrams and repair parts for Sony DAV-DZ175 home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 81 parts

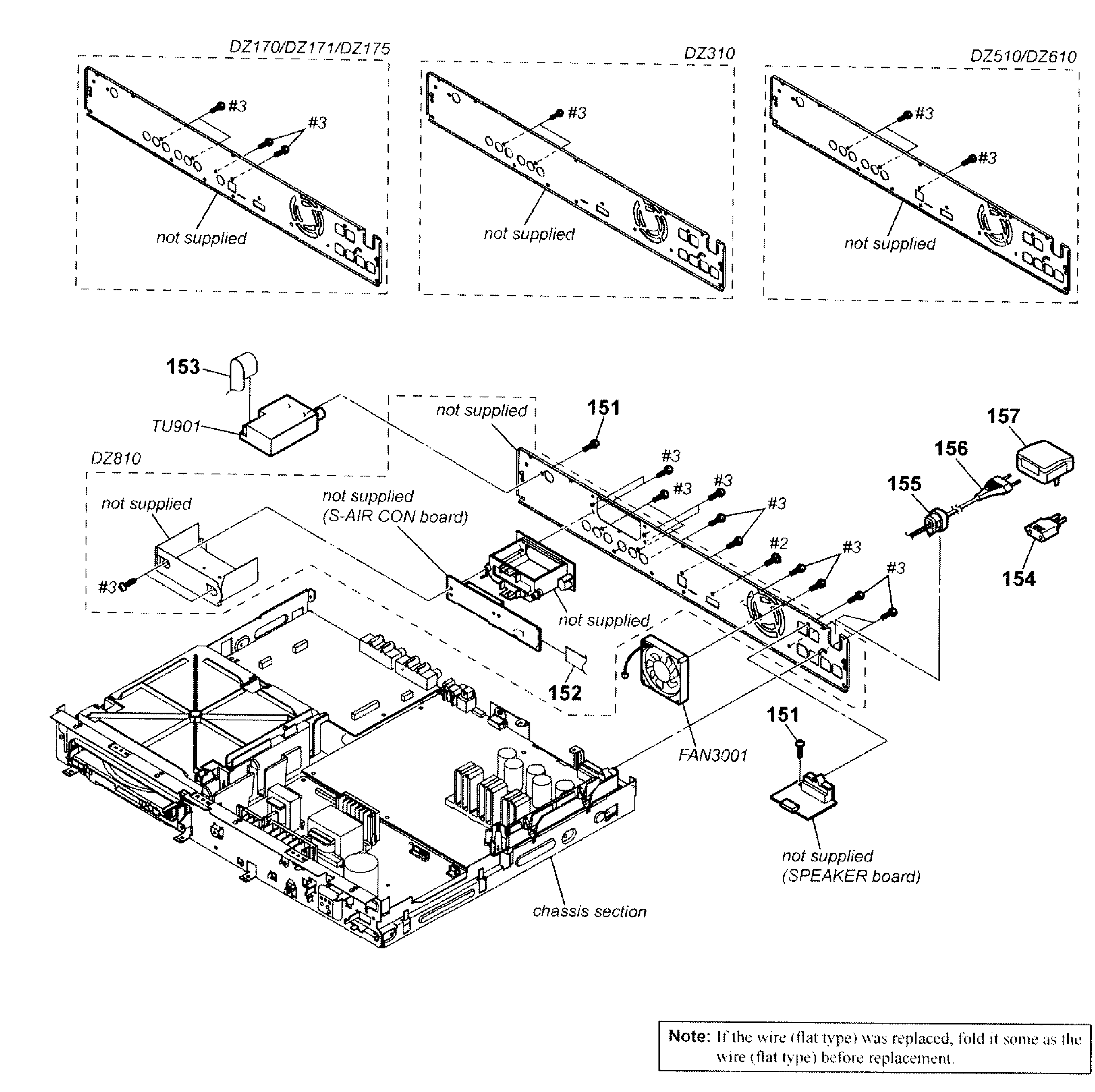

Home Theater System FM Antenna#NI

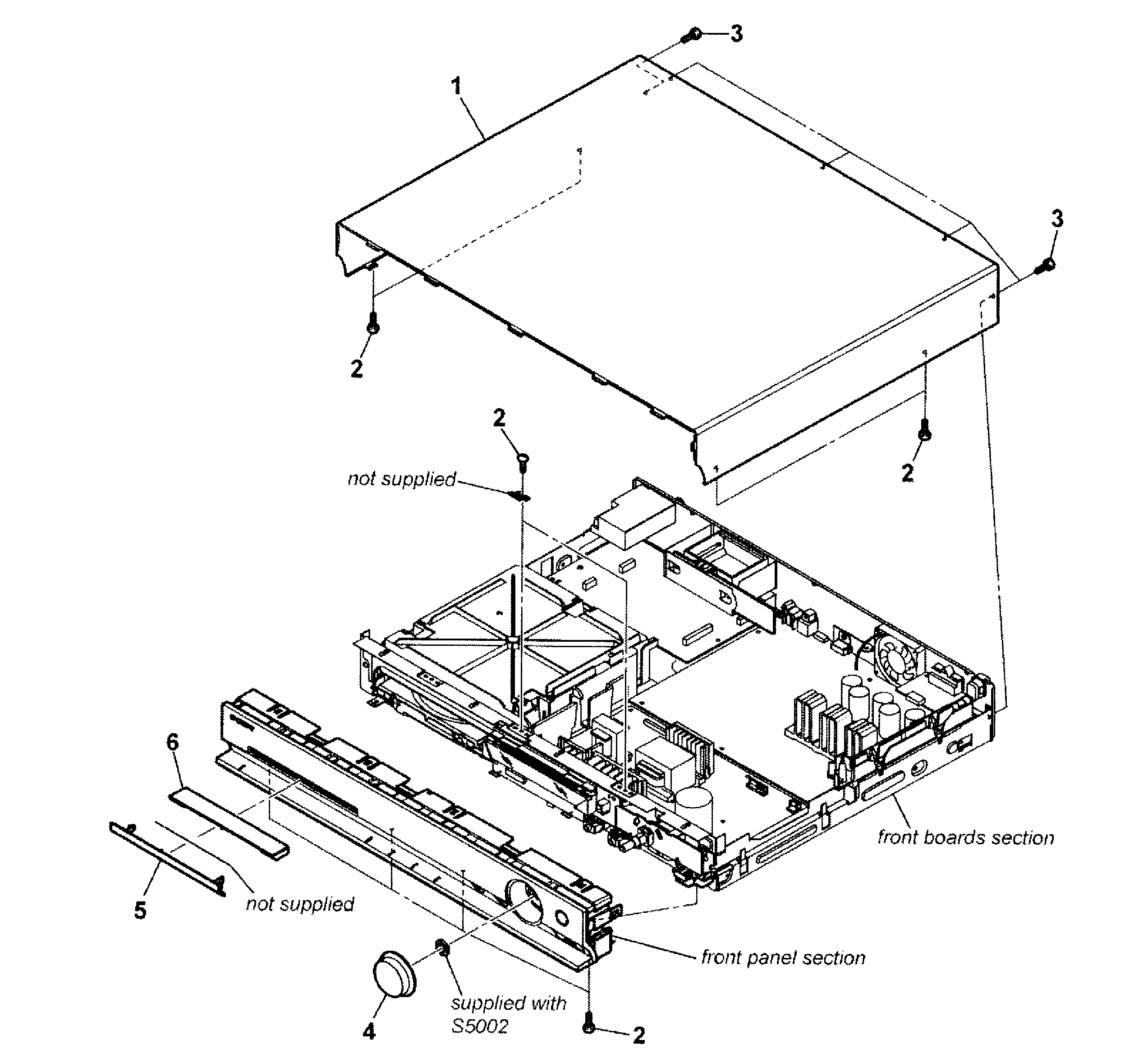

Main assy Diagram

Home theater system fm antenna

Part #179318441

The manufacturer no longer makes this part, and there's no substitute part

Capacitor#NI

Main assy Diagram

Capacitor

Part #111459411

The manufacturer no longer makes this part, and there's no substitute part

Capacitor#NI

Main assy Diagram

Capacitor

Part #111434521

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Main assy Diagram

Resistor

Part #125029965

The manufacturer no longer makes this part, and there's no substitute part

Cap 22uf#NI

Main assy Diagram

Cap 22uf

Part #110793091

The manufacturer no longer makes this part, and there's no substitute part

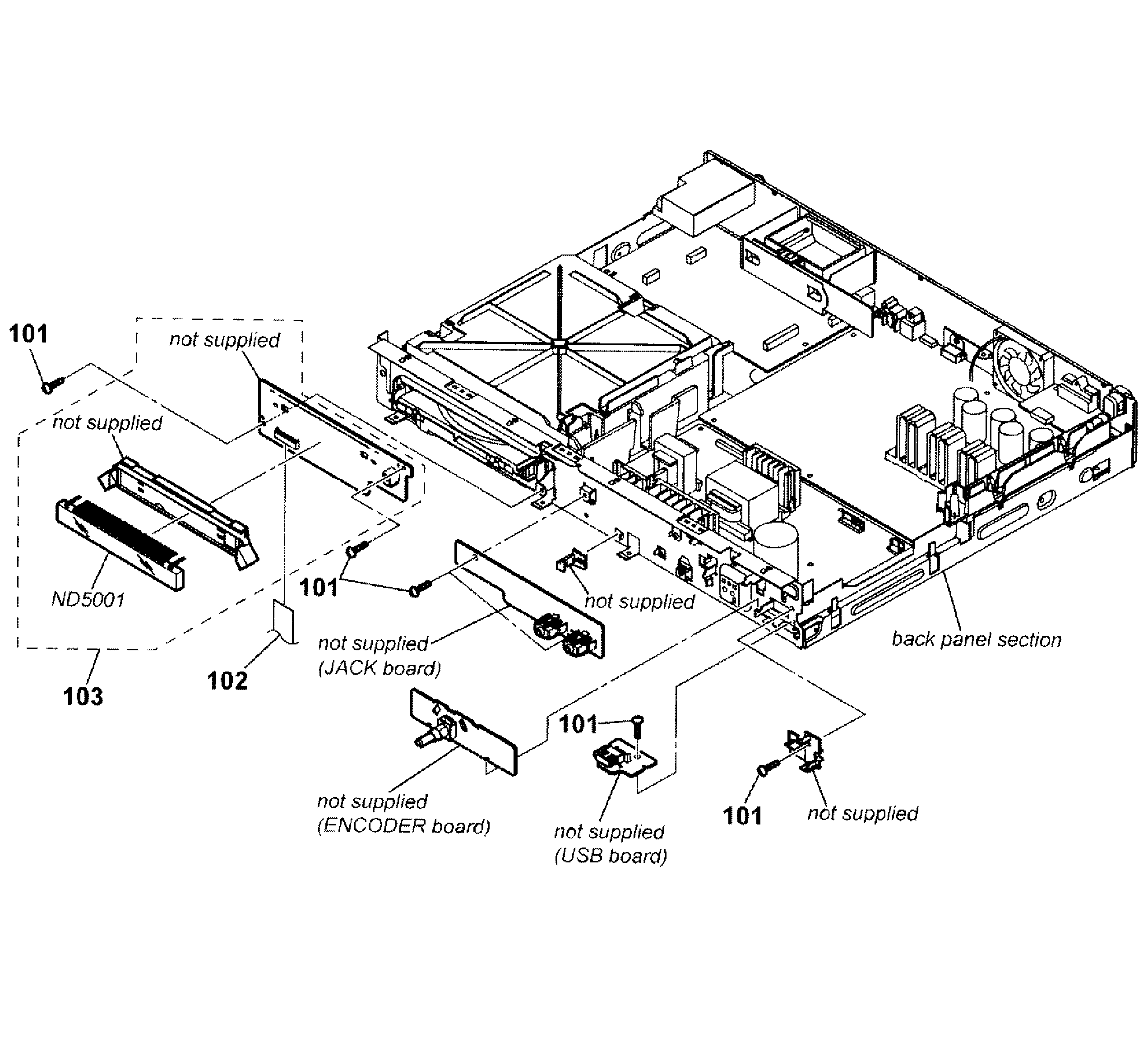

Base,front#56

Control panel Diagram

Base,front

Part #415949101

The manufacturer no longer makes this part, and there's no substitute part

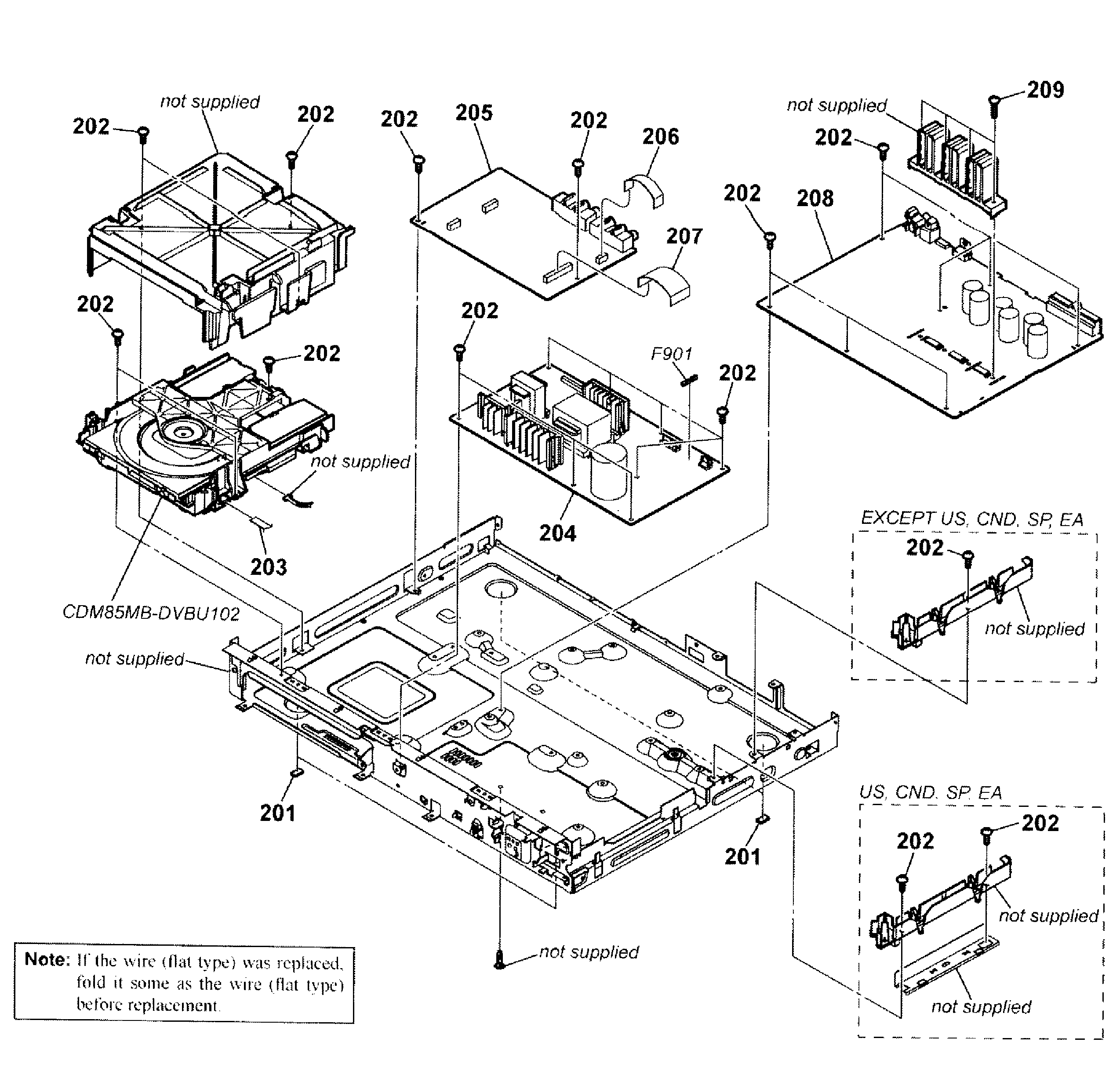

Screw#254

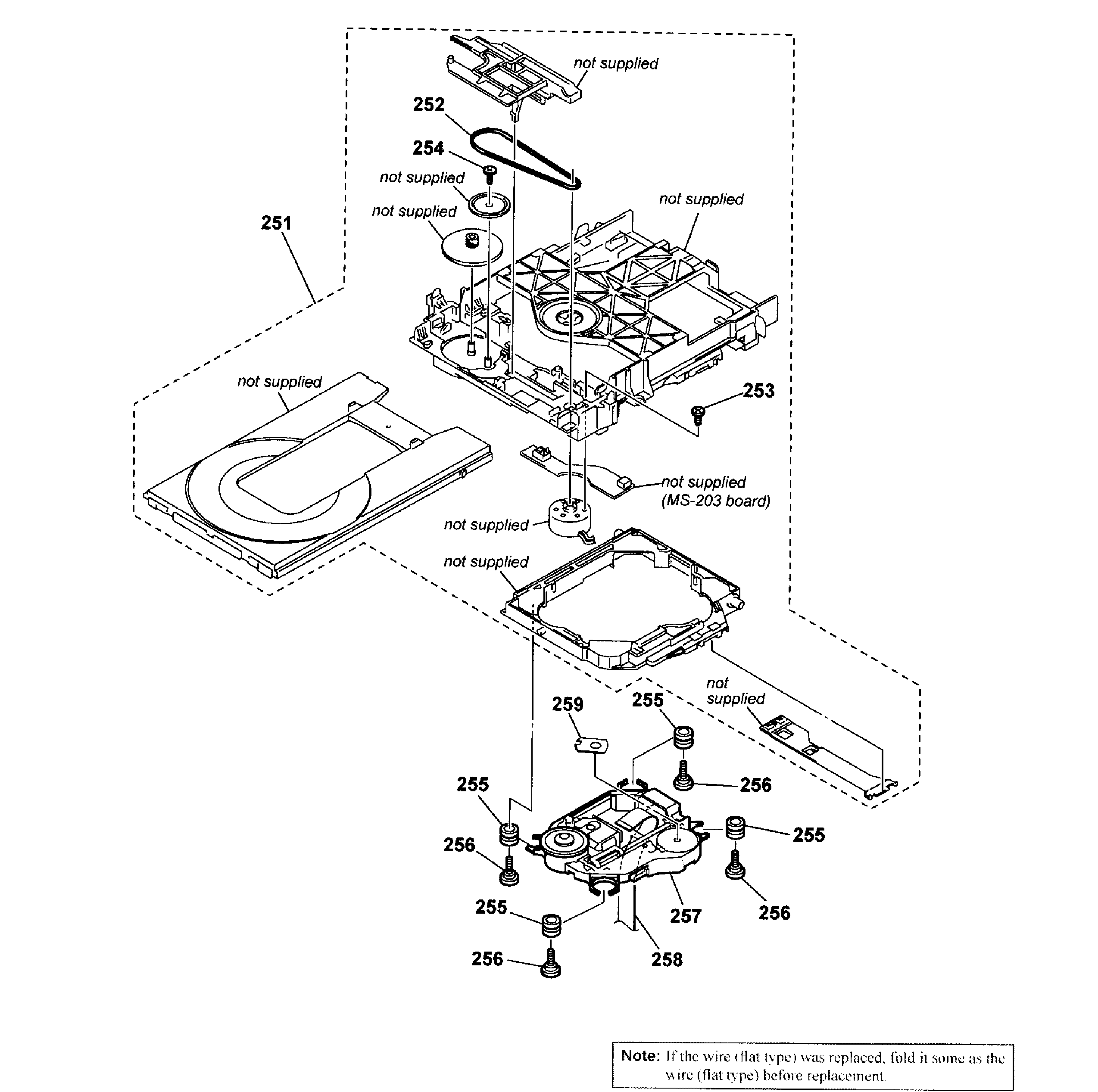

Dvd mechanism Diagram

Screw

Part #467413711

The manufacturer no longer makes this part, and there's no substitute part

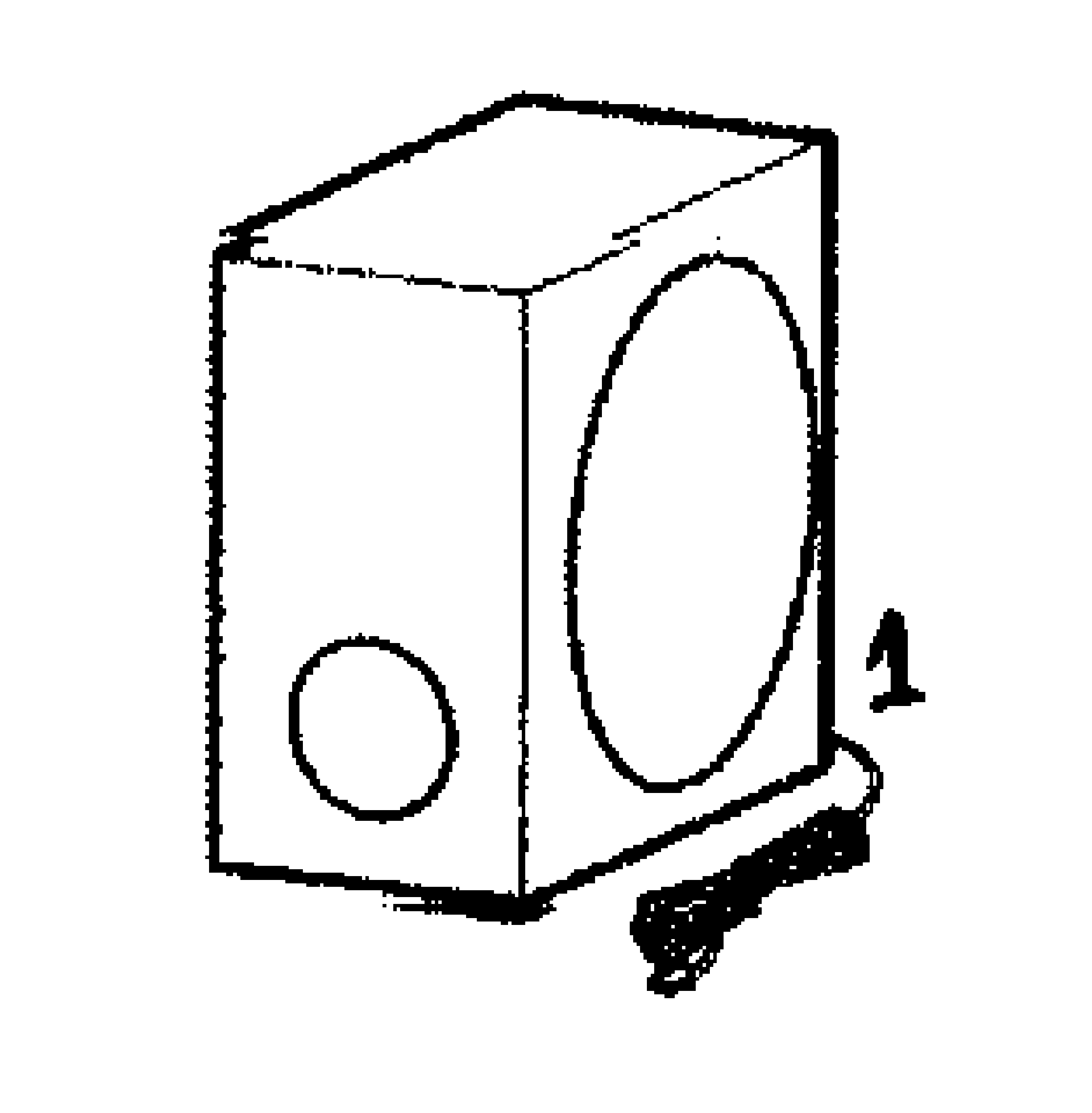

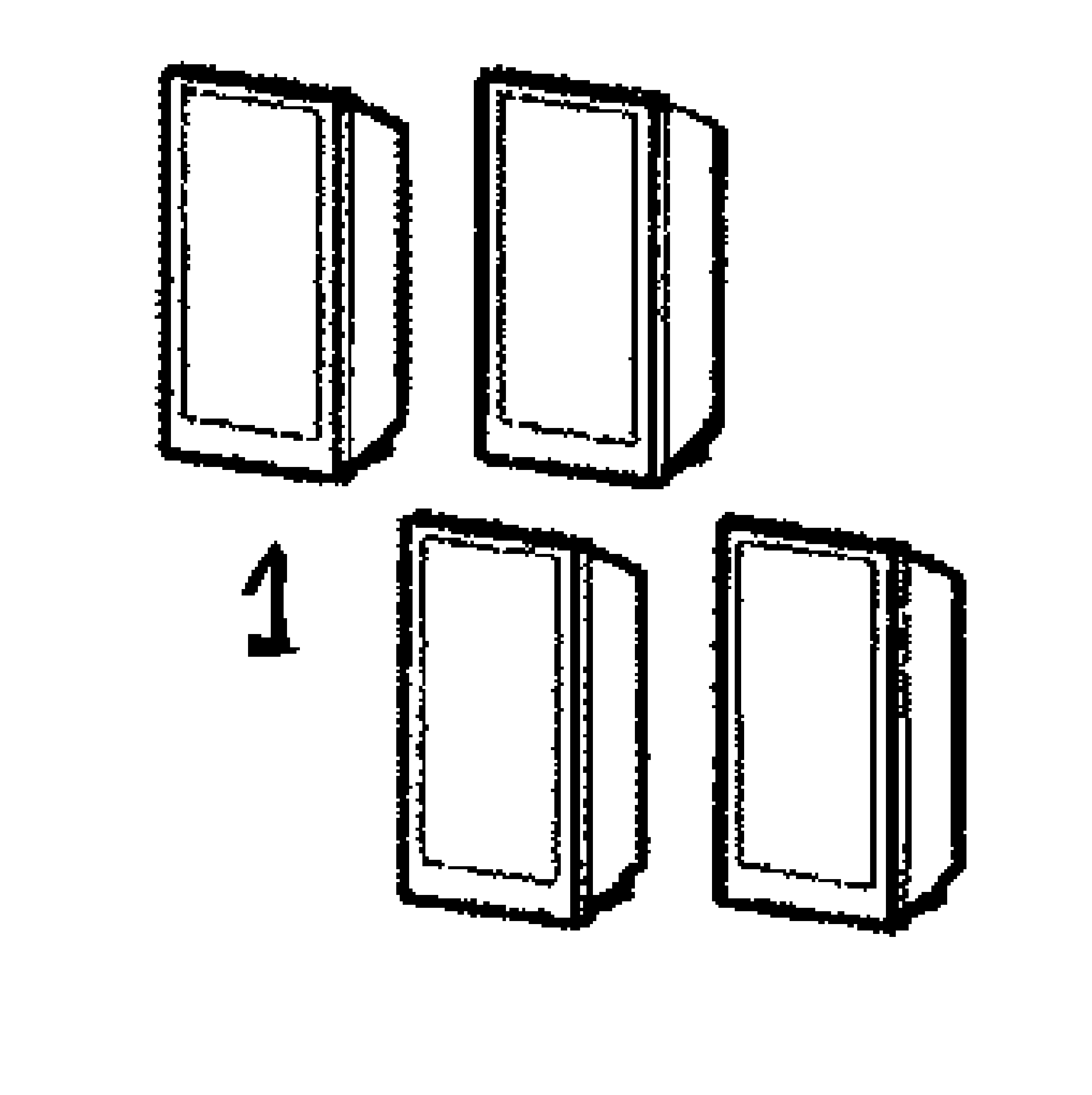

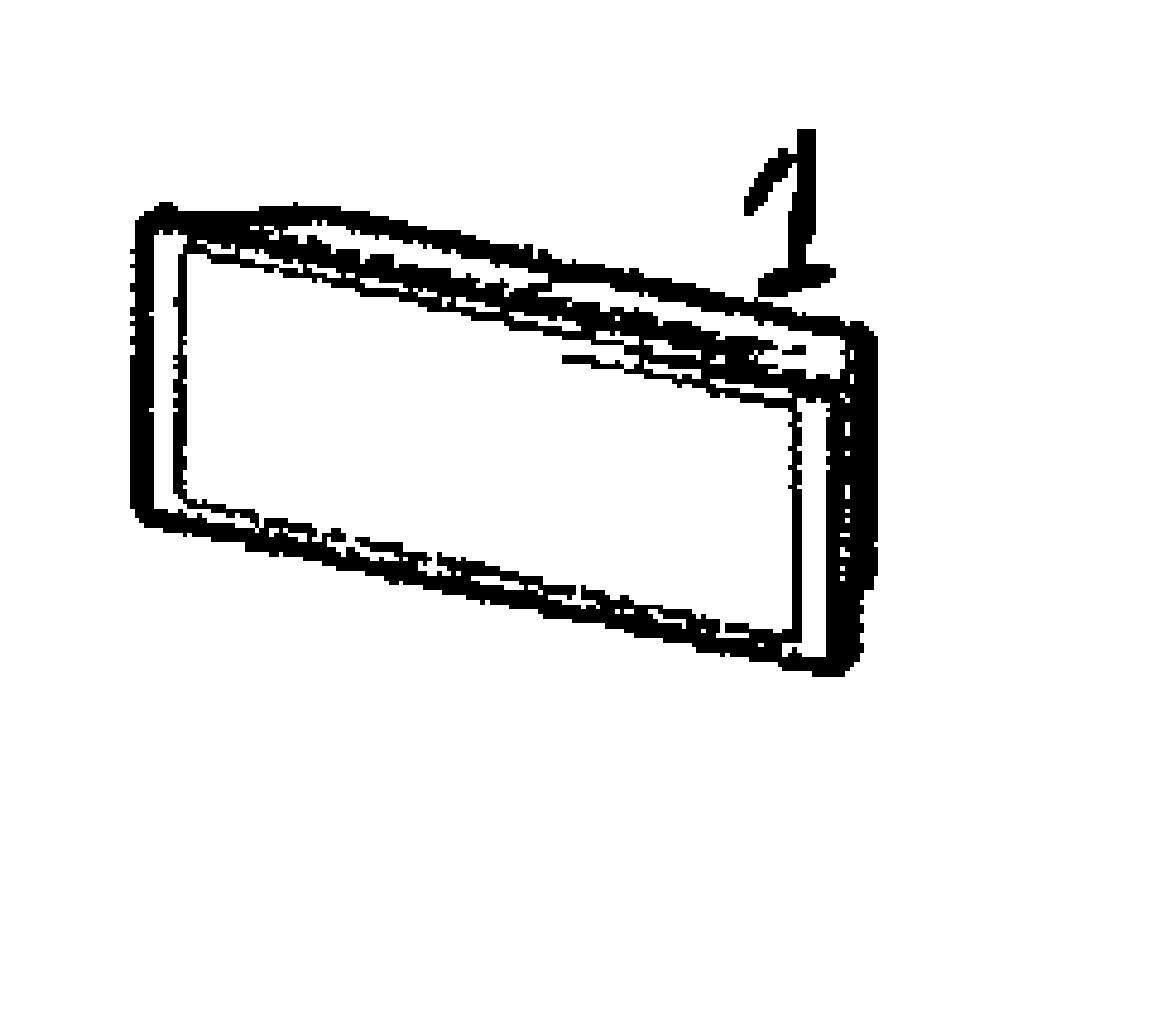

Subwoofer Speaker#1

Speaker Diagram

Subwoofer speaker

Part #A1745798A

The manufacturer no longer makes this part, and there's no substitute part

Insulator#255

Dvd mechanism Diagram

Insulator

Part #263461801

The manufacturer no longer makes this part, and there's no substitute part

Coil,line#NI

Main assy Diagram

Coil,line

Part #145744911

The manufacturer no longer makes this part, and there's no substitute part
