Model # UH30070 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH30070 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |

Vacuum Bag Level Indicator 51151010
#35

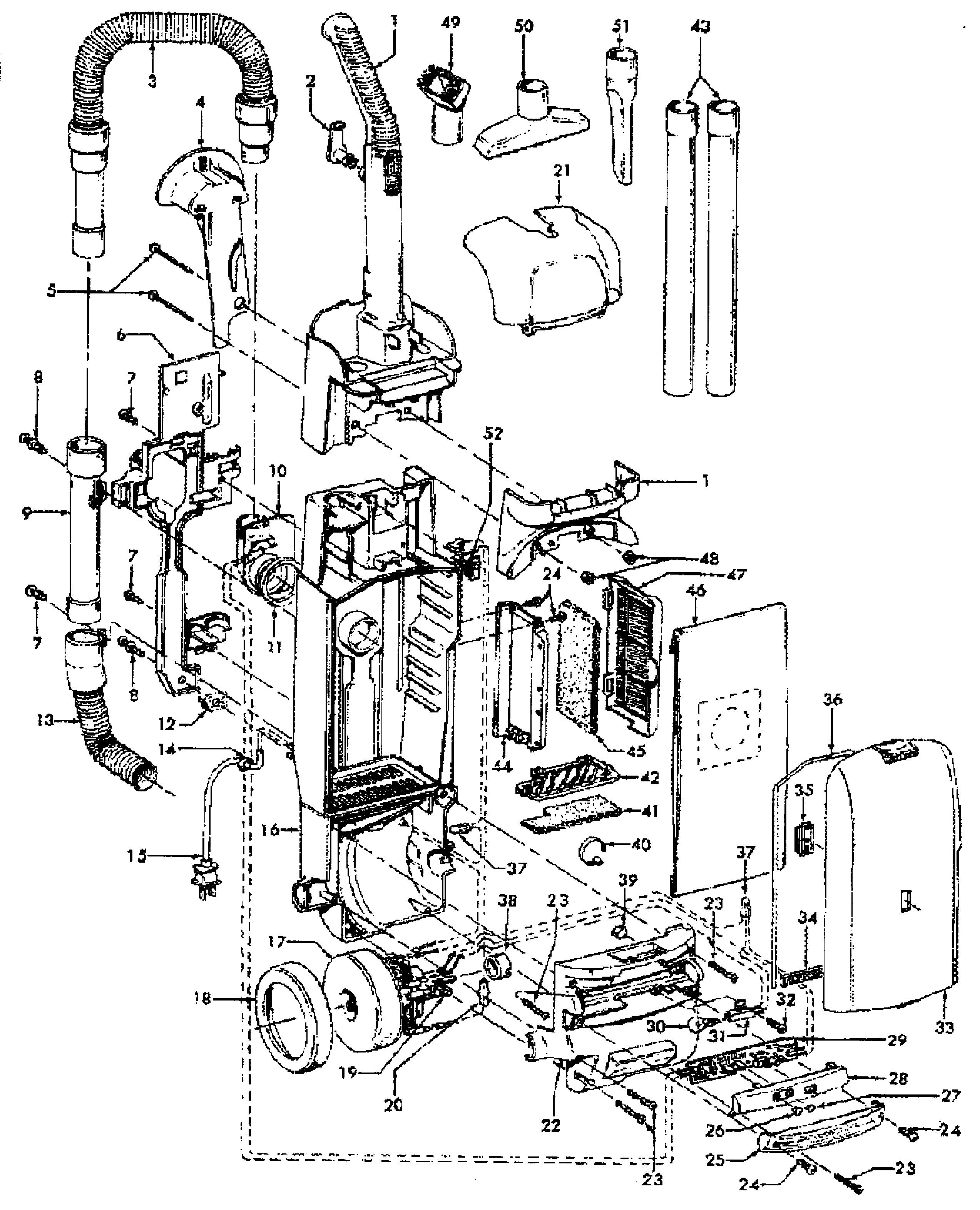

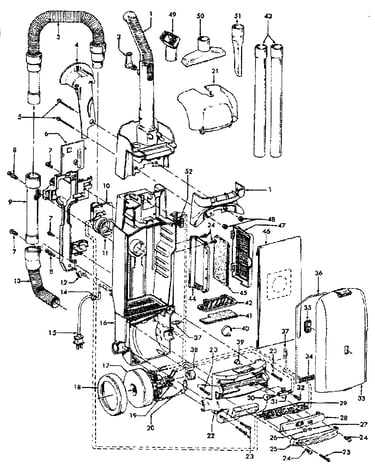

Main body diagram

Vacuum bag level indicator

Part #51151010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Compartment Door Gasket 38781057
#36

Main body diagram

Vacuum bag compartment door gasket

Part #38781057

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wire Harness 47173027
#31

Main body diagram

Vacuum wire harness

Part #47173027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 39466123
#1A

Main body diagram

Vacuum handle

Part #39466123

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate And Beater Bar Cover Assembly 37242135
#11

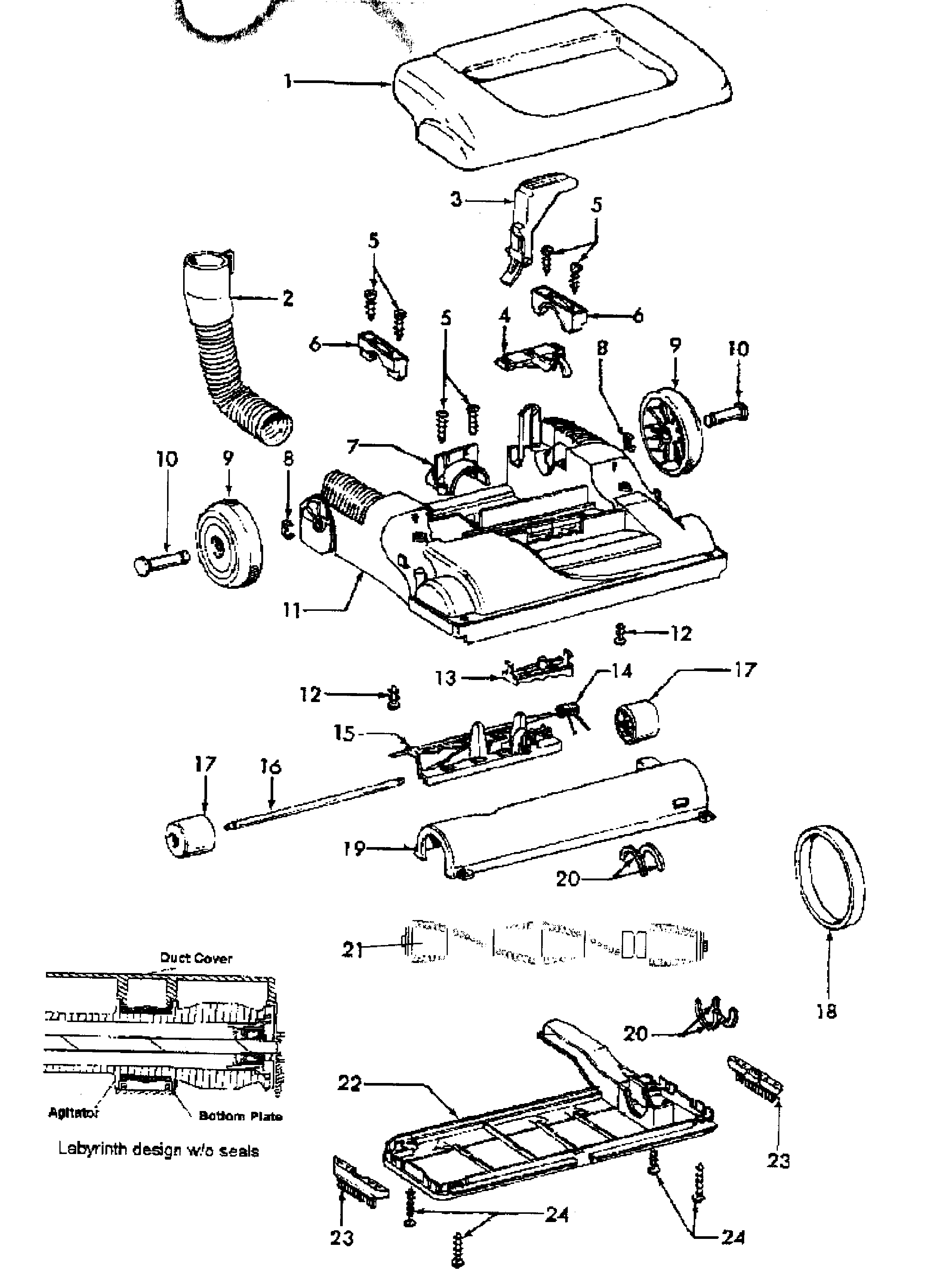

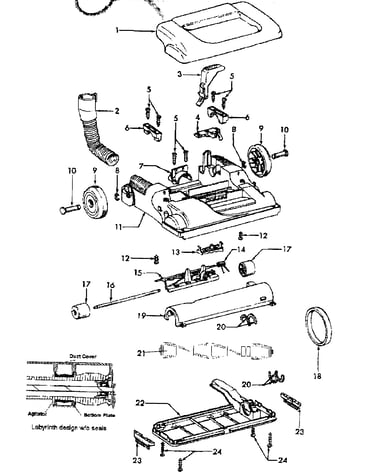

Base assy diagram

Vacuum base plate and beater bar cover assembly

Part #37242135

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Cover 37196159
#22

Main body diagram

Vacuum motor cover

Part #37196159

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#17A

Main body diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447228
Vacuum screw

Part #21447228

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#23

Main body diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Clamp 36171044
#7

Base assy diagram

Clamp

Part #36171044

The manufacturer no longer makes this part, and there's no substitute part
