Model #WAW285H2UC/12 Official Bosch washer

Here are the diagrams and repair parts for Bosch WAW285H2UC-12 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

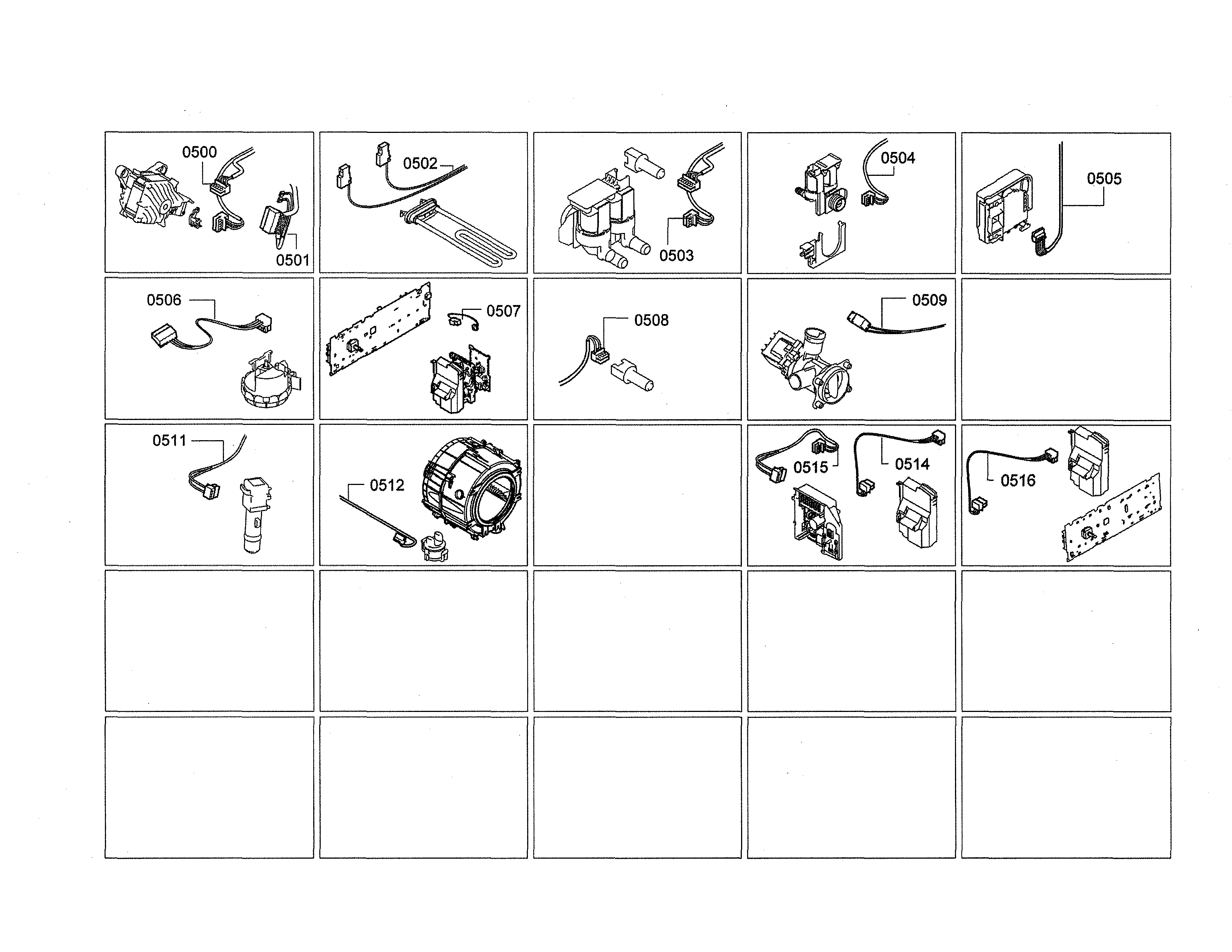

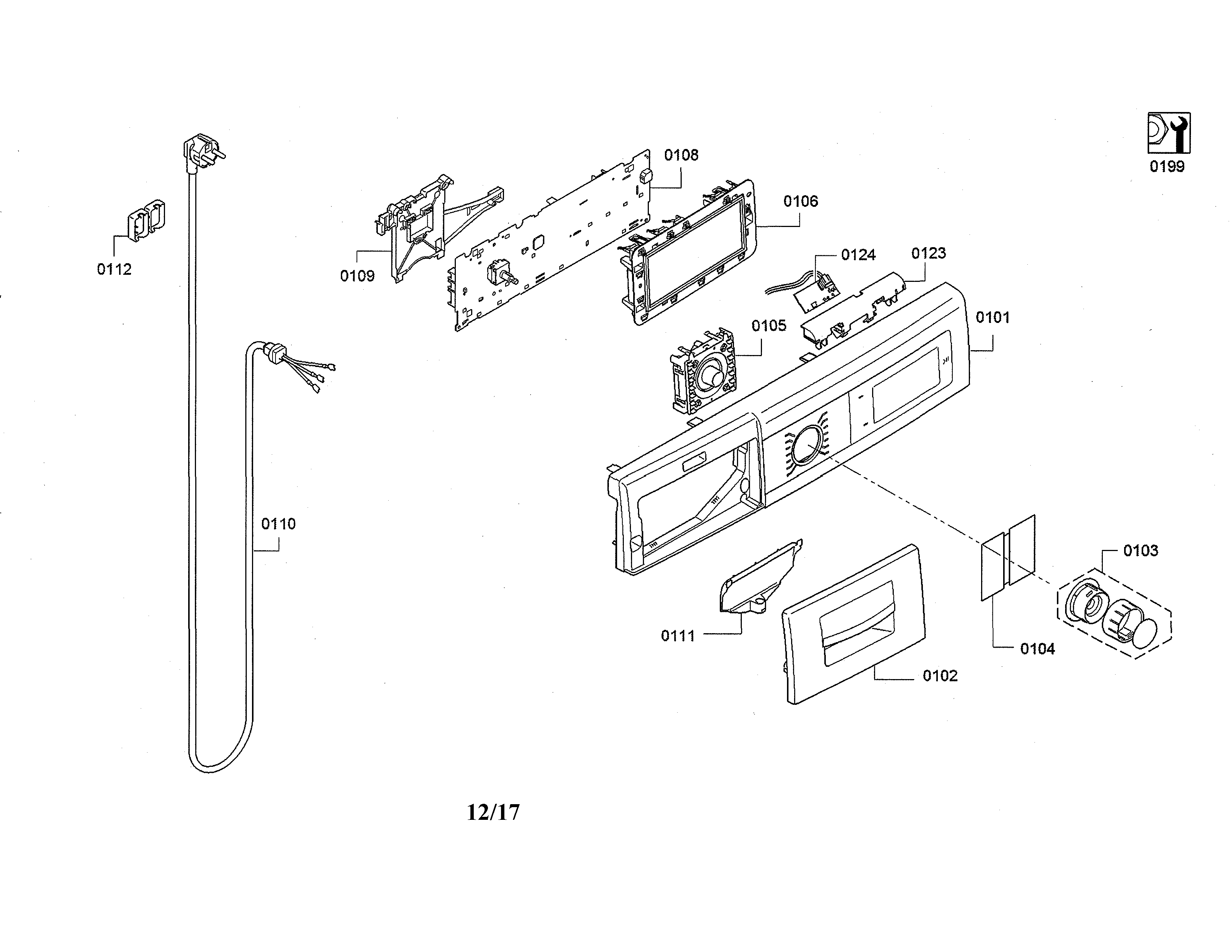

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 114 parts

Washer Drain Pump Filter (replaces 00605010)#421

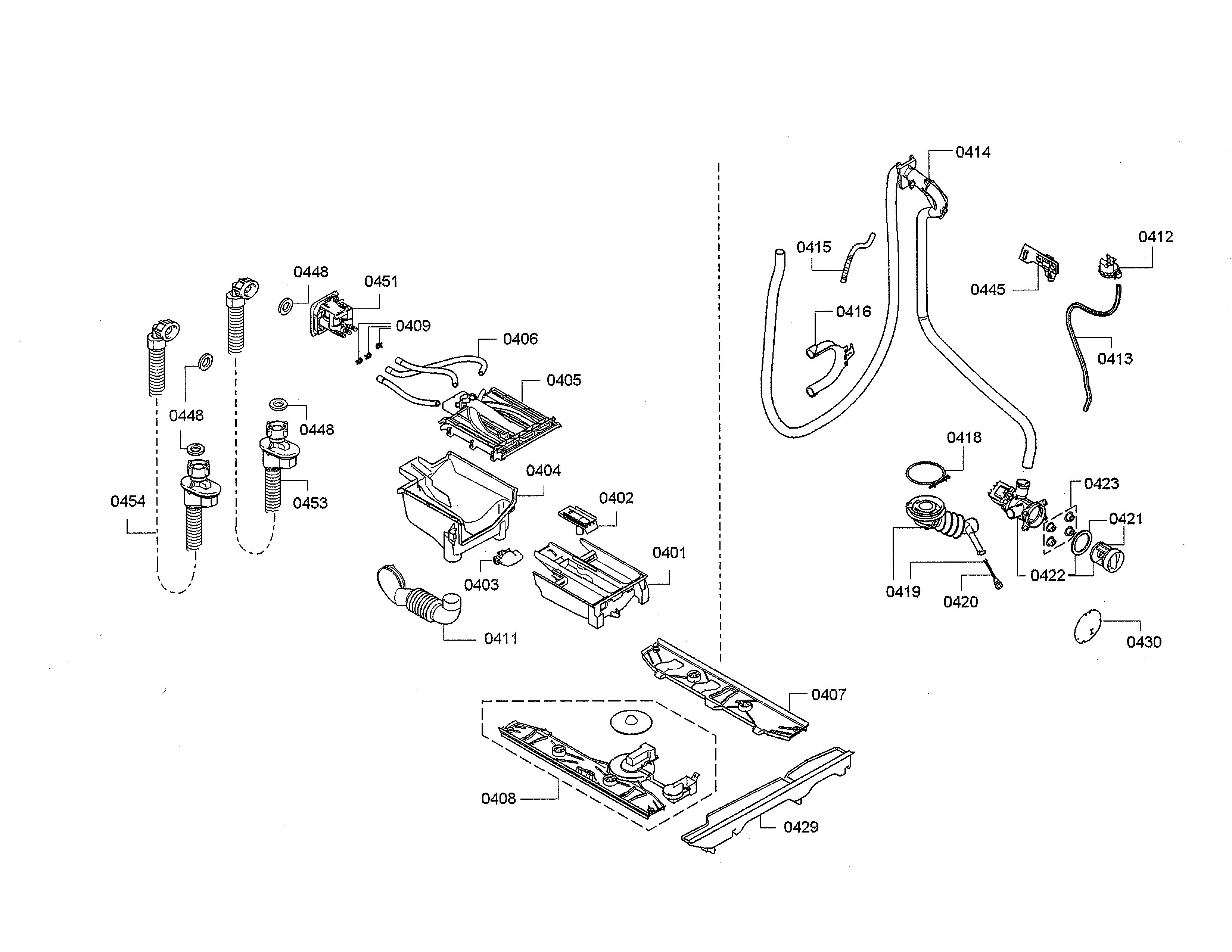

Base/dispenser Diagram

Washer drain pump filter (replaces 00605010)

Part #00647920
This item is not returnable
In Stock
$28.99 |
15% OFF
Phone Price: $33.99
Washer Drain Pump (replaces 00144844, 00144977)#422A

Base/dispenser Diagram

In Stock
$149.02 |
6% OFF
Phone Price: $159.02
Set#423

Base/dispenser Diagram

Set

Part #00425075
In Stock
$25.89 |
16% OFF
Phone Price: $30.89
Boot Gasket#313A

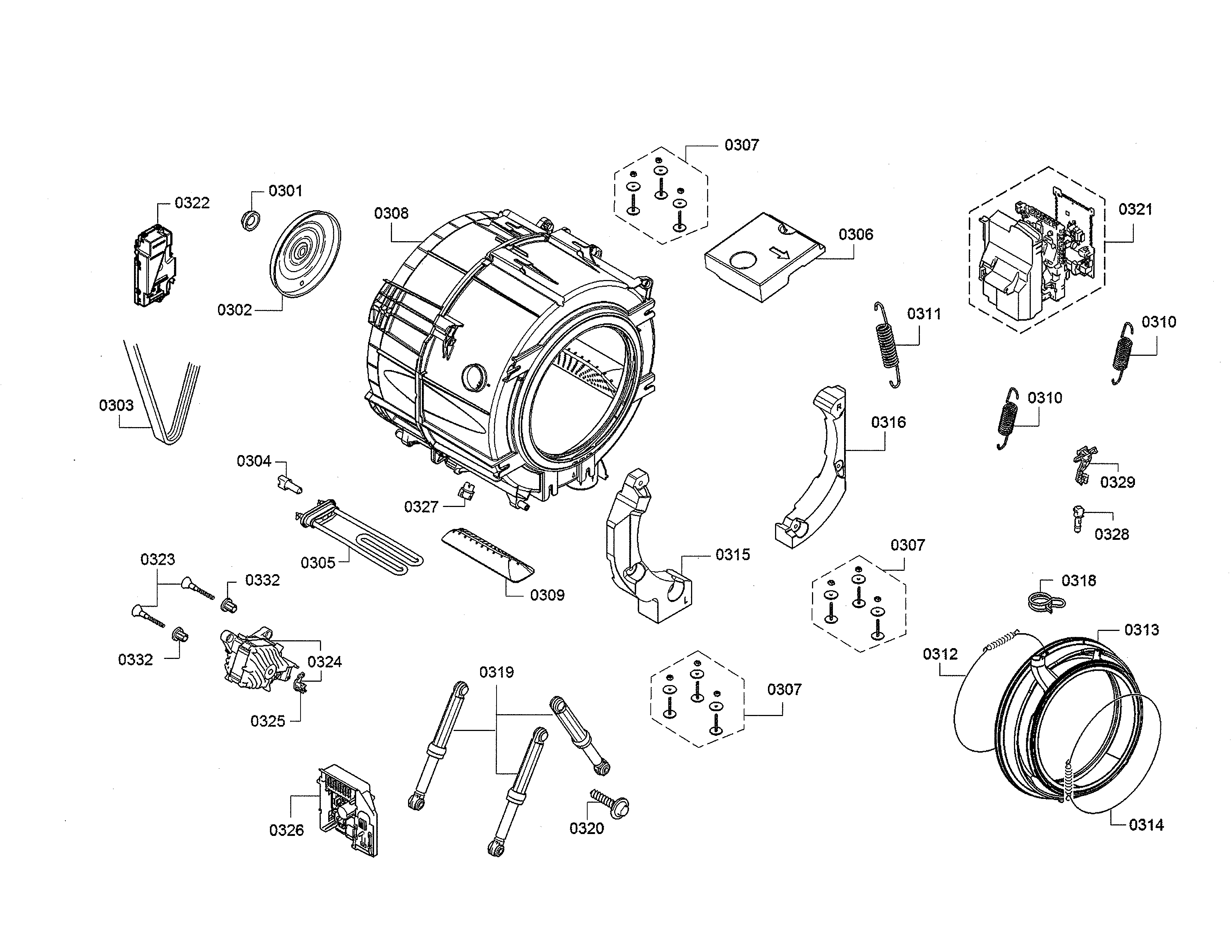

Drum/power module Diagram

Boot gasket

Part #00772662
In Stock
$103.79 |
9% OFF
Phone Price: $113.79
Washer Drive Belt#303

Drum/power module Diagram

Washer drive belt

Part #00439490
In Stock
$40.59 |
11% OFF
Phone Price: $45.59
Holder#213

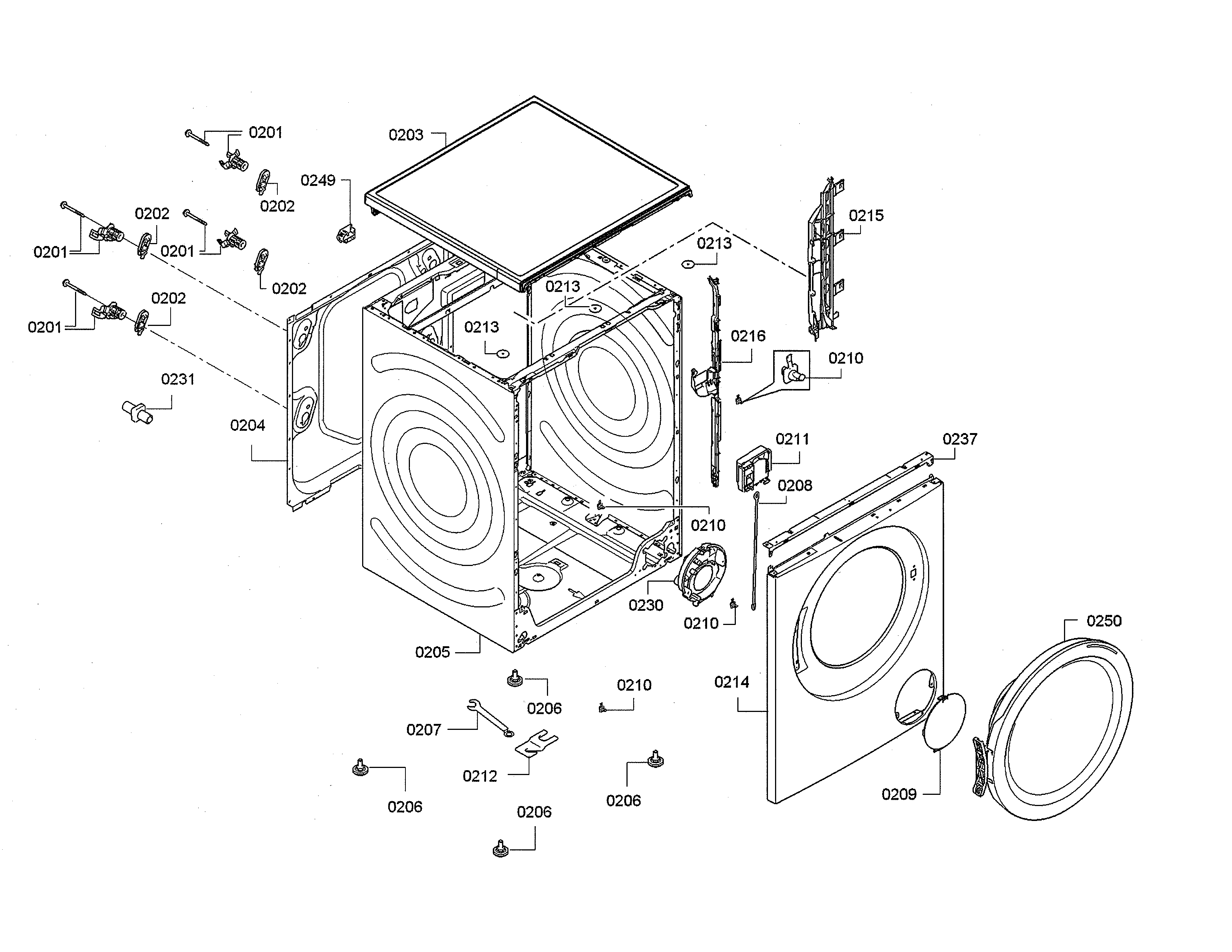

Cabinet Diagram

Holder

Part #00627044
This item is not returnable
In Stock
$2.16
Housing#205

Cabinet Diagram

Housing

Part #00713963
In Stock
$174.37
Washer Door Lock#211

Cabinet Diagram

Washer door lock

Part #10000916
In Stock
$54.79 |
8% OFF
Phone Price: $59.79
Washer Inlet Hose#454

Base/dispenser Diagram

Washer inlet hose

Part #00646220
In Stock
$72.16
Ring#418

Base/dispenser Diagram

Ring

Part #00603523
This item is not returnable
In Stock
$3.82

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
