Wall Oven/Microwave Combo

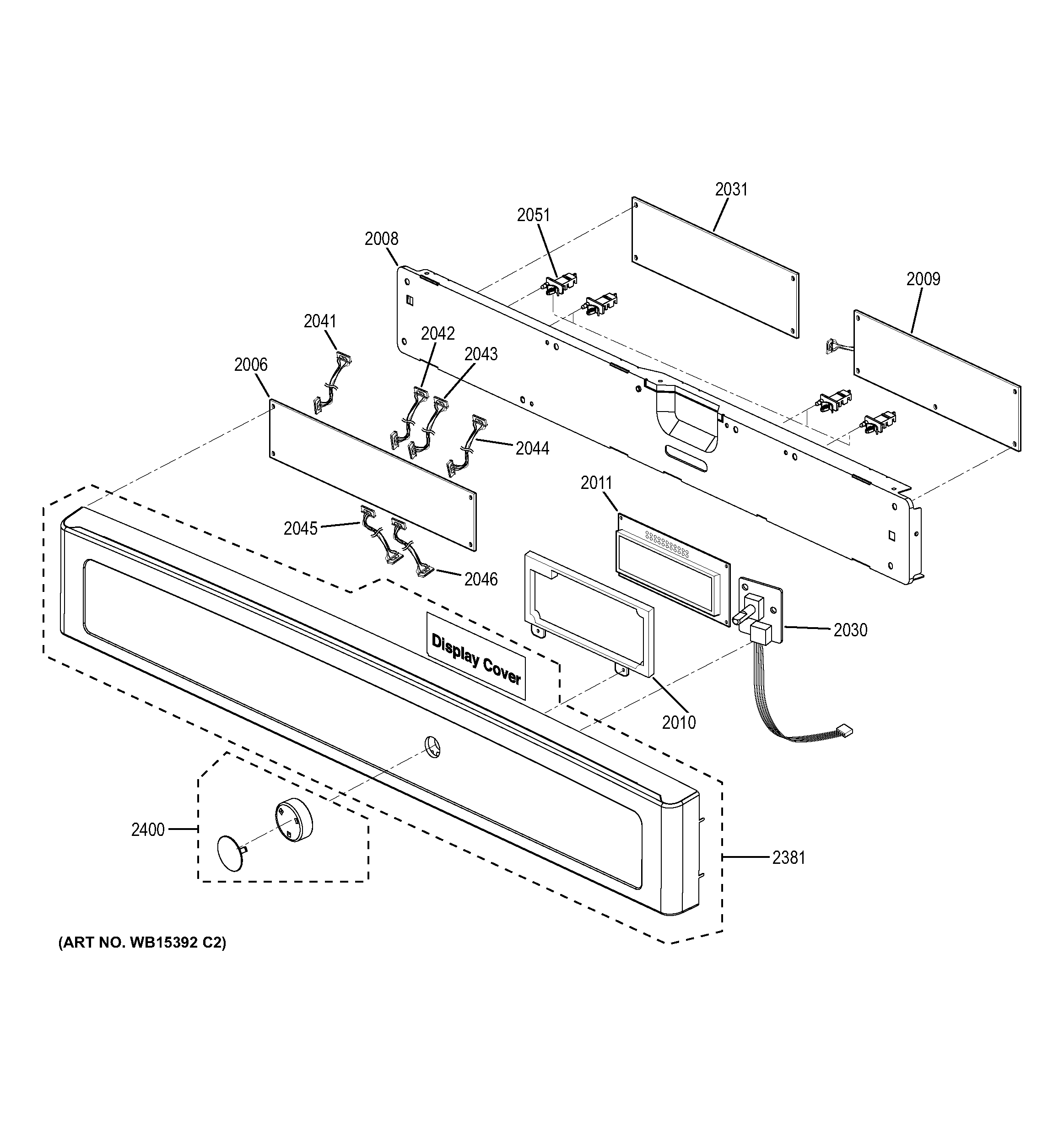

Model #CT9800SH2SS Official GE built-in oven with microwave

Here are the diagrams and repair parts for GE CT9800SH2SS built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 203 parts

Microwave Light Bulb#3045

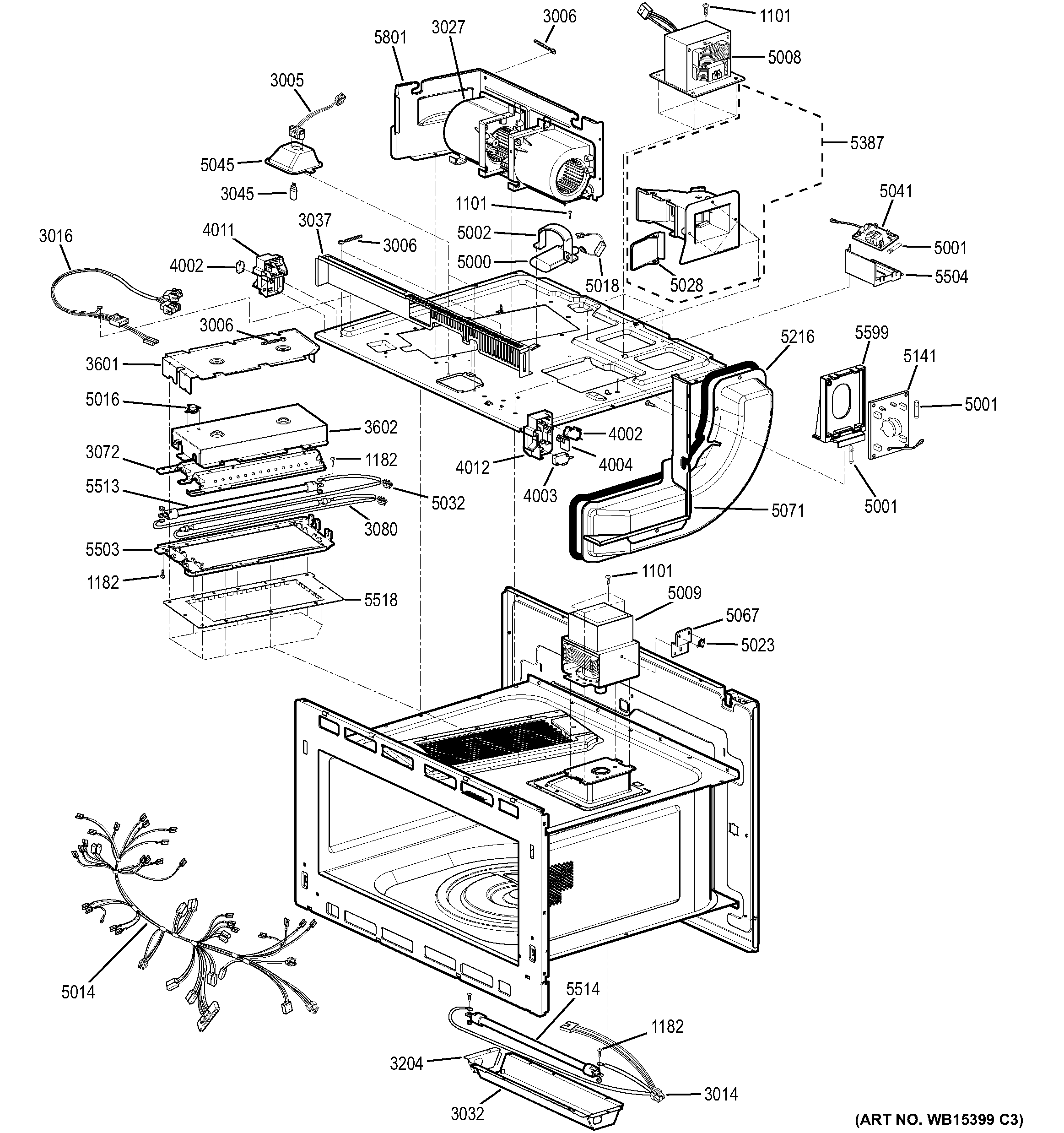

Insulator parts Diagram

Microwave light bulb

Part #WB08X10057
This item is not returnable
In Stock
$12.59 |
14% OFF
Phone Price: $14.59
Wall Oven Cooling Fan Assembly#32

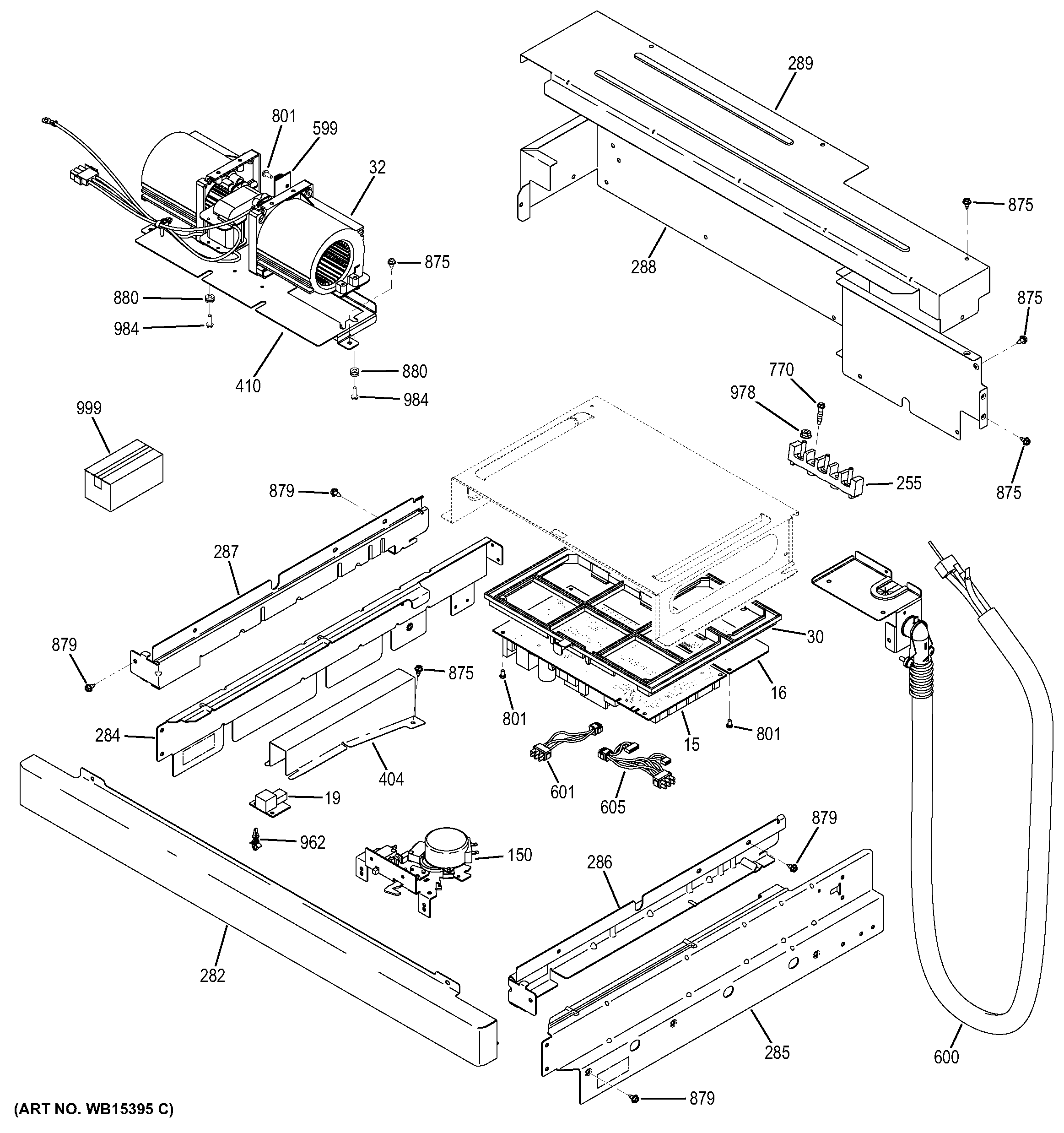

Center spacer Diagram

In Stock
$118.57 |
8% OFF
Phone Price: $128.57
Microwave Thermostat

See All Related Diagrams

Microwave thermostat

Part #WB20X10048
In Stock
$11.99 |
14% OFF
Phone Price: $13.99
Microwave Turntable Tray Support#3008

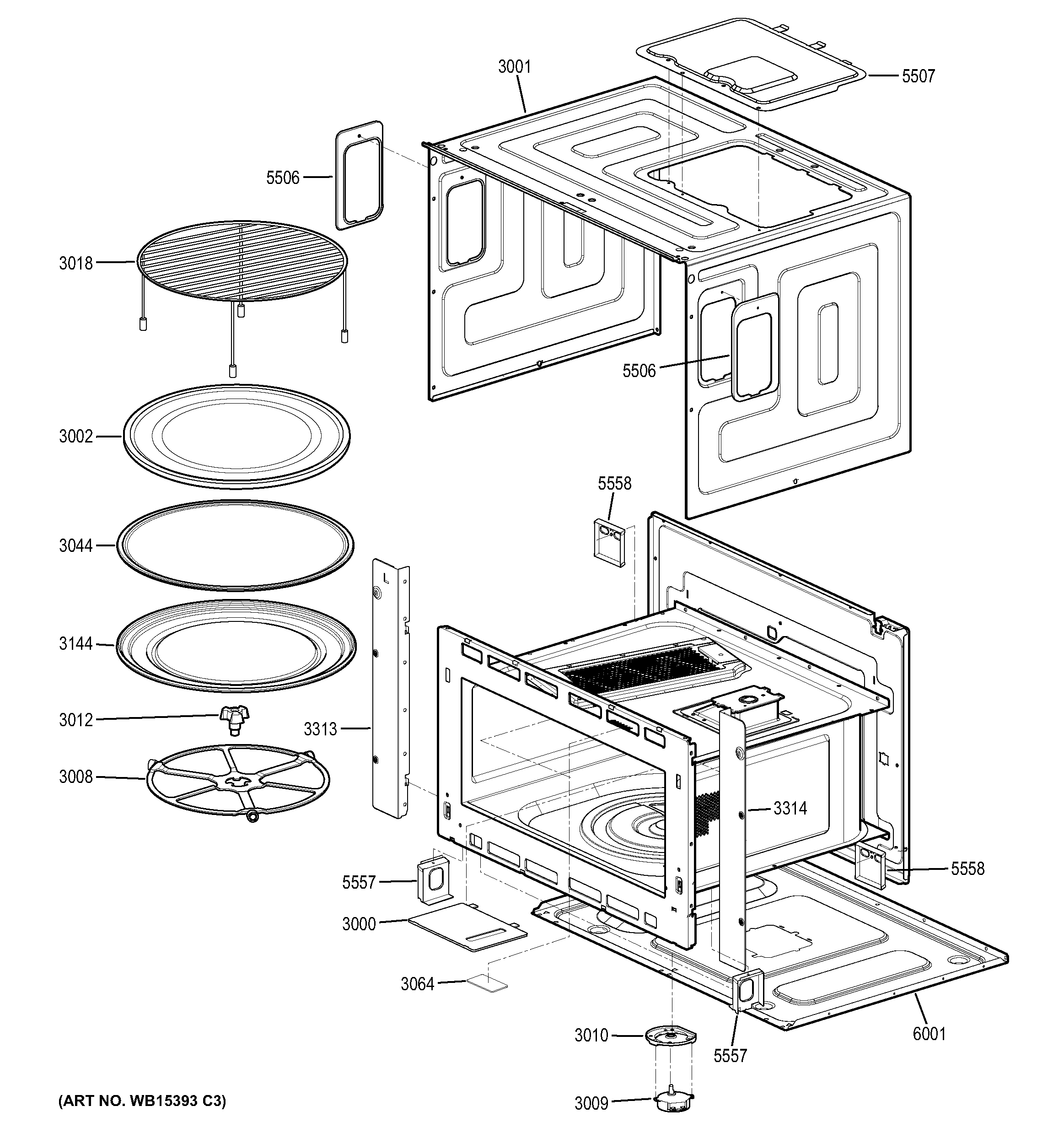

Oven cavity parts Diagram

Microwave turntable tray support

Part #WB06X10651
Replaced by #WB02X32600
?
Manufacturer substitution
This part replaces WB06X10651. Substitute parts can look different from the original.
In Stock
$87.59 |
5% OFF
Phone Price: $92.59
Range Screw#699

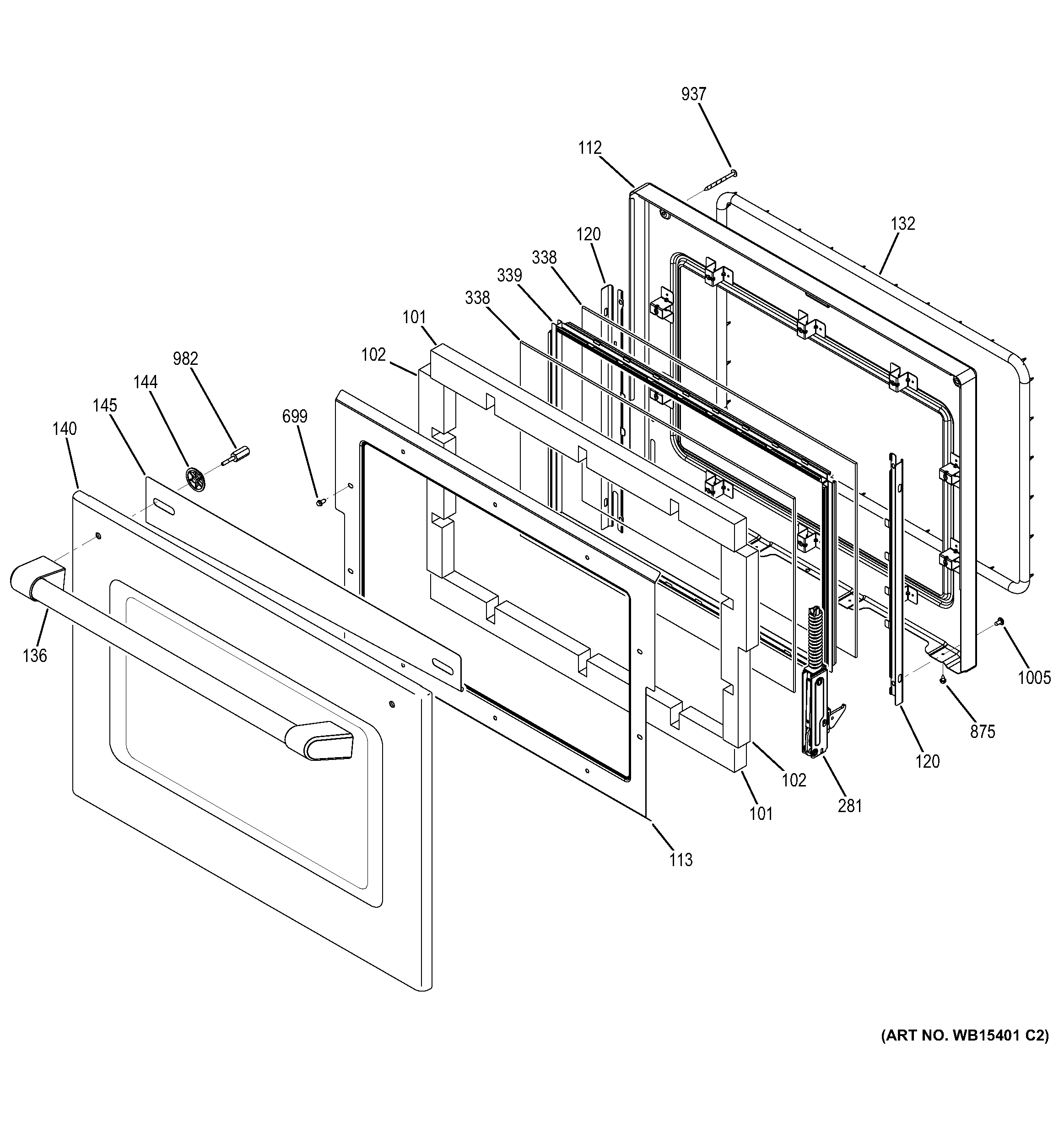

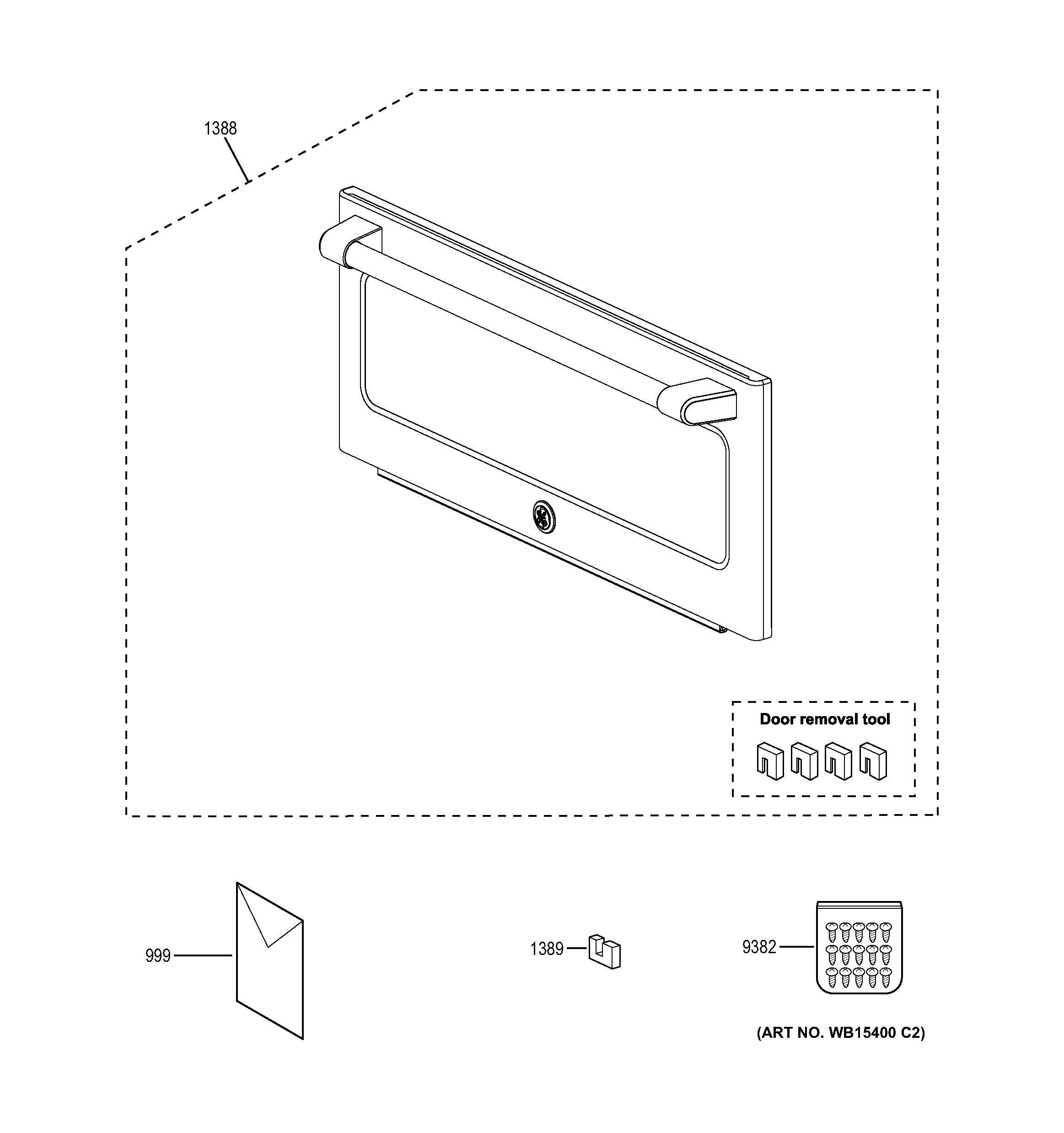

Door Diagram

Screw

Part #WB01K5150
Replaced by #WB1M1
?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.39 |
12% OFF
Phone Price: $8.39
Range High-Limit Thermostat#157

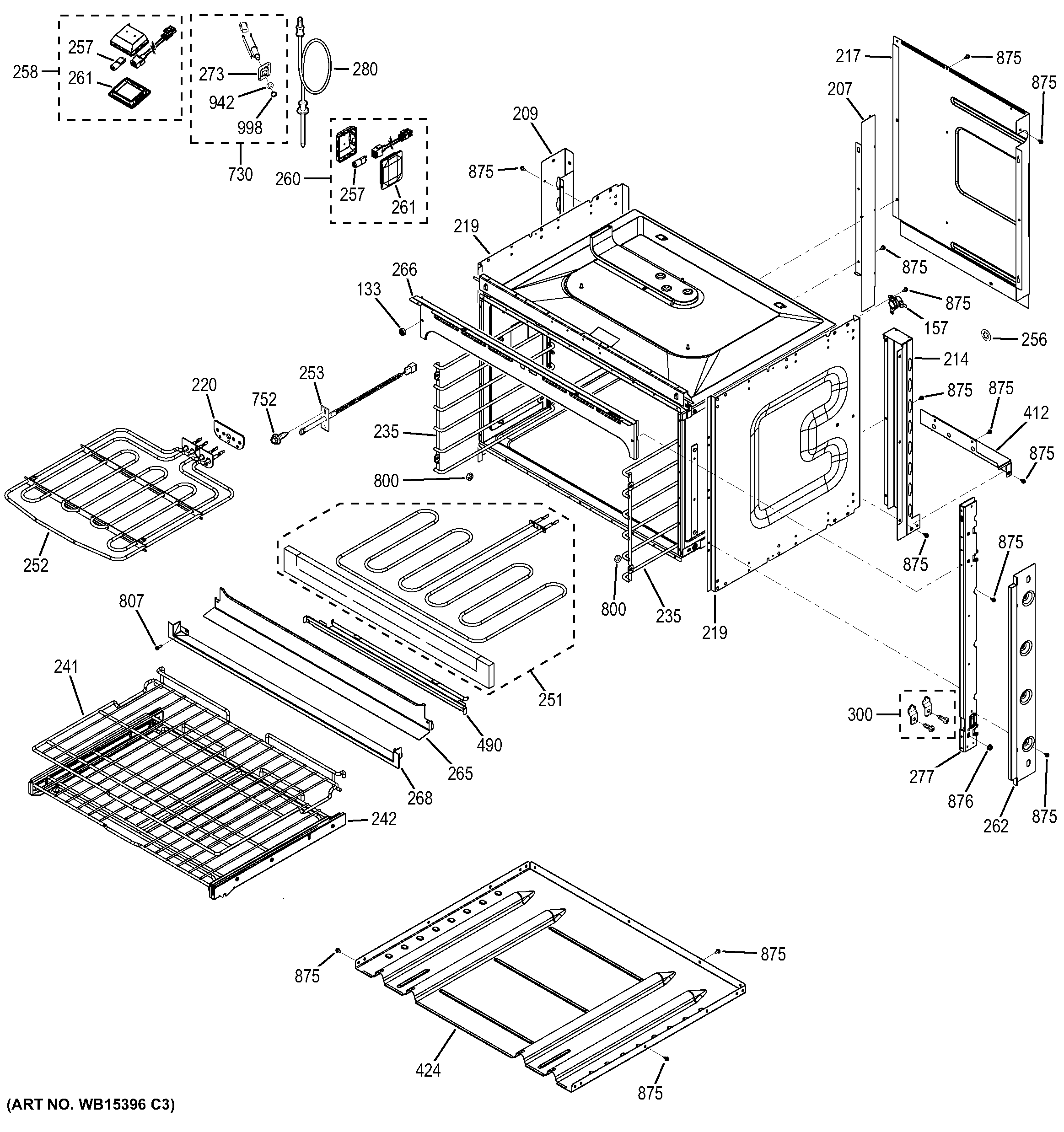

Body parts Diagram

In Stock
$148.77 |
10% OFF
Was: $165.30
Microwave Waveguide Cover#3000

Oven cavity parts Diagram

In Stock
$13.58 |
13% OFF
Phone Price: $15.58
Oven Rack#3018

Oven cavity parts Diagram

Oven rack

Part #WB49X10213
In Stock
$57.59 |
8% OFF
Phone Price: $62.59
Wall Oven Trim, Lower (Stainless)#268

Body parts Diagram

In Stock
$54.69 |
8% OFF
Phone Price: $59.69

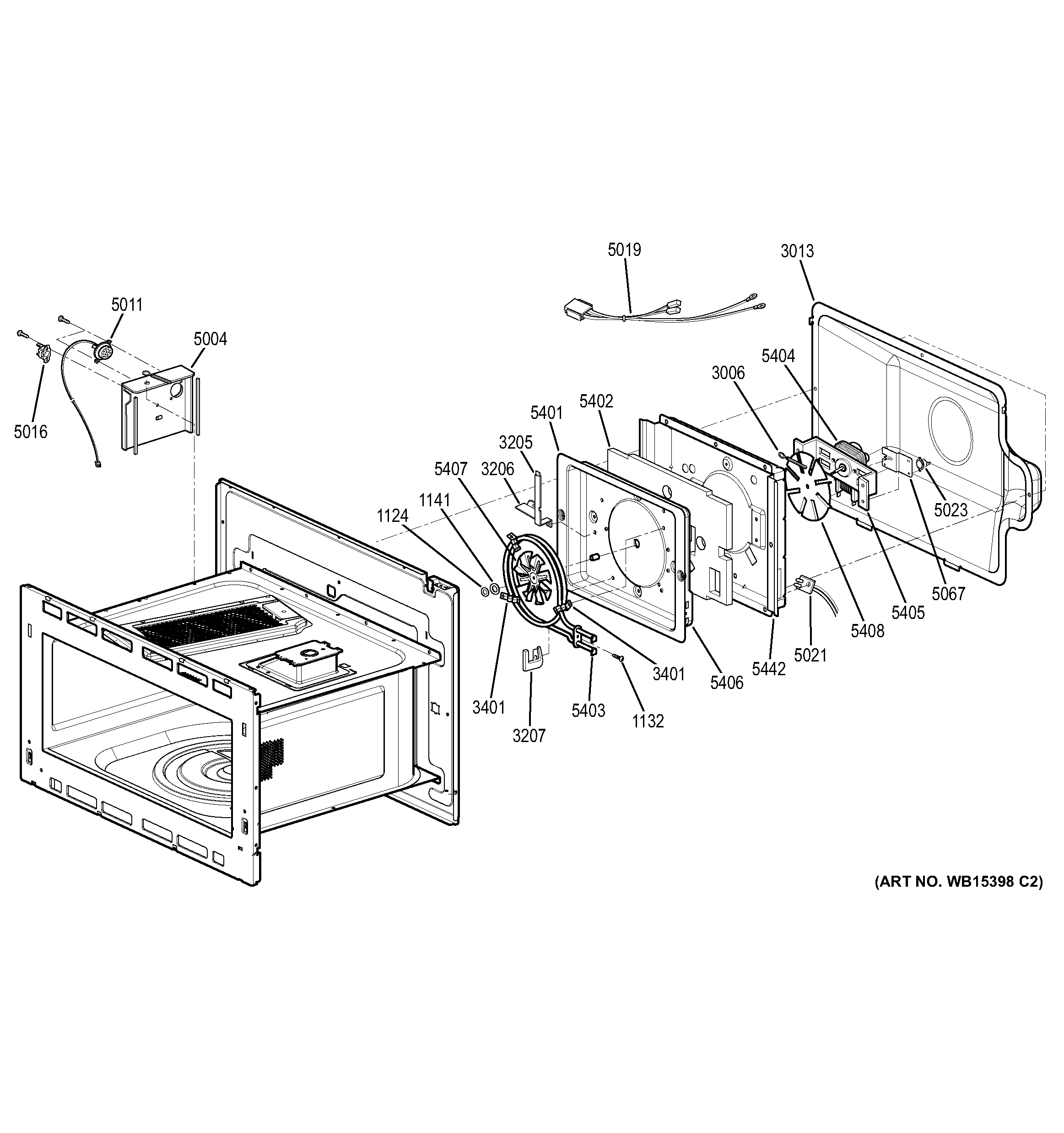

Microwave High-Voltage Capacitor#5000

Insulator parts Diagram

Drive capacitor

Part #WB27X10701
Replaced by #WB27X11033
?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
In Stock
$40.89 |
11% OFF
Phone Price: $45.89
