Model # DW80F600UTW/AA-01 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80F600UTW-AA-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

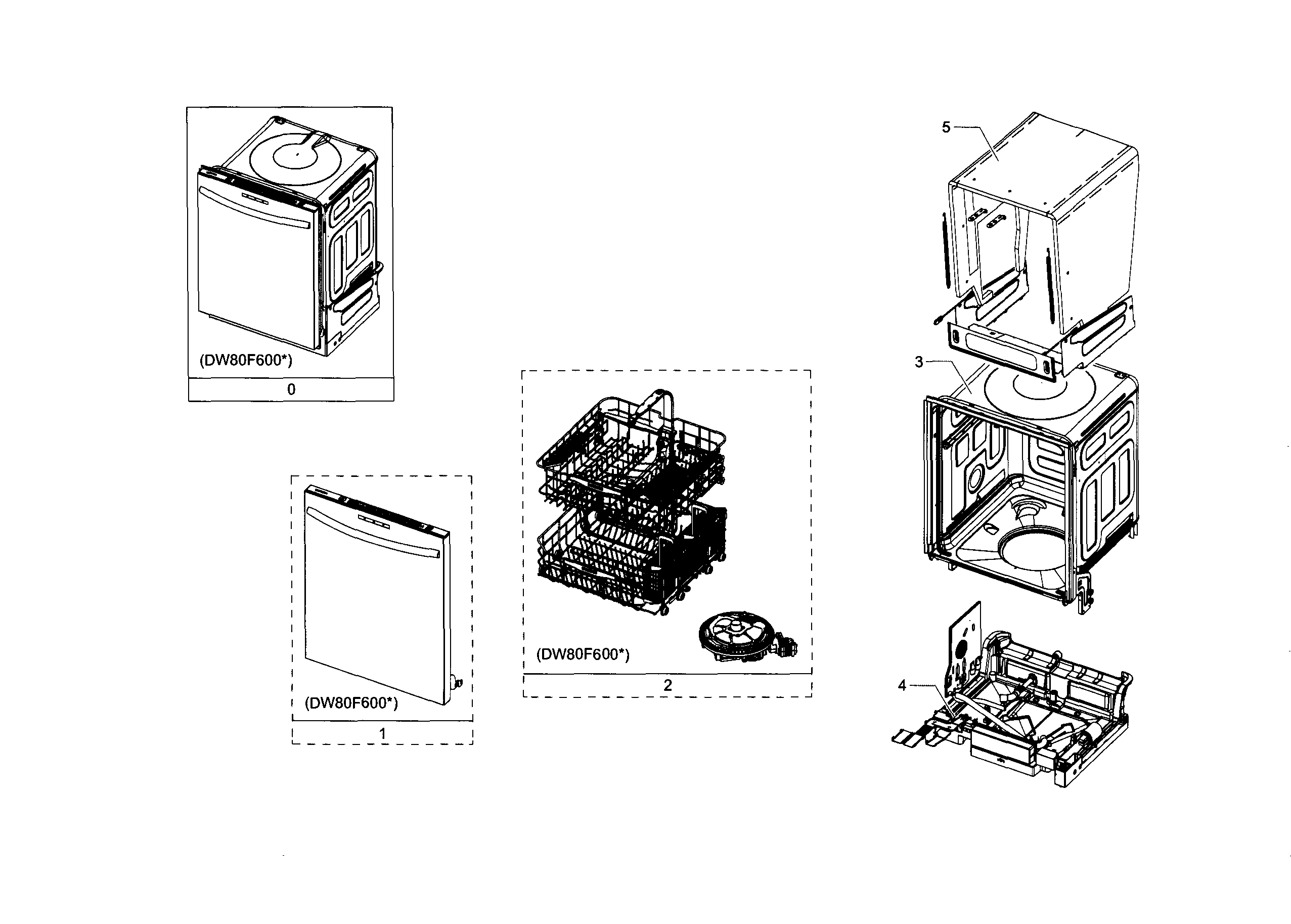

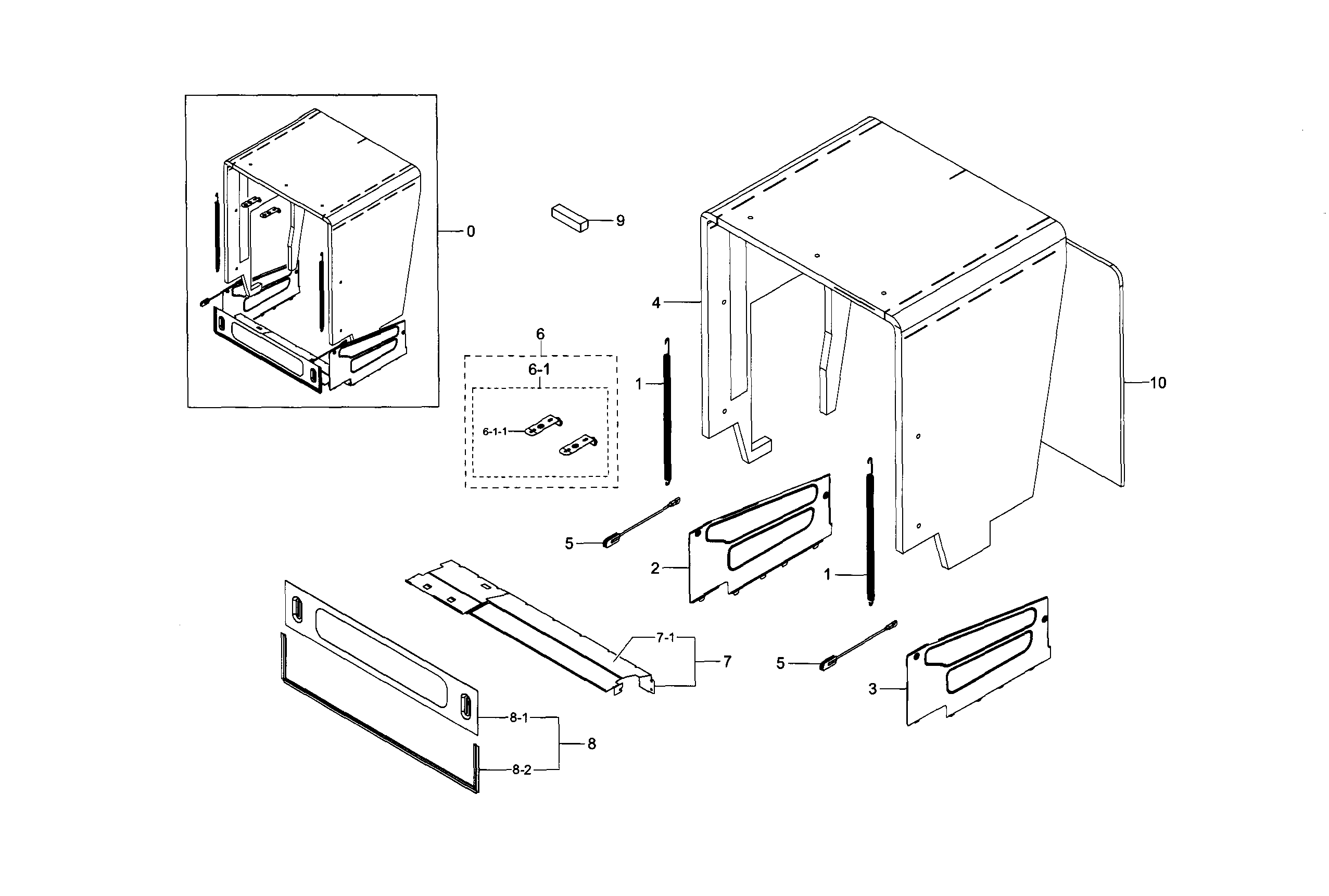

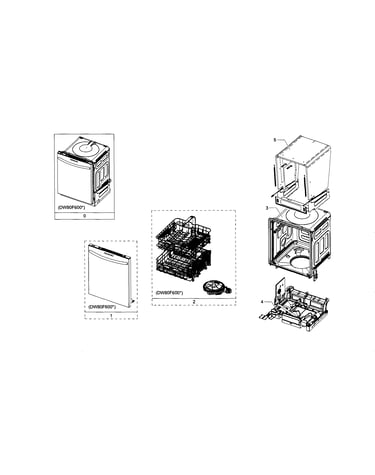

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Dishwasher Drain Pump DD81-01527A
#1-1

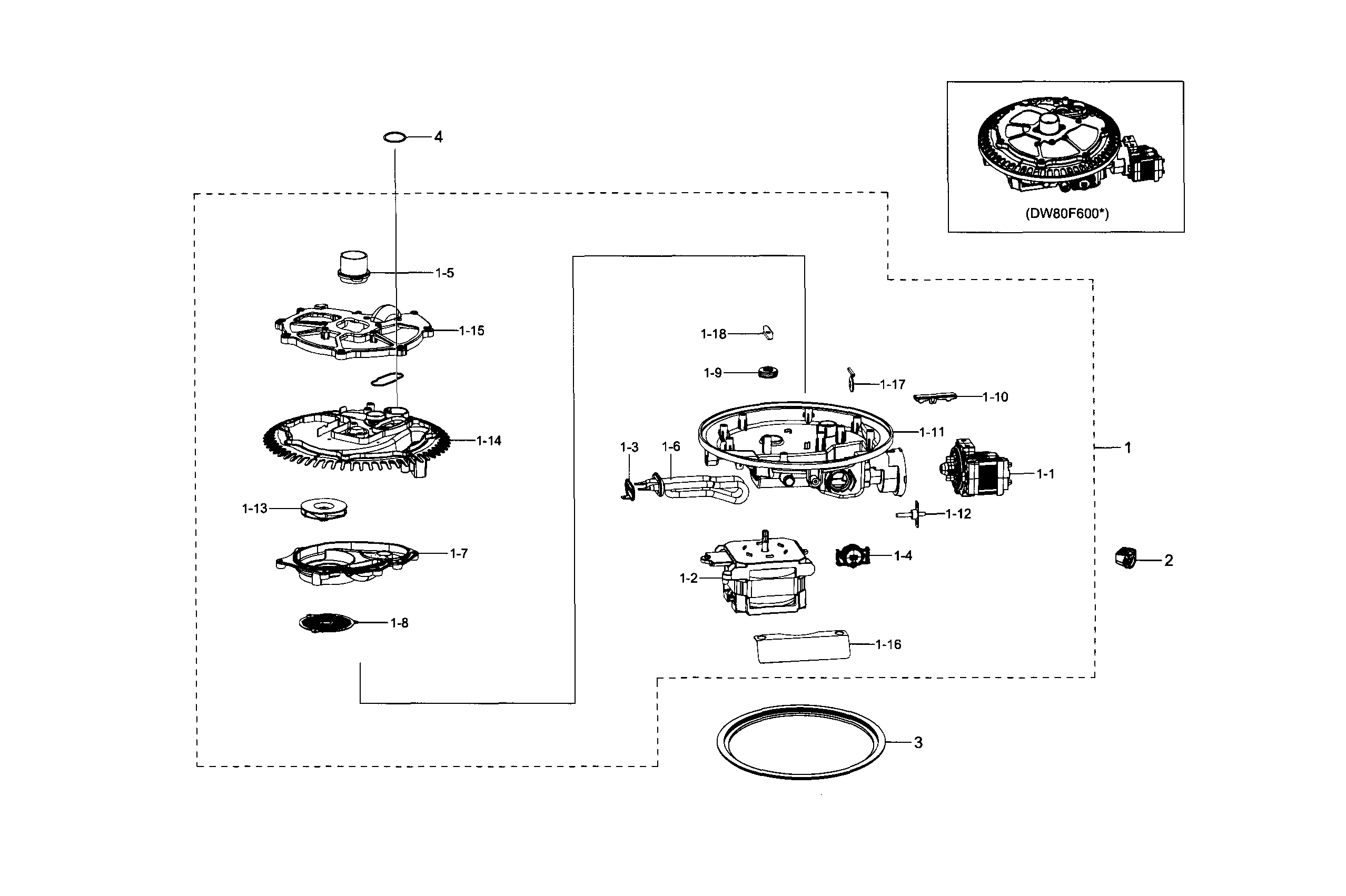

Sump diagram

Dishwasher drain pump

Part #DD81-01527A

BEST SELLER
$110.30
In Stock
Dishwasher Case Break And Overflow Sensor DD82-01111A
#17

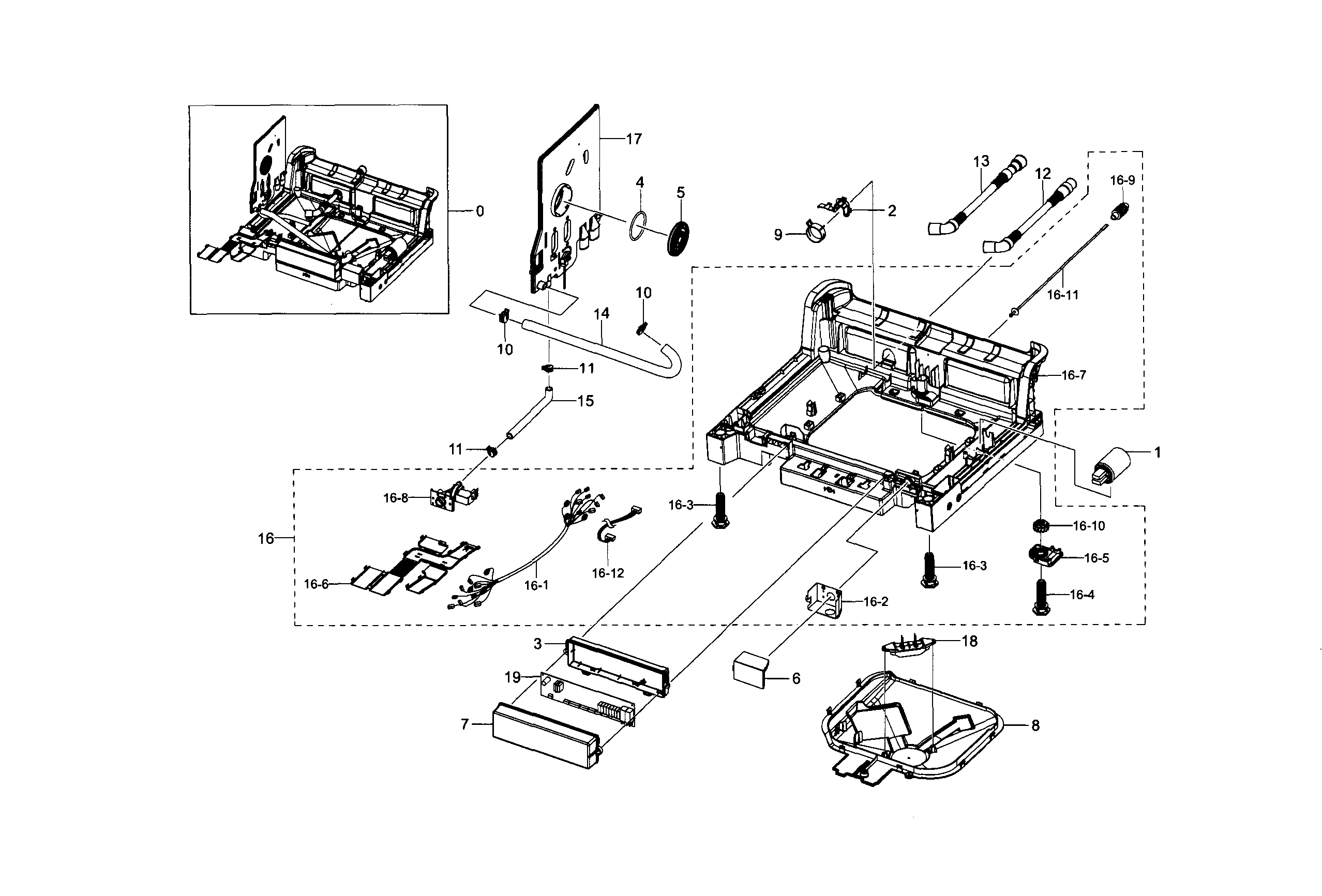

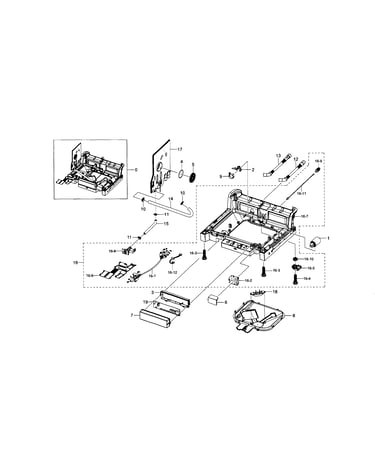

Base diagram

Dishwasher case break and overflow sensor

Part #DD82-01111A

BEST SELLER
$114.03 |
8% OFF Phone Price : $124.03
In Stock
Dishwasher Vent Seal DD63-00072A
#4

Base diagram

Dishwasher vent seal

Part #DD63-00072A

BEST SELLER
This item is not returnable
$3.63 |
22% OFF Phone Price : $4.63
In Stock
Dishwasher Door Switch DD81-01629A
#1

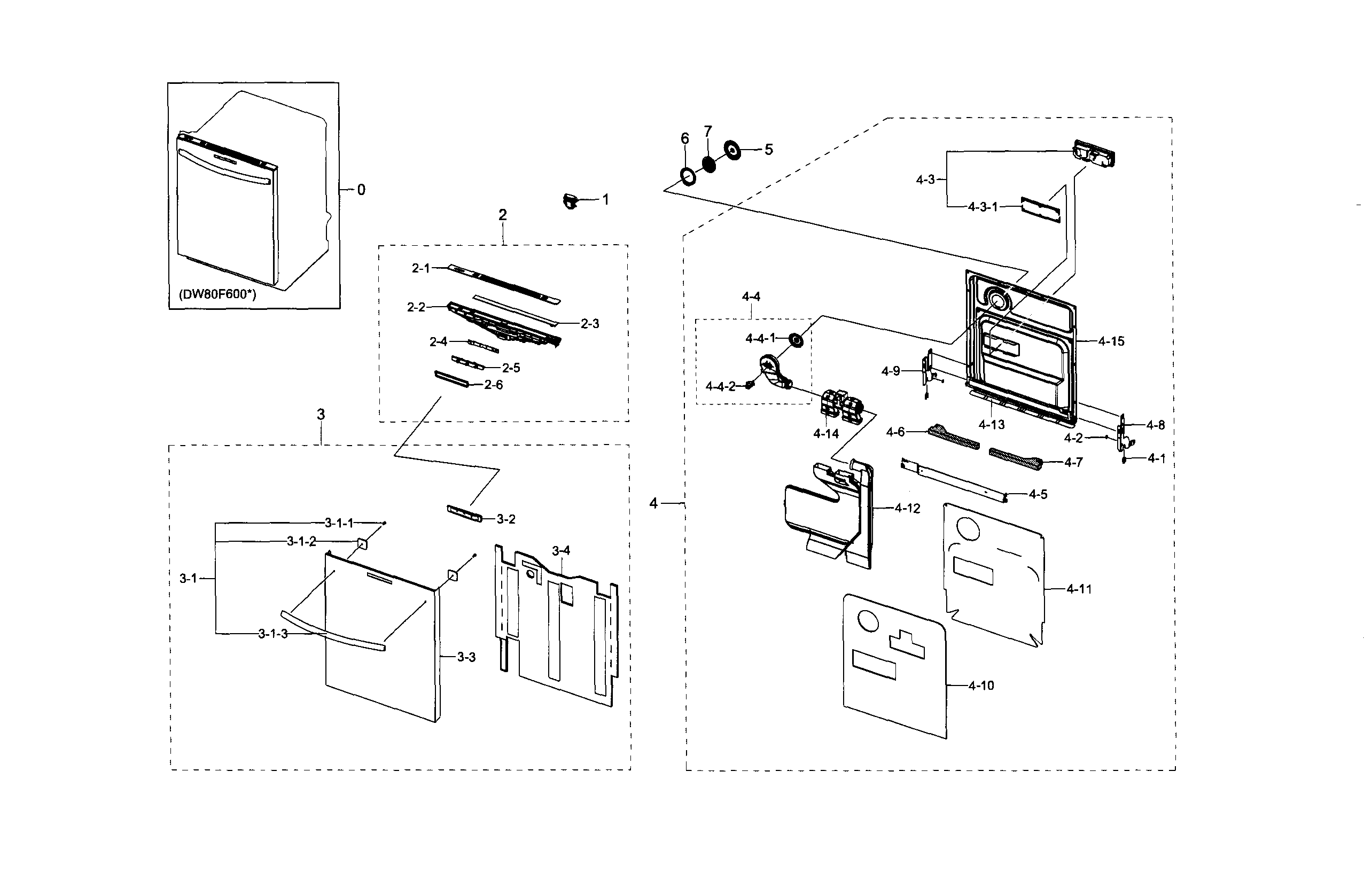

Door diagram

Dishwasher door switch

Part #DD81-01629A

Replaced by #DD81-02132A

?
Manufacturer substitution
This part replaces DD81-01629A. Substitute parts can look different from the original.
BEST SELLER
$77.18 |
6% OFF Phone Price : $82.18
In Stock
Dishwasher Water Feed Tube (replaces Dd67-00048a) DD82-01100A
#3

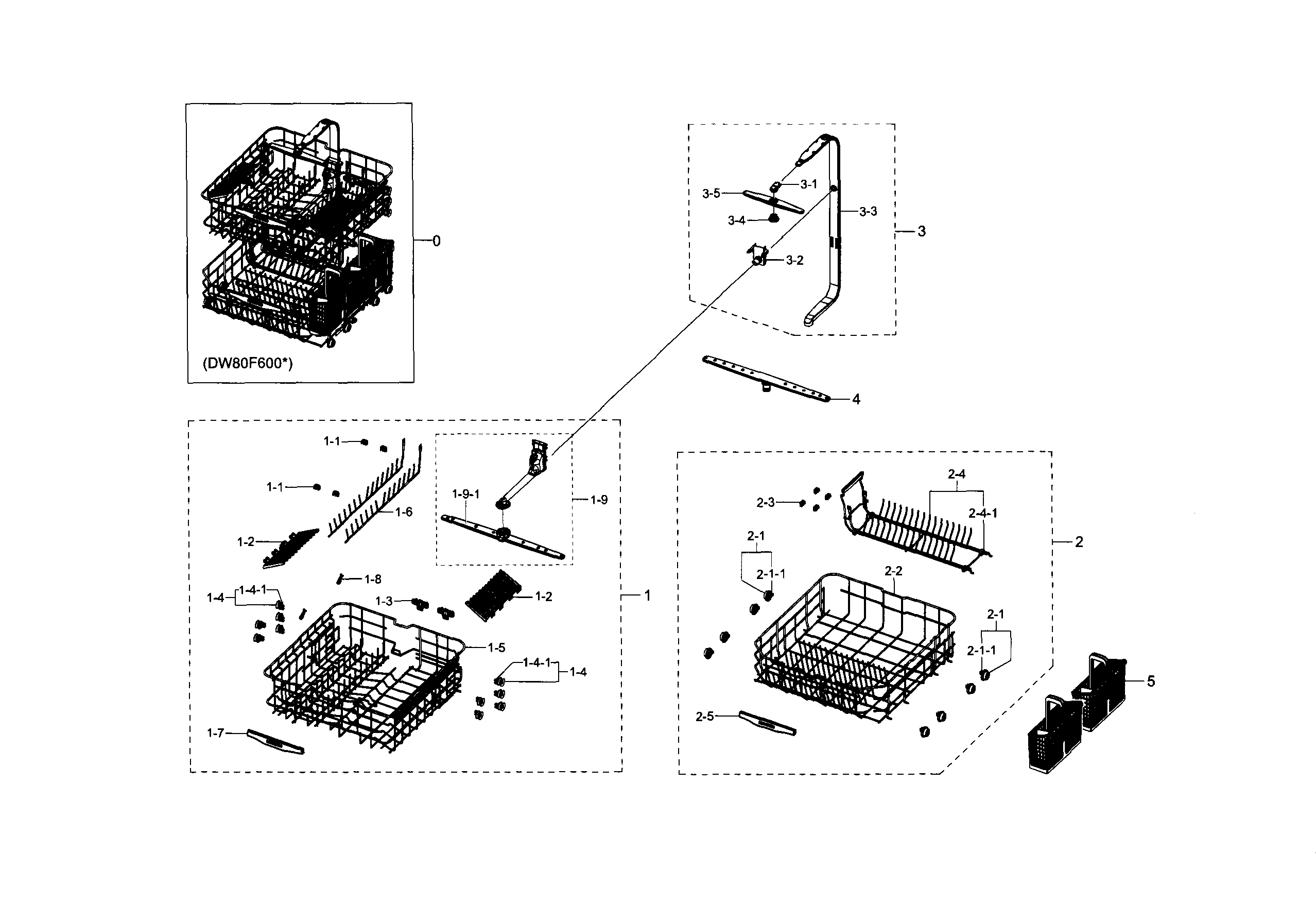

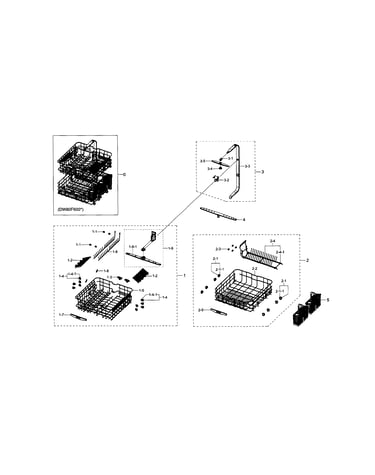

Rack assy diagram

Dishwasher water feed tube (replaces dd67-00048a)

Part #DD82-01100A

BEST SELLER
$118.43 |
8% OFF Phone Price : $128.43
In Stock
Dishwasher Tub Gasket DD62-00043A
#7

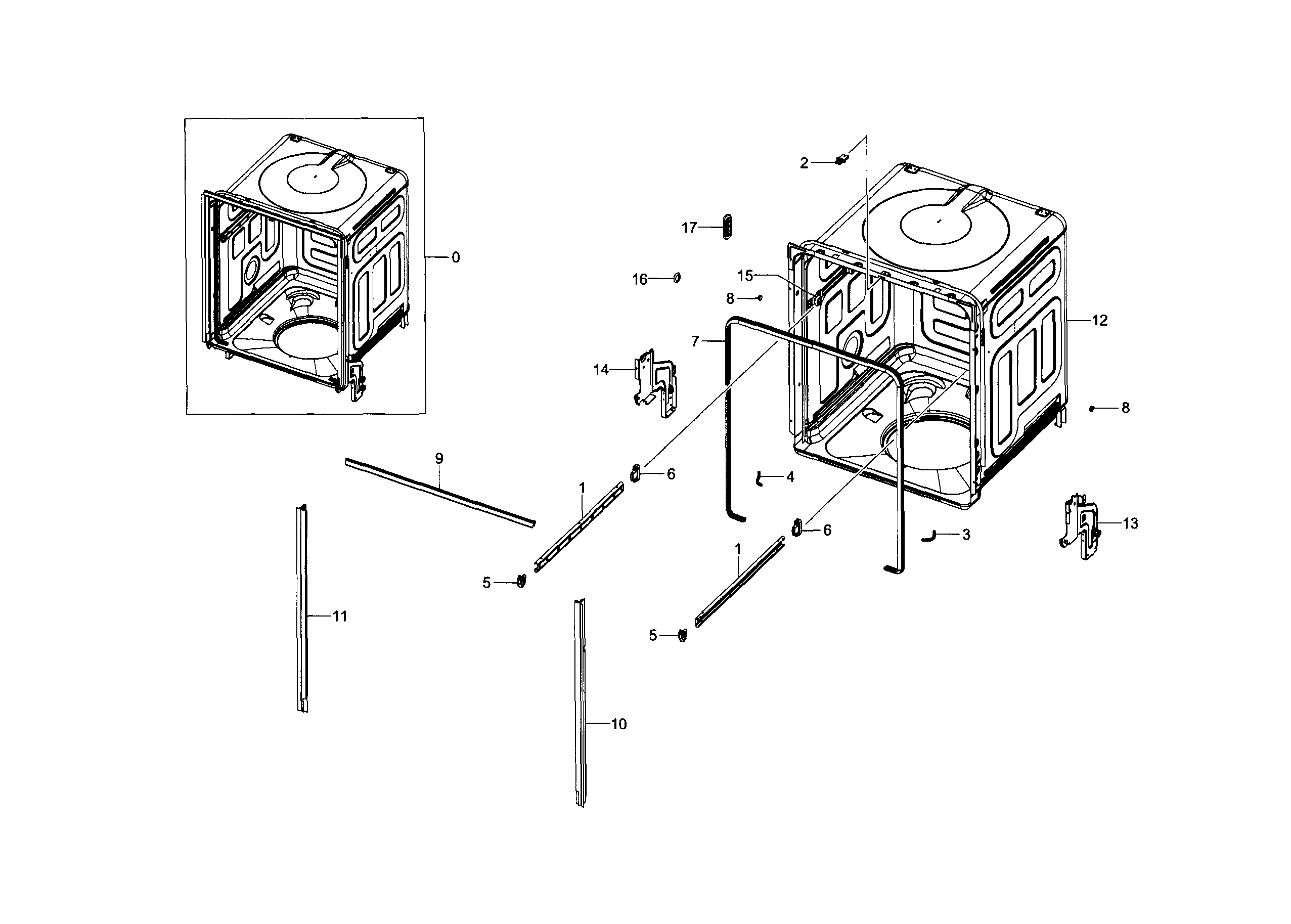

Tub diagram

Dishwasher tub gasket

Part #DD62-00043A

BEST SELLER
$87.09 |
5% OFF Phone Price : $92.09
In Stock
Dishwasher Motor Shaft Seal DD62-00053A
#1-9

Sump diagram

Dishwasher motor shaft seal

Part #DD62-00053A

BEST SELLER
This item is not returnable
$31.34 |
14% OFF Phone Price : $36.34
In Stock
Dishwasher Circulation Pump Motor DD81-01640A
#1-2

Sump diagram

Dishwasher circulation pump motor

Part #DD81-01640A

BEST SELLER
$188.19 |
5% OFF Phone Price : $198.19
In Stock
Dishwasher Water Manifold Nozzle Duct Seal DD62-00068A
#4

Sump diagram

Dishwasher water manifold nozzle duct seal

Part #DD62-00068A

BEST SELLER
This item is not returnable
$10.69 |
16% OFF Phone Price : $12.69
In Stock
Dishwasher Middle Spray Arm Manifold DD82-01064A
#1-9

Rack assy diagram

Dishwasher middle spray arm manifold

Part #DD82-01064A

BEST SELLER
$105.84 |
9% OFF Phone Price : $115.84
In Stock
