Electric Cooktop

Model #JP626BJ1BB Official GE electric cooktop

Here are the diagrams and repair parts for GE JP626BJ1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 14 parts

Range Drip Pan (replaces WB32X10014)#2

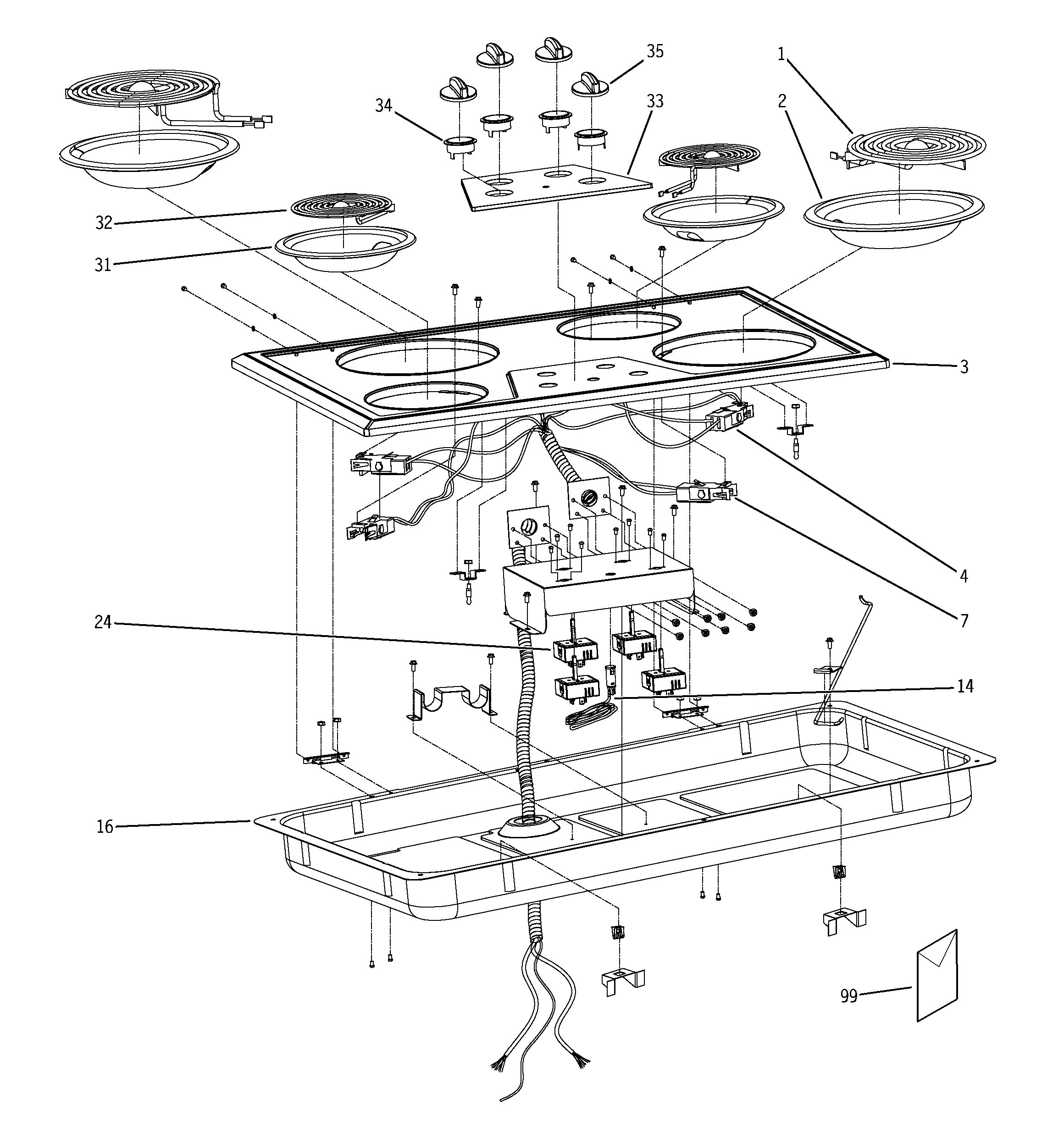

Control panel & cooktop Diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011
BEST SELLER
In Stock
$15.41 |
11% OFF
Phone Price: $17.41
Range Drip Pan#31

Control panel & cooktop Diagram

Range drip pan

Part #WB31T10010
BEST SELLER
In Stock
$14.08 |
12% OFF
Phone Price: $16.08
Range Coil Surface Element, 8-in#1

Control panel & cooktop Diagram

8" surf elem

Part #WB30M0002
Replaced by #WB30M2
?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
In Stock
$45.35 |
10% OFF
Was: $50.39
Cooktop Indicator Light#14

Control panel & cooktop Diagram

Indicator light

Part #WB25K5018
Replaced by #WB25X10024
?
Manufacturer substitution
This part replaces WB25K5018. Substitute parts can look different from the original.
In Stock
$25.99 |
16% OFF
Phone Price: $30.99
Cooktop Burner Knob#35

Control panel & cooktop Diagram

Cooktop burner knob

Part #WB03T10192
In Stock
$13.99 |
13% OFF
Phone Price: $15.99
Range Surface Element Control Switch#24

Control panel & cooktop Diagram

Switch

Part #WB24T10057
Replaced by #WB24T10119
?
Manufacturer substitution
This part replaces WB24T10057. Substitute parts can look different from the original.
In Stock
$73.29 |
6% OFF
Phone Price: $78.29
Range Coil Surface Element, 6-in#32

Control panel & cooktop Diagram

6" surf elem

Part #WB30M0001
Replaced by #WB30M1
?
Manufacturer substitution
This part replaces WB30M0001. Substitute parts can look different from the original.
In Stock
$37.29 |
12% OFF
Phone Price: $42.29
Receptacle#7

Control panel & cooktop Diagram

Receptacle

Part #WB08K10006

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Glass Control Panel Seal#34

Control panel & cooktop Diagram

Cooktop glass control panel seal

Part #WB32K5027

The manufacturer no longer makes this part, and there's no substitute part

30" Glass Co#33

Control panel & cooktop Diagram

30" glass co

Part #WB57T10242

The manufacturer no longer makes this part, and there's no substitute part
