Model #1068760781 Official Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 1068760781 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 153 parts

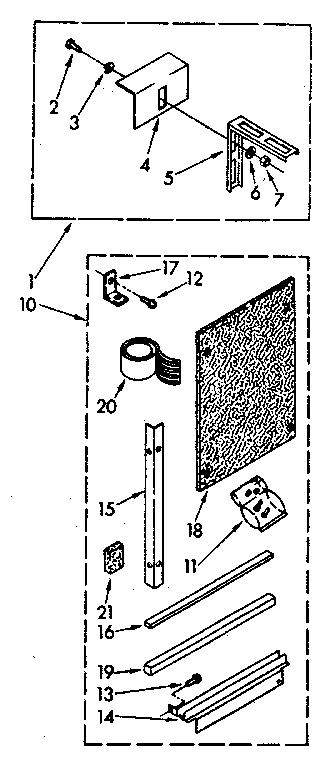

Appliance Silicone Sealant#10

Optional parts (not included) Diagram

Cement

Part #279368
Replaced by #WP279368
?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
In Stock
$41.59 |
11% OFF
Phone Price: $46.59
Appliance Screw

See All Related Diagrams

Screw, 8 x 1

Part #488480
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Refrigerator Service Valve, 3/4-in#6G

Optional parts (not included) Diagram

Valve kit

Part #978030
Replaced by #978030
?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
In Stock
$40.49 |
11% OFF
Phone Price: $45.49
Cover#14A

Optional parts (not included) Diagram

Cover

Part #484066
In Stock
$80.00
Room Air Conditioner Outdoor Cover#14D

Optional parts (not included) Diagram

In Stock
$54.49 |
8% OFF
Phone Price: $59.49
Screw#26

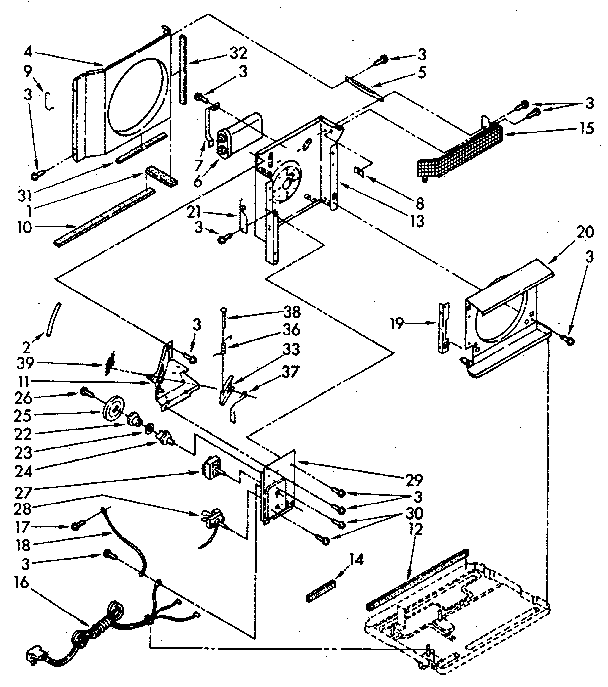

Air flow and control Diagram

Screw

Part #489130

The manufacturer no longer makes this part, and there's no substitute part

Wire#18

Air flow and control Diagram

Ground wire

Part #856094
Replaced by #857078
?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
In Stock
$10.49 |
16% OFF
Phone Price: $12.49
Cover

See All Related Diagrams

Cover

Part #484067

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Permagum Sealer#13

Optional parts (not included) Diagram

Sealer

Part #99344
Replaced by #4318168
?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
In Stock
$29.89
Washer#23

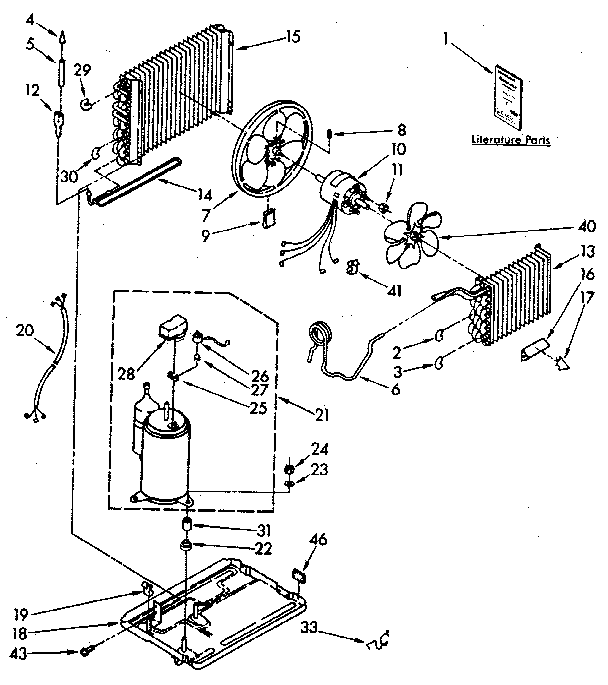

Unit Diagram

Washer

Part #489108
Replaced by #90315
?
Manufacturer substitution
This part replaces 489108. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.40
