Frigidaire
Washer

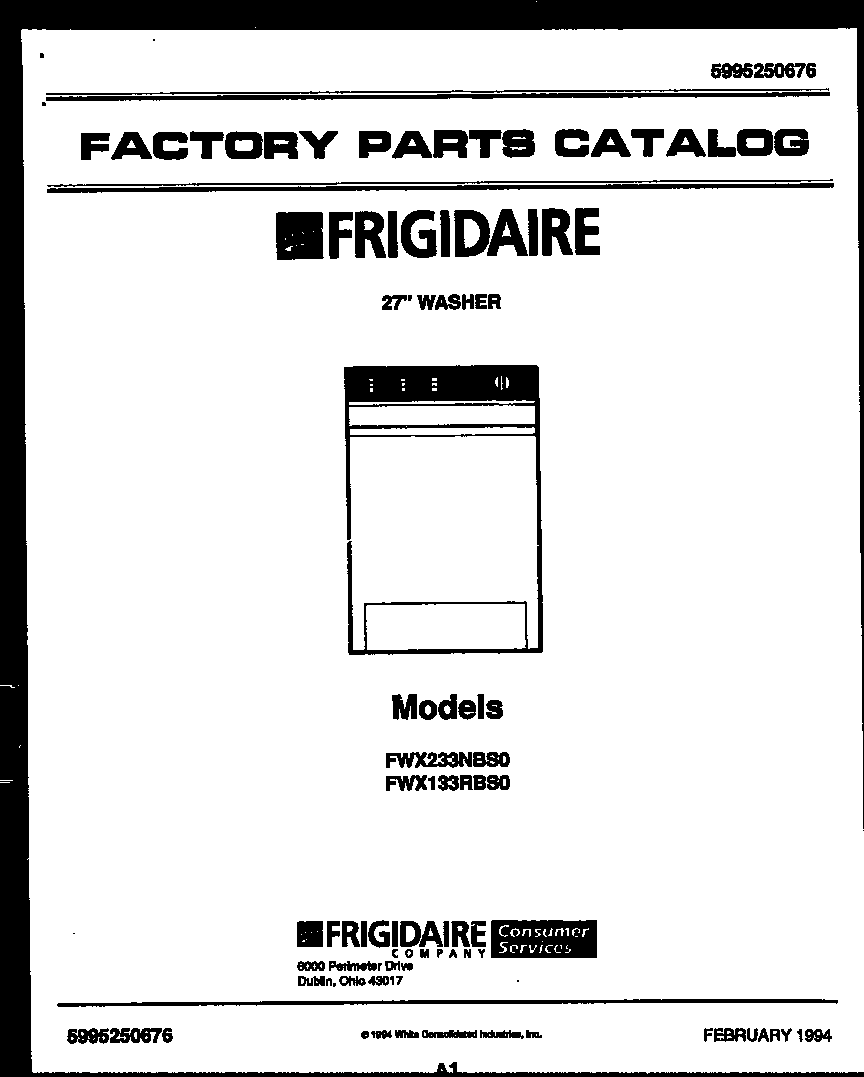

Model #FWX233NBS0 Official Frigidaire 27" washer - 5995250676

Here are the diagrams and repair parts for Frigidaire FWX233NBS0 27" washer - 5995250676, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 147 parts

    Washer Tub Seal Assembly#26

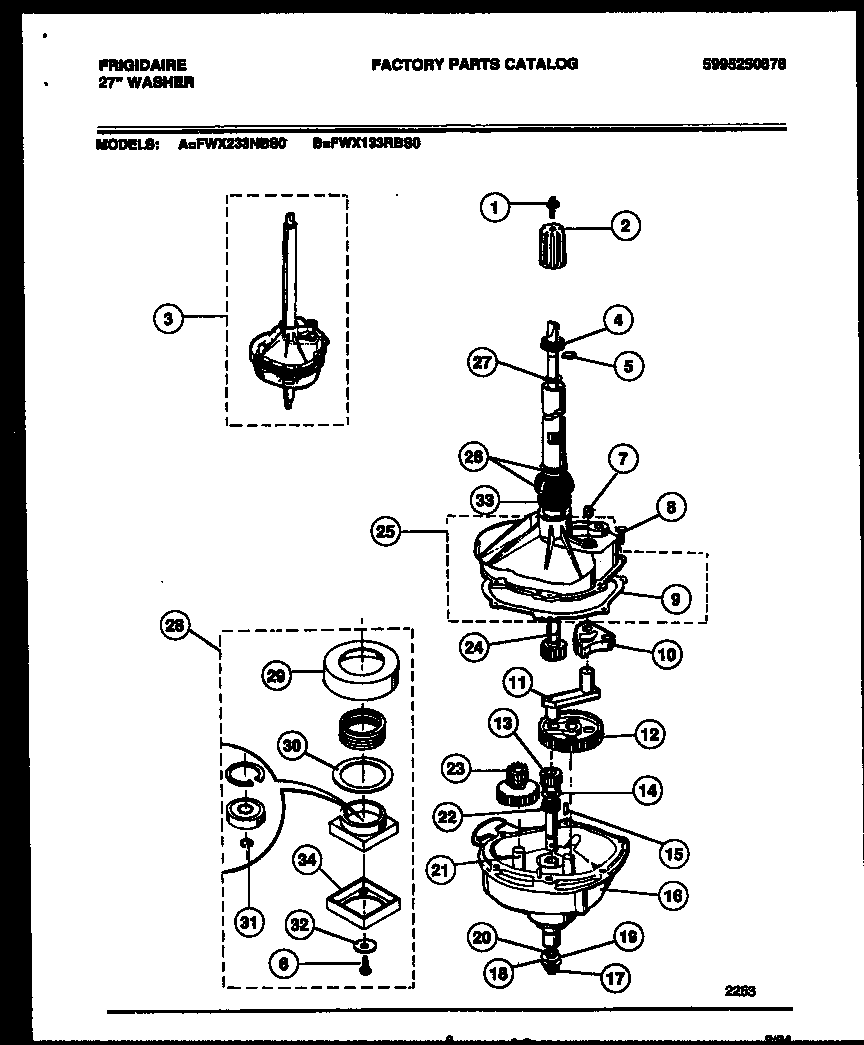

    Transmission parts Diagram

    Washer tub seal assembly

    Part #5303279394
    BEST SELLER
    In Stock
    $55.13 |
    8% OFF
    Phone Price: $60.13
    Laundry Appliance Screw, #8-18 x 31/100-in#6

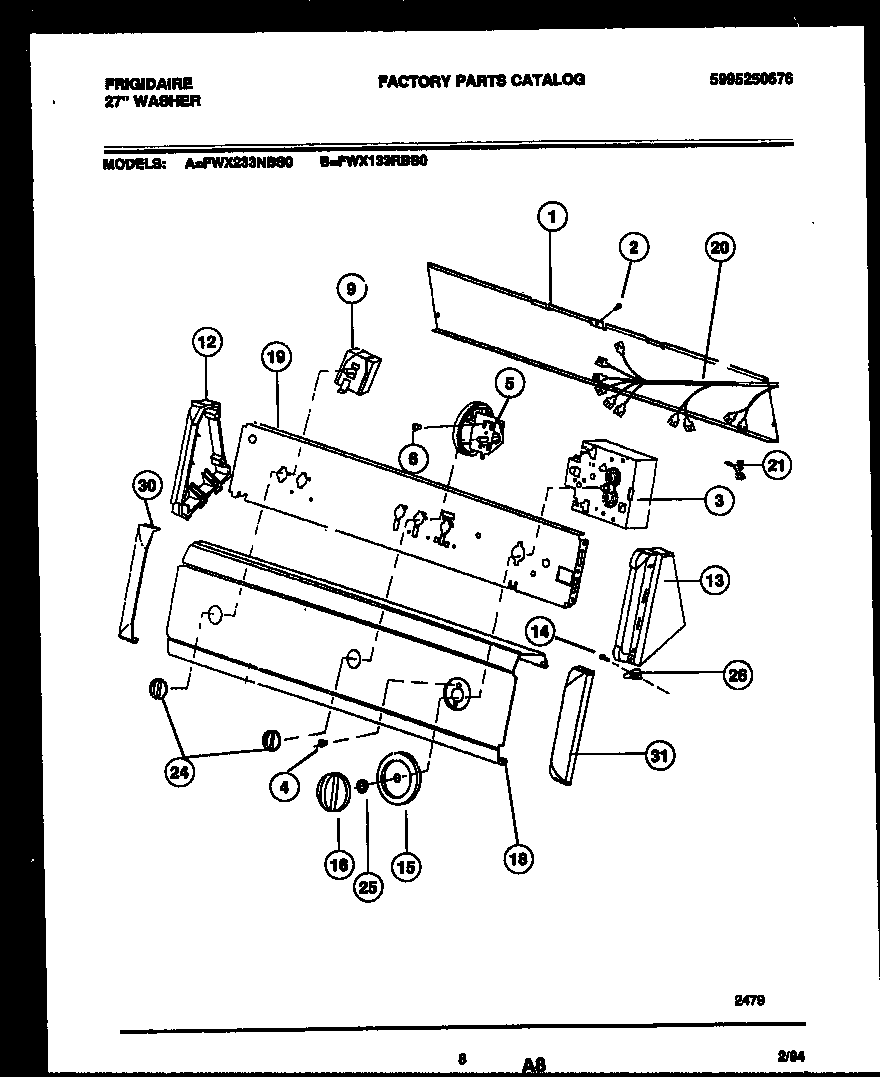

    Console and control parts Diagram

    In Stock
    $9.78 |
    30% OFF
    MSRP: $14.00
    Washer Spin Bearing#19

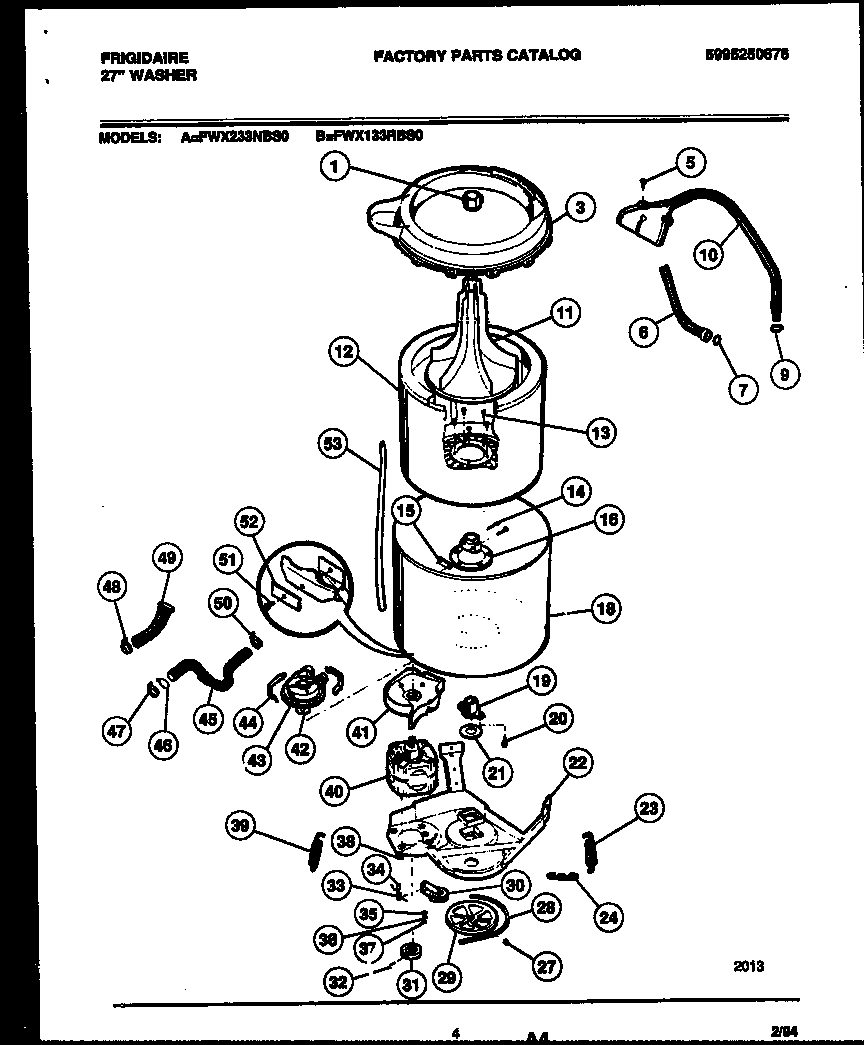

    Tub detail Diagram

    Washer spin bearing

    Part #3204405
    In Stock
    $64.63 |
    7% OFF
    Phone Price: $69.63
    Washer Agitator Drive Hub#2

    Transmission parts Diagram

    Drive hub

    Part #3204462
    Replaced by #134418700
    ?
    Manufacturer substitution
    This part replaces 3204462. Substitute parts can look different from the original.
    In Stock
    $62.39 |
    7% OFF
    Phone Price: $67.39
    Washer Agitator#11

    Tub detail Diagram

    Washer agitator

    Part #3204401
    In Stock
    $103.99 |
    9% OFF
    Phone Price: $113.99
    Dryer Top Panel Clip#15

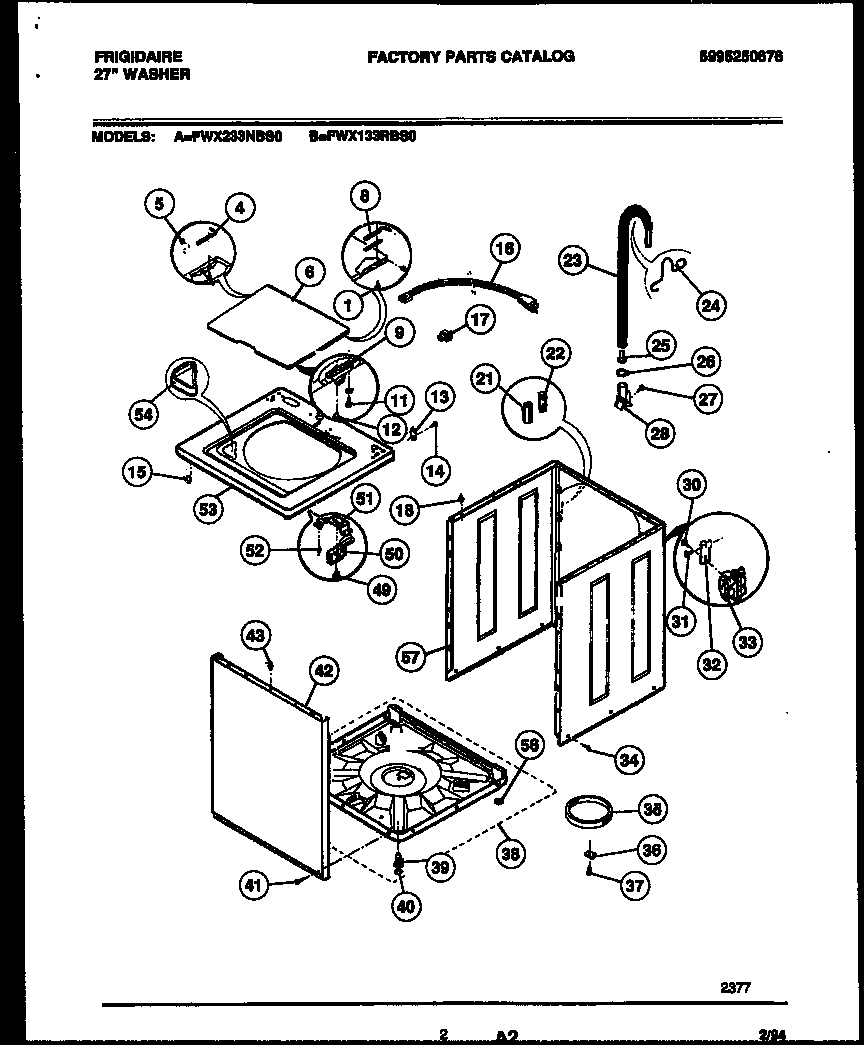

    Cabinet parts Diagram

    In Stock
    $30.09
    Washer Shipping Block#36

    Cabinet parts Diagram

    Washer shipping block

    Part #3204380

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Water Temperature Switch#9

    Console and control parts Diagram

    Switch

    Part #131047000
    Replaced by #134407700
    ?
    Manufacturer substitution
    This part replaces 131047000. Substitute parts can look different from the original.
    In Stock
    $24.29 |
    17% OFF
    Phone Price: $29.29
    Laundry Center Washer Short Suspension Spring#23

    Tub detail Diagram

    Spring

    Part #5303208858
    Replaced by #134886600
    ?
    Manufacturer substitution
    This part replaces 5303208858. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $31.87
    Laundry Center Washer Lid Strike#9

    Cabinet parts Diagram

    Strike lid

    Part #3204367
    Replaced by #131390000
    ?
    Manufacturer substitution
    This part replaces 3204367. Substitute parts can look different from the original.
    In Stock
    $54.89 |
    8% OFF
    Phone Price: $59.89

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
