Craftsman
Wet/Dry Vacuum

Model #113177430 Official Craftsman 6-gallon wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113177430 6-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 21 parts

Wet/Dry Vacuum Filter#11

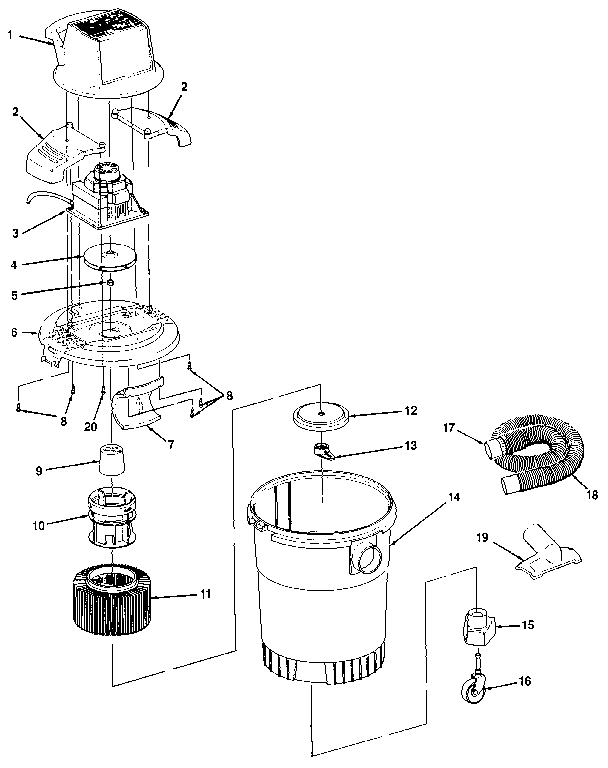

Unit Diagram

Wet/dry vacuum filter

Part #9-17810

The manufacturer no longer makes this part, and there's no substitute part

Nozzle#19

Unit Diagram

Nozzle

Part #9-16922

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Screw#20

Unit Diagram

Shop vacuum screw

Part #323723

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Nut#13

Unit Diagram

Shop vacuum filter nut

Part #73316

The manufacturer no longer makes this part, and there's no substitute part

Storag Castr#15

Unit Diagram

Storag castr

Part #9-16931

The manufacturer no longer makes this part, and there's no substitute part

Float#9

Unit Diagram

Float

Part #73349

The manufacturer no longer makes this part, and there's no substitute part

Adapter (Black)#17

Unit Diagram

Adapter (black)

Part #73324

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut#5

Unit Diagram

Hex nut

Part #73352

The manufacturer no longer makes this part, and there's no substitute part

2 1/2in Hose#18

Unit Diagram

2 1/2in hose

Part #9-17820

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster#16

Unit Diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part
