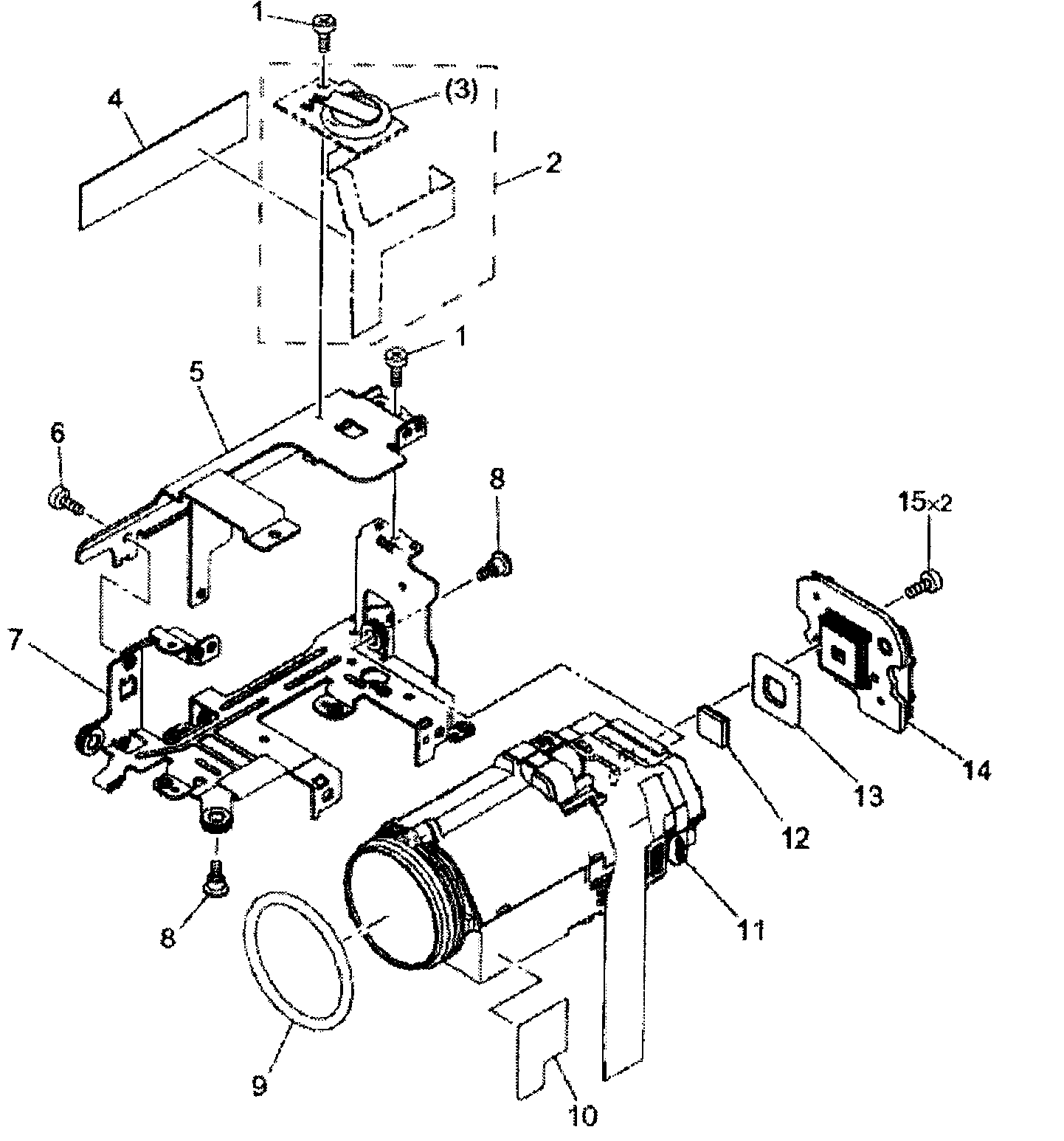

Model #FS100A Official Canon digital camcorder

Here are the diagrams and repair parts for Canon FS100A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 83 parts

Grip Plate#6

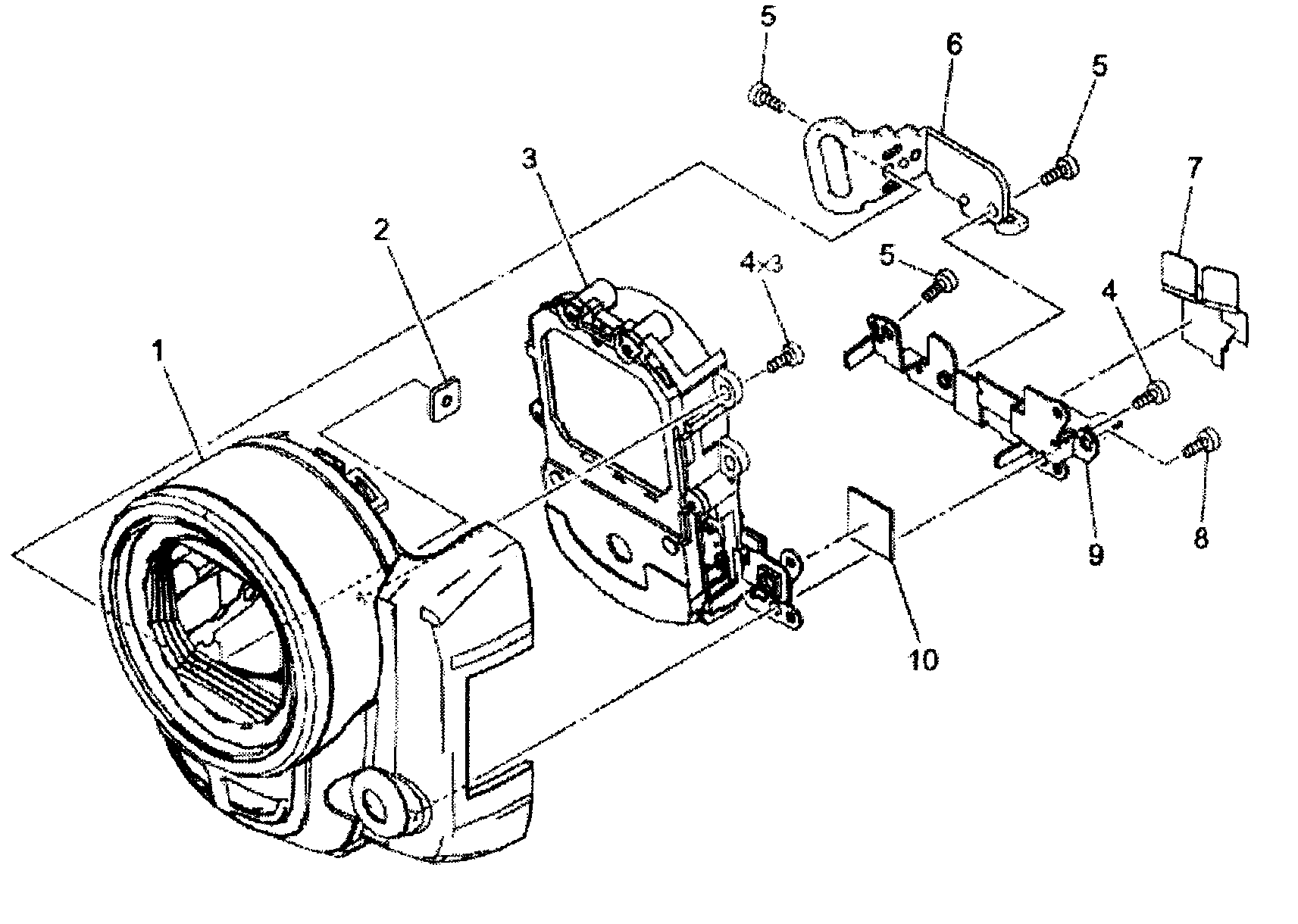

Front cover unit Diagram

Grip plate

Part #DA3-7545-000

The manufacturer no longer makes this part, and there's no substitute part

Button#14

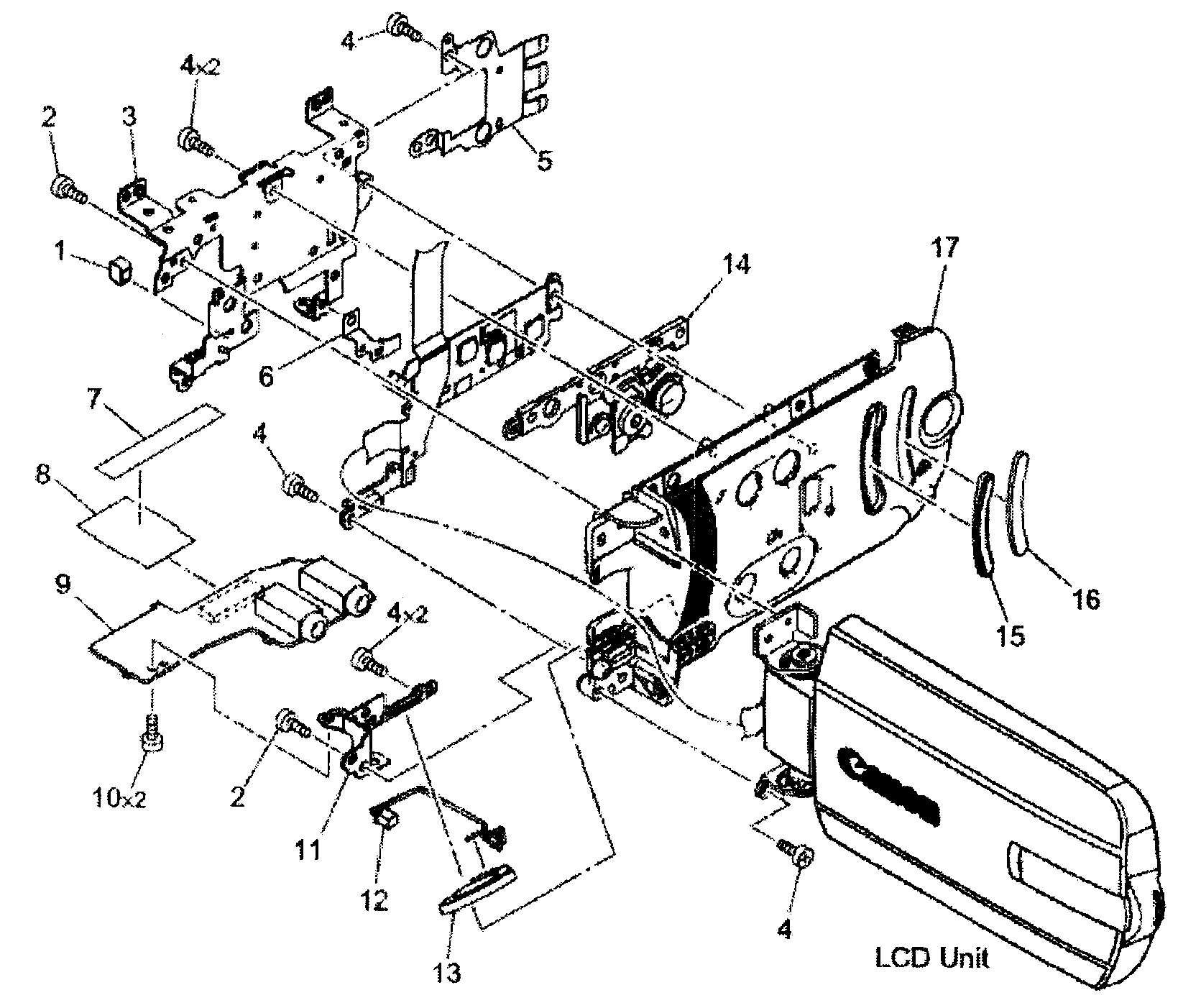

R-lcd unit Diagram

Button

Part #DY1-9228-000

The manufacturer no longer makes this part, and there's no substitute part

Cover#1A

Rear cover Diagram

Cover

Part #DG3-2575-000

The manufacturer no longer makes this part, and there's no substitute part

Battery#7

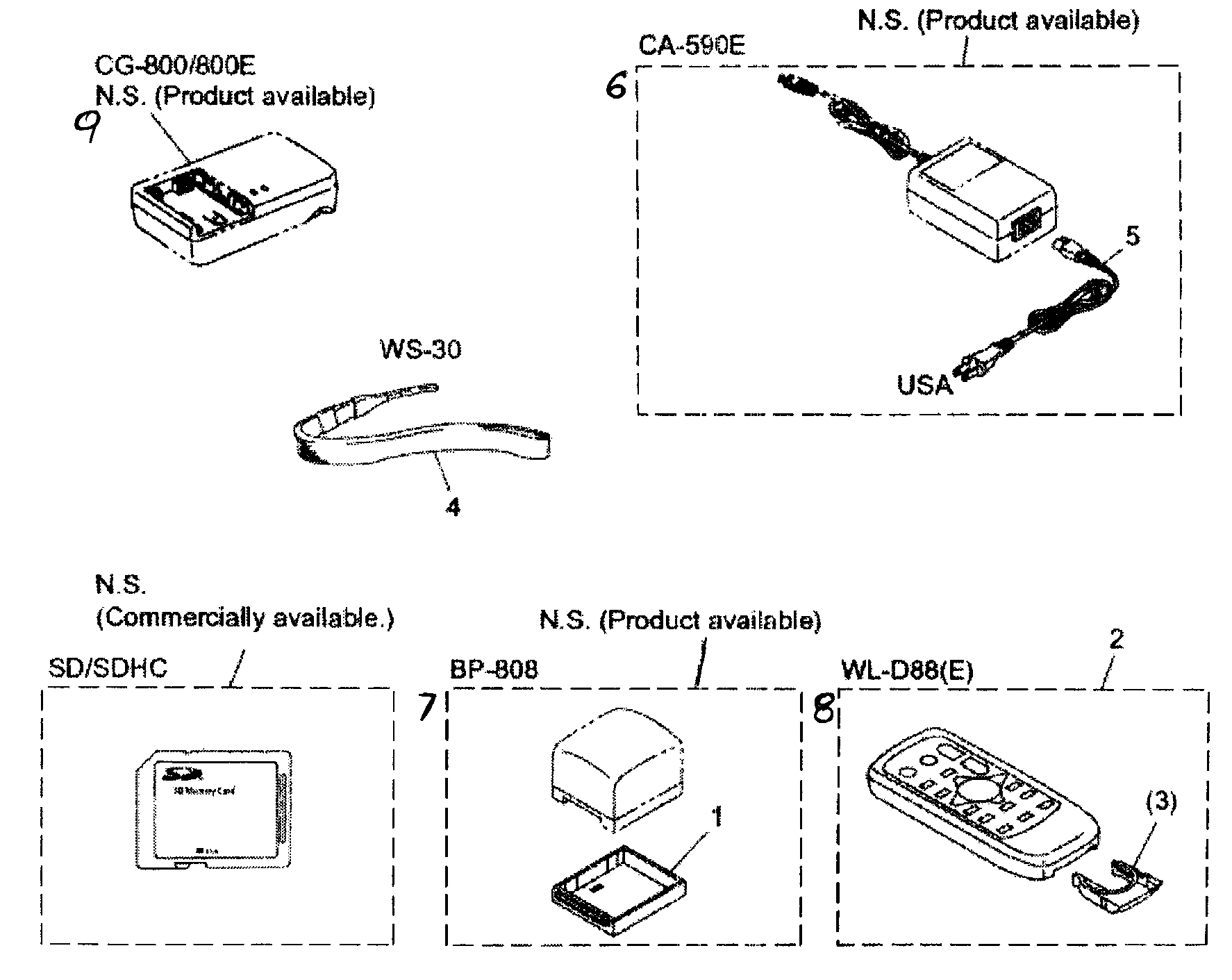

Accessory Diagram

Battery

Part #BP-808

The manufacturer no longer makes this part, and there's no substitute part

Barrier Assembly#3

Front cover unit Diagram

Barrier assembly

Part #DY1-9240-000

The manufacturer no longer makes this part, and there's no substitute part

Button#14A

R-lcd unit Diagram

Button

Part #DY1-9229-000

The manufacturer no longer makes this part, and there's no substitute part

Cover#15

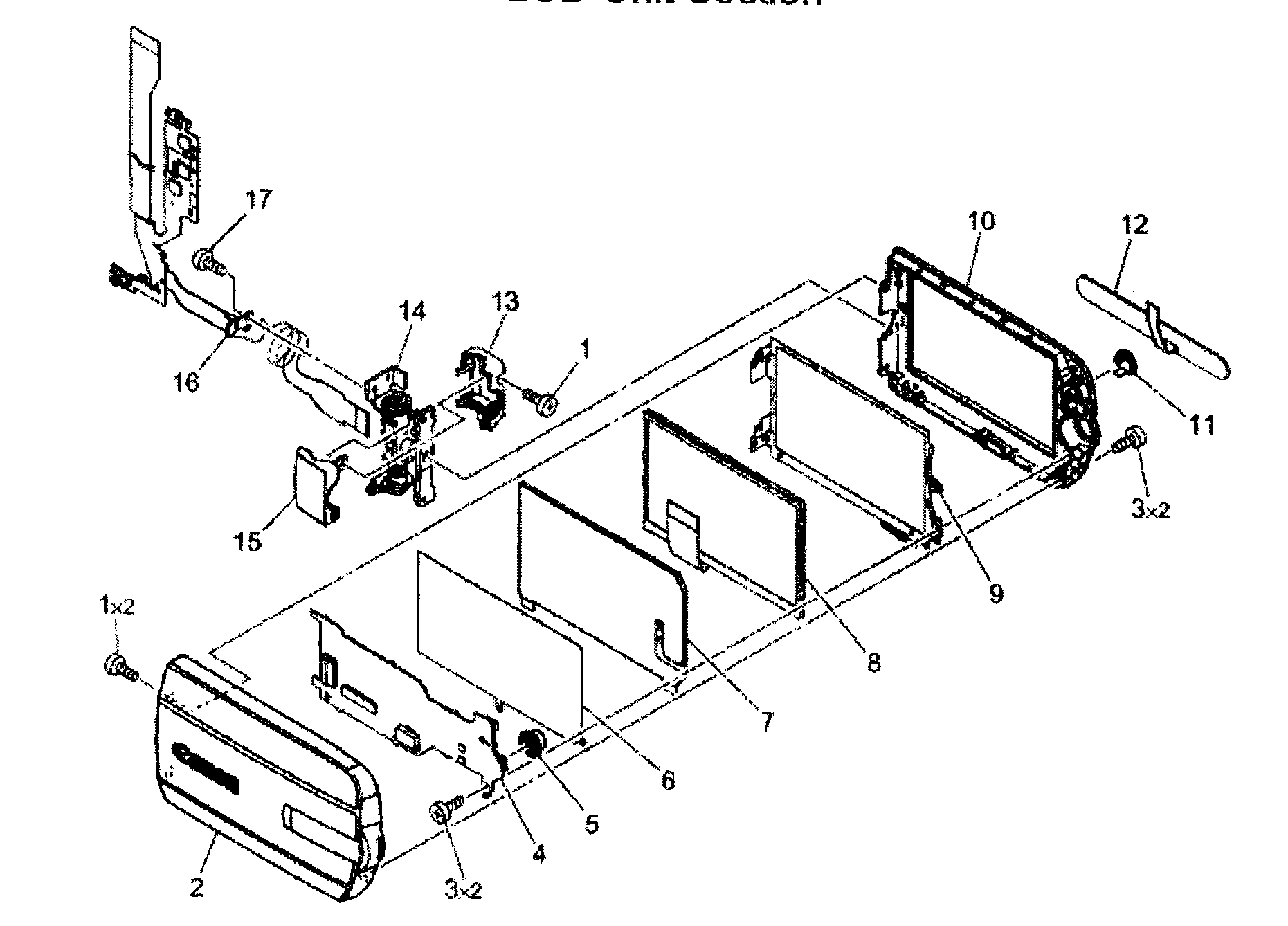

Lcd unit Diagram

Cover

Part #DA3-7616-000

The manufacturer no longer makes this part, and there's no substitute part

Cover#8

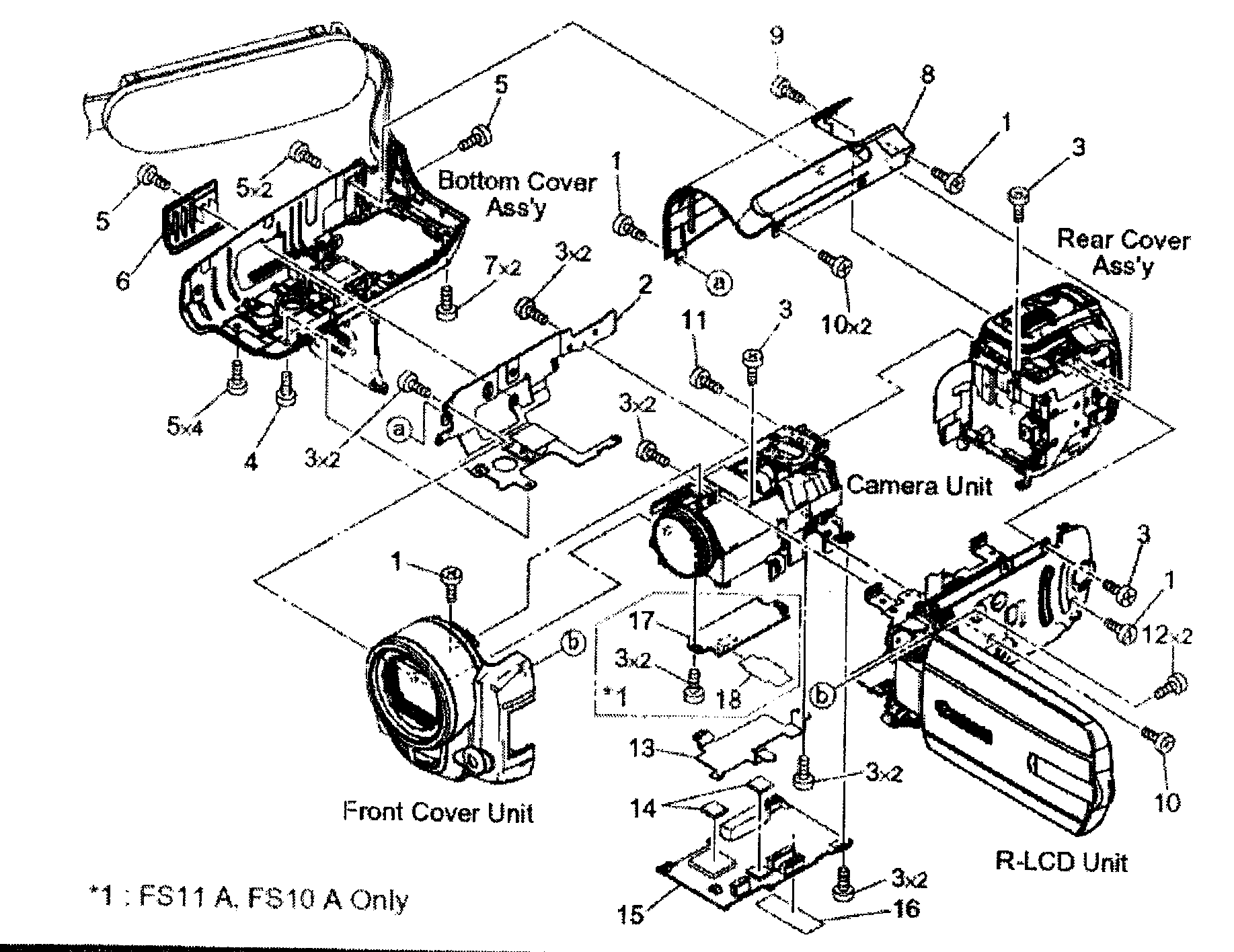

Casing parts Diagram

Cover

Part #DA3-7575-000

The manufacturer no longer makes this part, and there's no substitute part

Wire#12

R-lcd unit Diagram

Wire

Part #DH2-5858-000

The manufacturer no longer makes this part, and there's no substitute part

Cover#1

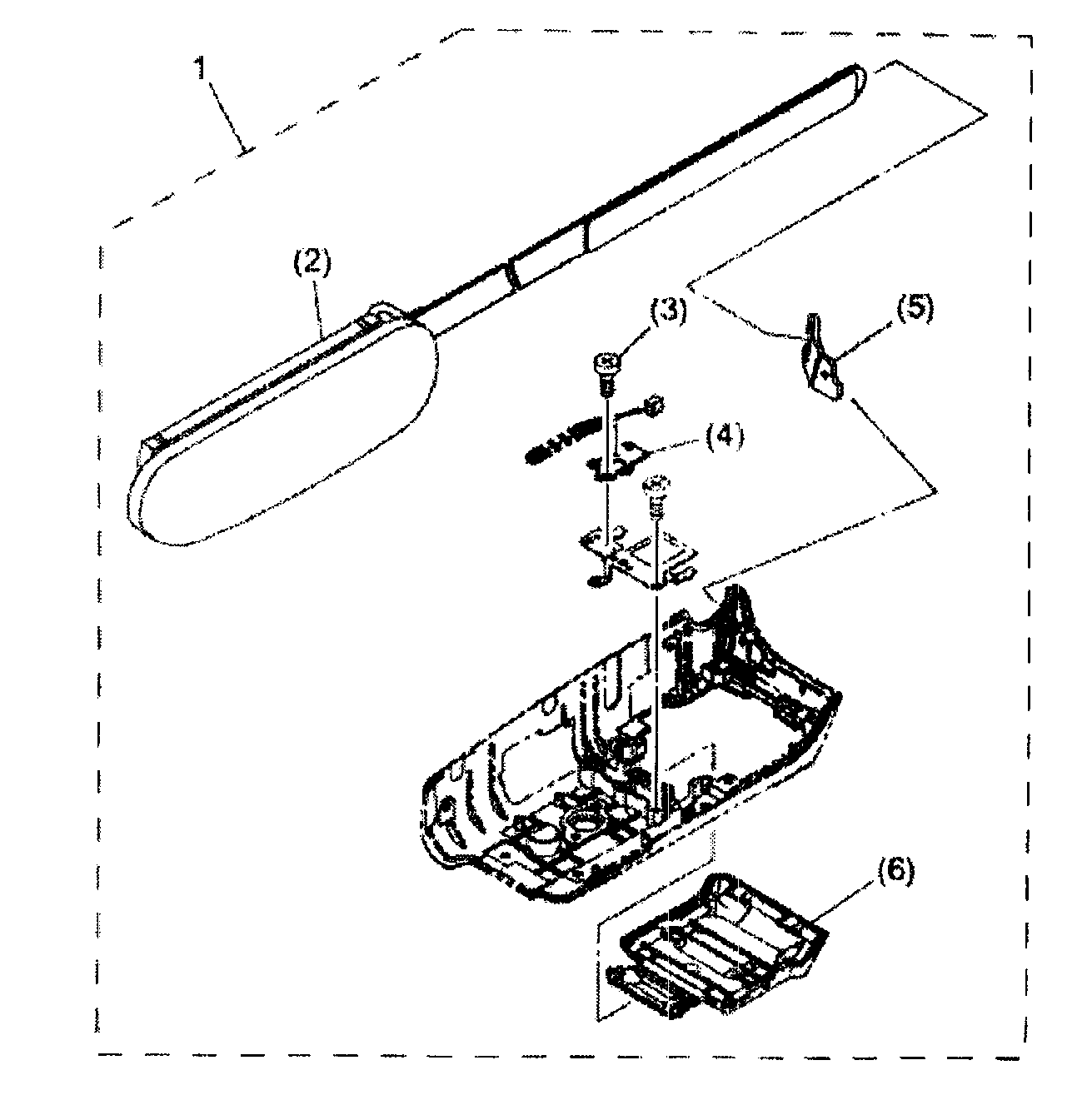

Bottom cover Diagram

Cover

Part #DG3-2568-000

The manufacturer no longer makes this part, and there's no substitute part
