Model #GFDS250EF0WW Official GE electric dryer

Here are the diagrams and repair parts for GE GFDS250EF0WW electric dryer, as well as links to manuals and error code tables, if available.

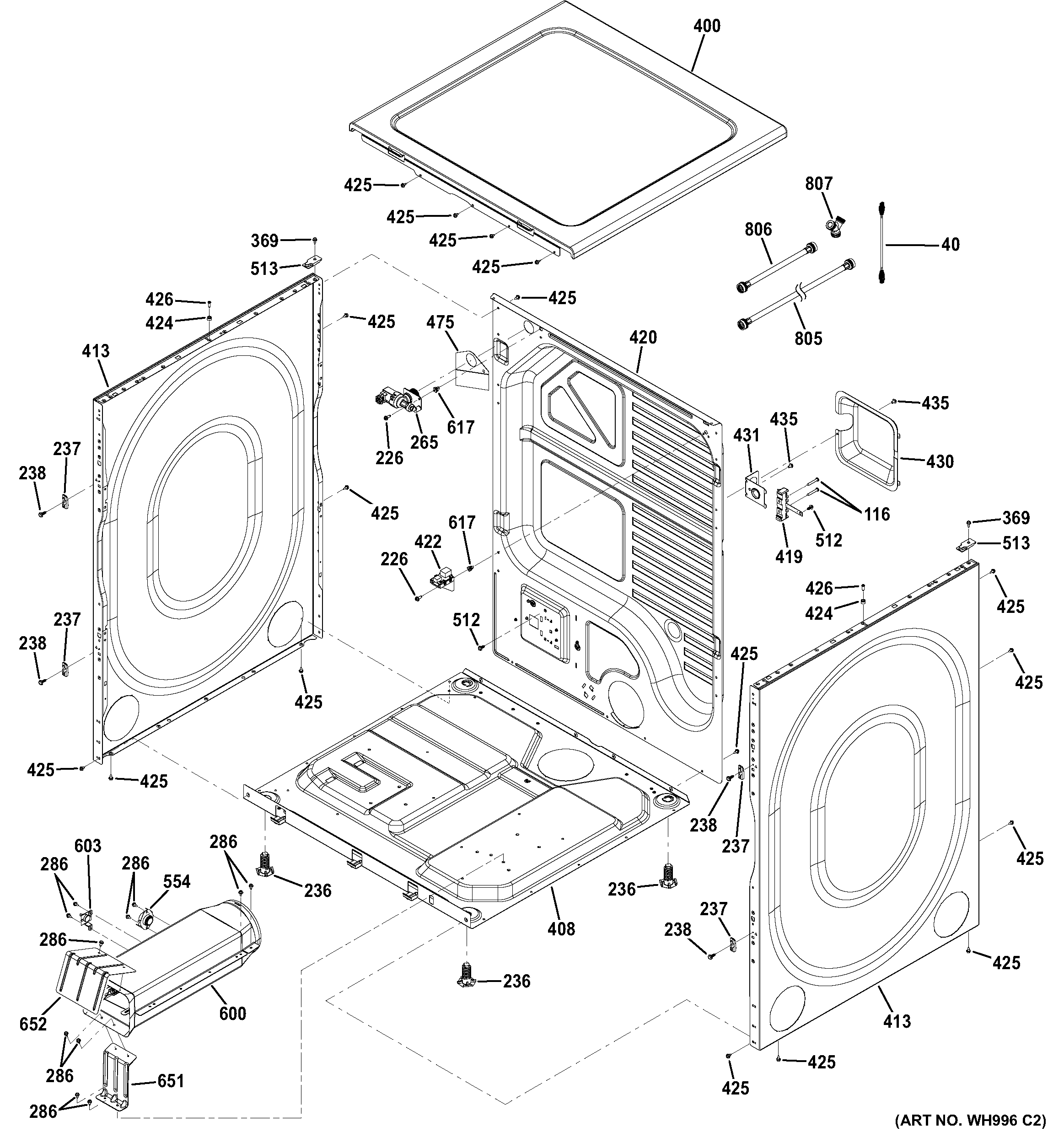

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 133 parts

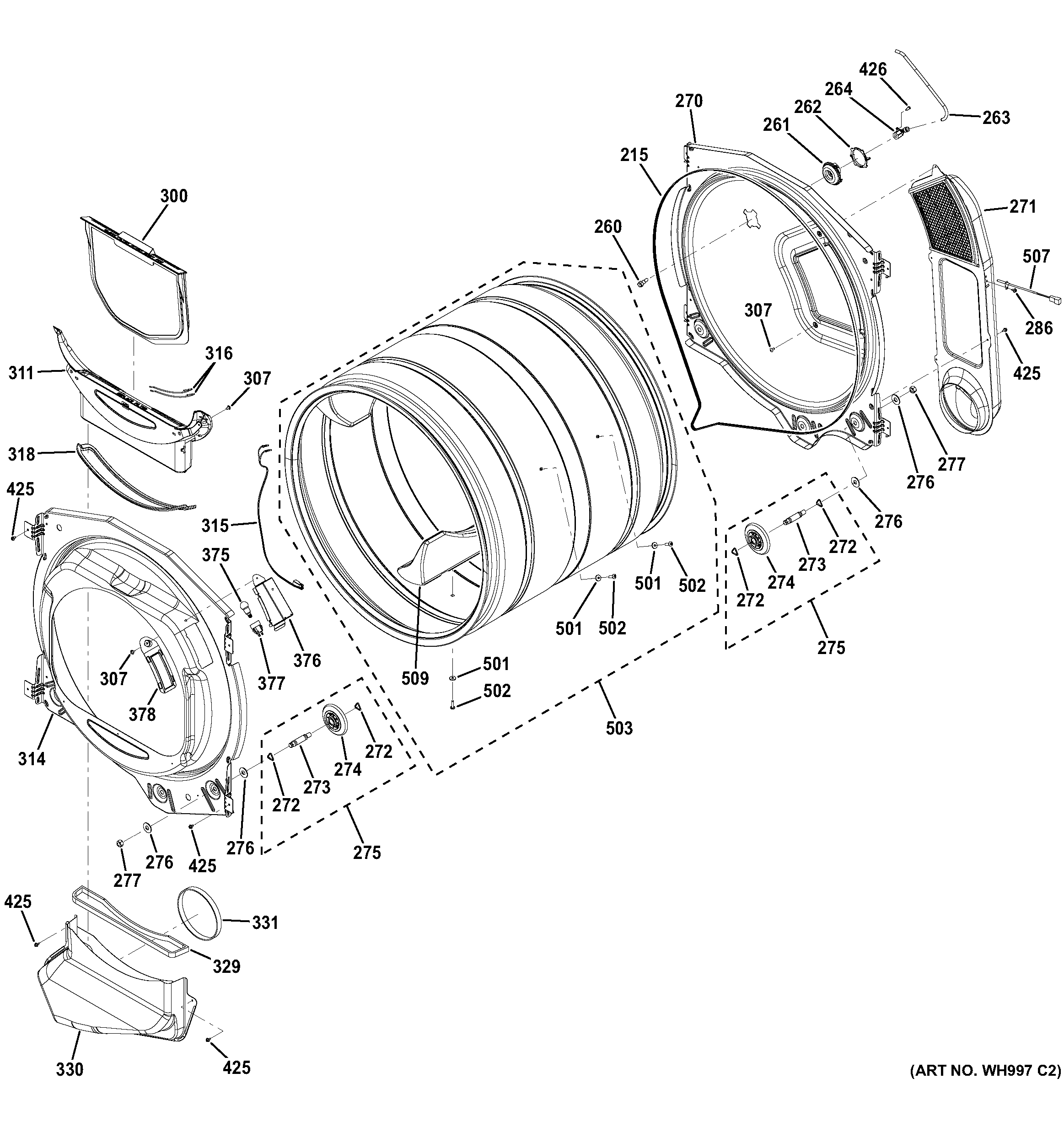

    Dryer Lint Screen#300

    Drum Diagram

    Dryer lint screen

    Part #WE18X10023

    The manufacturer no longer makes this part, and there's no substitute part

    Dryer Lint Screen Housing#311

    Drum Diagram

    Dryer lint screen housing

    Part #WE18X10021

    The manufacturer no longer makes this part, and there's no substitute part

    Dryer Screw

    See All Related Diagrams

    Screw

    Part #WH02X0930
    Replaced by #WH2X930
    ?
    Manufacturer substitution
    This part replaces WH02X0930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Wall Oven Screw#289

    Front panel & door Diagram

    Screw

    Part #WB01K5157
    Replaced by #WB1K5157
    ?
    Manufacturer substitution
    This part replaces WB01K5157. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69

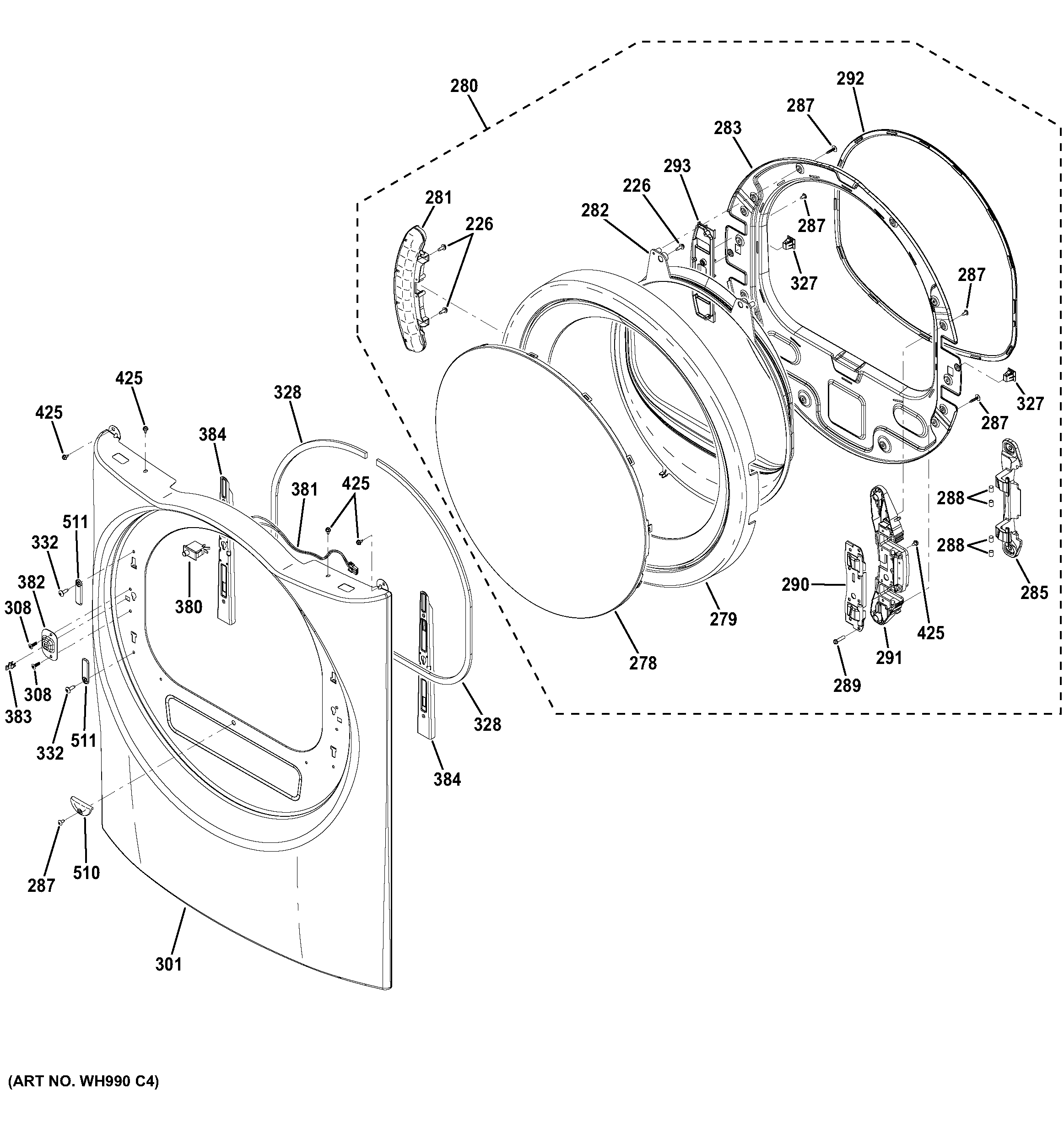

    Dryer Door Latch#327

    Front panel & door Diagram

    Dryer door latch

    Part #WE01X10409
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dryer Control Knob Coupling#114

    Control panel Diagram

    Dryer control knob coupling

    Part #WH01X10743
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69

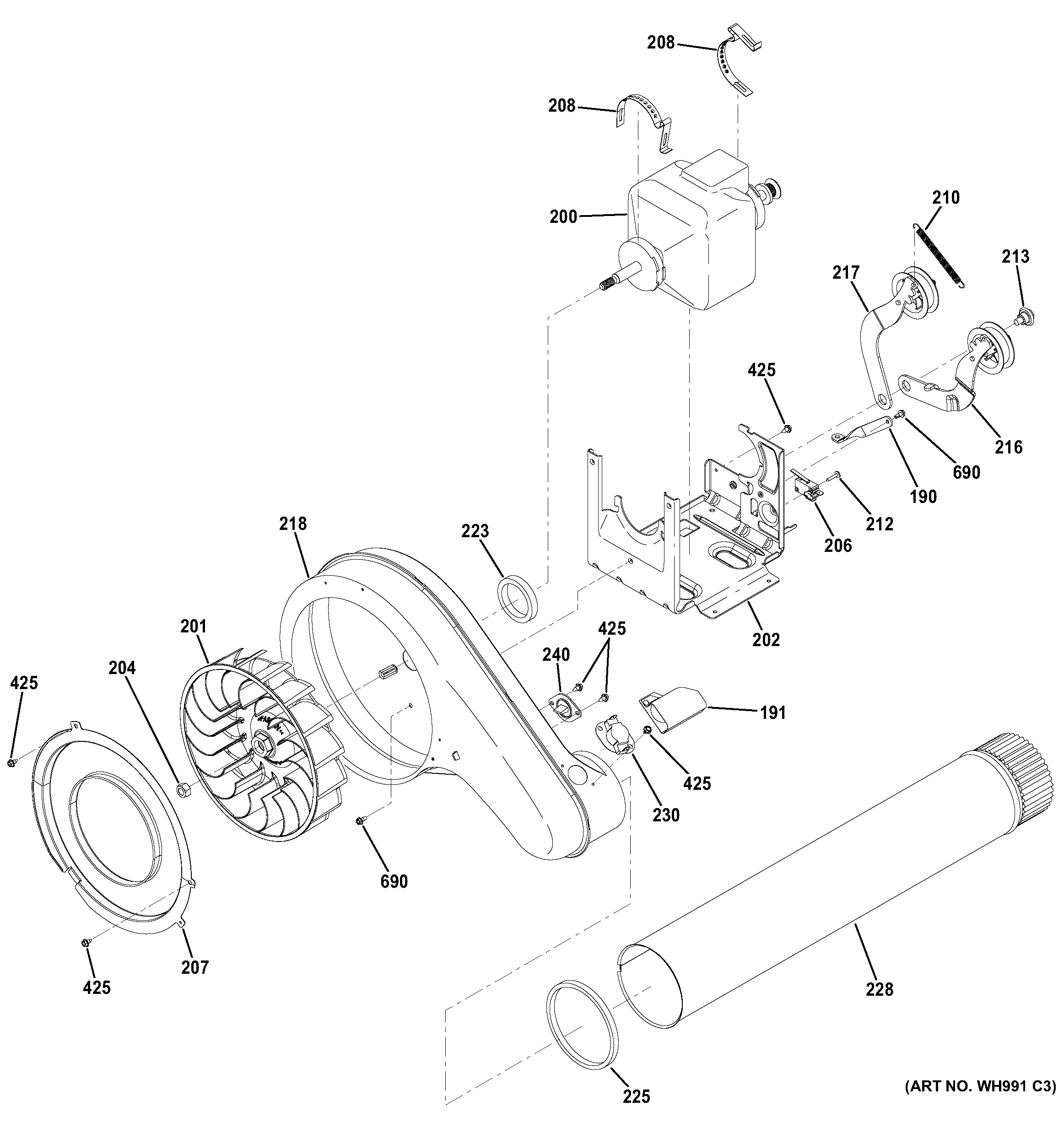

    Dryer Outlet Backup Thermostat#230

    Blower & motor Diagram

    In Stock
    $21.99 |
    19% OFF
    Phone Price: $26.99
    Dryer Baffle#501

    Drum Diagram

    Dryer baffle

    Part #WE01X20693
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Idler Asm (r#217

    Blower & motor Diagram

    Idler asm (r

    Part #WE12X10019
    In Stock
    $25.59 |
    16% OFF
    Phone Price: $30.59
    Refrigerator Door Hinge Screw, #8-32 x 7/16-in#308

    Front panel & door Diagram

    Hinge screw

    Part #WE01X10413
    Replaced by #WR01X10379
    ?
    Manufacturer substitution
    This part replaces WE01X10413. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
