Goldstar
Room Air Conditioner

Model # R2102 Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar R2102 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

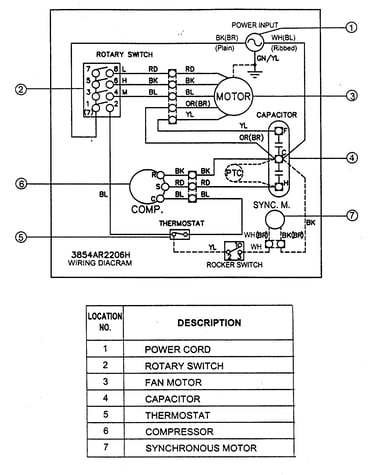

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Fan 5900AR1330A
#36

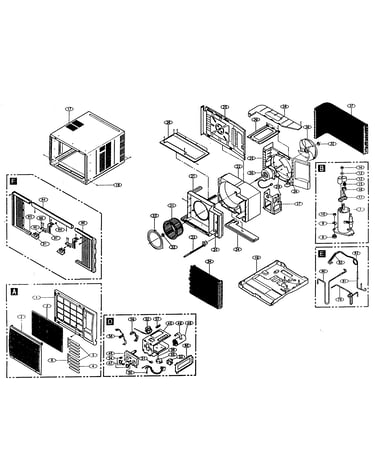

Cabinet parts diagram

Fan

Part #5900AR1330A

Replaced by #5900AR1508B

?
Manufacturer substitution
This part replaces 5900AR1330A. Substitute parts can look different from the original.
$38.76 |
11% OFF Phone Price : $43.76
In Stock
Room Air Conditioner Fan Motor Capacitor 6120AR2194K
#48

Cabinet parts diagram

Room air conditioner fan motor capacitor

Part #6120AR2194K

$38.30 |
12% OFF Phone Price : $43.30
In Stock
Room Air Conditioner Air Filter 5231AR6159A
#3

Cabinet parts diagram

Room air conditioner air filter

Part #5231AR6159A

Replaced by #5231AR6159T

?
Manufacturer substitution
This part replaces 5231AR6159A. Substitute parts can look different from the original.
This item is not returnable
$11.71 |
15% OFF Phone Price : $13.71
In Stock
Bracket Support 3H01479D
#87

Cabinet parts diagram

Bracket support

Part #3H01479D

Replaced by #AET73691402

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$72.05 |
6% OFF Phone Price : $77.05
In Stock
Curtain 4959AR3402F
#86

Cabinet parts diagram

Curtain

Part #4959AR3402F

Replaced by #AET73371401

?
Manufacturer substitution
This part replaces 4959AR3402F. Substitute parts can look different from the original.
$64.66 |
7% OFF Phone Price : $69.66
In Stock
Sill Bracket 3H01395C
#88

Cabinet parts diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691402

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$72.05 |
6% OFF Phone Price : $77.05
In Stock
Room Air Conditioner Blower Wheel 5834AR1599A
#31

Cabinet parts diagram

Room air conditioner blower wheel

Part #5834AR1599A

Replaced by #5834AR1599B

?
Manufacturer substitution
This part replaces 5834AR1599A. Substitute parts can look different from the original.
$38.30 |
12% OFF Phone Price : $43.30
In Stock
Room Air Conditioner Louver 4758AR7278A
#5

Cabinet parts diagram

Room air conditioner louver

Part #4758AR7278A

This item is not returnable
$4.51
In Stock
Damper 4900AR7265A
#23

Cabinet parts diagram

Damper

Part #4900AR7265A

$71.93
In Stock
Base Assembly 3040AR6160A
#24

Cabinet parts diagram

Base assembly

Part #3040AR6160A

This item is not returnable
$7.00
In Stock
