Model #15-3500 Official DP gympac 3500 weight bench

Here are the diagrams and repair parts for DP 15-3500 gympac 3500 weight bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

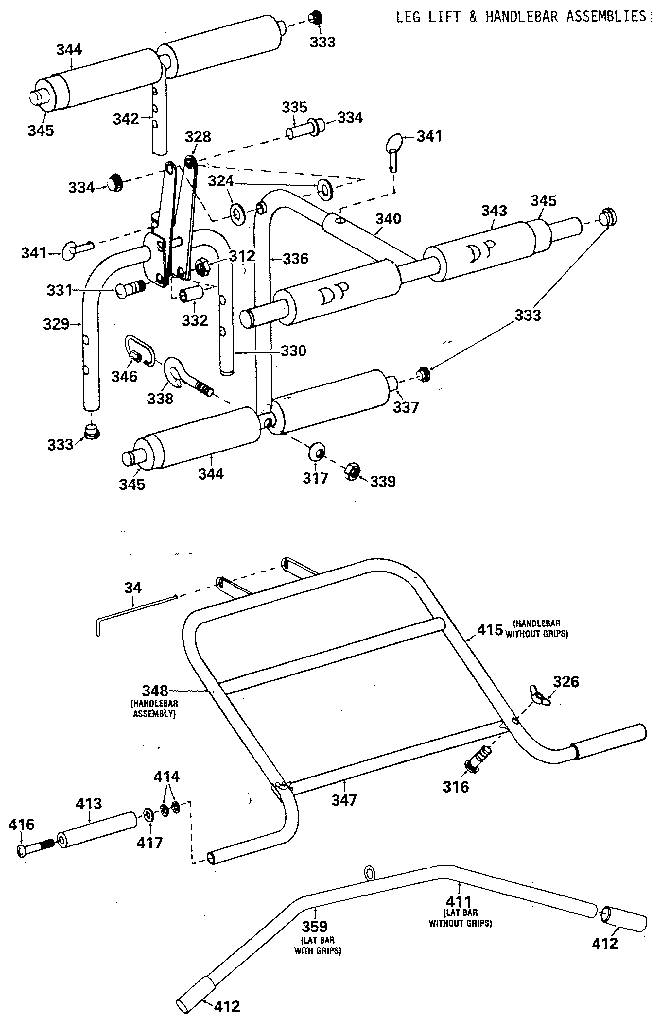

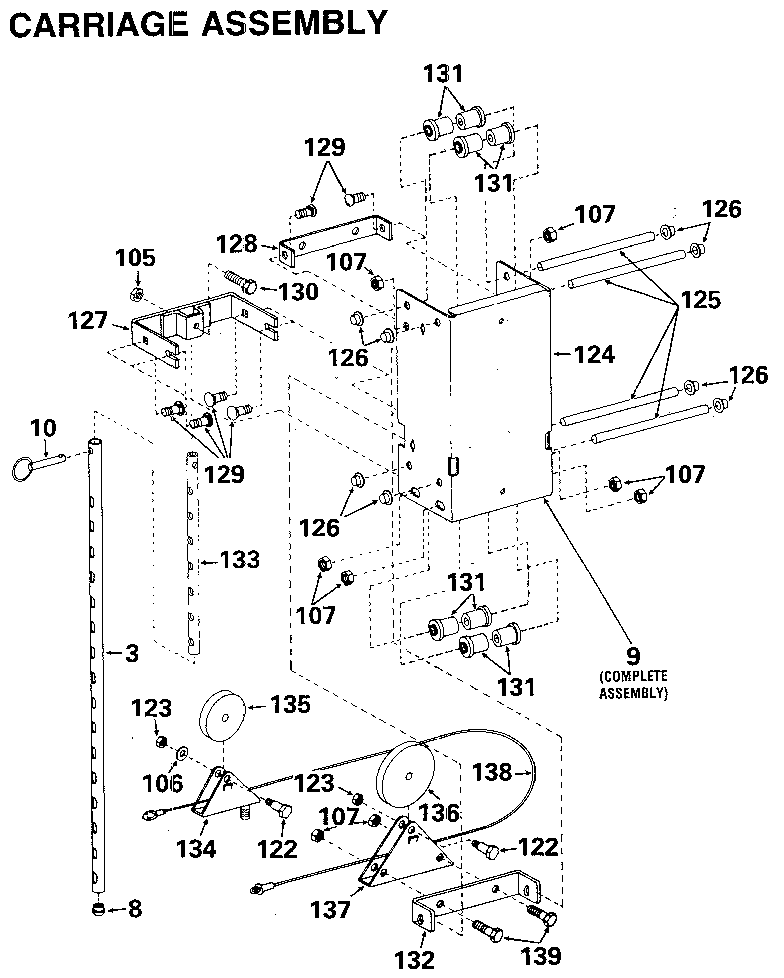

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 137 parts

Washer

See All Related Diagrams

Washer

Part #26000700

The manufacturer no longer makes this part, and there's no substitute part

Washer

See All Related Diagrams

Washer

Part #26000400

The manufacturer no longer makes this part, and there's no substitute part

5/16 Locknut

See All Related Diagrams

5/16 locknut

Part #25009800

The manufacturer no longer makes this part, and there's no substitute part

Bolt

See All Related Diagrams

Bolt

Part #21002900

The manufacturer no longer makes this part, and there's no substitute part

Screw#320

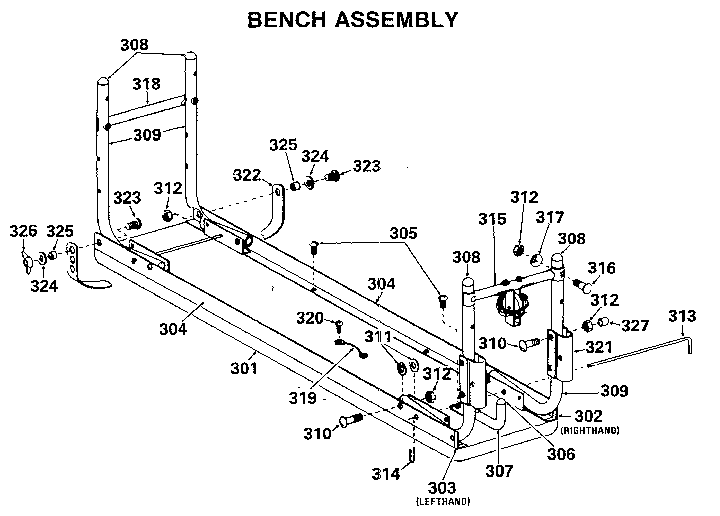

Bench assembly Diagram

Screw

Part #20011400

The manufacturer no longer makes this part, and there's no substitute part

Nut#31

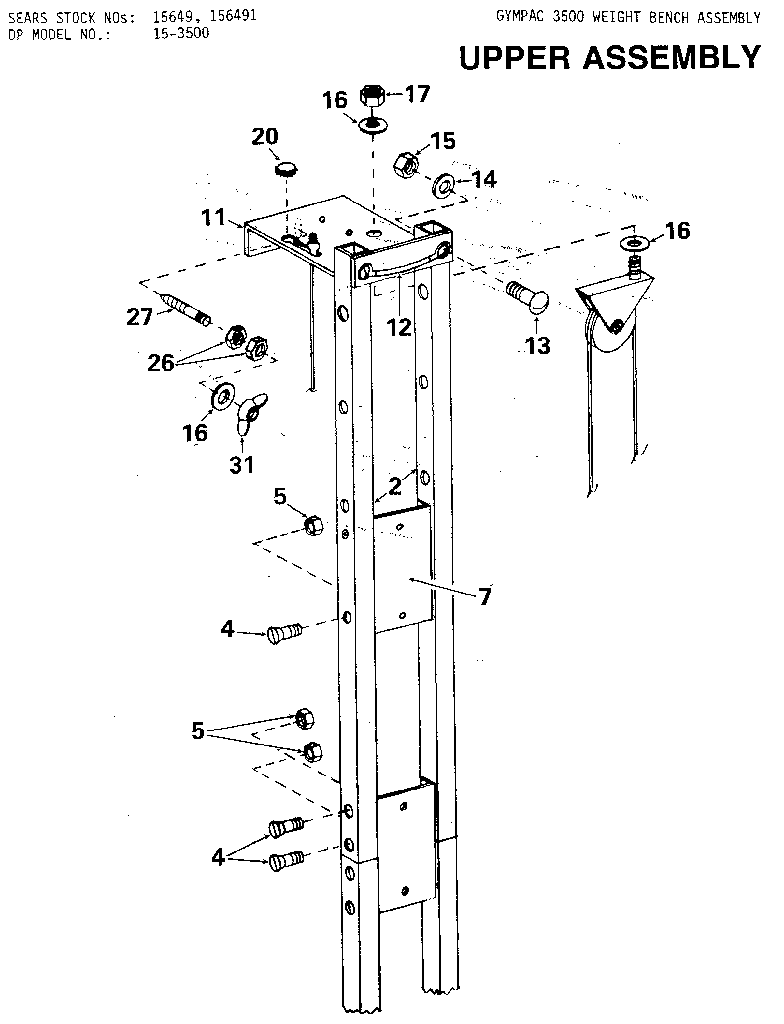

Upper assembly Diagram

Nut

Part #25007700

The manufacturer no longer makes this part, and there's no substitute part

Bolt#408

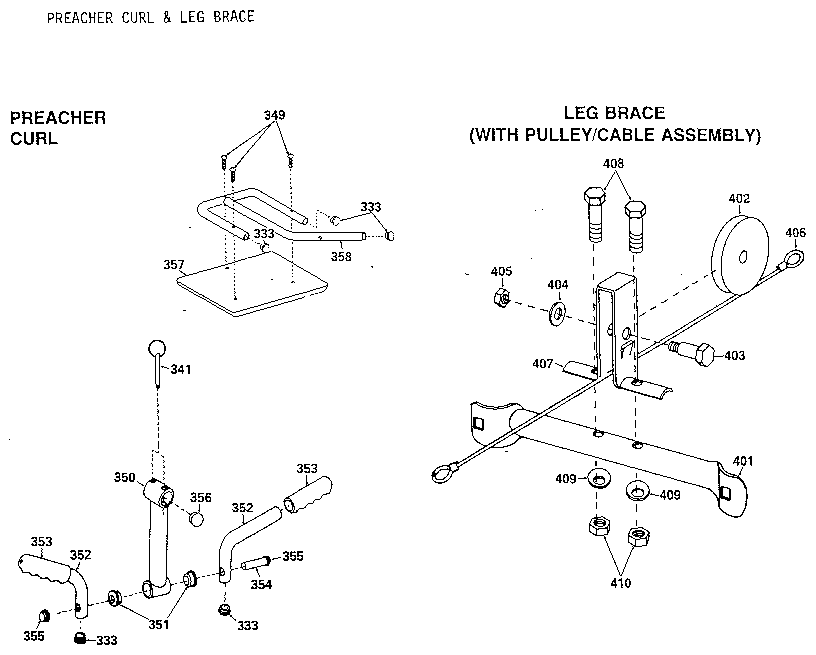

Preacher curl & leg brace Diagram

Bolt

Part #22001400

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut

See All Related Diagrams

Lock nut

Part #25011200

The manufacturer no longer makes this part, and there's no substitute part

Washer#16

Upper assembly Diagram

Washer

Part #26003200

The manufacturer no longer makes this part, and there's no substitute part

Screw#25

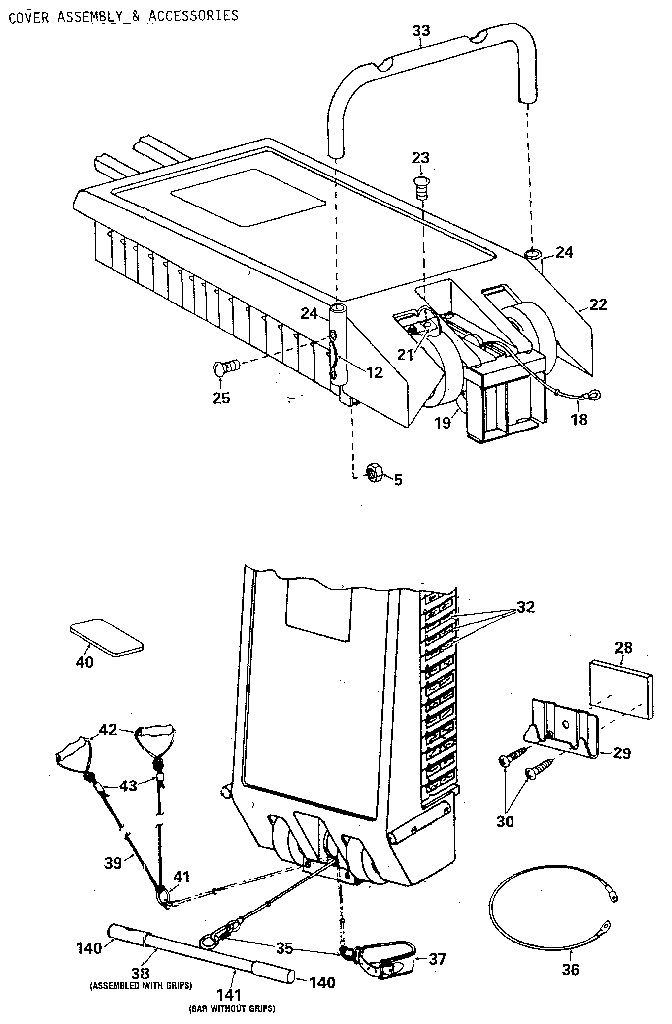

Cover assembly & accessories Diagram

Screw

Part #21001100

The manufacturer no longer makes this part, and there's no substitute part
