Suburban
Wall Heater

Model #DWW-40P-LP Official Suburban counterflow direct vent gas wall furnace

Here are the diagrams and repair parts for Suburban DWW-40P-LP counterflow direct vent gas wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

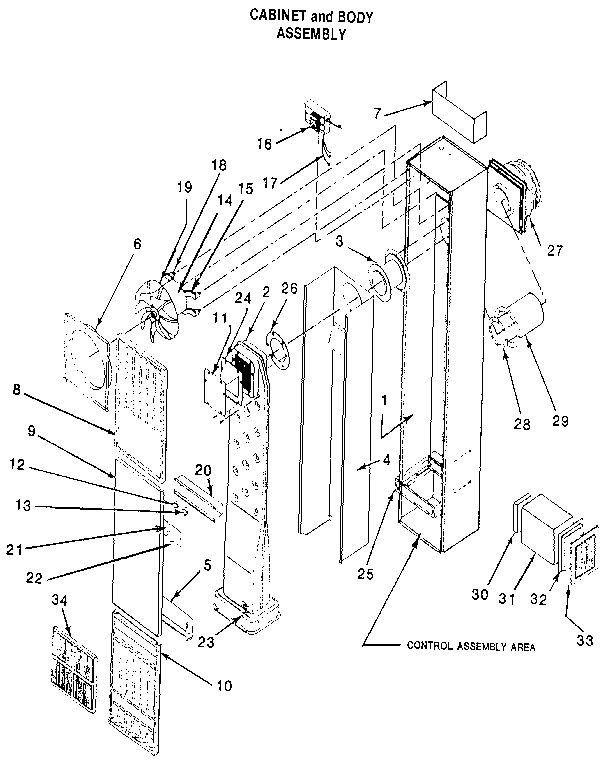

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 54 parts

Flue Extensn

#28

All parts Diagram

Flue extensn

Part #11A97

The manufacturer no longer makes this part, and there's no substitute part

Switch Box

#20

All parts Diagram

Switch box

Part #11B05

The manufacturer no longer makes this part, and there's no substitute part

Top Trim Cvr

#7

All parts Diagram

Top trim cvr

Part #11A40

The manufacturer no longer makes this part, and there's no substitute part

Isolator

#18

All parts Diagram

Isolator

Part #P022800

The manufacturer no longer makes this part, and there's no substitute part

Gasket

#25

All parts Diagram

Gasket

Part #P151900

The manufacturer no longer makes this part, and there's no substitute part

Furnace Transformer

#16

All parts Diagram

Furnace transformer

Part #P024200

The manufacturer no longer makes this part, and there's no substitute part

Element Tube

#3

All parts Diagram

Element tube

Part #11C37

The manufacturer no longer makes this part, and there's no substitute part

Outer Casing

#1

All parts Diagram

Outer casing

Part #11C42-2

The manufacturer no longer makes this part, and there's no substitute part

Air Inl Extn

#29

All parts Diagram

Air inl extn

Part #11B49

The manufacturer no longer makes this part, and there's no substitute part

Motor

#14

All parts Diagram

Motor

Part #P151100

The manufacturer no longer makes this part, and there's no substitute part
