Model # XG7000-5797-0 Official Generac generator

Here are the diagrams and repair parts for Official Generac XG7000-5797-0 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

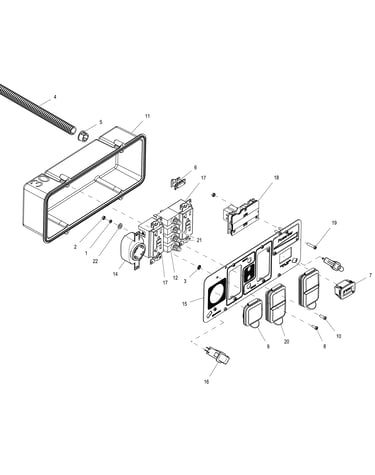

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |

Generator Fuel Shut-off Valve Bezel 0H2142
#37

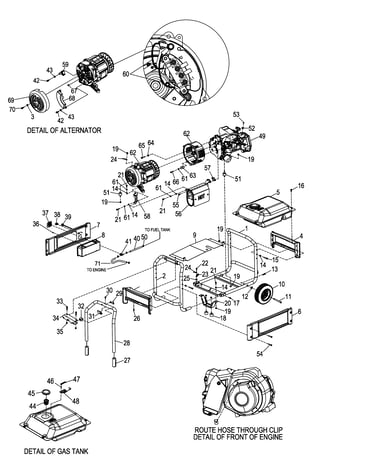

Frame assy diagram

Generator fuel shut-off valve bezel

Part #0H2142

This item is not returnable
Back Order
Generator Fuel Gauge 0H1345
#48

Frame assy diagram

Generator fuel gauge

Part #0H1345

In Stock
Arm, Gover 0A7628
#7

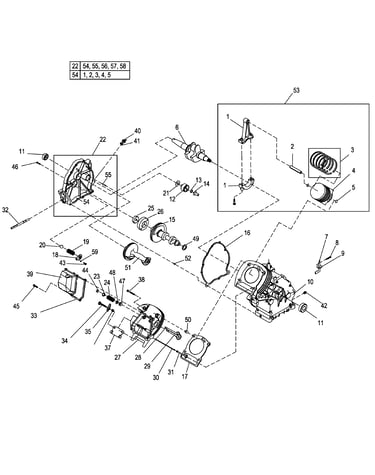

Engine 1 diagram

Arm, gover

Part #0A7628

In Stock
Generator Connecting Rod 0E3221
#1

Engine 1 diagram

Generator connecting rod

Part #0E3221

In Stock
Generator Air Filter Cover 073104B
#55

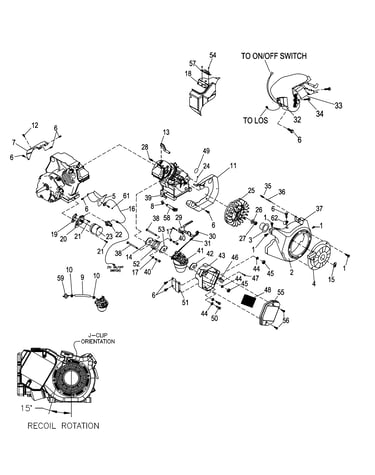

Engine 2 diagram

Generator air filter cover

Part #073104B

In Stock
Generator Recoil Starter Assembly 0E9483
#4

Engine 2 diagram

Generator recoil starter assembly

Part #0E9483

In Stock
Lawn & Garden Equipment Nut 0B2236
#45

Engine 2 diagram

Lawn & garden equipment nut

Part #0B2236

This item is not returnable
In Stock
Breather 0D6094
#39

Engine 1 diagram

Breather

Part #0D6094

In Stock
Gearcover, 0G1843A
#54

Engine 1 diagram

Gearcover,

Part #0G1843A

In Stock
Sleeve, Do 078699C
#50

Engine 1 diagram

Sleeve, do

Part #078699C

This item is not returnable
In Stock
