Model # EI24ID30QS5B Official Electrolux dishwasher

Here are the diagrams and repair parts for Official Electrolux EI24ID30QS5B dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

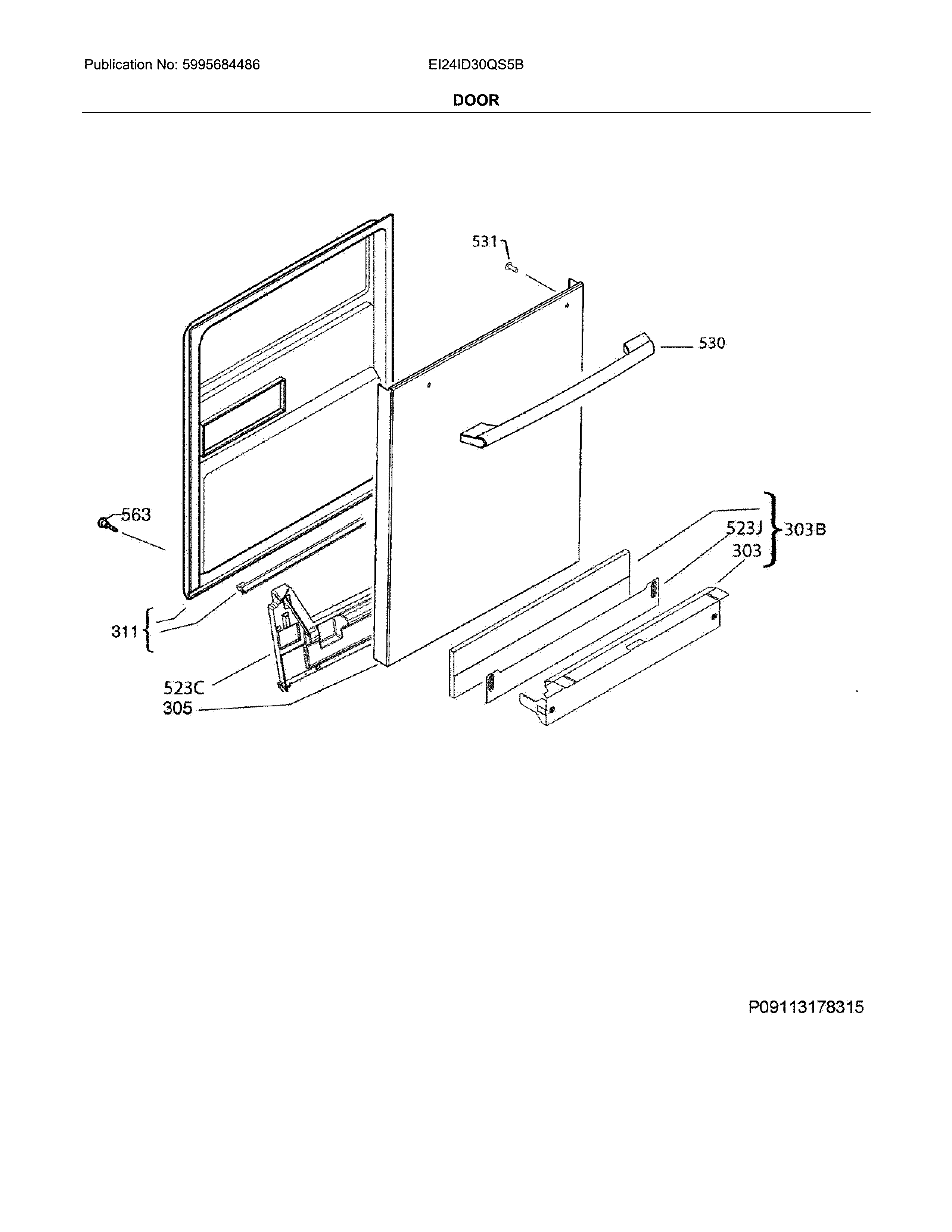

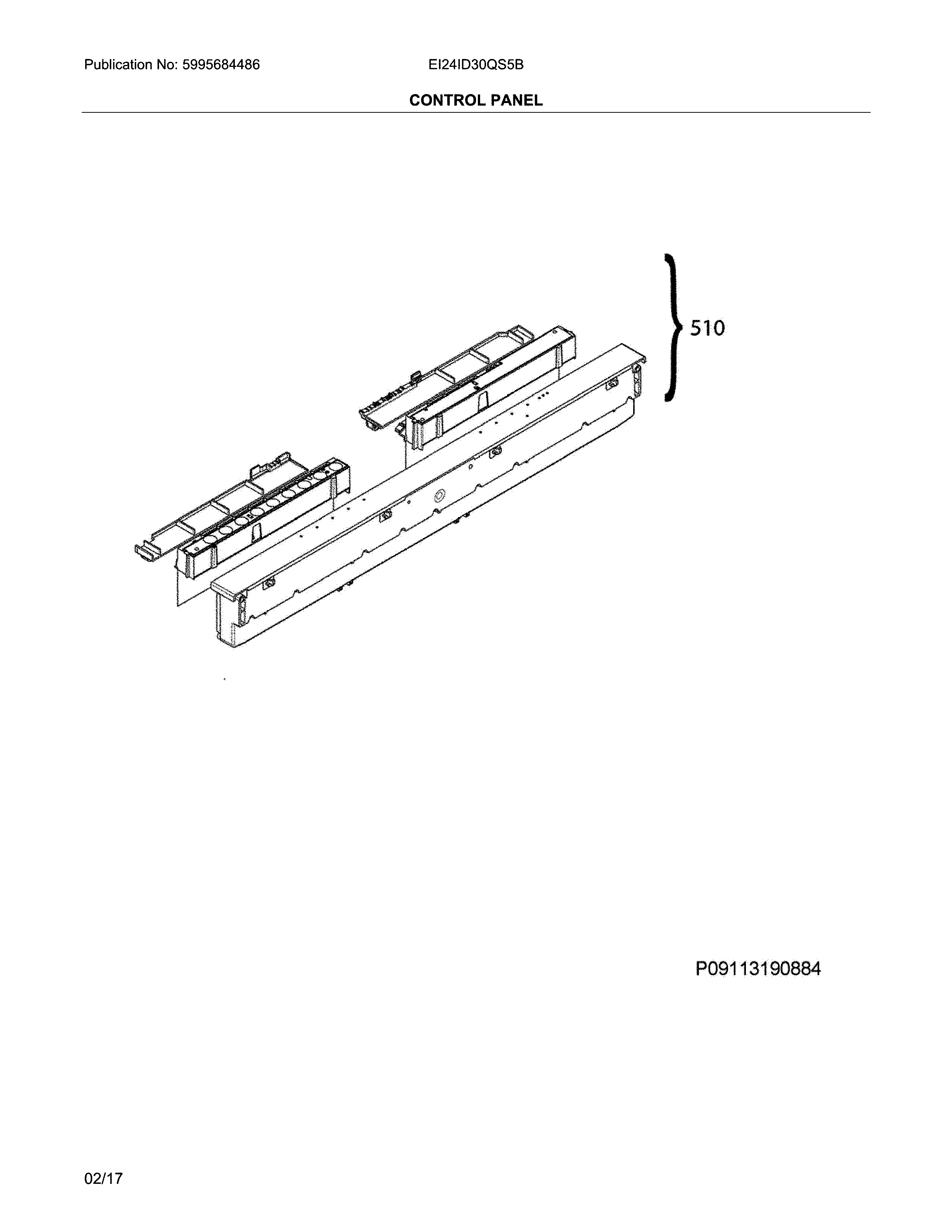

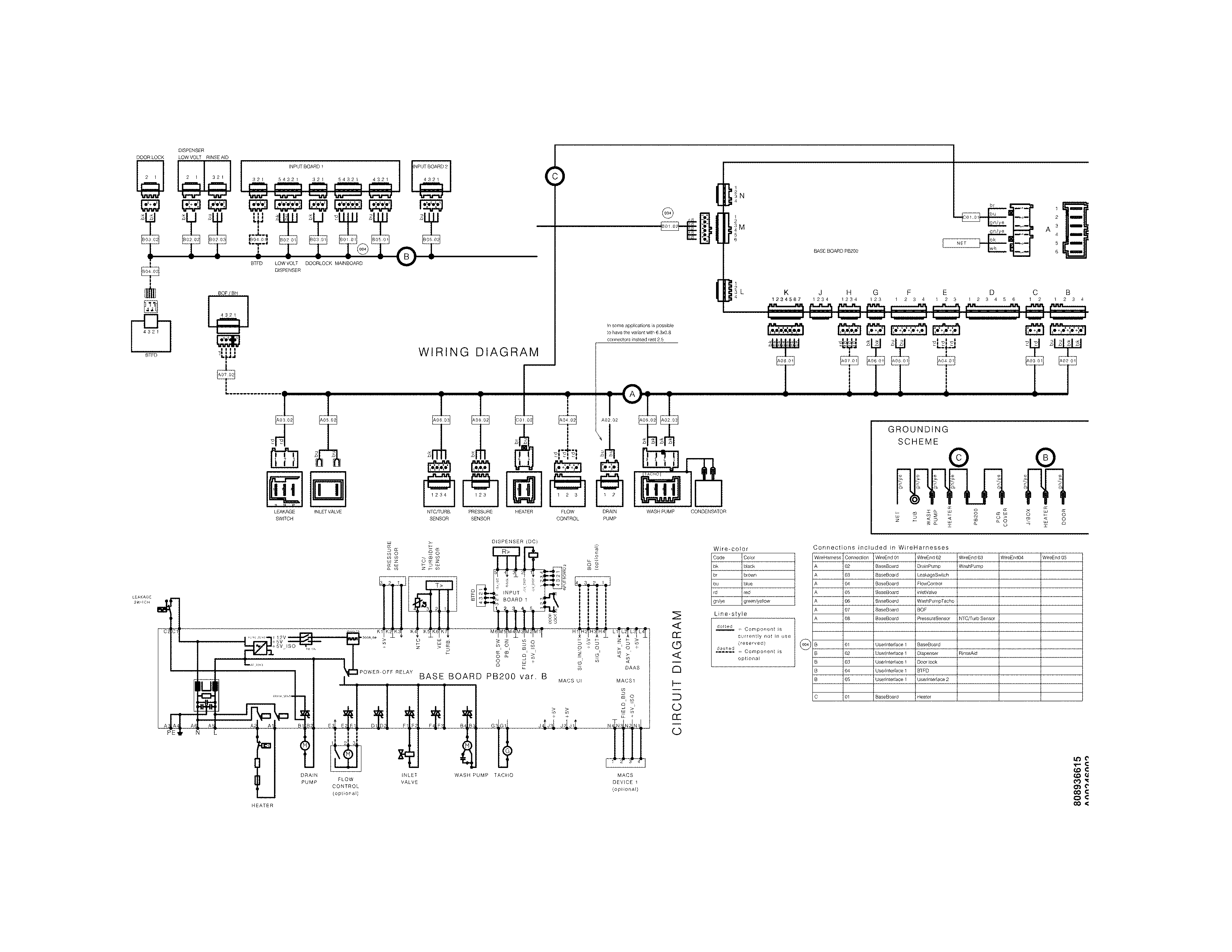

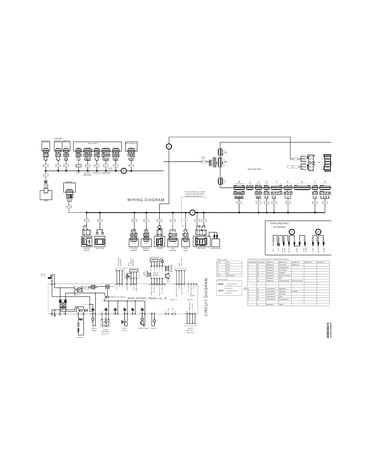

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Dishwasher Tine Row Retainer 807282902
#580

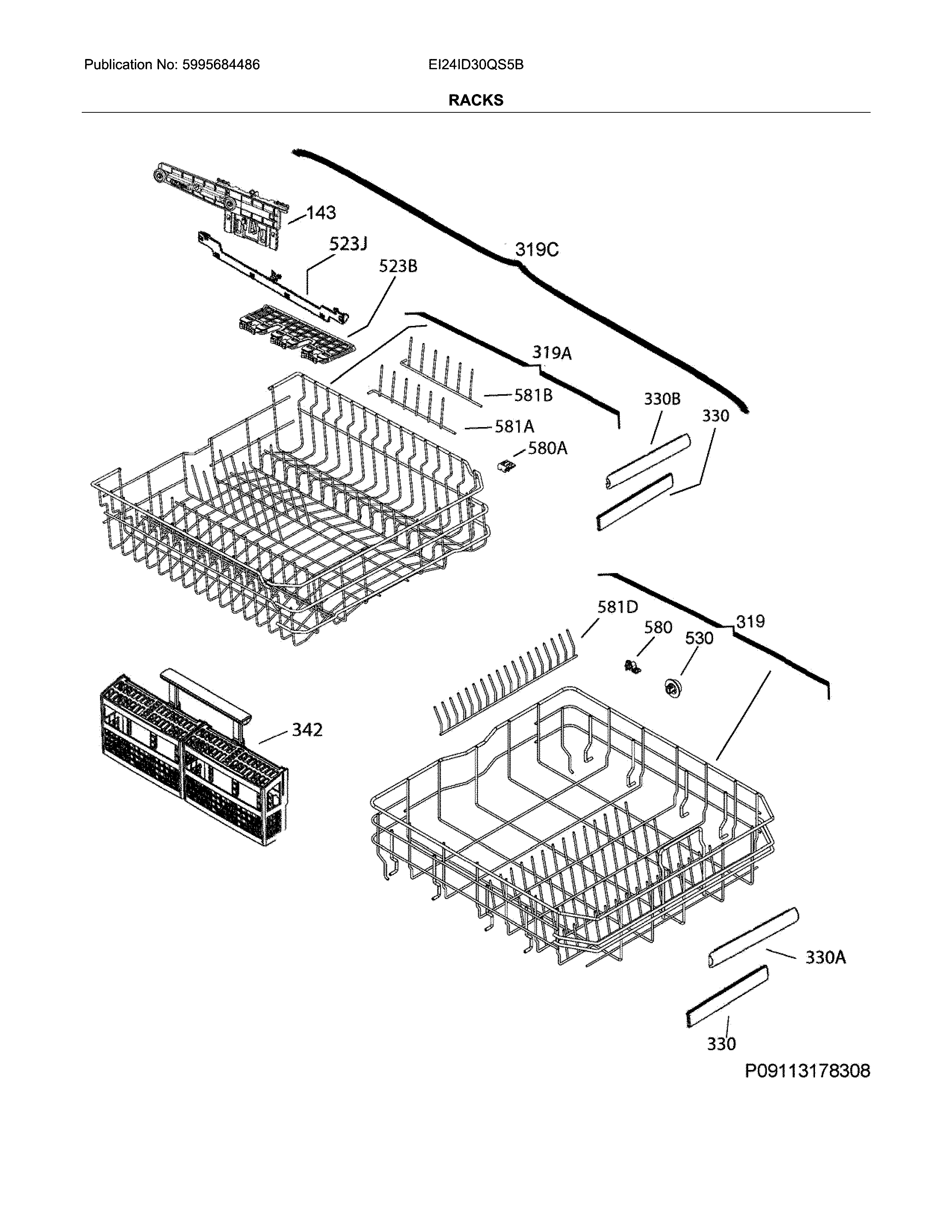

Racks diagram

Dishwasher tine row retainer

Part #807282902

$52.91
9% OFF Phone Price : $57.91
In Stock
Dishwasher Dishrack Roller Kit, Lower 405507213
#530

Racks diagram

Dishwasher dishrack roller kit, lower

Part #405507213

In Stock
Dishwasher Door Seal 117158011
#130

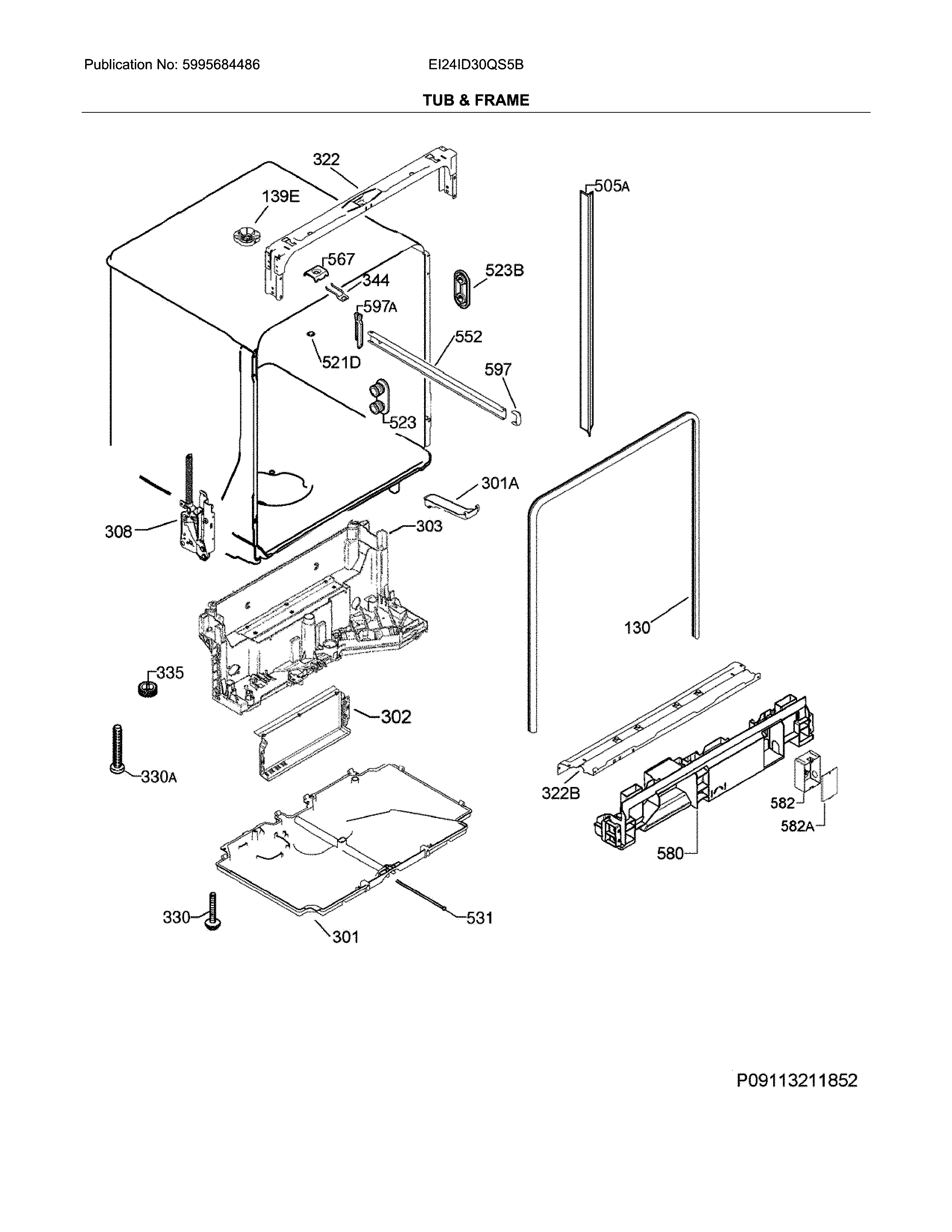

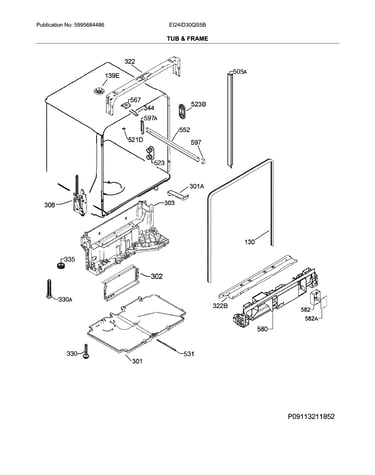

Tub & frame diagram

Dishwasher door seal

Part #117158011

$36.43
12% OFF Phone Price : $41.43
In Stock
Dishwasher Drain Hose 807032601
#112

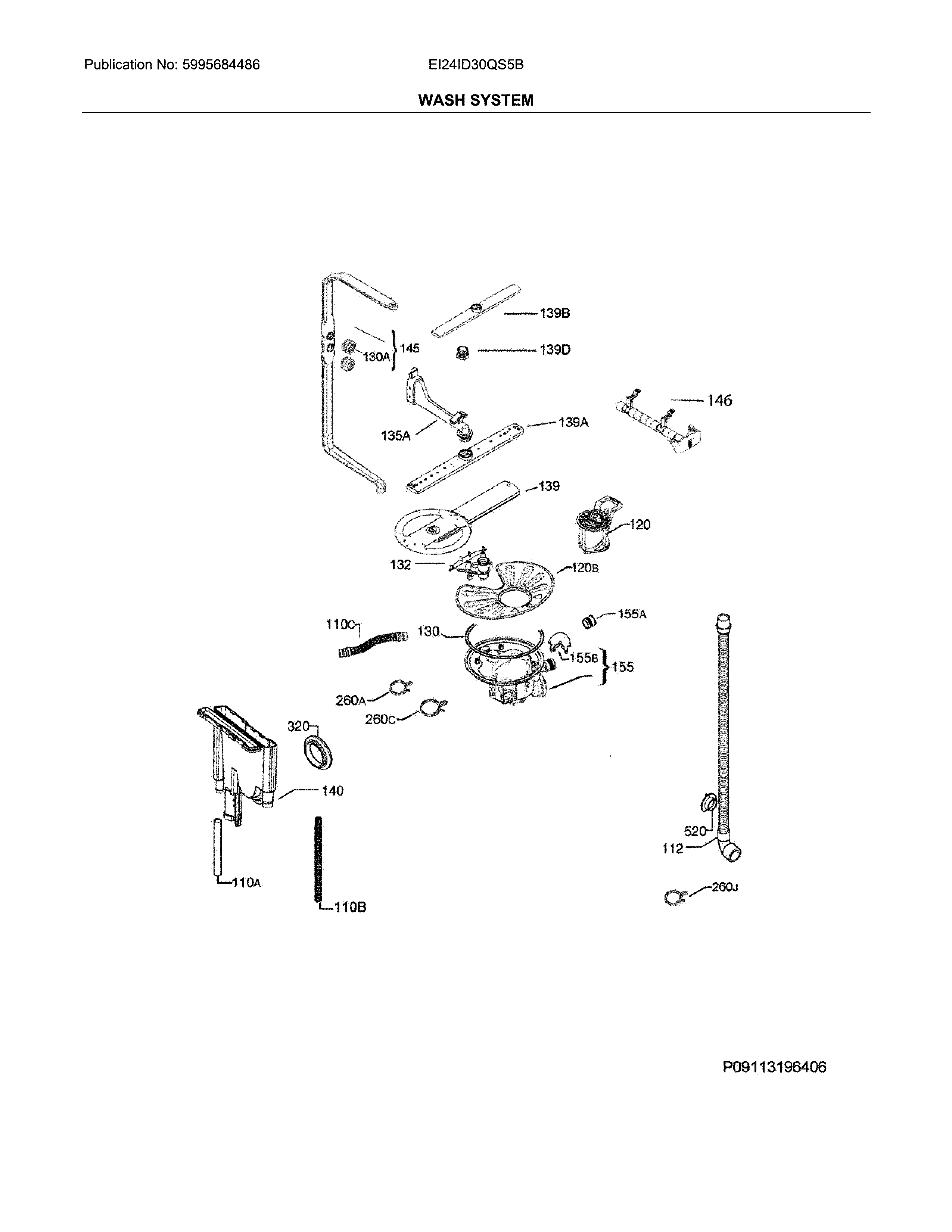

Wash system diagram

Dishwasher drain hose

Part #807032601

$41.47
11% OFF Phone Price : $46.47
In Stock
Dishwasher Dishrack Adjuster, Right 808092530
#143

Racks diagram

Dishwasher dishrack adjuster, right

Part #808092530

Replaced by #808092538

?
Manufacturer substitution
This part replaces 808092530. Substitute parts can look different from the original.
$50.79
9% OFF Phone Price : $55.79
In Stock
Pressure Switch A00055406
#12

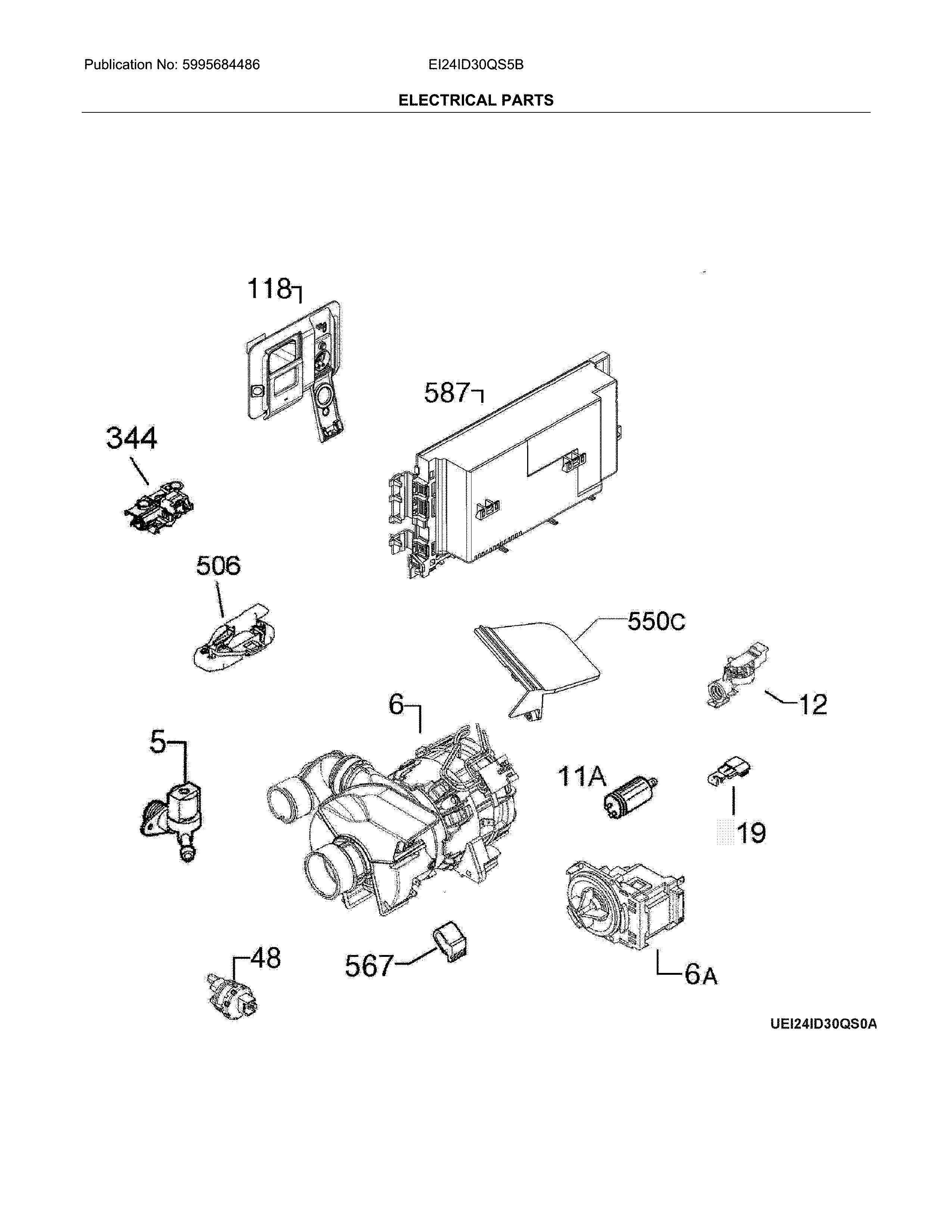

Electrical parts diagram

Pressure switch

Part #A00055406

Replaced by #A00055408

?
Manufacturer substitution
This part replaces A00055406. Substitute parts can look different from the original.
$54.40
8% OFF Phone Price : $59.40
In Stock
Dishwasher Water Inlet Valve 807445904
#5

Electrical parts diagram

Dishwasher water inlet valve

Part #807445904

Replaced by #807445905

?
Manufacturer substitution
This part replaces 807445904. Substitute parts can look different from the original.
In Stock
Dishwasher Upper Spray Arm Bearing 807035801
#139

Wash system diagram

Dishwasher upper spray arm bearing

Part #807035801

This item is not returnable
In Stock
Dishwasher Leveling Leg 117368700
#330

Tub & frame diagram

Dishwasher leveling leg

Part #117368700

In Stock
Dishwasher Drain Pump A00044305
#6A

Electrical parts diagram

Dishwasher drain pump

Part #A00044305

$85.03
6% OFF Phone Price : $90.03
In Stock
