Model # LGGF3042KFT Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire LGGF3042KFT gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

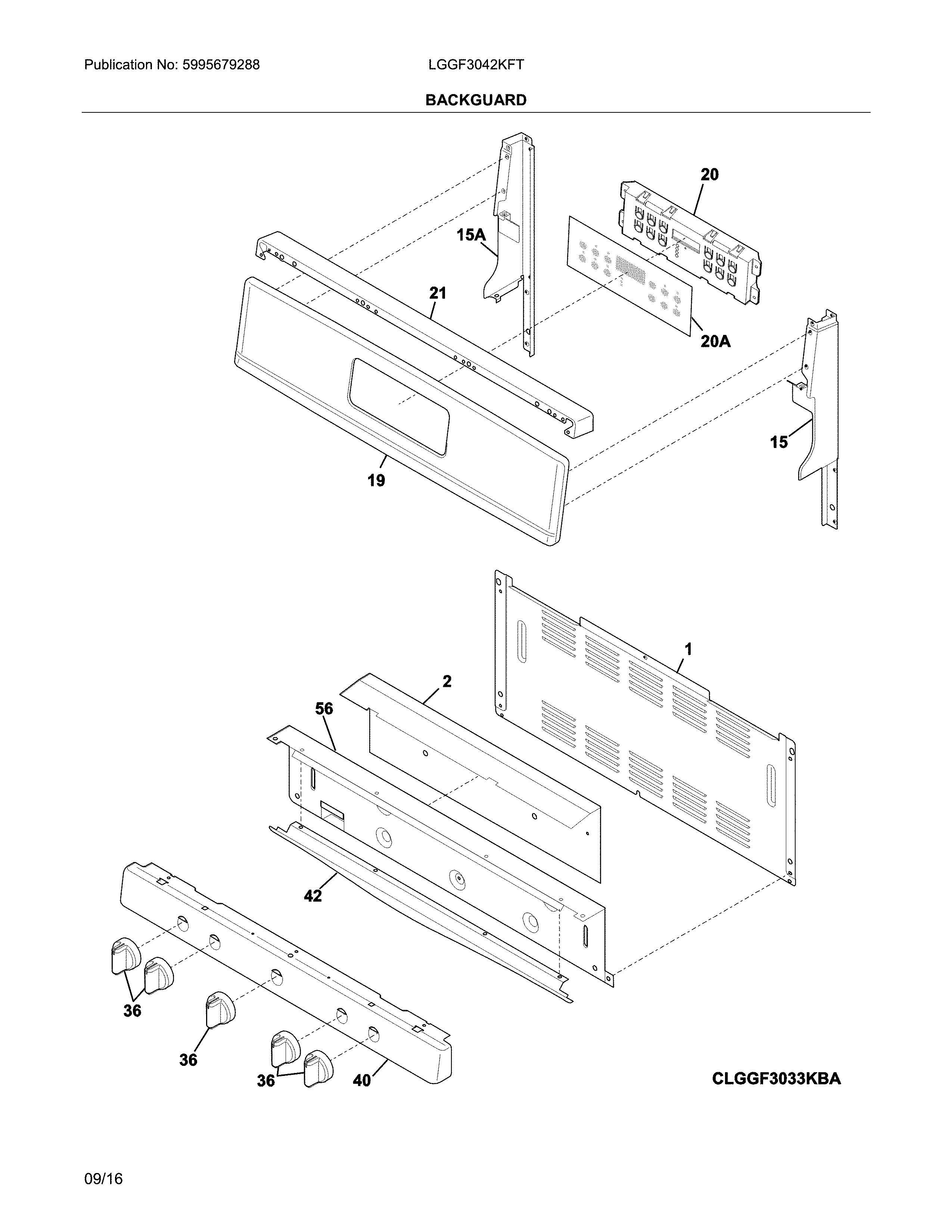

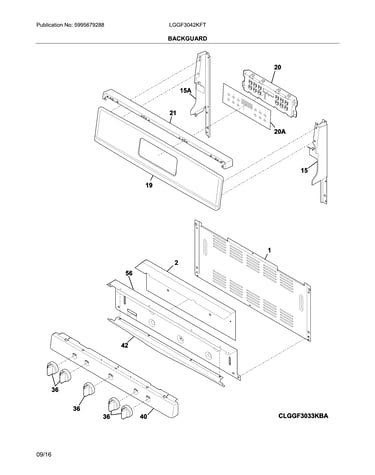

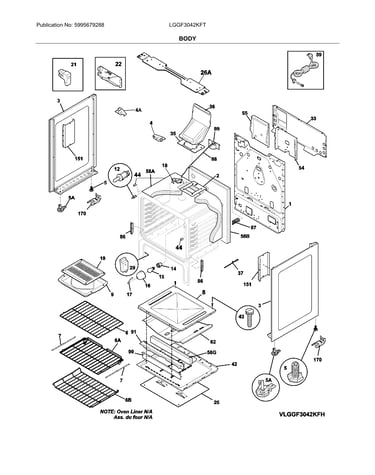

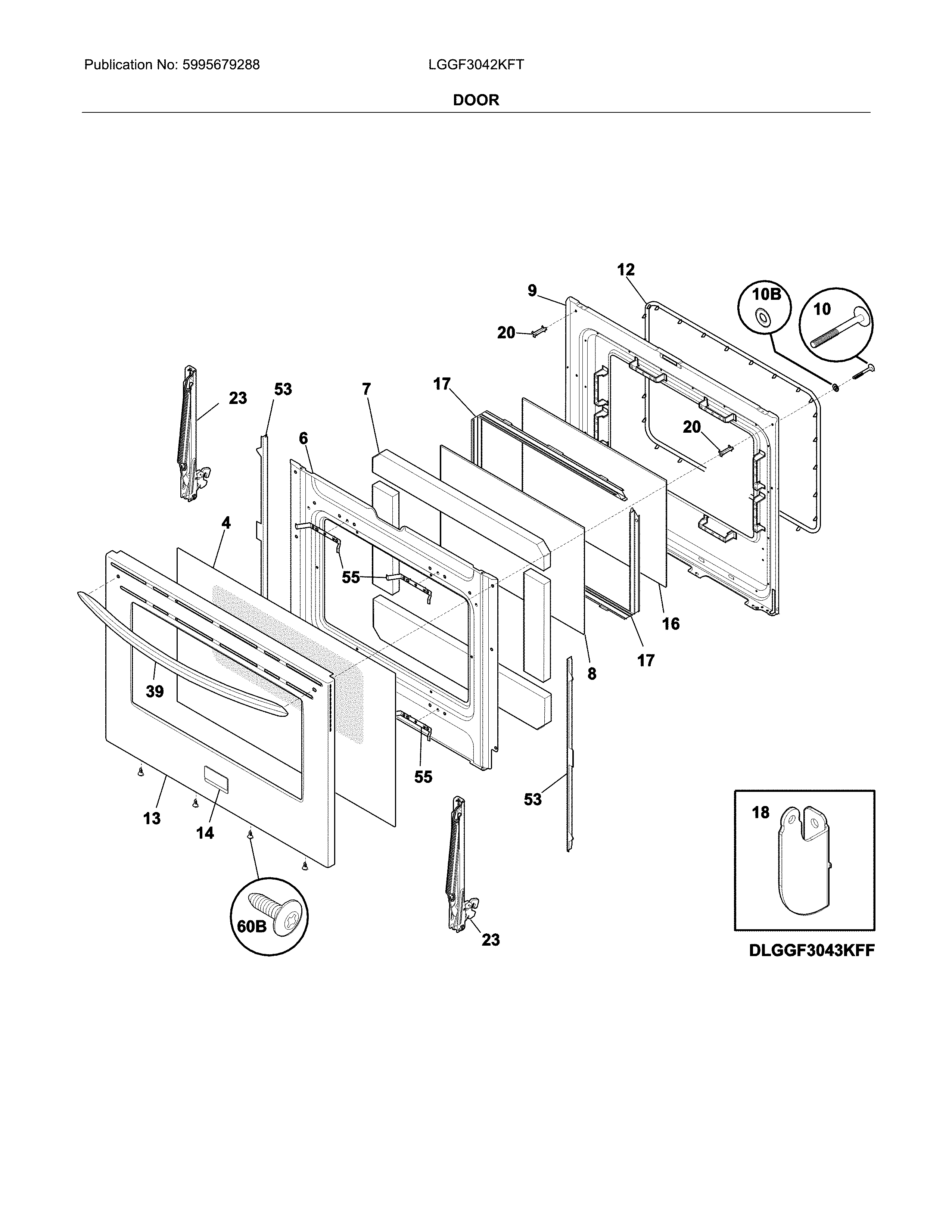

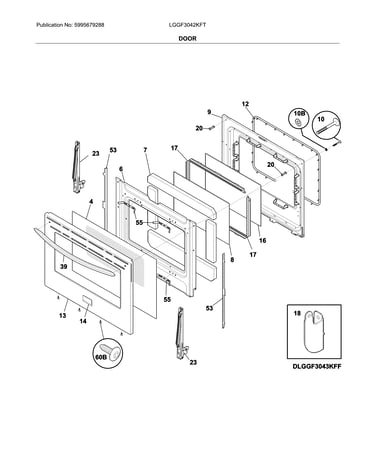

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Range Broil Igniter (replaces 316489404) 5304506545
#19

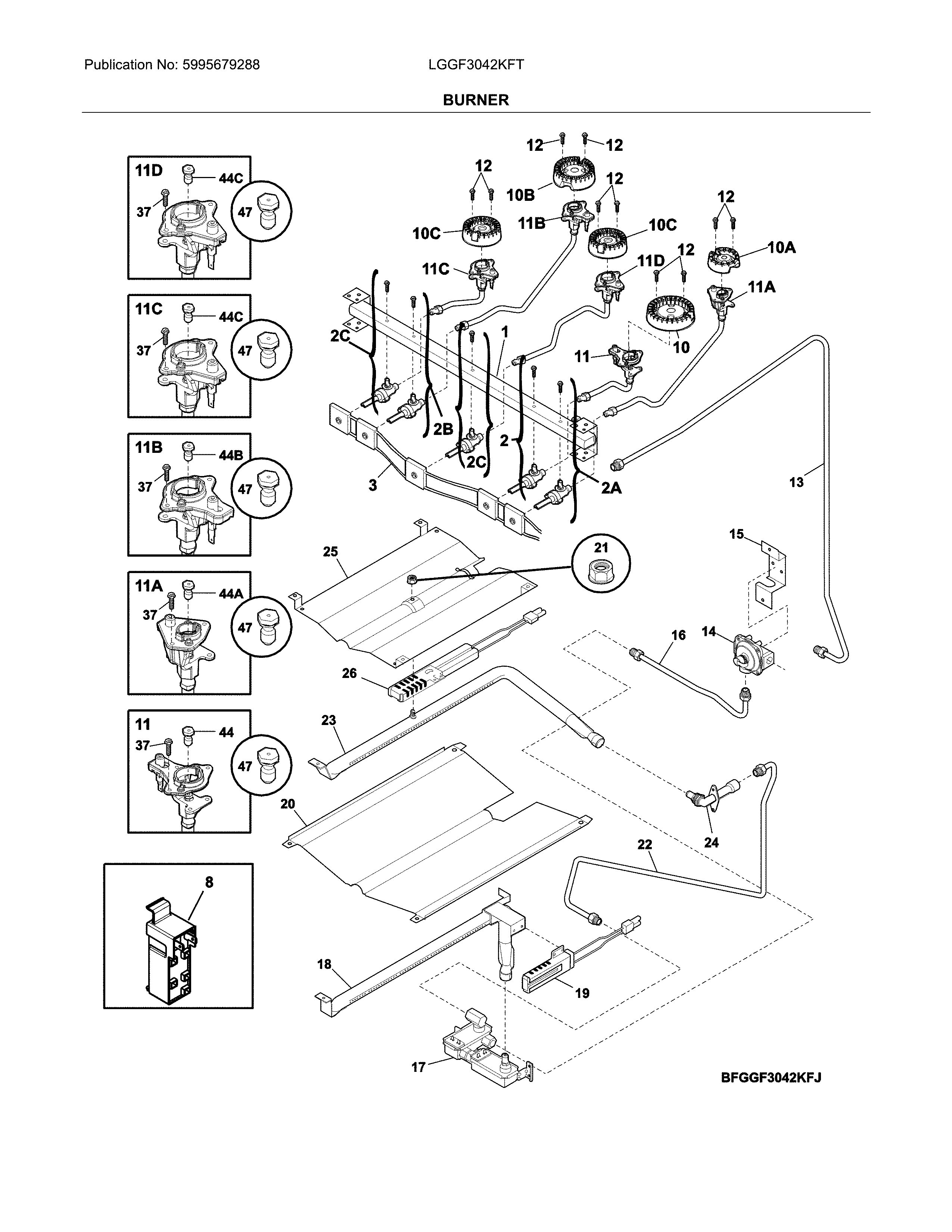

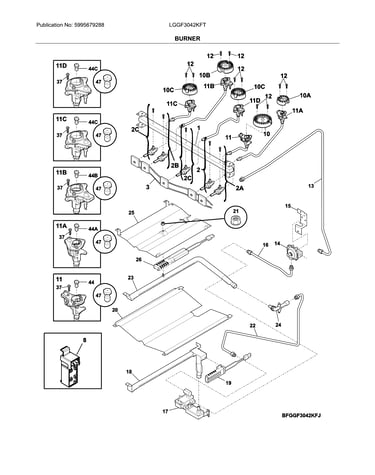

Burner diagram

Range broil igniter (replaces 316489404)

Part #5304506545

BEST SELLER
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

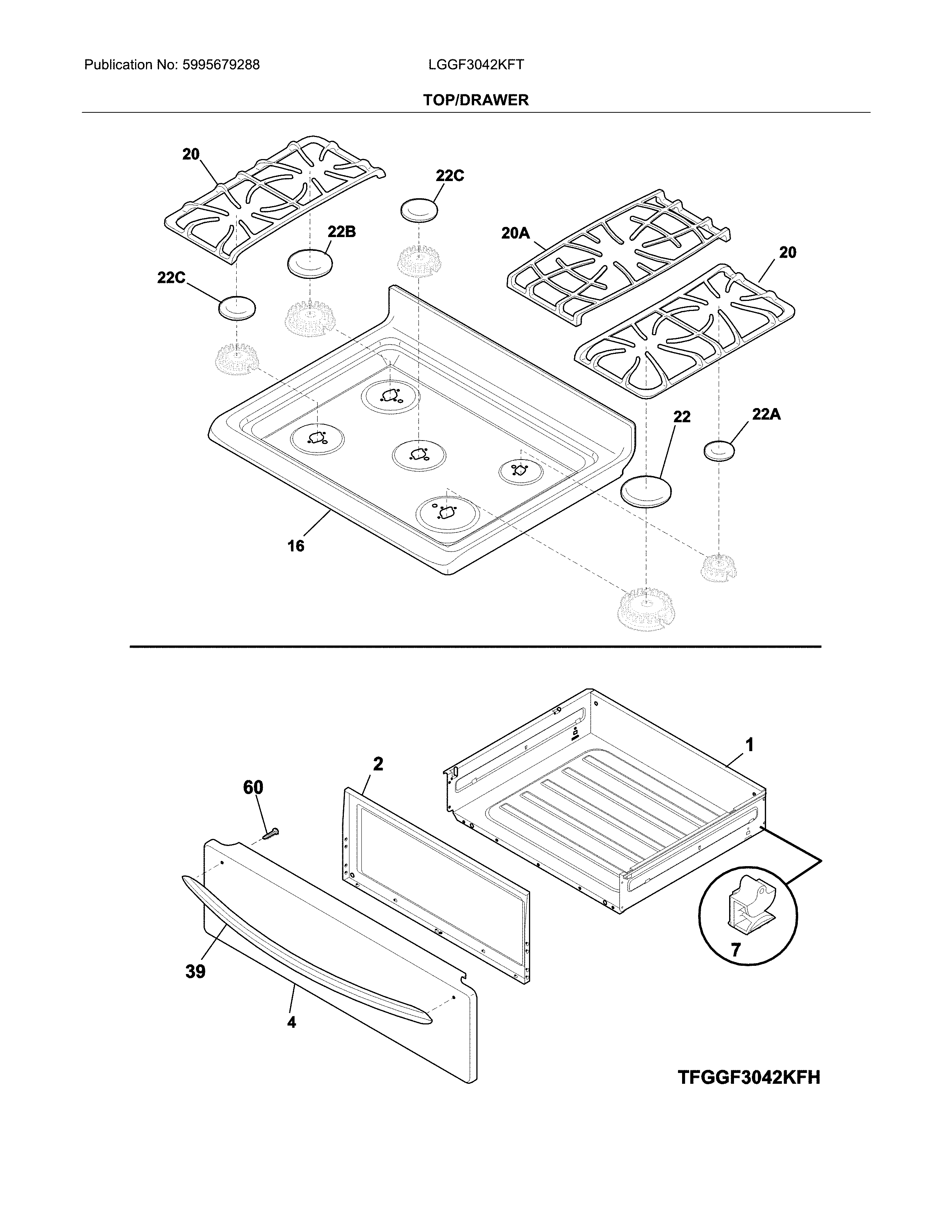

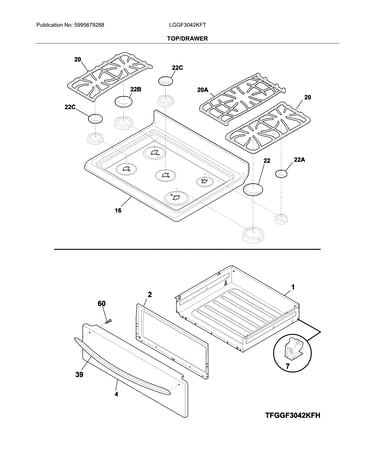

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31
16% OFF Phone Price : $31.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22A

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.46
14% OFF Phone Price : $29.49
In Stock
Range Lp Conversion Kit (replaces 318565418, 5304498798, 5304498817, 5304499345, 5304499406, 5304506291, 808752801) GRLP4
#47

Burner diagram

Range lp conversion kit (replaces 318565418, 5304498798, 5304498817, 5304499345, 5304499406, 5304506291, 808752801)

Part #GRLP4

BEST SELLER
$42.84
13% OFF Phone Price : $49.17
In Stock
Range Pressure Regulator (replaces 5304498819) 316091711
#14

Burner diagram

Range pressure regulator (replaces 5304498819)

Part #316091711

BEST SELLER
In Stock
Range Surface Burner Orifice (replaces 7316527504) 316527504
#44A

Burner diagram

Range surface burner orifice (replaces 7316527504)

Part #316527504

BEST SELLER
$18.49
10% OFF Phone Price : $20.49
In Stock
Range Leveling Leg 316498900
#5A

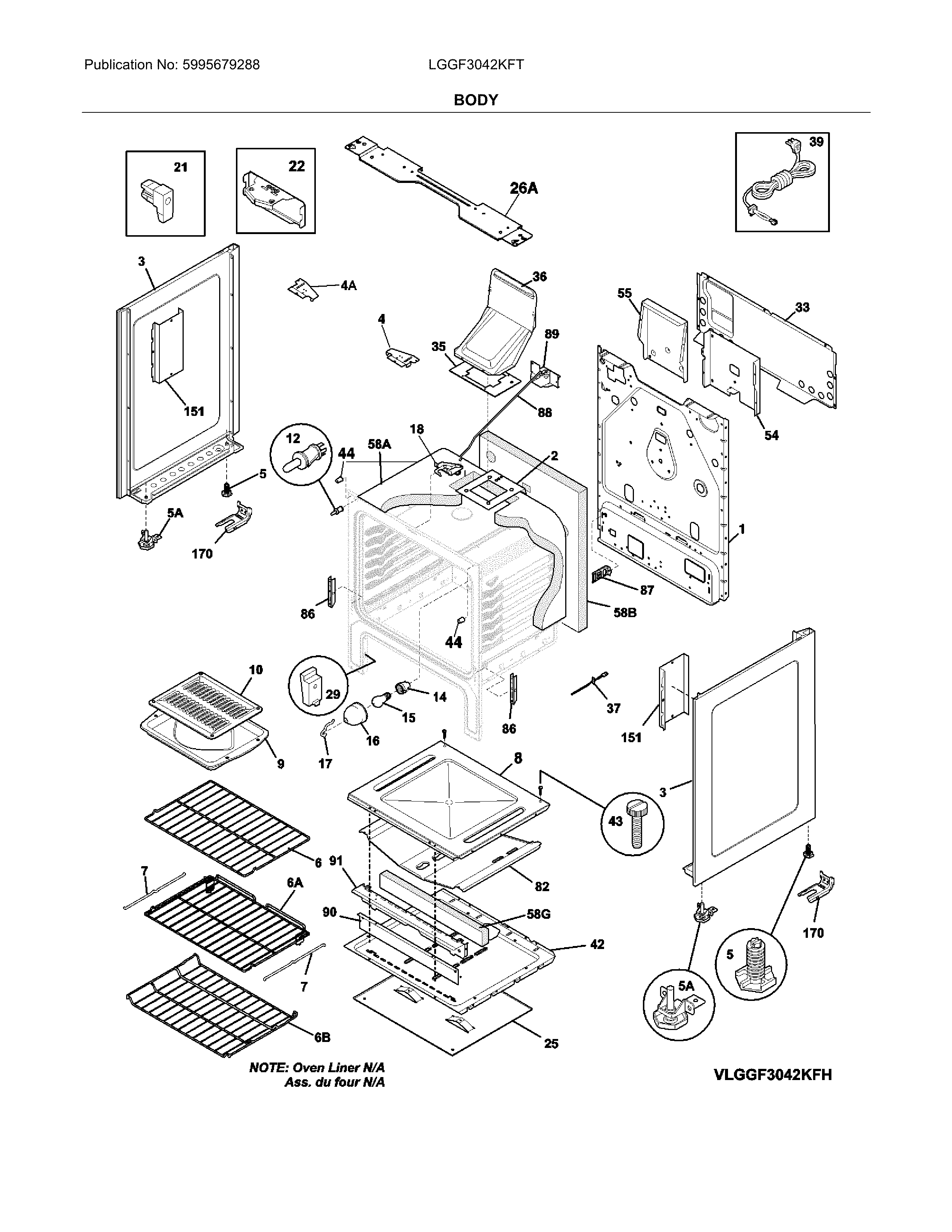

Body diagram
