LG
Dishwasher

Model #LDF9810ST Official LG dishwasher

Here are the diagrams and repair parts for LG LDF9810ST dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 142 parts

Washer Wash Pump Motor (replaces 4681EA2001S, 4681EA2002D)#M050

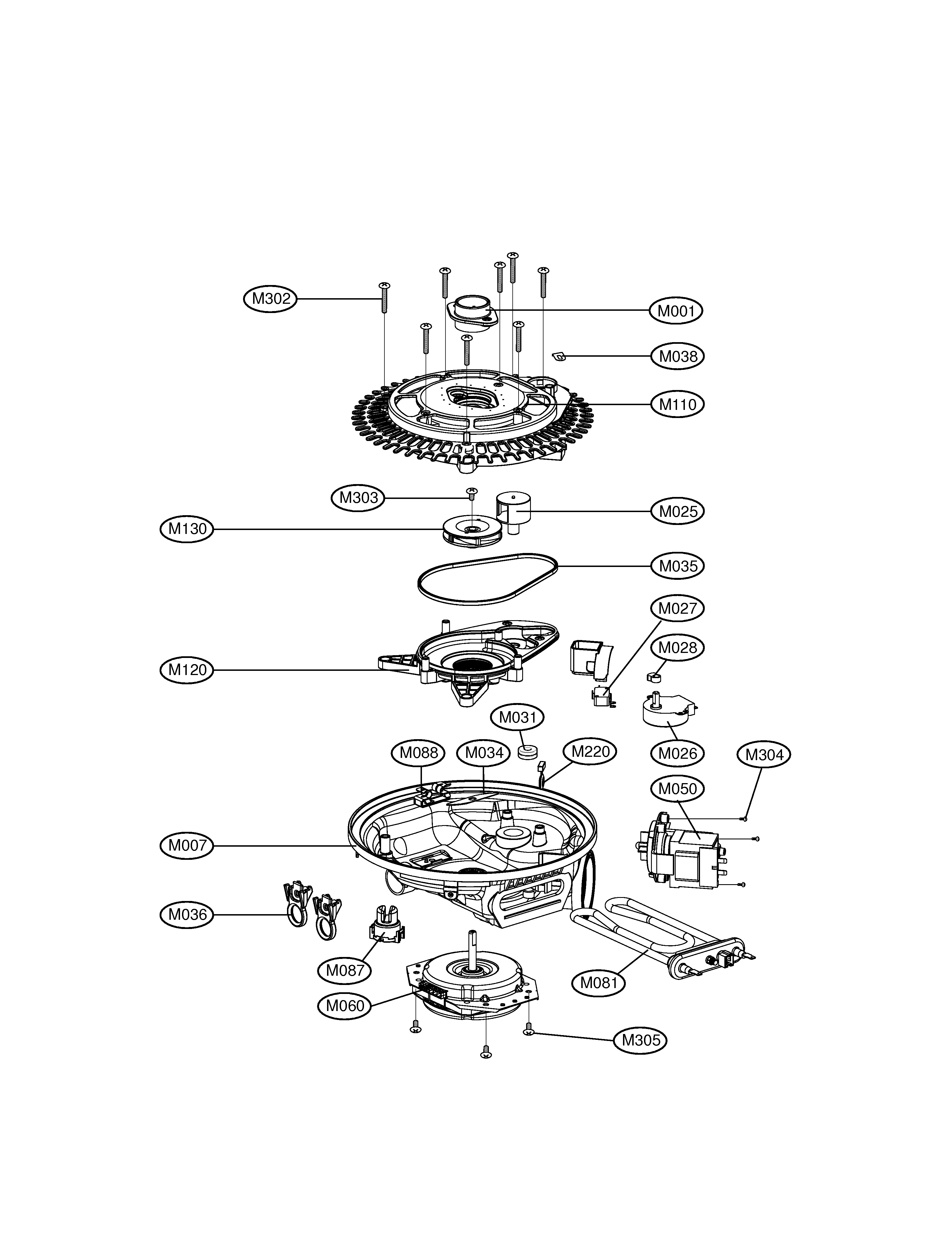

Sump assembly Diagram

Pump motor

Part #4681EA2002D
Replaced by #4681EA2002H
?
Manufacturer substitution
This part replaces 4681EA2002D. Substitute parts can look different from the original.
BEST SELLER
In Stock
$67.29 |
7% OFF
Phone Price: $72.29
Dishwasher Circulation Pump Mesh Filter#M110

Sump assembly Diagram

Dishwasher circulation pump mesh filter

Part #ADQ32598202
BEST SELLER
In Stock
$72.16 |
6% OFF
Phone Price: $77.16
Dishwasher Door Cable#F013

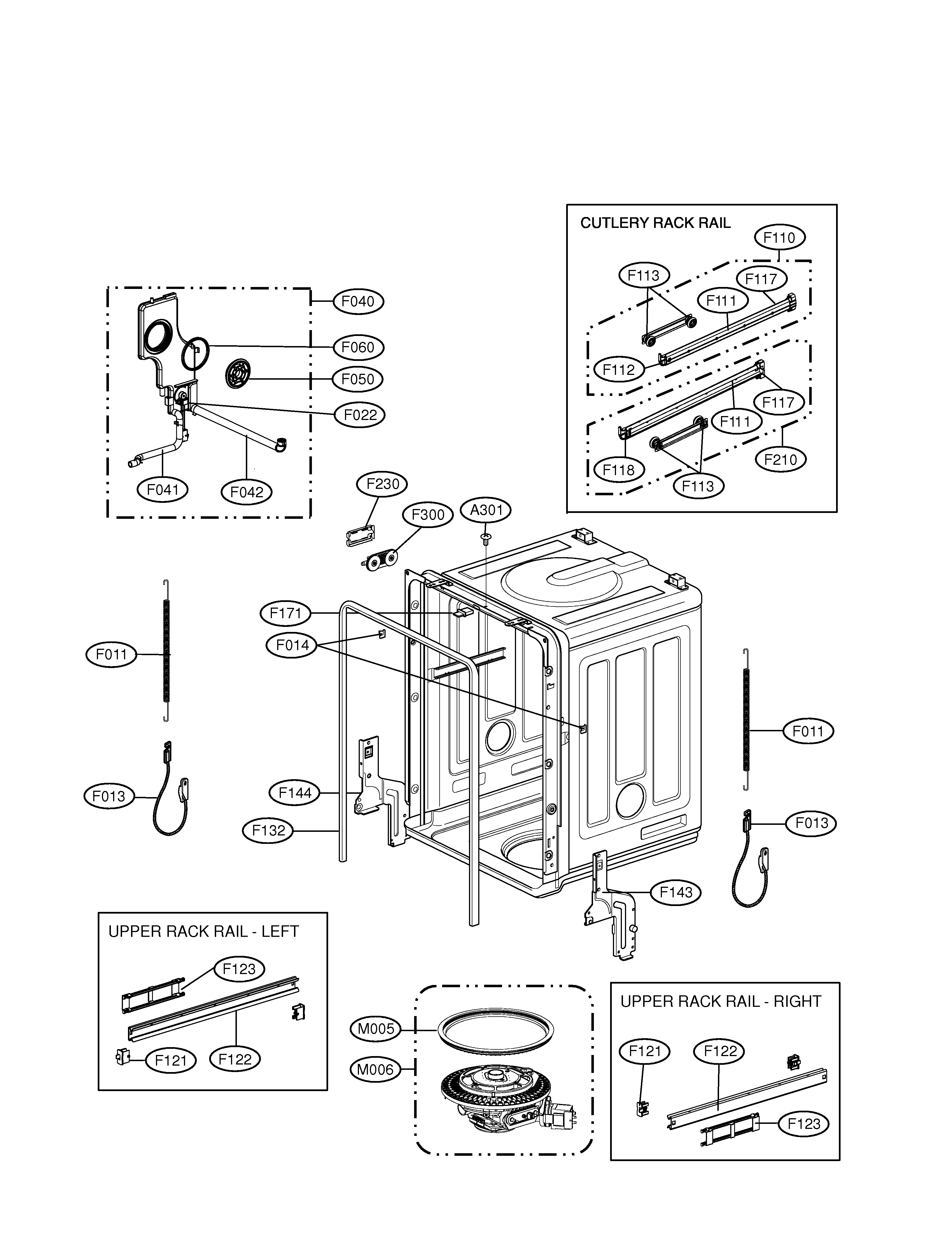

Tub assembly Diagram

Dishwasher door cable

Part #4933DD3001B
BEST SELLER
In Stock
$9.89 |
9% OFF
Phone Price: $10.89
Dishwasher Pump Housing Seal#M035

Sump assembly Diagram

Dishwasher pump housing seal

Part #MFZ32863101
BEST SELLER
This item is not returnable
In Stock
$5.51 |
15% OFF
Phone Price: $6.51
Dishwasher Drain Hose#A130

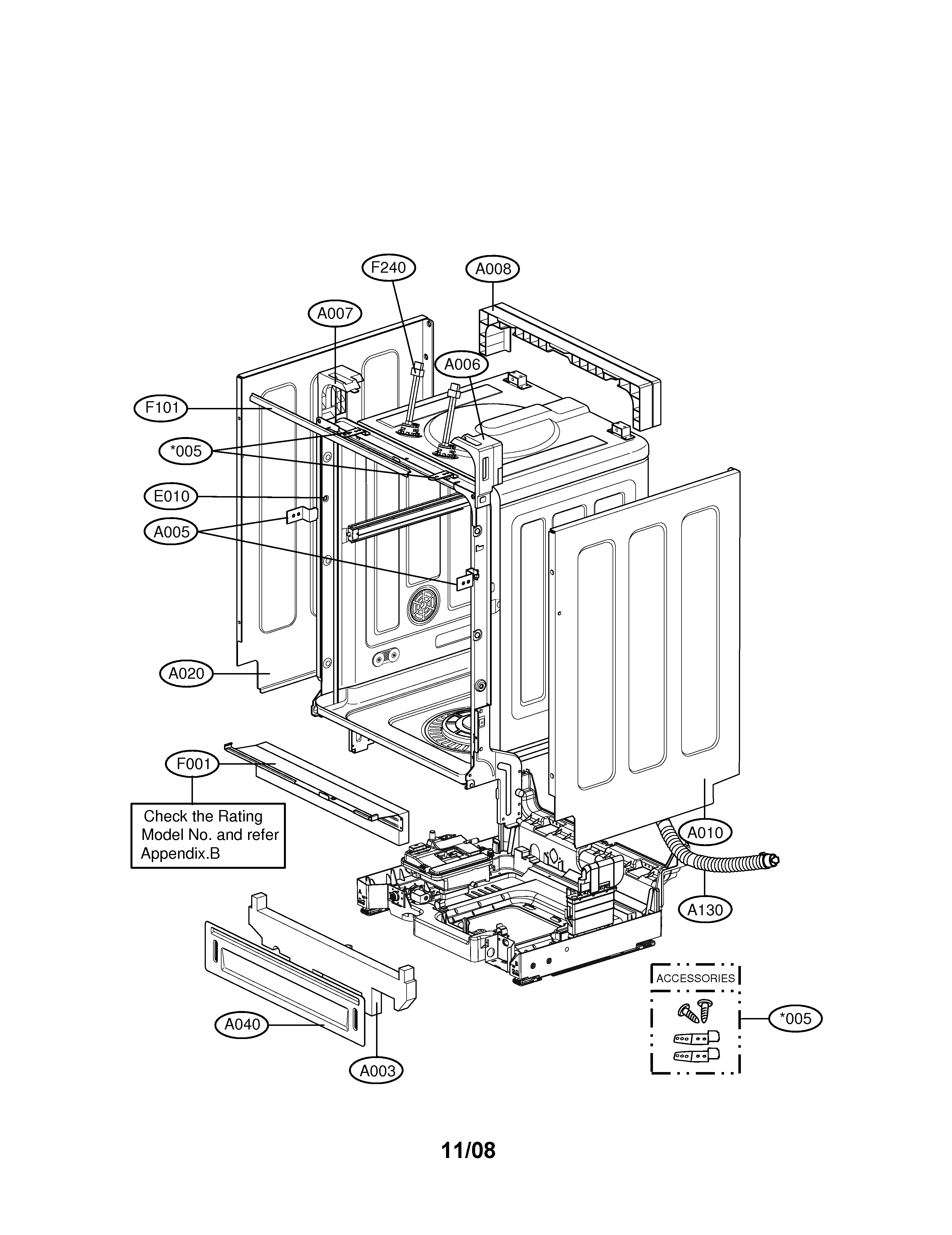

Cabinet Diagram

Dishwasher drain hose assembly

Part #AEM30700301
Replaced by #AEM69493807
?
Manufacturer substitution
This part replaces AEM30700301. Substitute parts can look different from the original.
BEST SELLER
In Stock
$38.04 |
12% OFF
Phone Price: $43.04
Dishwasher Dishrack Roller, Lower

See All Related Diagrams

Dishwasher dishrack roller, lower

Part #4581DD3003B
BEST SELLER
This item is not returnable
In Stock
$4.60 |
18% OFF
Phone Price: $5.60
Dishwasher Diverter Motor (replaces 4681ED3001B)#M026

Sump assembly Diagram

Motor assembly

Part #4681ED3001B
Replaced by #4681ED3001D
?
Manufacturer substitution
This part replaces 4681ED3001B. Substitute parts can look different from the original.
BEST SELLER
In Stock
$29.18 |
15% OFF
Phone Price: $34.18
Dishwasher Tub Gasket#F132

Tub assembly Diagram

Dishwasher tub gasket

Part #3920DD3005A
BEST SELLER
In Stock
$34.72 |
13% OFF
Phone Price: $39.72
Dishwasher Diverter Position Switch#M027

Sump assembly Diagram

Dishwasher diverter position switch

Part #3W40025C
This item is not returnable
In Stock
$12.91 |
13% OFF
Phone Price: $14.91
Dishwasher Door Lock#K260

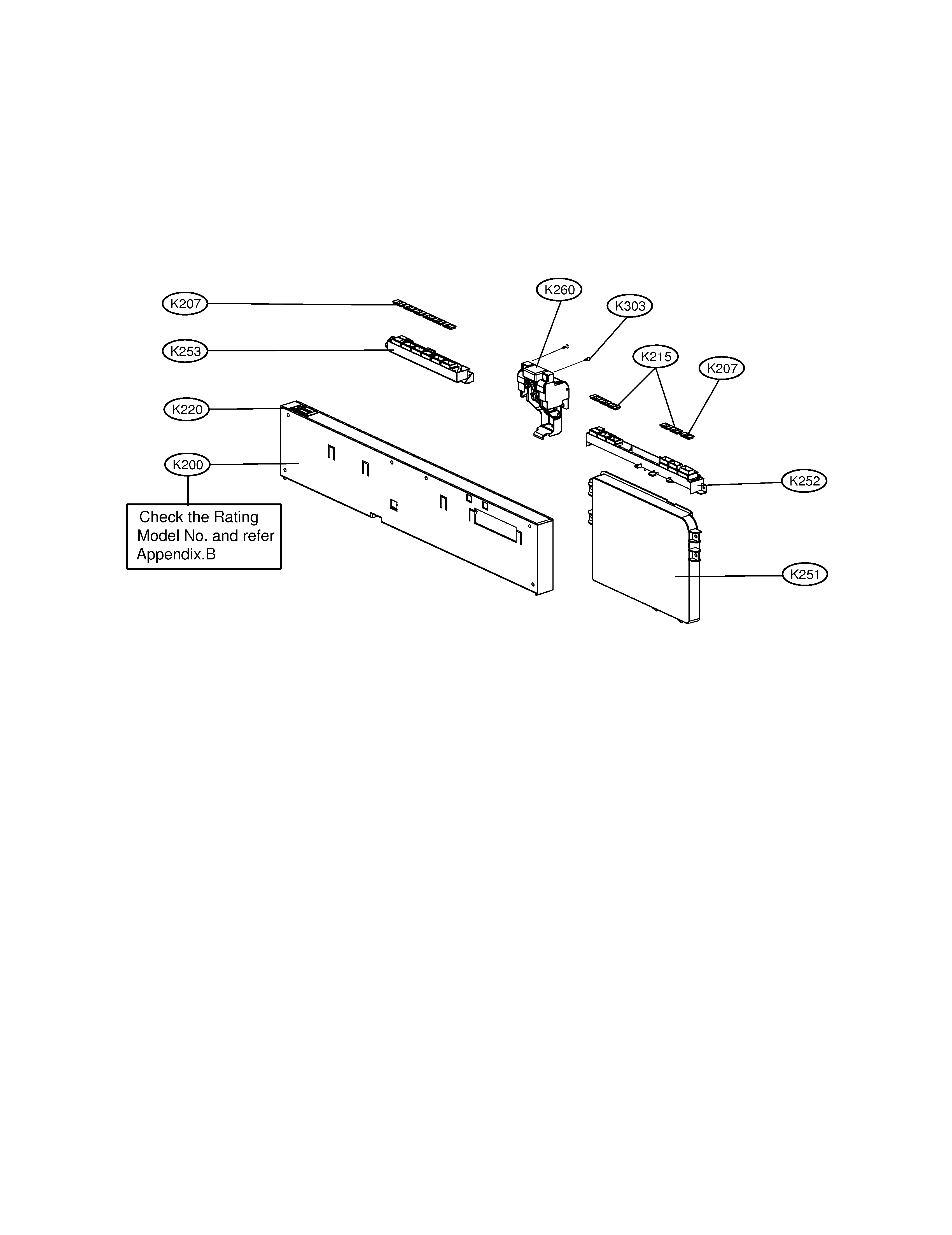

Panel assembly Diagram

Locker assembly

Part #4027ED3002D
Replaced by #4027ED3002J
?
Manufacturer substitution
This part replaces 4027ED3002D. Substitute parts can look different from the original.
In Stock
$39.26 |
11% OFF
Phone Price: $44.26

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main cause: damaged rack height adjuster
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: broken door spring, damaged or broken door hinge
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
