Model #505471130 Official Sears bicycle

Here are the diagrams and repair parts for Sears 505471130 bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 43 parts

26 Inch Tube

See All Related Diagrams

26 inch tube

Part #16227

The manufacturer no longer makes this part, and there's no substitute part

26 In Tire

See All Related Diagrams

26 in tire

Part #10121

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe#5

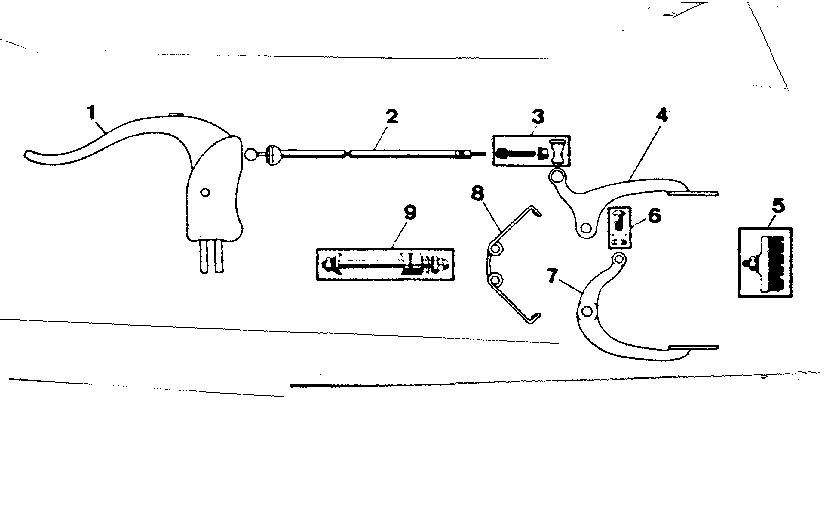

Arai-front caliper brake-9805-b Diagram

Brake shoe

Part #21894

The manufacturer no longer makes this part, and there's no substitute part

Wheel#21

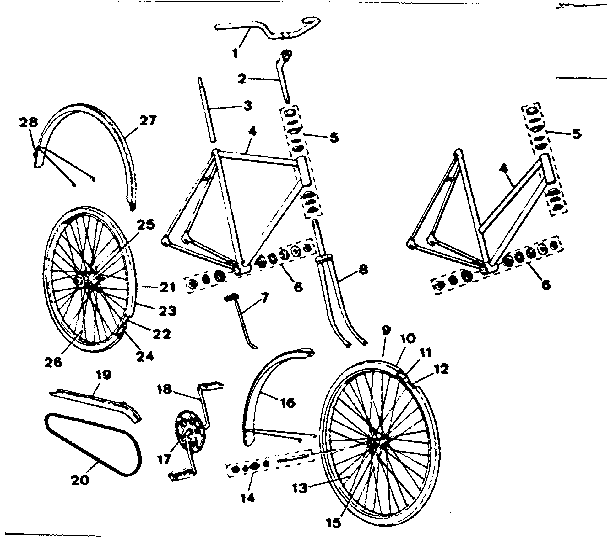

Unit parts Diagram

Wheel

Part #24515

The manufacturer no longer makes this part, and there's no substitute part

Rim

See All Related Diagrams

Rim

Part #14306-3

The manufacturer no longer makes this part, and there's no substitute part

Rear Hub#25

Unit parts Diagram

Rear hub

Part #24696

The manufacturer no longer makes this part, and there's no substitute part

Trg Cont Asy#1

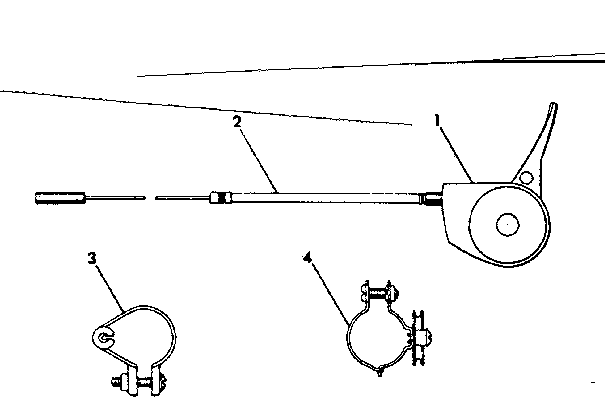

Shimano trigger control assembly part no. 24170 Diagram

Trg cont asy

Part #24170

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard#19

Unit parts Diagram

Chain guard

Part #23469

The manufacturer no longer makes this part, and there's no substitute part

FRONT RENDER (REPLACEMENTS AVAILABLE IN COMPLETE SETS ONLY)#16

Unit parts Diagram

Front render (replacements available in complete sets only)

Part #9830-B3

The manufacturer no longer makes this part, and there's no substitute part

Barke Arm#4

Arai-front caliper brake-9805-b Diagram

Barke arm

Part #21893

The manufacturer no longer makes this part, and there's no substitute part
