KitchenAid
Gas Cooktop

Model # KGCU484VSS00 Official KitchenAid 48" cooktop grill & griddle (stainless)

Here are the diagrams and repair parts for Official KitchenAid KGCU484VSS00 48" cooktop grill & griddle (stainless), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Wall Oven Temperature Sensor W10131825
#39

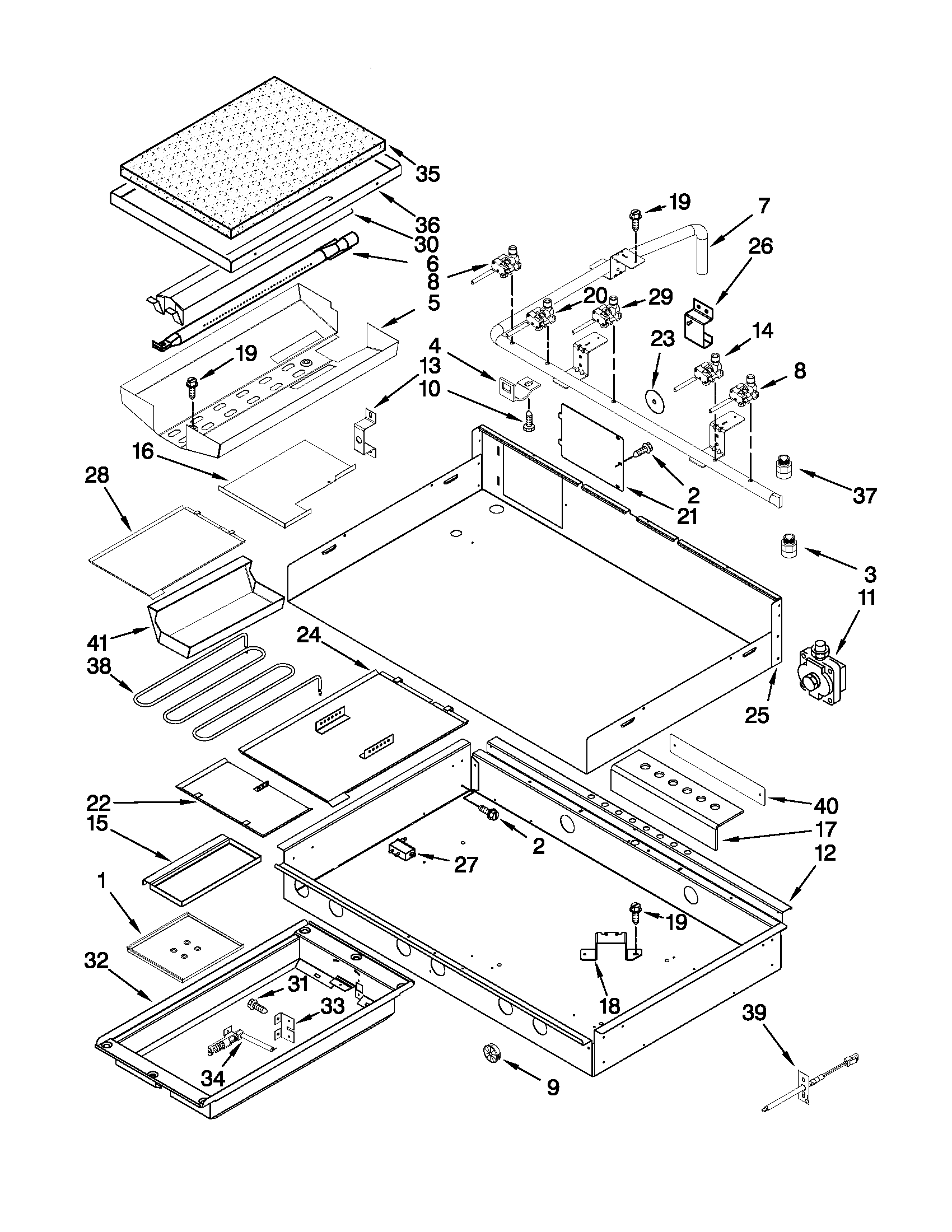

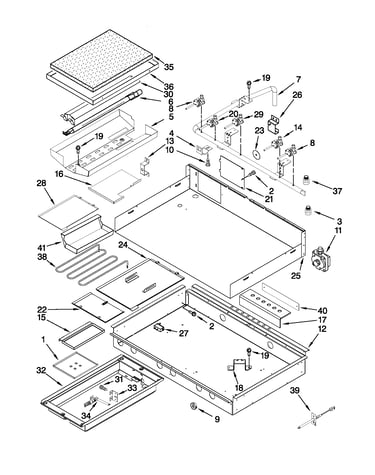

Burner box, gas valves, and switches diagram

Wall oven temperature sensor

Part #W10131825

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces W10131825. Substitute parts can look different from the original.
BEST SELLER
$70.23 |
18% OFF MSRP : $86.00
In Stock
Module- Sp 7431P038-60
#25

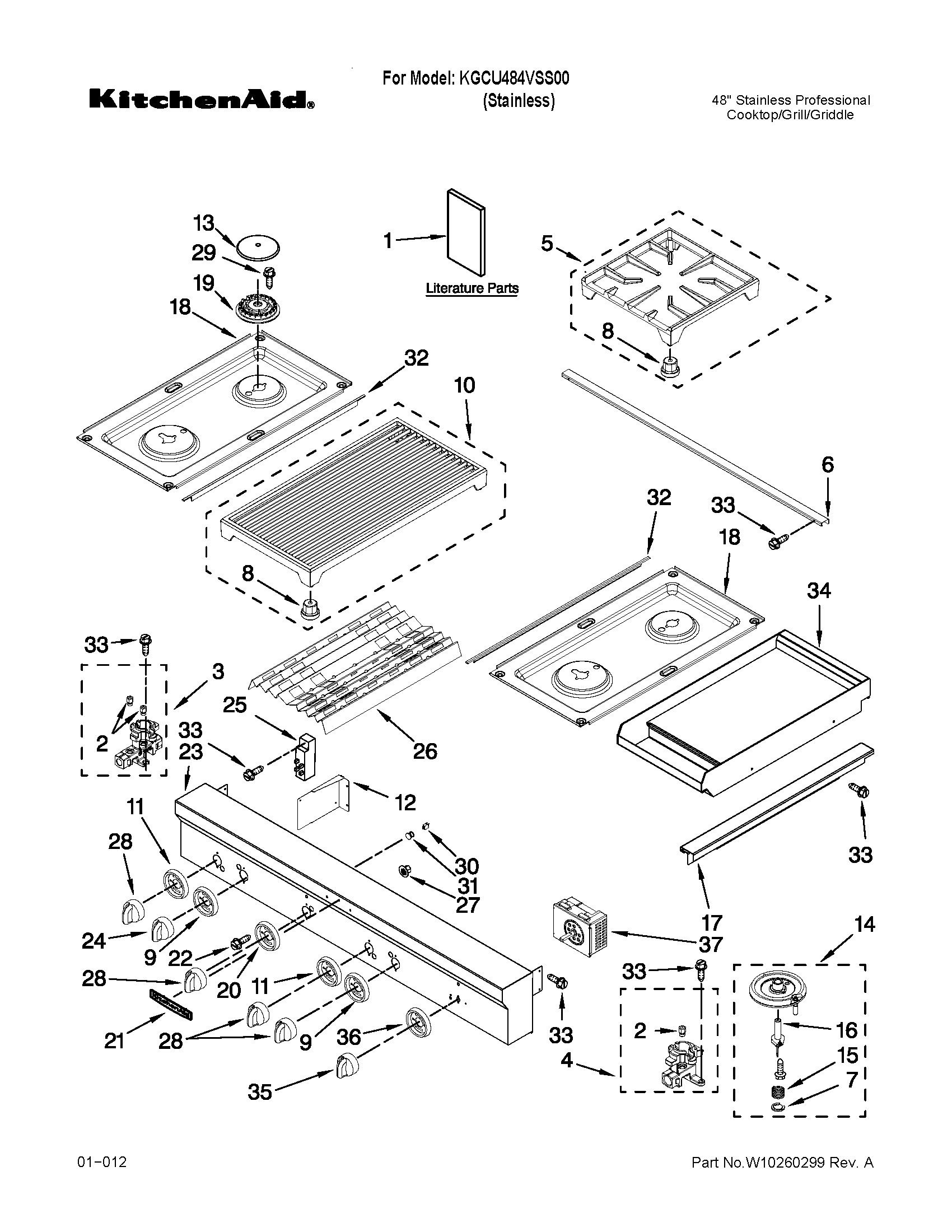

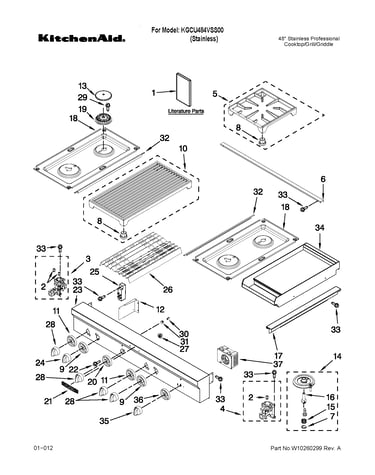

Cooktop, burner and grate parts diagram

Module- sp

Part #7431P038-60

Replaced by #WPW10475147

?
Manufacturer substitution
This part replaces 7431P038-60. Substitute parts can look different from the original.
$193.39 |
12% OFF MSRP : $220.00
In Stock
Spark Module W10116108
#27

Burner box, gas valves, and switches diagram

Spark module

Part #W10116108

Replaced by #WP8190929

?
Manufacturer substitution
This part replaces W10116108. Substitute parts can look different from the original.
$39.55 |
19% OFF MSRP : $49.00
In Stock
Screw 3196178
#31

Burner box, gas valves, and switches diagram

Screw

Part #3196178

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196178. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Burner Valve W10250410
#20

Burner box, gas valves, and switches diagram

Burner valve

Part #W10250410

Replaced by #WPW10371235

?
Manufacturer substitution
This part replaces W10250410. Substitute parts can look different from the original.
$179.21 |
5% OFF Phone Price : $189.21
In Stock
Grate Pad 8286695
#8

Cooktop, burner and grate parts diagram

Grate pad

Part #8286695

Replaced by #W10185266

?
Manufacturer substitution
This part replaces 8286695. Substitute parts can look different from the original.
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Range Screw 4449809
Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Surface Igniter W10250406
#16

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10250406

Replaced by #WPW10250406

?
Manufacturer substitution
This part replaces W10250406. Substitute parts can look different from the original.
$25.79 |
16% OFF Phone Price : $30.79
In Stock
Burner Valve W10250408
#14

Burner box, gas valves, and switches diagram

Burner valve

Part #W10250408

Replaced by #WPW10385583

?
Manufacturer substitution
This part replaces W10250408. Substitute parts can look different from the original.
$156.24 |
6% OFF Phone Price : $166.24
In Stock
Cooktop Griddle Burner Heat Deflector W10269564
#5

Burner box, gas valves, and switches diagram

Cooktop griddle burner heat deflector

Part #W10269564

$93.38
In Stock
