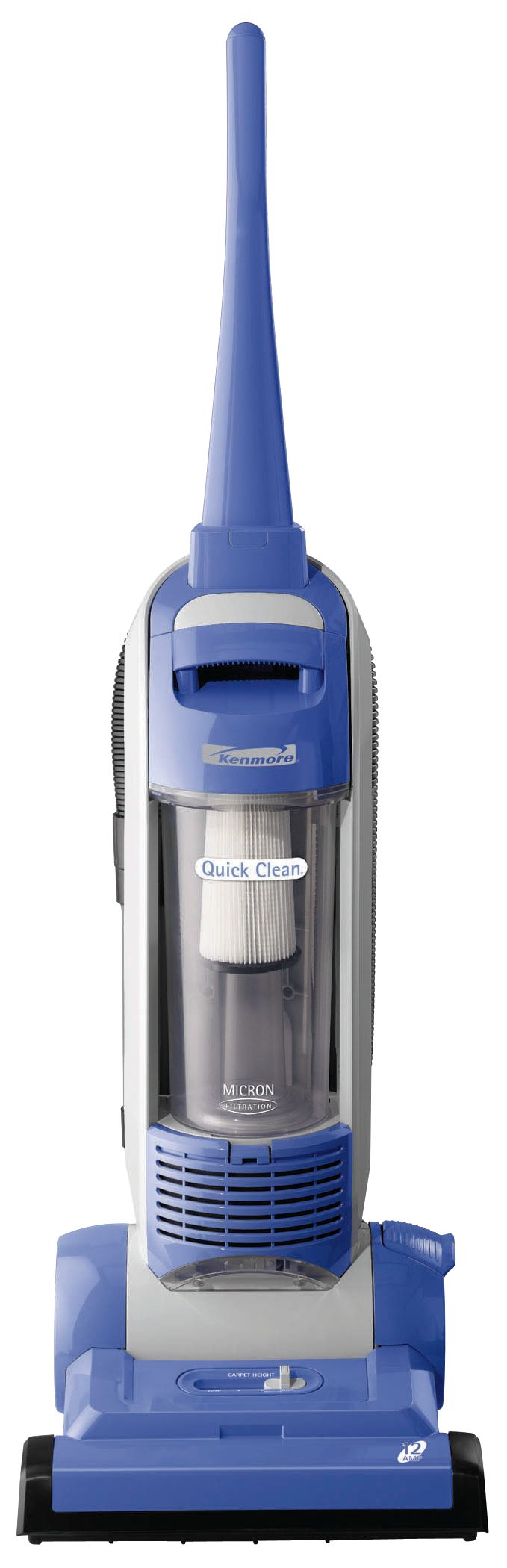

Kenmore
Upright Vacuum

Model #21637000700 Official Kenmore vacuum

Here are the diagrams and repair parts for Kenmore 21637000700 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 97 parts

Filtr Cage#82

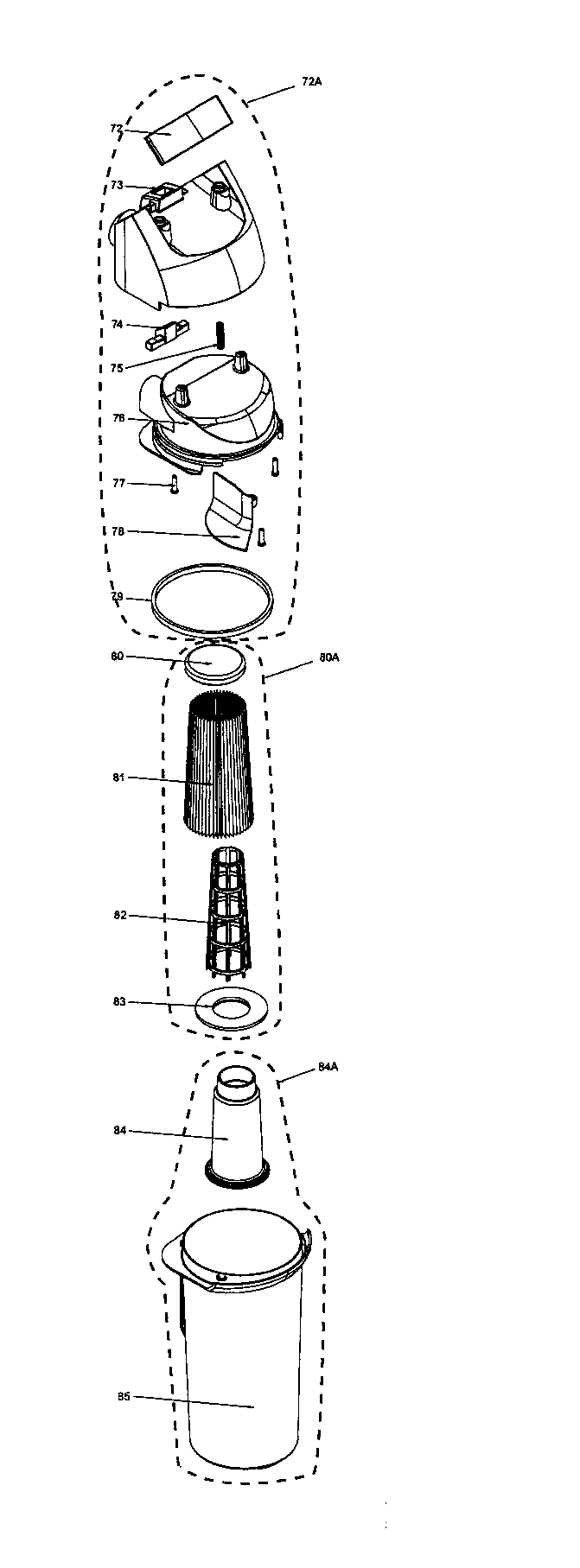

Conteiner Diagram

Filtr cage

Part #515375001

The manufacturer no longer makes this part, and there's no substitute part

Filter Assembly#80A

Conteiner Diagram

Filter assembly

Part #K2-AA300-X00

The manufacturer no longer makes this part, and there's no substitute part

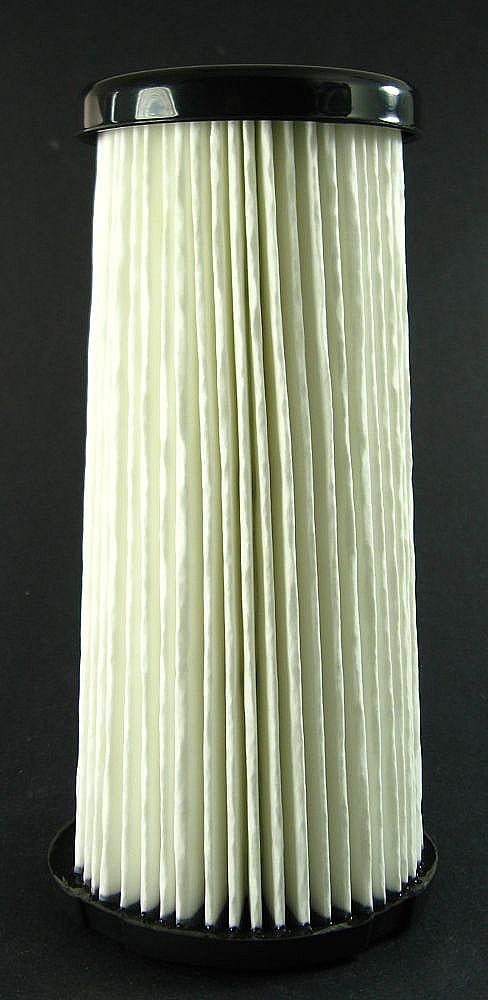

Filter#81

Conteiner Diagram

Filter

Part #901628001

The manufacturer no longer makes this part, and there's no substitute part

Top, Filte#80

Conteiner Diagram

Top, filte

Part #54066500402

The manufacturer no longer makes this part, and there's no substitute part

Gasket#83

Conteiner Diagram

Gasket

Part #300934003

The manufacturer no longer makes this part, and there's no substitute part

Height Knob#9

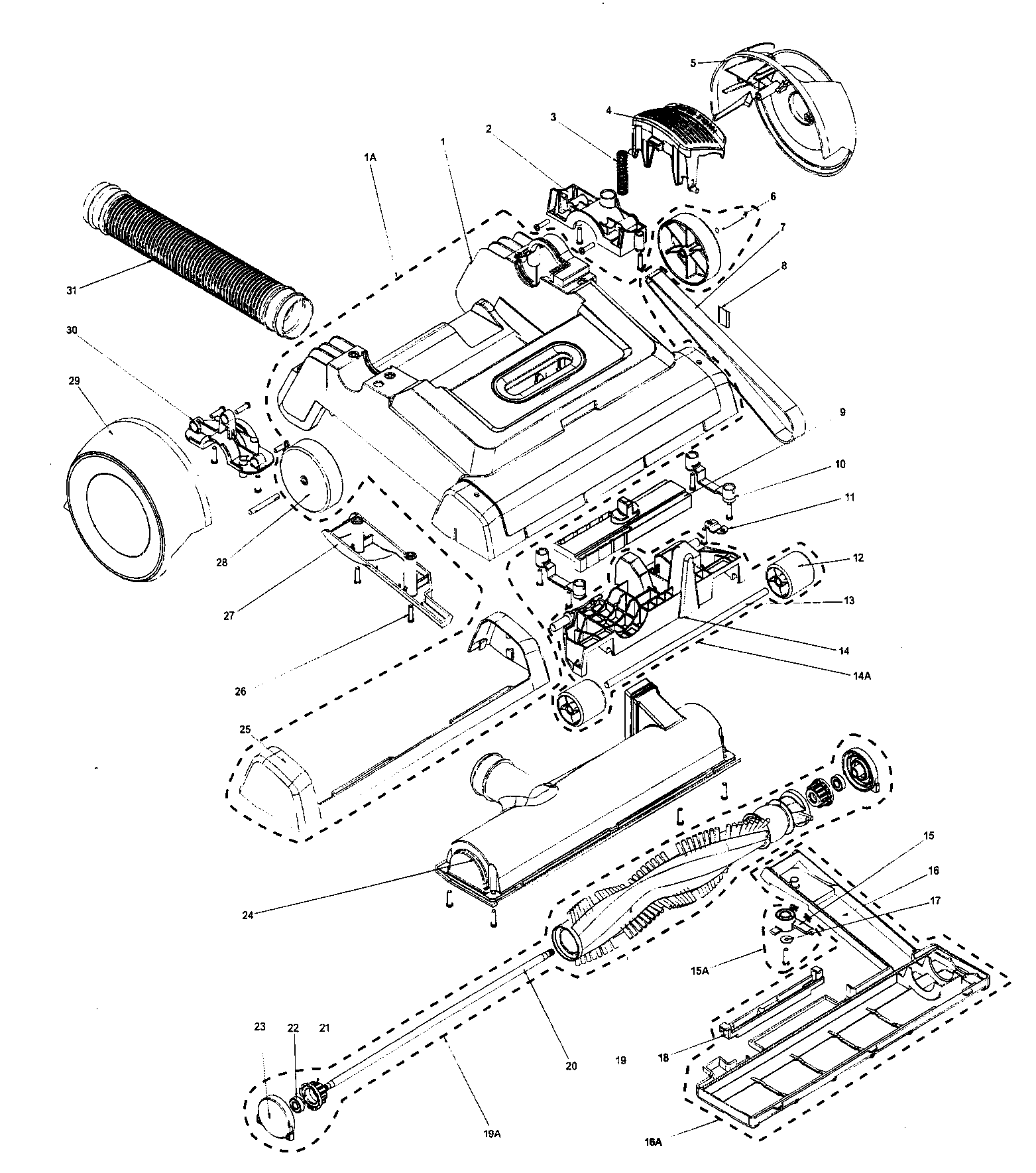

Nozzle parts Diagram

Height knob

Part #515355001

The manufacturer no longer makes this part, and there's no substitute part

Hose Adapter#59

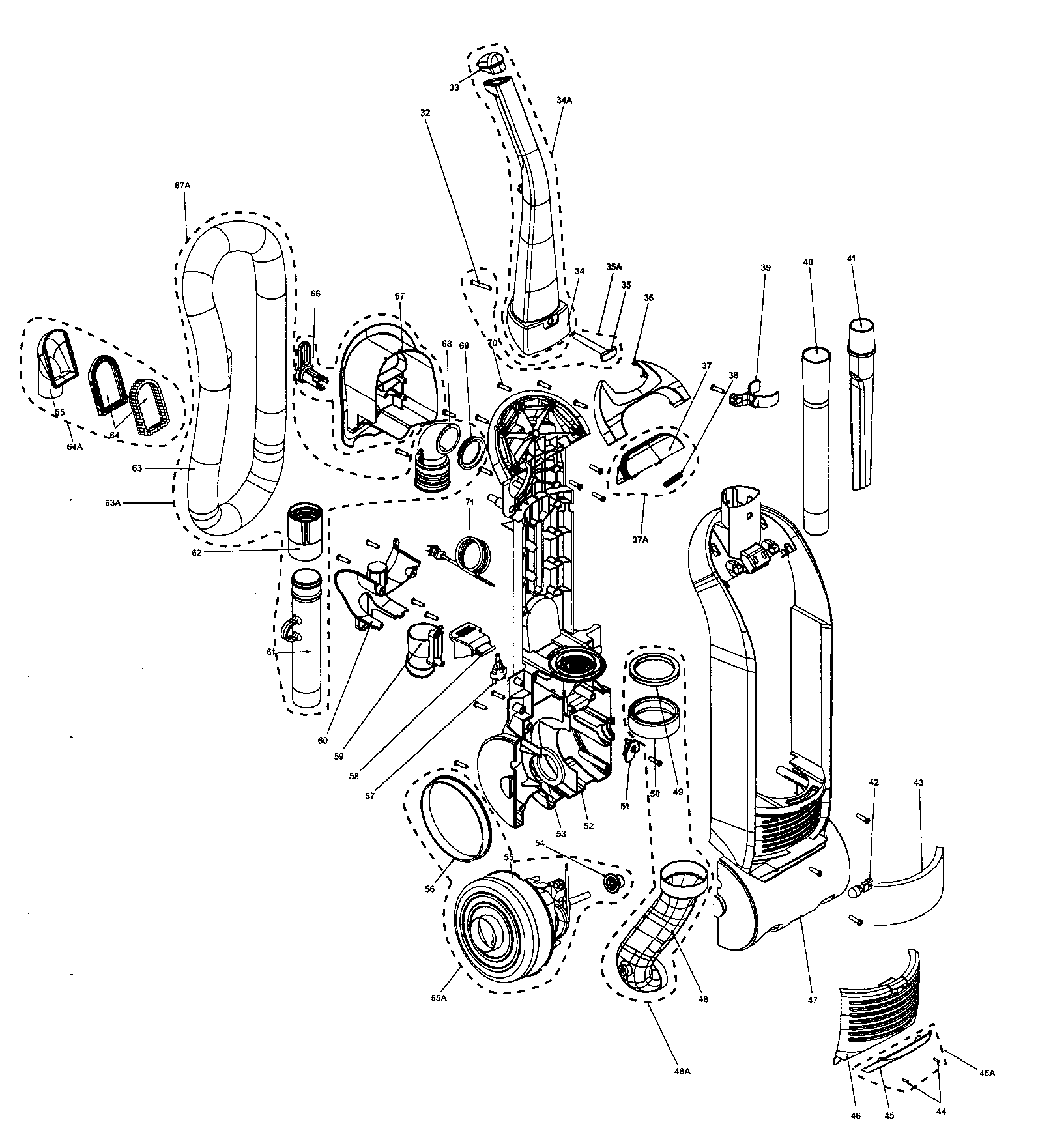

Main body Diagram

Hose adapter

Part #515358001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing#24

Nozzle parts Diagram

Vacuum housing

Part #515347001

The manufacturer no longer makes this part, and there's no substitute part

Gasket#50

Main body Diagram

Gasket

Part #561667001

The manufacturer no longer makes this part, and there's no substitute part

Front Panel#47

Main body Diagram

Front panel

Part #515316001

The manufacturer no longer makes this part, and there's no substitute part
