GE
Room Air Conditioner

Model # AGE21DJM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGE21DJM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Age14, 18, 2 49-7433
#9999

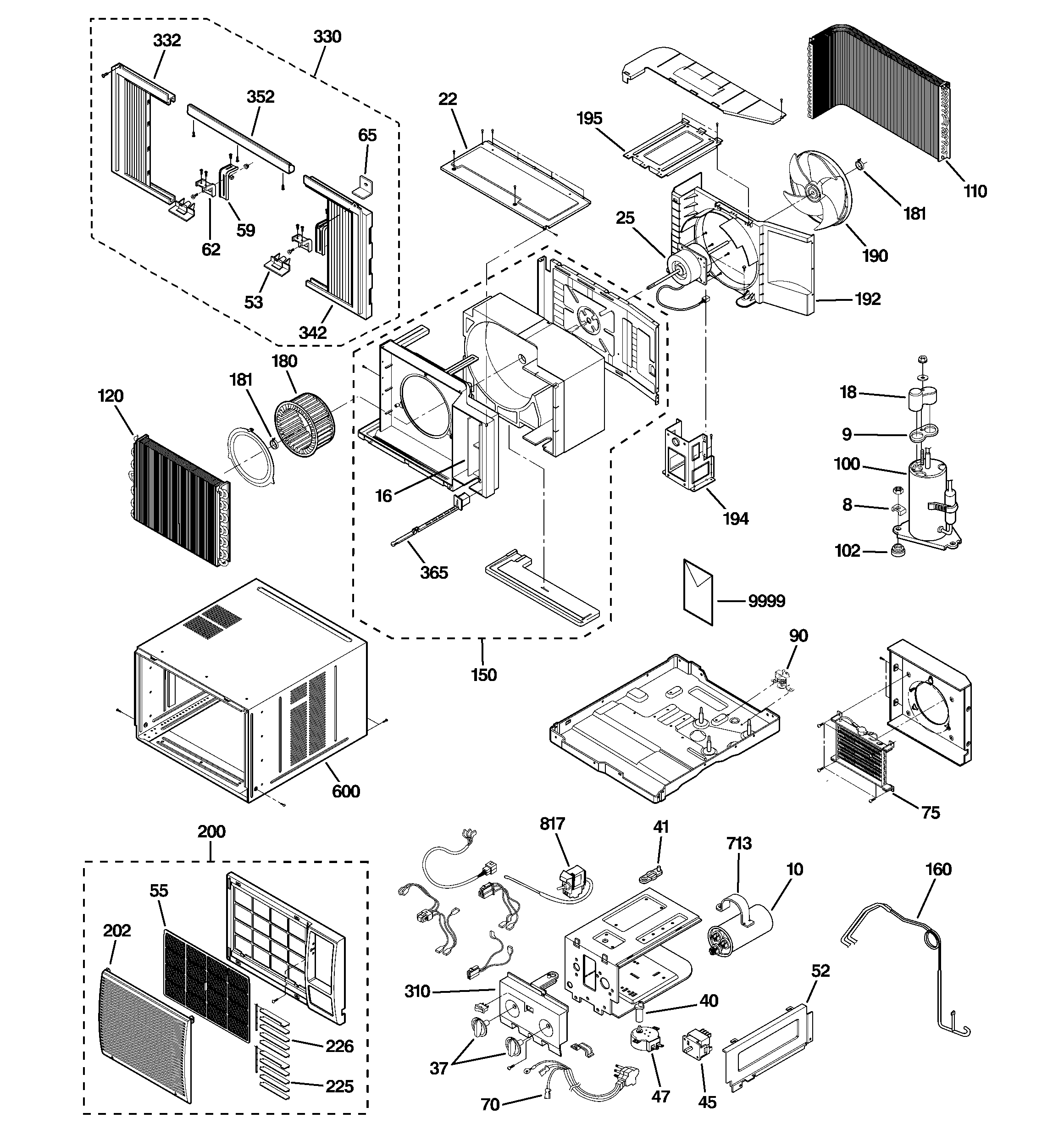

Room air conditioner diagram

Age14, 18, 2

Part #49-7433

$17.99
In Stock
Fan WJ73X10026
#190

Room air conditioner diagram

Fan

Part #WJ73X10026

$66.99
In Stock
Terminal Cover WJ79X10033
#18

Room air conditioner diagram

Terminal cover

Part #WJ79X10033

The manufacturer no longer makes this part, and there's no substitute part

Terminal Gasket WJ43X10011
#9

Room air conditioner diagram

Terminal gasket

Part #WJ43X10011

The manufacturer no longer makes this part, and there's no substitute part

Motor WJ94X10082
#25

Room air conditioner diagram

Motor

Part #WJ94X10082

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X10029
#10

Room air conditioner diagram

Capacitor

Part #WJ20X10029

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10104
#100

Room air conditioner diagram

Compressor

Part #WJ98X10104

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10105
#100

Room air conditioner diagram

Compressor

Part #WJ98X10105

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Was WJ01X10076
#8

Room air conditioner diagram

Bracket, was

Part #WJ01X10076

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual 31-61300
#9999

Room air conditioner diagram

Mini manual

Part #31-61300

The manufacturer no longer makes this part, and there's no substitute part
