Model #WS-65869 Official Mitsubishi television

Here are the diagrams and repair parts for Mitsubishi WS-65869 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 52 parts

Ic-se110n#NI

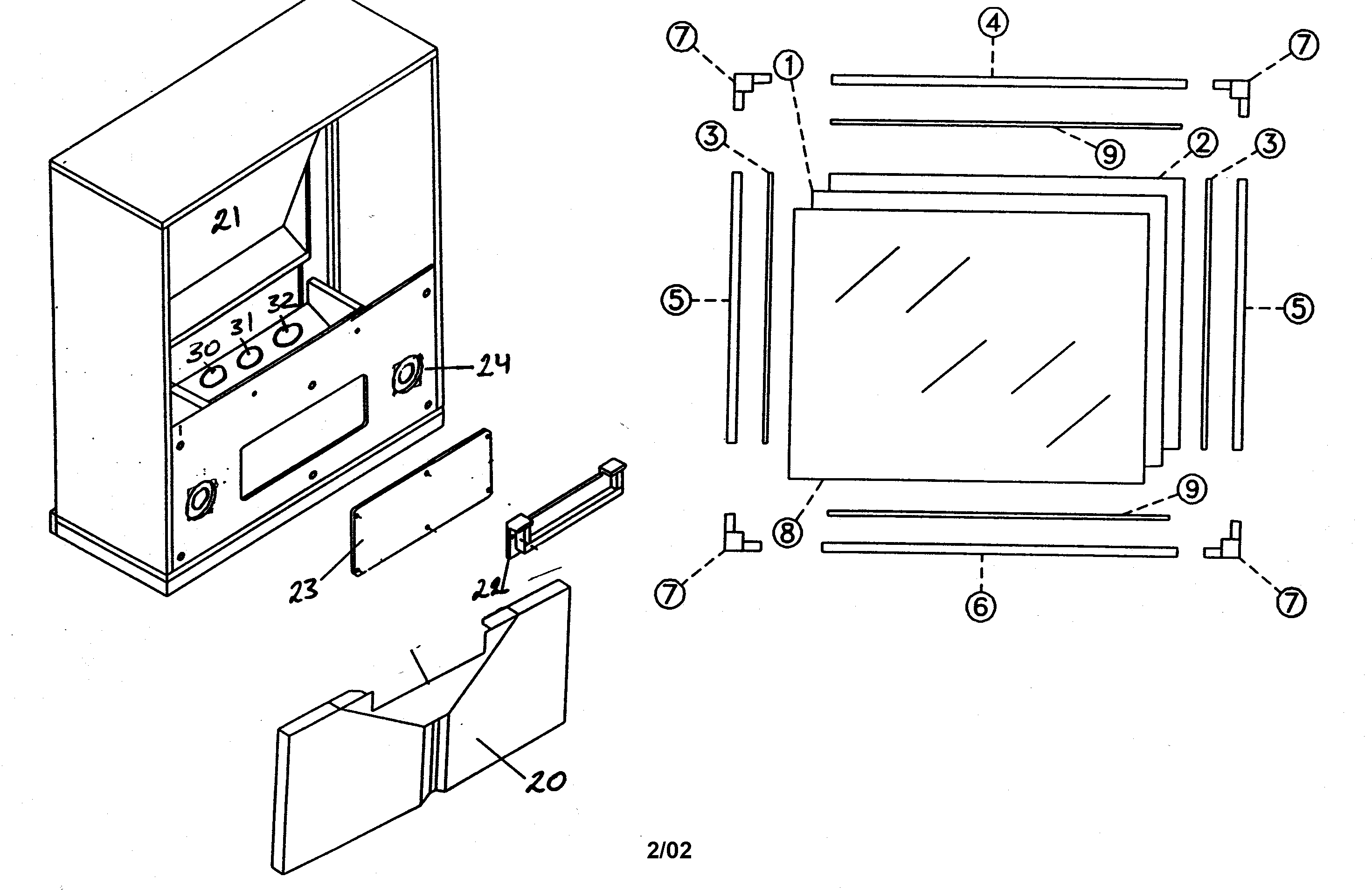

Cabinet parts Diagram

Ic-se110n

Part #267P062050

The manufacturer no longer makes this part, and there's no substitute part

1m 1/2w J#NI

Cabinet parts Diagram

1m 1/2w j

Part #109C010010

The manufacturer no longer makes this part, and there's no substitute part

IC7G01,IC MB40C958VPFV#NI

Cabinet parts Diagram

Ic7g01,ic mb40c958vpfv

Part #275P247010

The manufacturer no longer makes this part, and there's no substitute part

IC2V01,IC C-Z86130#NI

Cabinet parts Diagram

Ic2v01,ic c-z86130

Part #275P362010

The manufacturer no longer makes this part, and there's no substitute part

PCB,PREAMP ASSY#NI

Cabinet parts Diagram

Pcb,preamp assy

Part #935D581001

The manufacturer no longer makes this part, and there's no substitute part

IC2E00,IC CXA2019AQ/T4#NI

Cabinet parts Diagram

Ic2e00,ic cxa2019aq/t4

Part #270P658030

The manufacturer no longer makes this part, and there's no substitute part

IC7G04-5,IC C-MOS#NI

Cabinet parts Diagram

Ic7g04-5,ic c-mos

Part #275P534010

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Cabinet parts Diagram

Resistor

Part #103P461030

The manufacturer no longer makes this part, and there's no substitute part

LENS BARREL,BLUE#NI

Cabinet parts Diagram

Lens barrel,blue

Part #490P174090

The manufacturer no longer makes this part, and there's no substitute part

Cathode Ray Tube#31

Cabinet parts Diagram

Cathode ray tube

Part #251C213080

The manufacturer no longer makes this part, and there's no substitute part
