Model # DC845KA TYPE 3 Official DeWalt cordless drill/driver

Here are the diagrams and repair parts for Official DeWalt DC845KA-TYPE-3 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Nameplate N124285
#20

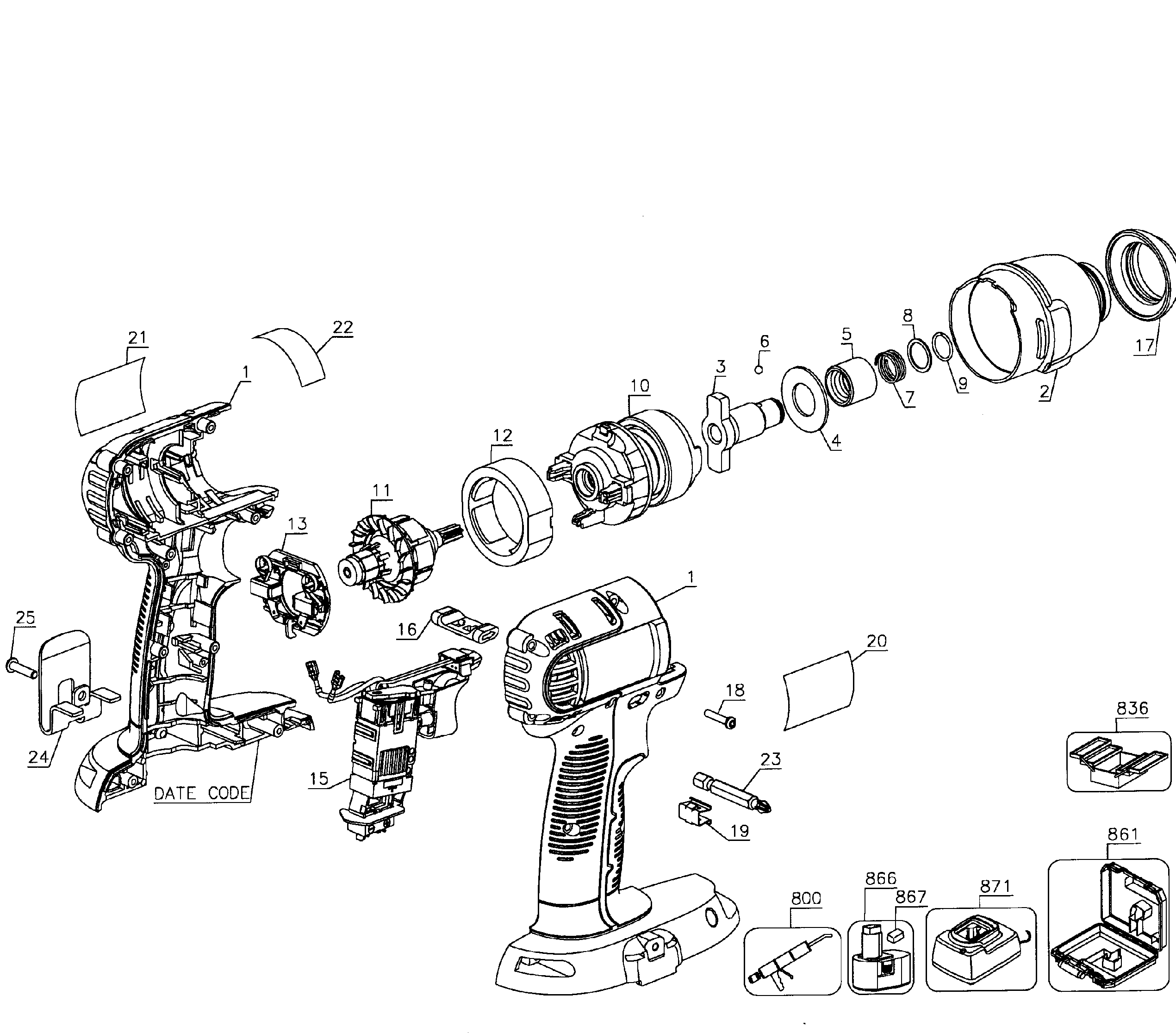

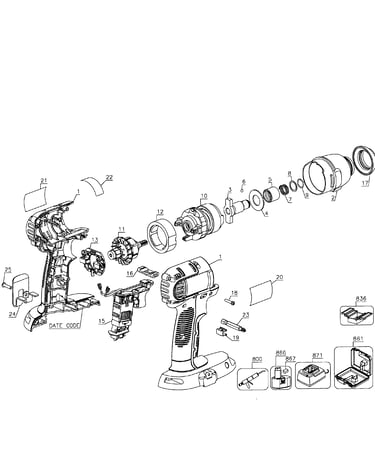

Drill cordless diagram

Nameplate

Part #N124285

The manufacturer no longer makes this part, and there's no substitute part

Mechanism N118244SV
#10

Drill cordless diagram

Mechanism

Part #N118244SV

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Belt Clip 659916-00SV
#24

Drill cordless diagram

Power tool belt clip

Part #659916-00SV

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 610298-00
#9A

Drill cordless diagram

Retaining ring

Part #610298-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Battery Charger 388683-12
#871

Drill cordless diagram

Drill battery charger

Part #388683-12

The manufacturer no longer makes this part, and there's no substitute part

Variable-speed Switch N019949
#15

Drill cordless diagram

Variable-speed switch

Part #N019949

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Washer N016823
#8

Drill cordless diagram

Drill/driver washer

Part #N016823

The manufacturer no longer makes this part, and there's no substitute part

Ident. Lab 646763-00
#21

Drill cordless diagram

Ident. lab

Part #646763-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly N093746
#13

Drill cordless diagram

Brush assembly

Part #N093746

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 658395-01
#1

Drill cordless diagram

Clamshell

Part #658395-01

The manufacturer no longer makes this part, and there's no substitute part
